InJet ® 388 TWIN CRD TECHNICAL DATA SHEET 4 www.dct.cleaning TECHNICAL PARAMETERS DIMENSIONS MINIMUM SERVICE SPACE AROUND THE MACHINE 1830 mm 72 in 2500 mm 98.4 in 1200 mm 47.2 in 2150 mm 84.6 in 600 mm 23.6 in 600 mm 23…

100%1 / 8
InJet
®
388 TWIN CRD
TECHNICAL DATA SHEET
3
www.dct.cleaning
C
R
C
CLEANING
RINSING
DRYING
R
D
Application
name
Recommended
application
Recommended
temperature
Total cleaning
process time
Capacity
per 8 hours
Stencil, misprint, squeegee
20 – 40°C 68 – 104 °F 18 min. 48
PumPrint
40 – 55°C 104 – 131 °F 18 min. 48
PCB
35 – 55°C 95 – 131 °F 30 min. 768 *
3 INDIVIDUAL PROCESSES
CLEANING PARAMETRES
highly recommended recommended applicable
* PCB eurocards / per 8 hours (calculated for dimension of 100 x 160 mm / 3.94 x 6.3 in)
* * Parts in soldering palette / per 8 hours (320 x 500 x 50 mm / 12,6 x 19,7 x 1,97 in)
* * * Stencils, pumpprints larger than 736 x 736 mm / 29 x 29 in
LEGEND:
InJet
®
388 TWIN CRD
TECHNICAL DATA SHEET
4
www.dct.cleaning
TECHNICAL PARAMETERS
DIMENSIONS
MINIMUM SERVICE SPACE
AROUND THE MACHINE
1830 mm
72 in
2500 mm
98.4 in
1200 mm
47.2 in
2150 mm
84.6 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
open door
450 mm
17.7 in
open door
450 mm
17.7 in
Dimensions (w x l x h) 1200 x 2500 x 2150* mm 47.2 x 98.4 x 84,6* in
Weight 750 kg 1653 lbs
Ø energy consumption per cycle 1,54 kWh 1.54 kWh
Cleaning and rinsing  uid consumption
per cycle
0,05 – 0,3 l 0.01 – 0.08 gal
Compressed air consumption per cycle 1 l / 5 Bar 0.26 gal / 72.5 PSI
Max. dimensions of the cleaned parts 100 x 810 x 740 mm 3.93 x 31.89 x 29.13 in
Exchangeable mechanical  lter
of cleaning and rinsing  uid
5 – 200 μm 5 – 200 μm
Operating pressures
cleaning: 1,5 – 2,8 Bar,
rinsing 1: 0,1 – 2 Bar
cleaning: 27.76 – 40.61 PSI,
rinsing: 4.35 – 21.76 PSI
Cleaning  uid  ow rate 200 l / min 52.8 gal / min
Temperature range setting of
the cleaning and rinsing  uid
From ambient temperature to 60°C From ambient temperature to 140°F
Conductivity range settings of
the rinsing  uid in the tanks.
0 – 2000 μS/cm * optional 0 – 2000 μS/cm * optional
Temperature range setting of the drying From ambient temperature to 80°C From ambient temperature to 176°F
Noise level < 70 dB < 70 dB
Device control PLC + 8,4“ touchscreen PLC + 8.4“ touchscreen
Volume of the storage tanks 80 l 21 gal
* Maximum dimension in operating condition
metric units imperial units
InJet
®
388 TWIN CRD
TECHNICAL DATA SHEET
5
www.dct.cleaning

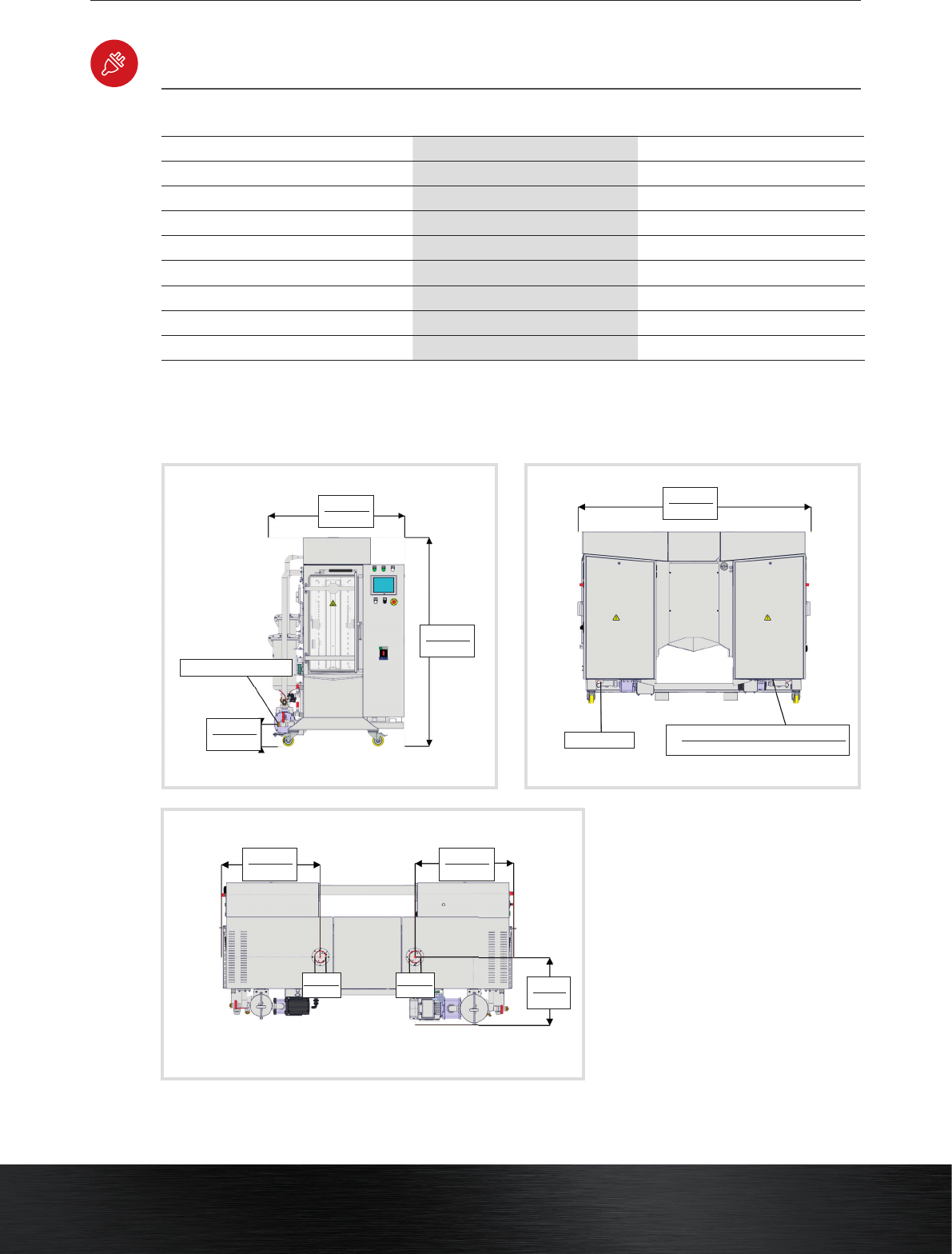

INSTALLATION REQUIREMENTS
FRONT
VIEW
TOP
VIEW
RIGHT
VIEW
1200 mm
47.2 in
2500 mm
98.4 in
1830 mm
72 in
discharge of the fluids
input el. power
input air pressure Ø 10 mm, Ø 6 mm
input air pressure ID 0.39 in, ID 0.24 in
825 mm
32.5 in
825 mm
32.5 in
570 mm
22.4 in
Ø 100 mm
ID 3.94 in
Ø 100 mm
ID 3.94 in
195 mm
7.68 in
Power supply 400V, 32A, 50Hz (3+N+PE) UL 400V, 32A, 60Hz* (3+N+PE)
Pmax 16 kW 16 kW
Compressed air connection Pipe Ø 6 mm and Ø 10 mm Pipe ID 0.24 in and ID 0.39 in
Recommended working pressure 4,5 – 6 Bar 65.25 – 87 PSI
Compressed air quality 3. Class ** 3. Class **
Exhaust pipe diameter 2 x Ø 100 mm 2 x ID 3.94 in
Exhaust pipe capacity 580 m
3
/h 20450 ft
3
/h
Minimum liquid for  rst run 2 x 75 l 2 x 19.8 gal
Service space required around the device 600 mm 23.6 in
* When using frequency convertor
** According to the norm ISO 8573-1
metric units imperial units
