Dryers Convection |IR Controlled Atmosphere Furnace Typical specifications represent common configurations, all furnaces are fully customizable Standard Features • 1180°C maximum temperature rating • Air/Nitrogen/Hydrogen …
BTU’s experienced team of engineers employs the latest technology
in system design including CAD, Finite Element Analysis, and Compu-
tational Fluid Dynamics. These advanced techniques accelerate the
development process while reducing errors and variation in design. In
partnership with customers, these tools can be used to analyze and solve
the most complex thermal processing challenges resulting in the world’s
best performing continuous furnaces.
Temperature Control
BTU’s muffle furnaces maintain temperature uniformity by utilizing
automated thermal controls and segmented programmed and con-
trolled by the WINCON
™
system software.
• Equipped with top and bottom heaters (side heaters optional)
• ±2°C across belt uniformity typical
BTU Technology
PROCESS CHAMBER CROSS-SECTION
belt
heaters
LEFT CENTER RIGHT
LEFT CENTER RIGHT
insulation
product
Atmosphere Control
Advanced Analytical/Modeling Capabilities
The Controlled Atmosphere Furnace from BTU features precise at-
mosphere controls to monitor critical parameters within the process
chamber. The gas control panel is designed to operate in a safe/ failsafe
manner while minimizing operator intervention.
• Achieves O
2
and moisture levels of <2ppm and H
2
purity of 95%
• Optional gas barriers provide isolation of gases for maximum atmo-
sphere control
• Monitoring devices for ow and pressure confirm adequate gas supply
• Gas safety system monitors ignitors to ensure spent process gas is
combusted prior to entering the atmosphere (Hydrogen or reducing
atmosphere)
HEAT/GAS
BARRIER
belt
N
2
N
2
Applications Support/Process Development
BTU International has advanced process applications labs in both the
USA and China. Staffed by expert process engineers, the labs boast an
impressive array of equipment including a wet lab and metrology. These
labs, near Boston, Massachusetts in the USA, and Shanghai in China, are
available for both demonstration and process development work includ-
ing batch-to-inline conversions.
ENT
nat
nat
980
980
1050
1050
1065
1050
nat
nat
nat
nat
ves
EXIT
ll ED
ED CL
VEST
Z1
Z2
Z3
Z4
Z5
Z6
1178
778
378
-22
Celsius
0530 45 60 75 90 105
Minutes (slope Degrees/Minutes)
Belt Speed 2.0 in/min
Dryers Convection |IR

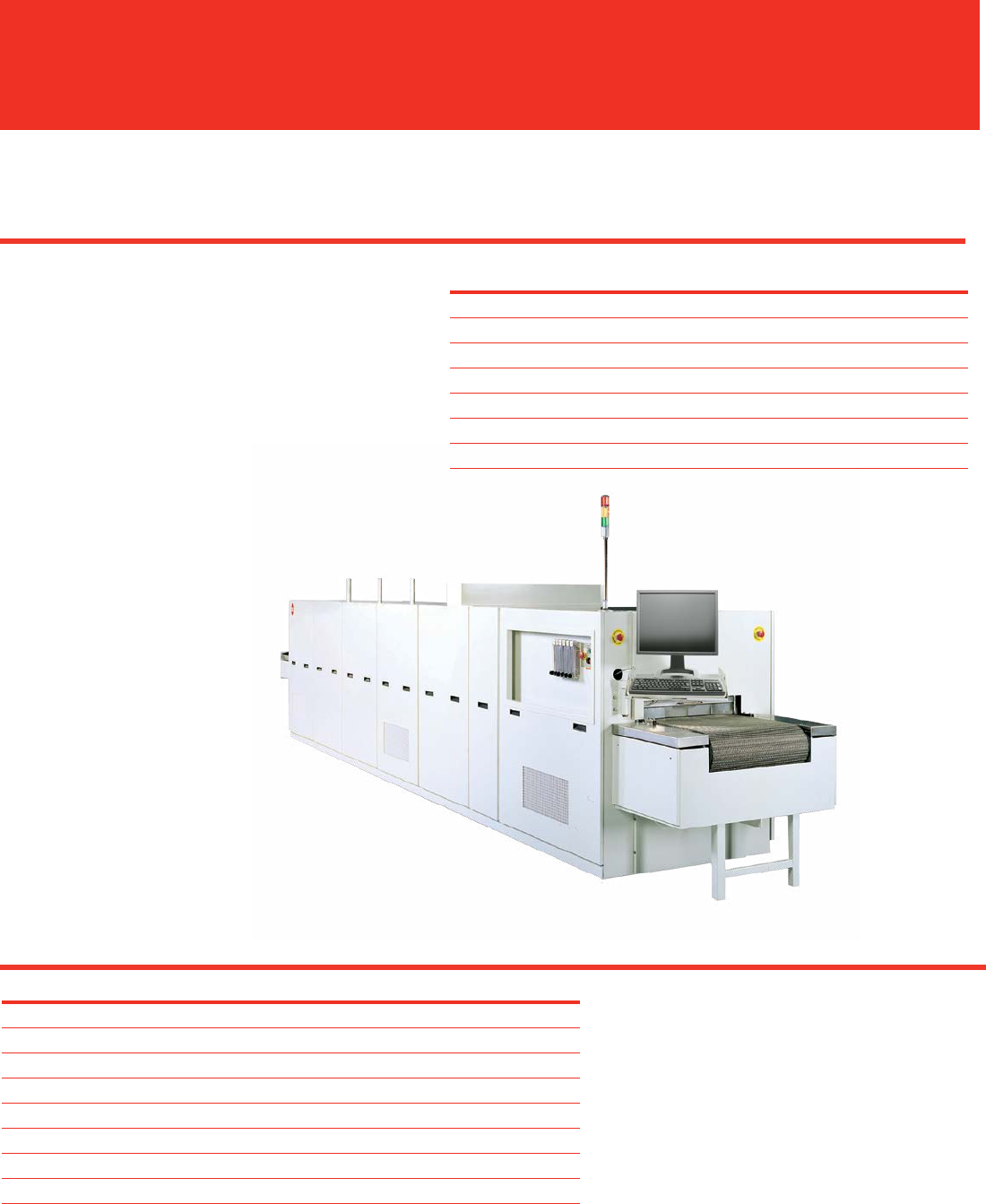

Controlled Atmosphere Furnace
Typical specifications represent common
configurations, all furnaces are fully customizable
Standard Features
• 1180°C maximum
temperature rating
• Air/Nitrogen/Hydrogen
capable
• FEC (fully enclosed coil)
heaters formed into ceramic
insulation panels
• Water cooling
• Gas tight mufe
• Cross belt temperature of
±2°C for belt widths up
to 36 inches
• Independent over tempera-
ture control in each zone
• WINCON Multi-Language
Control Software
• Closed loop belt speed
control
• Atmosphere safety NFPA
86C compliant
Options
• Heat/gas barriers to
isolate gases
• Eductors for heating
or cooling
• Venturi controlled exhaust
stacks
• Atmosphere analyzer and
sample systems
• Gas saturators for dew
point control
• ±1°C across belt uniformity
(pre-test qualification)
Typical Electronic Brazing Glass to Metal Seal
Specification* TCA 6 inch TCA 14 inch
Atmosphere Nitrogen or Hydrogen Nitrogen or Hydrogen
Atmosphere purity** 2 ppm O
2
and moisture 2 ppm O
2
and moisture
Conveyor width 6 in (15 cm) 14 in (36 cm)
Heated length 72 in (183 cm) 120 in (305 cm)
Heated zones 6 10
Conveyor speed 1-6 in/min 1-6 in/min
Cooling length 60 in (152 cm) 84 in (213 cm)
* All specifications are subject to change without notice. Additional
configurations available to meet your exact process requirements.
**Less than background supply.
Standard Features
• Air cooling
• Closed-loop belt speed control
• Sealing layers
• WINCON Multi-Language Control Software
Options
• Water cooling
• Closed-loop convection control
• Ultrasonic belt cleaner
Typical Specification*
Temperature Rating 400°C
Operating Temperature 100-350°C
Atmosphere Air or Nitrogen
Throughput Scalable
Conveyor Width 9-48 in (230-1220 mm)
Conveyor Type Mesh Belt - Edge or Standoff Support available
Conveyor Speed 5-30 in/min (12.7-76 cm/min)
Available Furnace Length 8-138 ft (2.5-42 m)
* All specifications are subject to change without notice. Additional configurations available to meet your exact process requirements.
Standard Features
• 1180°C maximum
temperature
• Independent over tempera-
ture control for each zone
• Type N thermocouple
standard
• Unlimited recipe storage
and scheduling
• WINCON Multi-Language
Control Software
• Closed-loop belt speed
control
• Active cooling
• Full atmosphere distribution
across belt
• Voltage 208-240 VAC
other voltage configurations
available
Fast Fire Furnace
Typical Specification* Fast Fire 9 inch Fast Fire 14 inch Fast Fire 25 inch
Atmosphere Air Air Air
Conveyor speed 1-6 in/min 1-6 in/min 1-6 in/min
Conveyor width 9 in (23 cm) 14 in (36 cm) 15 in (64 cm)
Heated length 90 in (229 cm) 126 in (320 cm) 126 in (320 cm)
Heated zones 8 7 7
Cooling length 24 in (61 cm) 48 in (122 cm) 48 in (122 cm)
* All specifications are subject to change without notice. Additional configurations available to meet your exact process requirements.
Options
• Air purification/drying
• KBP (Platinel ll) thermocouples
• Ultrasonic belt cleaner
• Water cooling
• N2 atmosphere
• ±1°C across belt uniformity setup and test
• Thermostatic water cooling temperature control
• 480 volt operation
Pusher Furnace
Standard Features
• Custom zone configuration
• Alumina hearth plates (heating)
• WINCON control system
• Over temperature protection
• Drive speed control
• Electronic shear pin
• Jam detection
• Ball-screw drive
Options
• Gas analyzers
• Hygrometer
• Gas sampling
• Gas saturators
• Flame curtains
• Purge chambers
• Debinder furnace
• Shadow walls
• Eductor convection
heating
• Eductor convection
cooling
• PLC control system
• Spare parts kit
• Mullite hearth plates for
thermal shock resistance
(cooling)
Heater Type Molybdenum Ribbon Molydisilicide Silicon Carbide
Atmosphere Hydrogen Air Air
Max. Operating Temp. 1800°C 1700°C 1550°C
Process Chamber Liner AlO3 AlO3 AlO3
Applications Multi-Layer Ceramics, Nuclear Fuel Fuel Cells, Membrane Fuel Cells, Battery
Processes High Temperature Reduction Ultra-pure Applications General Firing
* All specifications are subject to change without notice. Additional configurations available to meet your exact process requirements.
