Standard Features
• 1180°C maximum
temperature
• Independent over tempera-
ture control for each zone
• Type N thermocouple
standard
• Unlimited recipe storage
and scheduling
• WINCON Multi-Language
Control Software
• Closed-loop belt speed
control
• Active cooling
• Full atmosphere distribution
across belt
• Voltage 208-240 VAC
other voltage configurations
available

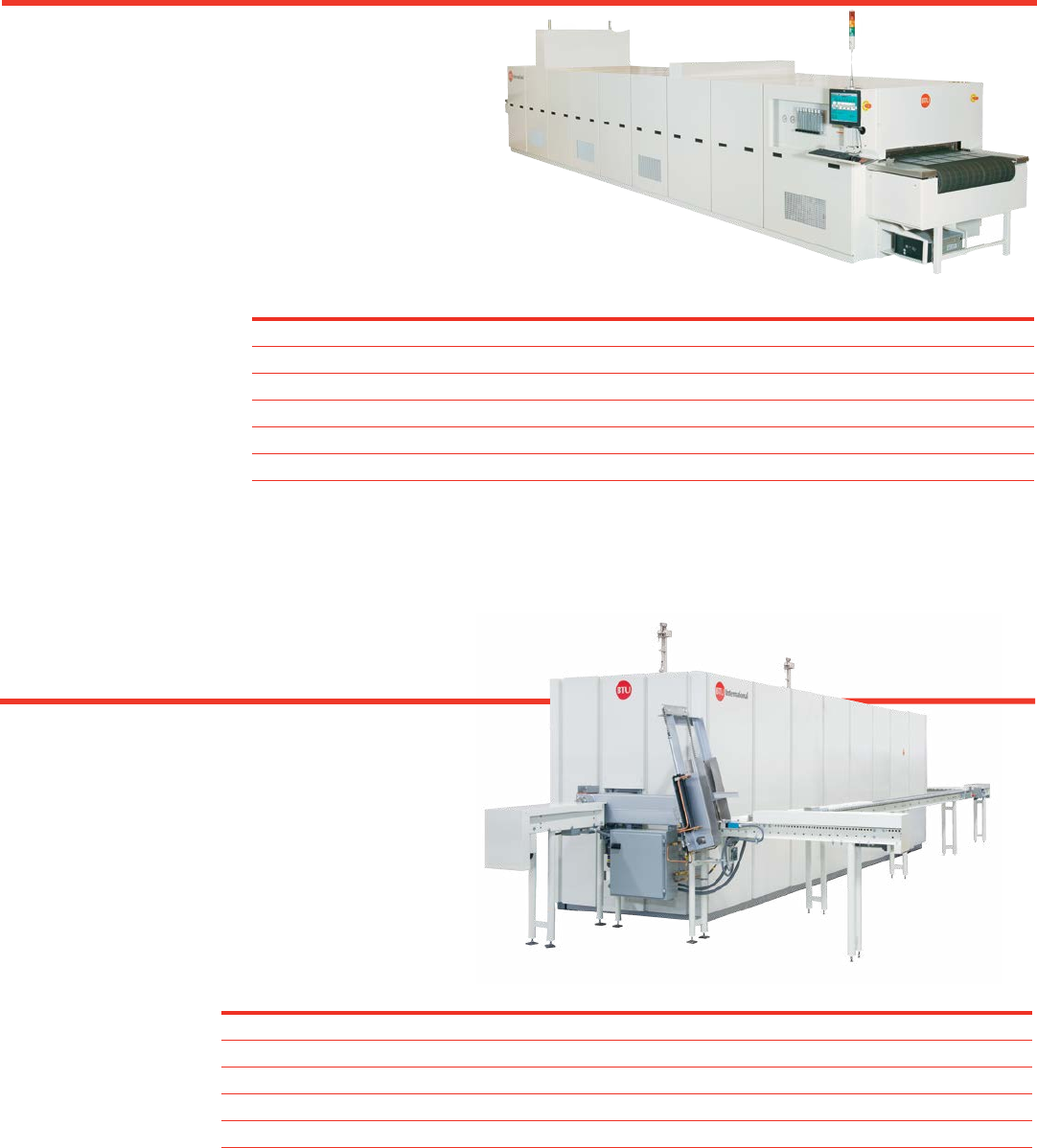

Fast Fire Furnace
Typical Specification* Fast Fire 9 inch Fast Fire 14 inch Fast Fire 25 inch
Atmosphere Air Air Air
Conveyor speed 1-6 in/min 1-6 in/min 1-6 in/min
Conveyor width 9 in (23 cm) 14 in (36 cm) 15 in (64 cm)
Heated length 90 in (229 cm) 126 in (320 cm) 126 in (320 cm)
Heated zones 8 7 7
Cooling length 24 in (61 cm) 48 in (122 cm) 48 in (122 cm)
* All specifications are subject to change without notice. Additional configurations available to meet your exact process requirements.
Options
• Air purification/drying
• KBP (Platinel ll) thermocouples
• Ultrasonic belt cleaner
• Water cooling
• N2 atmosphere
• ±1°C across belt uniformity setup and test
• Thermostatic water cooling temperature control
• 480 volt operation
Pusher Furnace
Standard Features
• Custom zone configuration
• Alumina hearth plates (heating)
• WINCON control system
• Over temperature protection
• Drive speed control
• Electronic shear pin
• Jam detection
• Ball-screw drive
Options
• Gas analyzers
• Hygrometer
• Gas sampling
• Gas saturators
• Flame curtains
• Purge chambers
• Debinder furnace
• Shadow walls
• Eductor convection
heating
• Eductor convection
cooling
• PLC control system
• Spare parts kit
• Mullite hearth plates for
thermal shock resistance
(cooling)
Heater Type Molybdenum Ribbon Molydisilicide Silicon Carbide
Atmosphere Hydrogen Air Air
Max. Operating Temp. 1800°C 1700°C 1550°C
Process Chamber Liner AlO3 AlO3 AlO3
Applications Multi-Layer Ceramics, Nuclear Fuel Fuel Cells, Membrane Fuel Cells, Battery
Processes High Temperature Reduction Ultra-pure Applications General Firing
* All specifications are subject to change without notice. Additional configurations available to meet your exact process requirements.
