NETWORKING
CONNECTION TO A NETWORK SERVICE
28.6 Technical Reference Manual Chapter Issue 2, Aug 14
Hardware
Installation
A LAN RJ45 connector is available at the external services rear panel, this
connector provides the interface to the customer’s network. Connecting a
cable to the network is the only hardware installation requirement, however for
some applications it may be necessary to connect other devices eg, a barcode
reader.
Figure 28-3 Network Connection
POWER ON
PART No. 160740
M/C AVAILABLE
BOARD AVAILABLE
BOARD PASS
DOW
NLINE
BOARD AVAILABLE
BOARD PASS
M/C AVAILABLE
UPLINE
FMI POD
View on Rear of Machine
Host Comms
LAN RJ45
NETWORKING
CONNECTION TO A NETWORK SERVICE
Chapter Issue 2, Aug 14 Technical Reference Manual 28.7
8 Way RJ45
Connector
Internally the LAN RJ45 connection is routed to 3SK02 (card slot ISA 3) of the
PC enclosure rear panel. The connections (to connector A) are shown below:
NOTE
The connection above is wired as ASM would recommend. It is possible that a
customer network connection may differ from the one shown, if a problem
exists in installation the connection at the customer network end of the cable
may need to be configured accordingly.
IP Address Configuration
To set the IP Address, use the following procedure:
1. On the Windows desktop, right mouse click the My Network Places icon
and select Properties.
2. Right mouse click Local Area Connection and select Properties.
3. Highlight Internet Protocol (TCP/IP) and select the Properties button.
4. Select the Obtain an IP address automatically radio button if the server
supports this capability. Go to Step 6.
5. Select the Use the following IP address: radio button and enter the
details supplied by the network administrator.
6. Select OK - OK and close the Networks Connections window.
Pin No. Signal Pin No. Signal
1
+ve Transmit
5
Not Used
2
-ve Transmit
6
-ve Receive
3
+ve Receive
7
Not Used
4
Not Used
8
Not Used
BN
BN
W/
BN
W/
BN
O
O
W/
O
W/
O
G
G
W/
G
W/
G
BL
BL
W/
BL
Pin 1
Connector A (pin view)
Connector B (pin view)

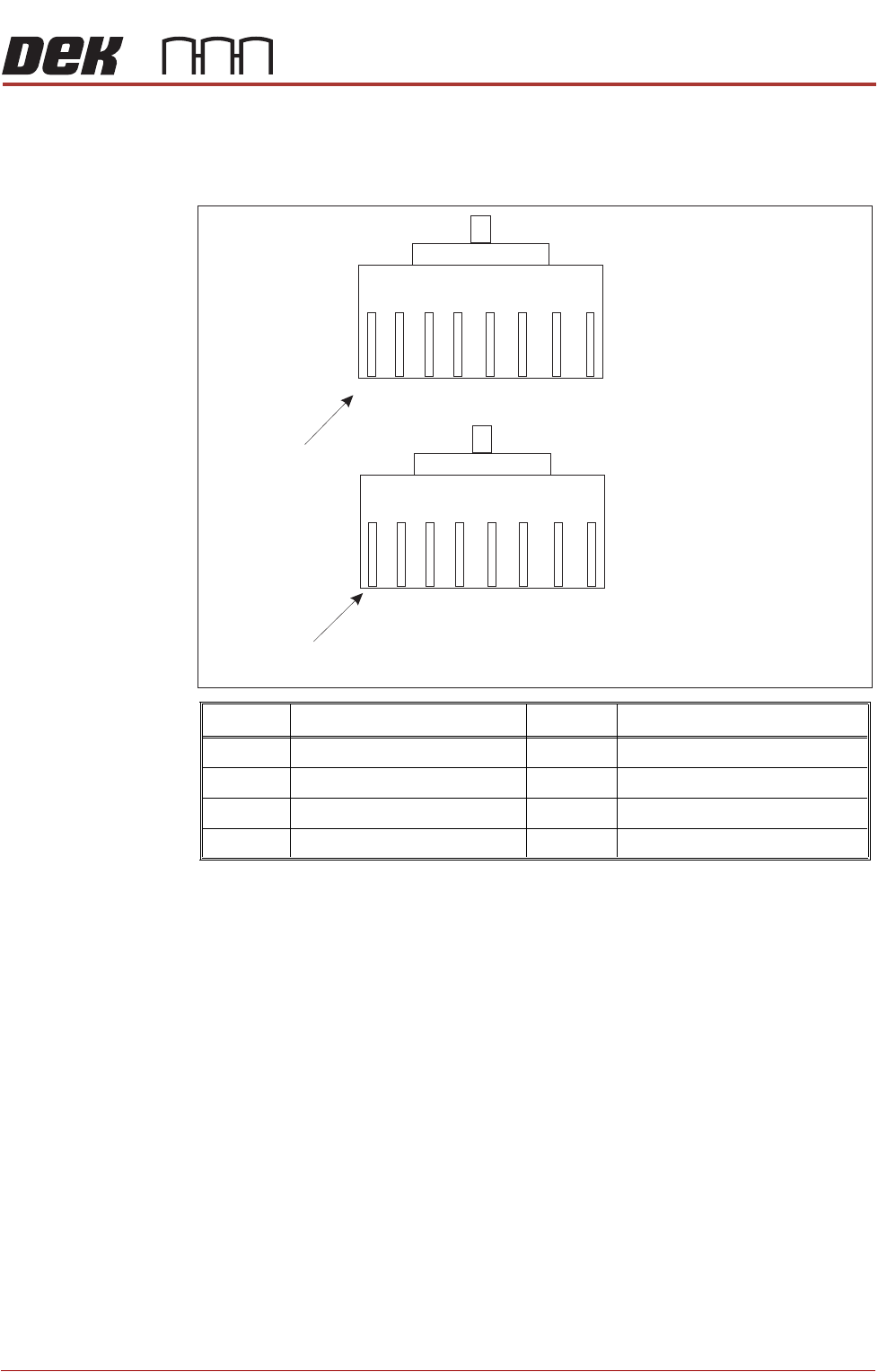

Connection Diagram for Reverse RJ45 Cable
Pin 1
W/
BL
NETWORKING
CONNECTION TO A NETWORK SERVICE
28.8 Technical Reference Manual Chapter Issue 2, Aug 14
7. If any changes were made, the machine needs to be rebooted before the
changes take effect.
NOTE
The network administrator should be instructed to create two working
directories for the product and data fields to be stored. These directories
must have read/write capabilities.
Selecting and
Editing Comms
Protocol Options
To select a Comms Protocol option carry out the following:
1. Select Maintenance.
2. Select Machine Setup.
3. Select Network.
4. Select Comms Protocol.
5. From the Comms Protocol window, select one of the following protocol
options:
• No Comms
•GEM
• Net File
6. Select Accept.
7. If Net File has been selected, the following parameters can be accessed
and edited:
• Machine Location
• Local Copies
• Product Directory
• Data Directory
• Remote Product Path
• Remote Data Path
NOTE
The Net File option may display a further window requesting the Network
Password.
8. If GEM has been selected, the following parameters can be accessed and
edited:
• Machine Location
• Product Directory
• Data Directory
9. Select Enable Comms, once the parameters are setup for the appropriate
protocol.
10. Select Back.
11. Select Back.
12. Select Back.
IP Address (GEM
Only)
The GEM - IP Address for the machine must be set up in the DekSECSII.cfg
file, this can be checked and edited if necessary in the configuration file
D:\Program Files\DEK\Machine Control\Printer\DekSECSII.cfg.
