1-A T/F;10 4mm;継目検出;深さ21mm;タイプA Tape Feeder; 104 mm; depth 21mm; Splice sens; Ty pe A パーツレイアウト Kit No. キット品 番 Kit N am e キット名称 KXFW 1L11A00 ｾｸｼｮﾝN o. PARTS LAYOUT Section No. - - M1 ( KKXFW1L11A00-34-1 )

100%1 / 170
Kit Name
RankQ'ty
番号
Part No.
キット名
品番 数量 ﾗﾝｸ
頁
PageNo.
1
インテリジェントテープフィーダ
Intelligent Tape Feeder
キットリスト
Model No.
製品品番
Model Name
製品名称
KXF-INTF
KIT LIST
1
1
KXFW1L11A00
Tape Feeder; 104 mm; depth 21mm; Splice sens;
Type A
T/F;104mm;継目検出;深さ21mm;タイプA
M1
U2
--
( KINTFM-02-10 )
1-A
T/F;104mm;継目検出;深さ21mm;タイプA
Tape Feeder; 104 mm; depth 21mm; Splice sens; Type A

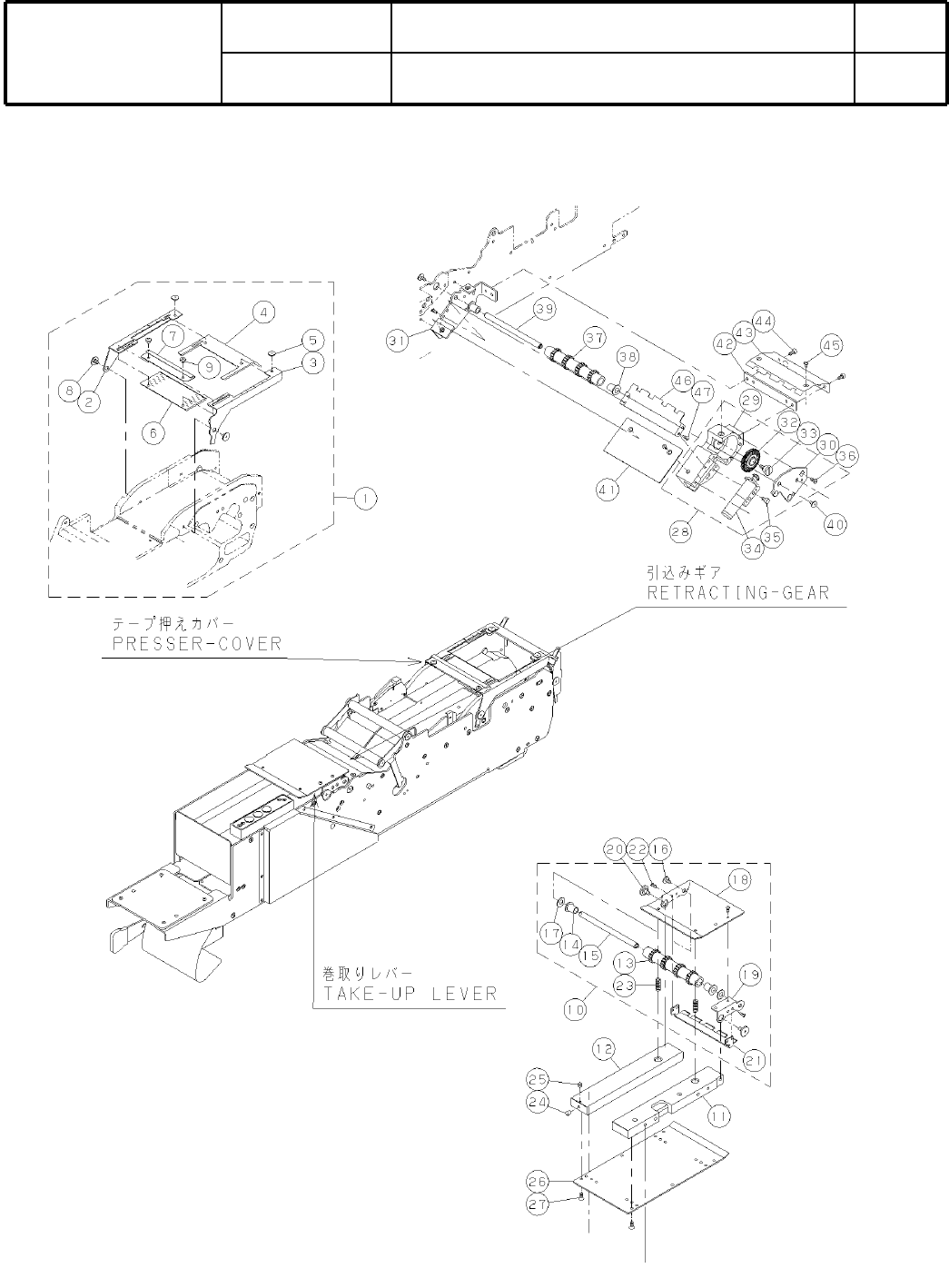

パーツレイアウト
Kit No.
キット品
番
Kit Name
キット名称
KXFW1L11A00
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
M1
( KKXFW1L11A00-34-1 )
Ref
No.
Remarks
R
1
Q'ty
1-A
T/F;104mm;継目検出;深さ21mm;タイプA
Tape Feeder; 104 mm; depth 21mm; Splice sens; Type A
ｲﾗｽﾄ
No.
Part No.
品　　名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
KXFW1L11A00
Part Name
備　　　考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
PRESSER-COVER
1
1 N610002672AB
COVER
1
2 KXFA1PR5B01
COVER
1
3 N210005321AA
GUIDE
1
4 N210005363AB
PIN
2
5 KXFA1PQ5B00
GUIDE
1
6 N210005364AA
GUIDE
1
7 N210005365AA
PIN
2
8 N210001880AA
SCREW
2
9 KXF0DYAJA00 S020659-200(Delivery drawing available)
RETRACTING-LEVER
1
10 N610002674AB
PLATE
1
11 N610002654AA
PLATE
1
12 N610002655AA
GEAR
1
13 N210005358AA
BUSH
2
14 KXF0CWGAA00 80F-0610
PIN
1
15 N210005359AA
PIN
1
16 KXFA1KAAA00
WASHER
2
17 N210005307AA
LEVER
1
18 N210005366AA
LEVER
1
19 KXFA1NSAA00
PIN
2
20 KXFA1KRAA00
COMB
1
21 N210005367AB
SCREW
6
22 XSN25+6VW
Cross recessed Pan head machine screw M2.5X6-A2-70
SPRING
2
23 N210114131AA
MAGNET
1
24 KXF0DYAZA00 NEO33
SCREW
1
25 XXE25C3FP
Hexagon socket set screw Flat point M2.5X3-45H SCHP
GUIDE
1
26 N210005343AA
SCREW
6
27 XSS25+6VW
Cross recessed Countersunk head machine screw M2.5X6-A2-70
RETRACTING-GEAR
1
28 N610066541AC
HOUSING
1
29 N610002658AB
BRACKET R
1
30 N610002659AA
BRACKET L
1
31 N610002660AA
GEAR
1
32 N210050452AA
PIN
1
33 KXFA1L0AA00
RETRACTING-MOTOR
1
34 N510046420AA LA14G-371VJ
BOLT
2
35 N510017337AA
Hexagon socket head cap screw M3X6-10.9 A2J (Trivalent)
SCREW
3
36 XSS3+8VW
Cross recessed Countersunk head machine screw M3X8-A2-70
GEAR
1
37 N210005358AA
BUSH
2
38 KXF0CWGAA00 80F-0610
PIN
1
39 N210005362AA
PIN
2
40 KXFA1KAAA00
GUIDE
1
41 N210005372AA
PLATE
1
42 N210005369AA
COMB
1
43 N210005377AA
BOLT
4
44 N510017337AA
Hexagon socket head cap screw M3X6-10.9 A2J (Trivalent)
SCREW
4
45 XSS25+6VW
Cross recessed Countersunk head machine screw M2.5X6-A2-70
COMB
1
46 N210005368AB
SCREW
4
47 XSN25+6VW
Cross recessed Pan head machine screw M2.5X6-A2-70
M2
--
( KKXFW1L11A00-34-1 )
