Mixer Accessories

2K Products

more info

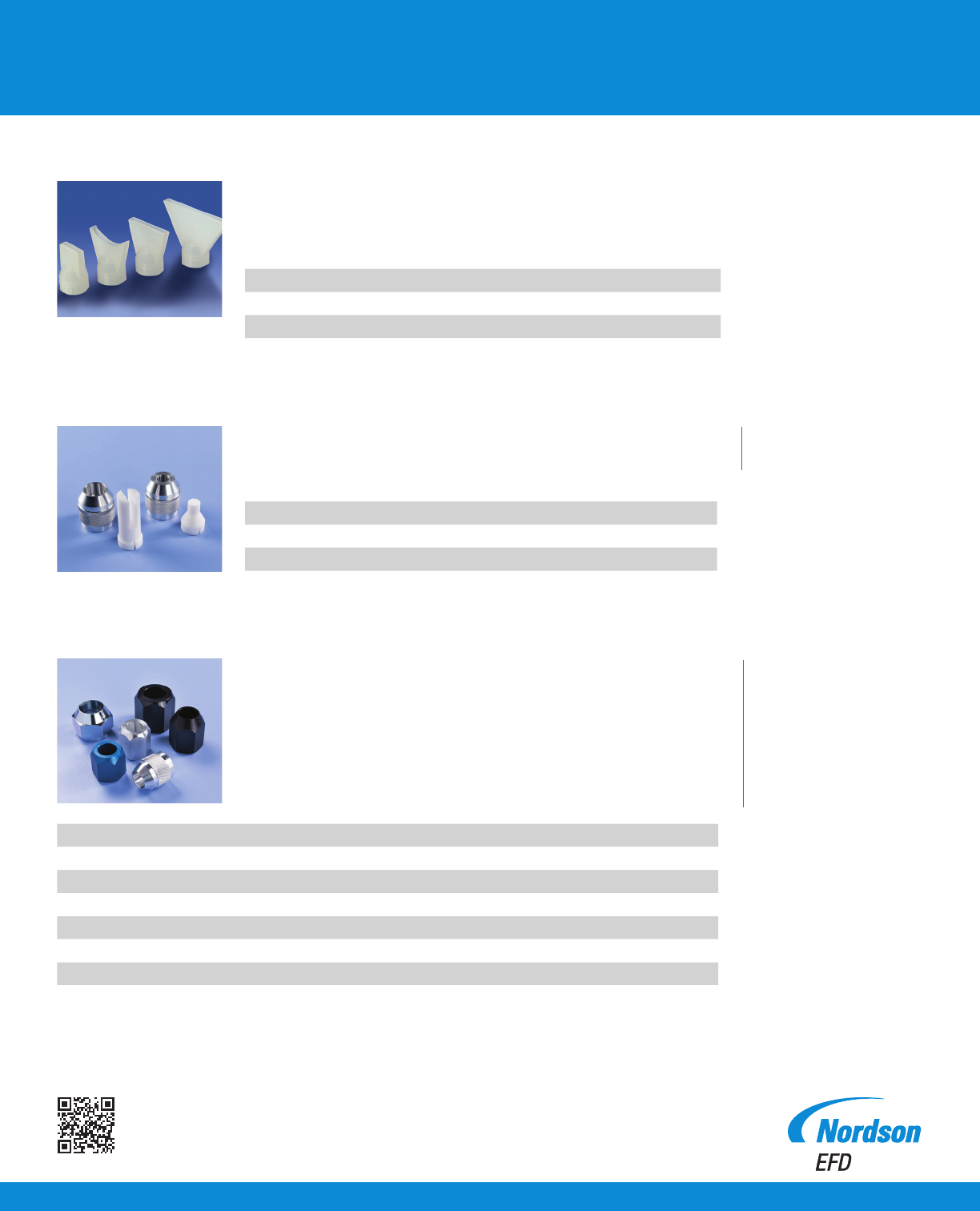

Nordson EFD offers these PTFE Night and Ratio Check Caps with

nuts for use in conjunction with our manifolds and dispensing

valves.

Ratio Check Cap and Night Cap

Part # Description

7701181 PTFE Night Cap & Nut)

7701184 PTFE Ratio Check Cap & Nut

Mixer Applications

• Series 160

Aluminum retaining nuts are available to hold the Series 141,

160, and 442 mixing nozzles onto adapters, manifolds, and

valves and are used when a metal jacket is not required. To

attach a mixer to a manifold, press t the mixer onto the nose

of the manifold, slip the retaining nut over the mixer and hand

tighten the retaining nut to the manifold.

Retaining Nut

Mixer Applications

• Series 141

• Series 160

• Series 162A

• Series 442

Part # Material Thread Mixer

7026515 Carbon Steel 1-5/16 - 12 UNF Series 162A (all)

7701108 Aluminum 1-1/16 - 12 Series 141 (all)

7701110 Aluminum 2K Standard 7/8 - 14 Series 160 with ID 0.189-0.248"

7701113 Aluminum 2K Standard 7/8 - 14 Series 160 with ID 0.314-0.497"

7701115 Aluminum 2K Standard 7/8 - 14 Series 141 & Series 161 (all)

7701116 Aluminum Alternative 7/8 - 9 Series 161 (all)

7701118 Aluminum 2K Standard 7/8 - 14 Series 141 (all)

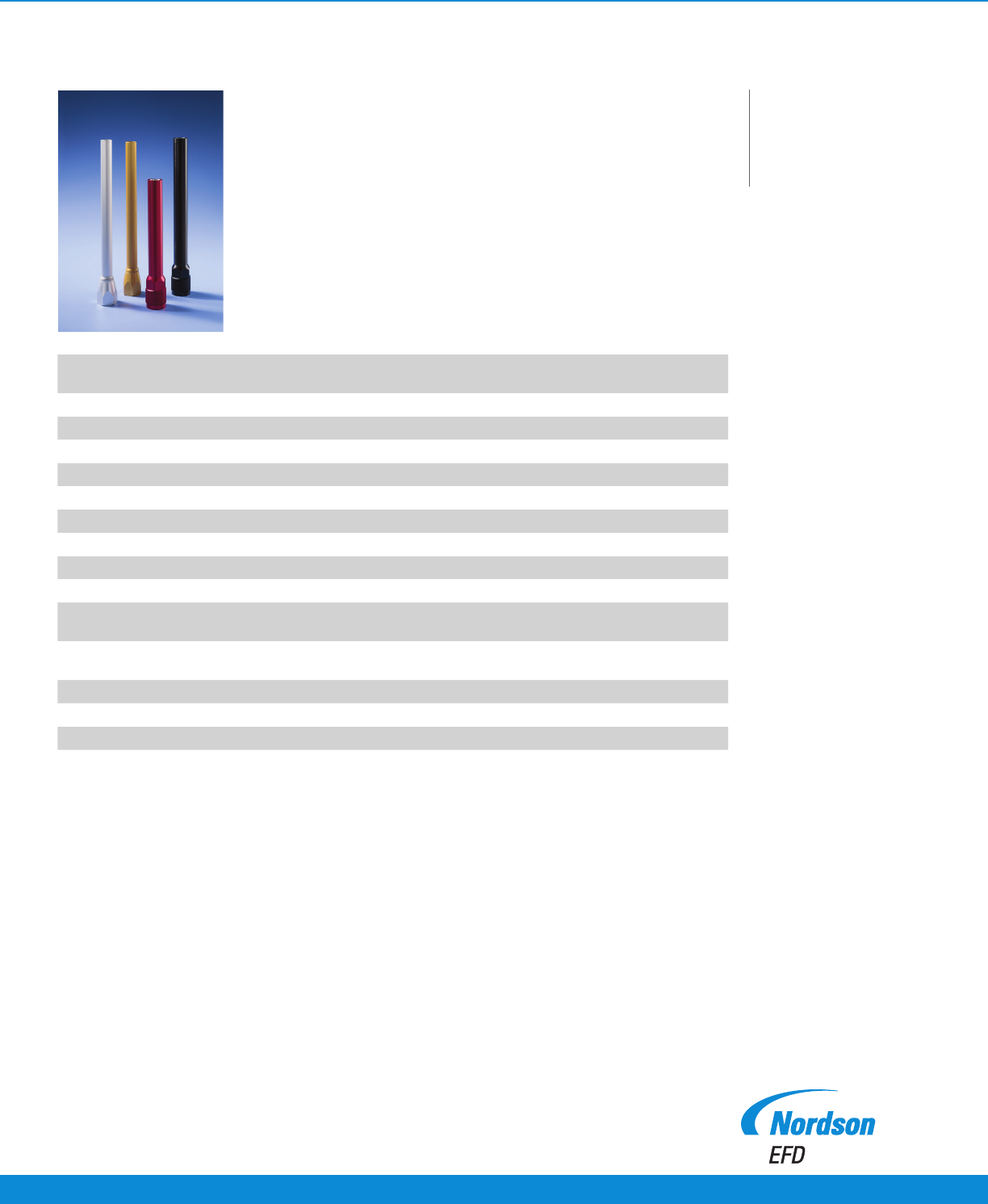

The Series 163A ProTip

™

Mixer Accessory is designed to provide higher speed, increased

control, and an easy and cost-efcient way to apply ribbons when applying two-component

materials. The polyethylene ProTip easily snaps onto 2K’s “A” Series disposable bell housing

mixers including 160A and 162A.

Series 163A ProTip Mixers

Part # Description Width Qty/Bag

7026531 ProTip Mixer Accessory 0.5" 6

7026533 ProTip Mixer Accessory 1.0" 6

Mixer Accessories

2K Products

For medium- and high-pressure systems where pressure inside

the mixer is greater than 10 bar (150 psi), we recommend that

a metal jacket be used over the mixing nozzle. Nordson EFD

offers a range of low-cost, one-piece jackets. Select Robotic

version where repeat positioning is required.

All EFD manifolds and valves have our standard 7/8 - 14 thread.

We also offer several jackets in both standard and an alternative

7/8 - 9 thread for your convenience.

We also offer jackets for the 162A Series which have a 1 5/16-12

thread.

One-Piece Metal Jackets

Part # Material Thread Mixer

Part #

Mixer

7701124 Aluminum, Robotic 2K Standard 7/8 - 14 7700837 Series 160

7701140 Aluminum 2K Standard 7/8 - 14 7700819 Series 160

7701143 Aluminum 2K Standard 7/8 - 14 7700856 Series 160

7701163 Aluminum Alternative 7/8 - 9 7013510 Series 160

7701165 Aluminum, Robotic 2K Standard 7/8 - 14 7700904 Series 160

7701167 Aluminum 2K Standard 7/8 - 14 7700904 Series 160

7701170 Aluminum, Robotic 2K Standard 7/8 - 14 7700927 Series 160

7701171 Aluminum 2K Standard 7/8 - 14 7700927 Series 160

7701174 Aluminum 2K Standard 7/8 - 14 7700932 Series 160

7701203 ACS Nut / SS Jacket 2K Standard 7/8 - 14 7701010,

7701049

Series 160

7701208 Aluminum, Robotic 2K Standard 7/8 - 14 7701010,

7701049

Series 160

7701210 CS Nut / SS Jacket 2K Standard 7/8 - 14 7701028 Series 160

7701226 CS Nut/SS Jacket 1-5/16 - 12 7701059 Series 162A

7701396 Aluminum, Robotic 2K Standard 7/8 - 14 7361695 Series 480

Mixer Applications

• Series 160

• Optimixer Series 480

• Series 162A

2K Products Mixer Accessories

Nordson EFD offers series 100, 160, and 162A mixer nozzles can

be connected to some pre-existing manifolds or valves using

adapters.

Contact Nordson EFD’s Technical Service or Sales Department

for more information on these attachments with regard to your

specic needs.

Mixer Adapters

Mixer Applications

• Series 85

• Series 100

• Series 160

• Series 162A

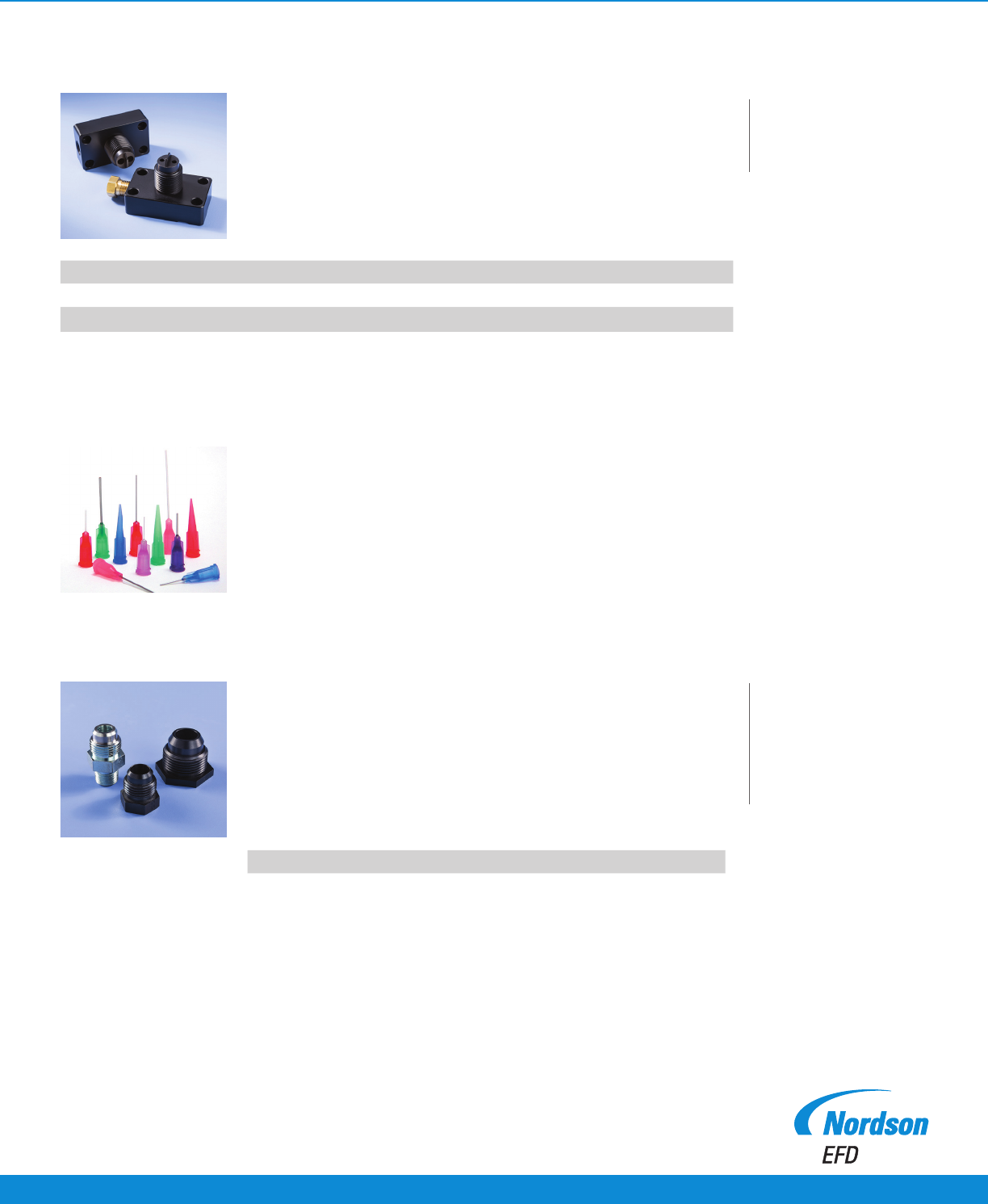

Nordson EFD’s two-component manifolds separately port

the resin and hardener into the mixing nozzle. Cleanup simply

involves wiping the manifold face after the nozzle has been

removed.

To prevent back ow or cross contamination of reactive material,

in-line check valves are available.

Manifolds

Mixer Applications

• Series 160

• Series 162A

Part # Material Inlet Outlet Solvent Ports Mixer

7701323 Aluminum (2) 1/8" FNPT 7/8 - 14 1/4" FNPT Series 160

7701325 Aluminum (2) 1/4" FNPT 7/8 - 14 1/4" FNPT Series 160

7701329 Aluminum (2) 1/2" FNPT 1-5/16 - 12 UN 1/4" FNPT Series 162A

Luer Lok adapters (locking hubs) are used for attaching Optimum

dispensing tips to Series 190 and 160 mixers. If you want to use

a metal jacket with the 3.16” ID or 1/4” ID bell mixers, order the

mixer and the Luer Lok tting as two separate items unassem-

bled: square hub outlet and #700943 Luer Lok tting (bag of 50).

Dispensing Tips for Mixers

Part # Material Inlet

7701254 Carbon Steel 1/4" Male NPT
