4 Co nfi gurat ion Ins tall ation and Con figu rat ion Guid e SI PLA CE Exp lorer 4. 2 C on figur ing th e Fa cto ry Co nfi gu rat ion U t il ity Editi on 05 /2 007 EN 90 4.2. 7 DB Maintena nce Define the mainte nance sc…
Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 05/2007 EN 4.2 Configuring the Factory Configuration Utility
89
4.2.6 SMTP Server
The mail server configuration can be defined here. 4
NOTE
The mail server configuration should only be set by a system administrator as incorrect
configuration can lead to system conflicts. 4
4
Fig. 4 - 46 Factory Configuration Utility - SMTP server
4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.2 Configuring the Factory Configuration Utility Edition 05/2007 EN
90
4.2.7 DB Maintenance
Define the maintenance schedule for the factory database, here. 4
→ Select the DB Maintenance tab.
4
Fig. 4 - 47 Factory Configuration Utility - DB maintenance
→ Before you can enter data you must log yourself in as database administrator. Click on the Edit
button to open the DB Administrator Login dialog box.
Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 05/2007 EN 4.2 Configuring the Factory Configuration Utility
91
4

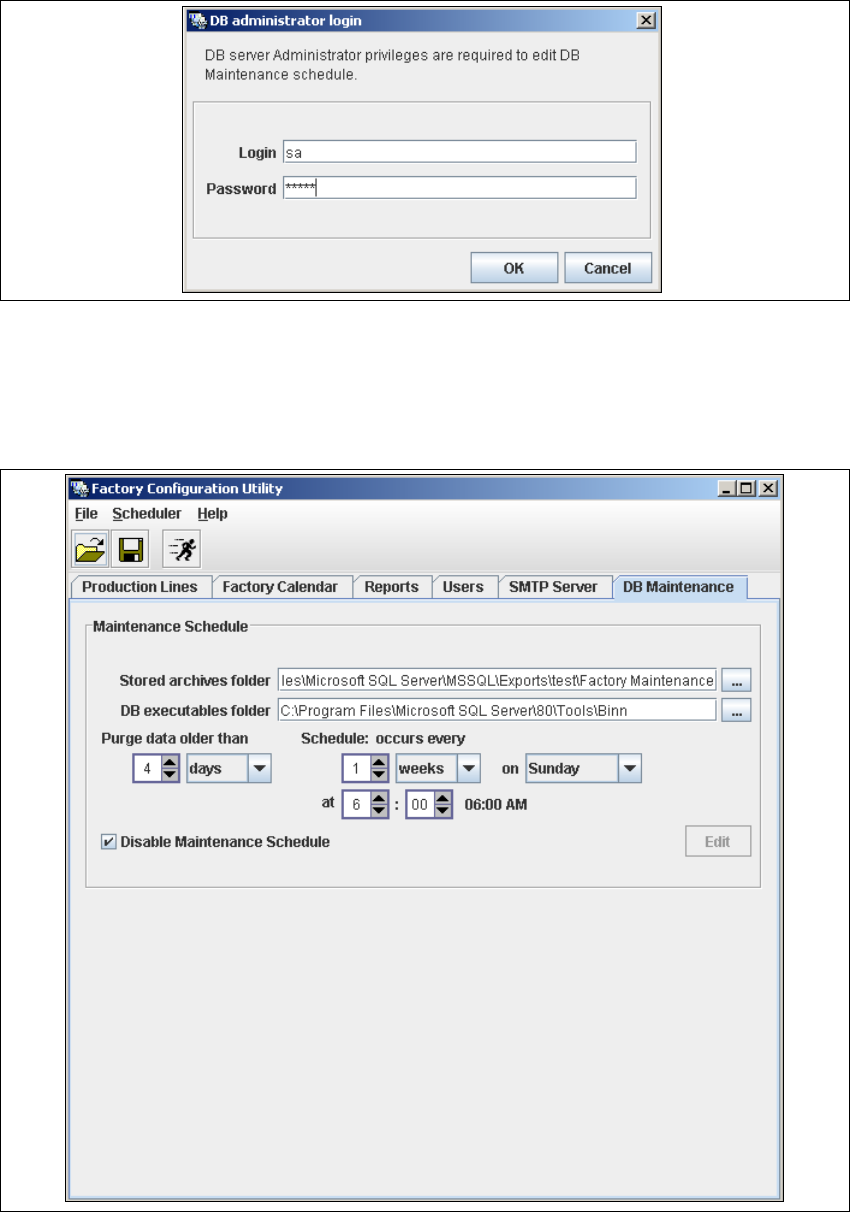

Fig. 4 - 48 DB administrator login
→ Enter the access data here and confirm your entries with OK.
→ In the DB Maintenance dialog box, you can either create a new archiving schedule for the
factory database or edit the default maintenance schedule. The entry fields will be enabled.
4
Fig. 4 - 49 DB maintenance
