電源部(2 ) ELECTRIC POWER SECT.(2 ) 6 FN610024116AB_05-2 E33
PART NAME
REMARKS
Q'TY
6
電源部(1)
ELECTRIC POWER SECT.(1)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610024116AB
POWER SUPPLY UNIT ﾃﾞﾝｹﾞﾝﾕﾆｯﾄ
SD-Q19DC24V S
1
N011
N210SDQ1-390
ELECTROMAGNETIC CONTACTOR ﾃﾞﾝｼﾞｾｯｼｮｸｷ
ZWS240PAF-24/T S
2
N014
N244ZWS2-131
POWER SUPPLY ﾃﾞﾝｹﾞﾝ
ZWS150PAF-24/T S
1
N015
N244ZWS1-133
POWER SUPPLY ﾃﾞﾝｹﾞﾝ
F-7111-1P
2
N017
N326F71111
FUSE-HOLDER ﾋｭｰｽﾞﾎﾙﾀﾞ
SHV14 15A S
2
N018
N230SHV1415A
FUSE ﾋｭｰｽﾞ
G7T-1112S DC24V
1
N021
N210G7T1-135
RELAY ﾘﾚｰ
P7TF-05 S
1
N022
KXFP49DAA00
SOCKET ｿｹｯﾄ
P70D
1
N023
KXFP6EKRA00
INDICATING LAMP ﾋｮｳｼﾞﾄｳ
PFP-M
2
N028
N322PFPM
PLATE ﾌﾟﾚｰﾄ
ST-4HESI, 5X20
3
N033
N322ST4H-892
TERMINAL BLOCK ﾀﾝｼﾀﾞｲ
ET4A S
3
N034
N230ET4A
FUSE ﾋｭｰｽﾞ
E32
FN610024116AB_05-1
電源部(2)
ELECTRIC POWER SECT.(2)
6
FN610024116AB_05-2
E33
PART NAME
REMARKS
Q'TY
6
電源部(2)
ELECTRIC POWER SECT.(2)

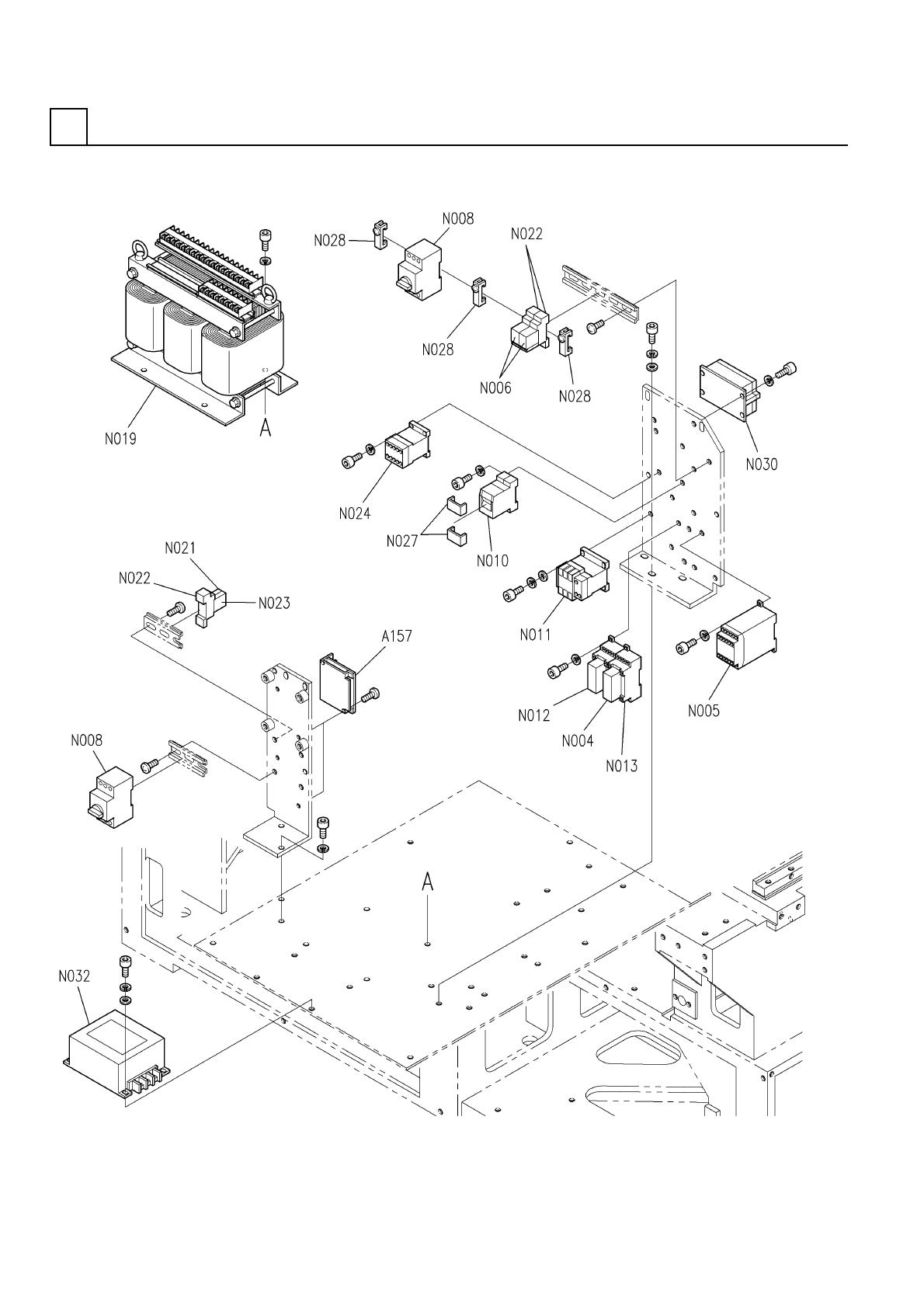

ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
TABLE CONVEYOR DRIVER S
2
A157
N610017086AA
DRIVER ﾄﾞﾗｲﾊﾞｰ
G7SA-2A2B S
1
N004
K6B4EHA00001
RELAY ﾘﾚｰ
G9SA-321-T075 S
1
N005
N210G9SA-328
RELAY UNIT ﾘﾚｰﾕﾆｯﾄ
G3TA-0A202SZ DC24V S
2
N006
N210G3TA-258
RELAY ｿﾘｯﾄﾞｽﾃｰﾄﾘﾚｰ
PKZM0-16 S
2
N008
N235PKZM016
BREAKER ﾌﾞﾚｰｶ
CP30-BA2P1-MD3AN S
1
N010
N510005324AA
CIRCUIT PROTECTOR ｻｰｷｯﾄﾌﾟﾛﾃｸﾀ
SD-Q19DC24V S
1
N011
N210SDQ1-390
ELECTROMAGNETIC CONTACTOR ﾃﾞﾝｼﾞｾｯｼｮｸｷ
G7SA-3A1B S
1
N012
N210G7SA3A1B
RELAY ﾘﾚｰ
P7SA-10F
2
N013
N210P7SA10F
SOCKET ｿｹｯﾄ
NETH3300MUT S
1
N019
N264NETH-100
TRANSFORMER ﾄﾗﾝｽ
G7T-1112S DC24V
1
N021
N210G7T1-135
RELAY ﾘﾚｰ
P7TF-05 S
3
N022
KXFP49DAA00
SOCKET ｿｹｯﾄ
P70D
1
N023
KXFP6EKRA00
INDICATING LAMP ﾋｮｳｼﾞﾄｳ
SD-Q11DC24V S
1
N024
N210SDQ1-388
ELECTROMAGNETIC CONTACTOR ﾃﾞﾝｼﾞｾｯｼｮｸｷ
TC2-CPNP
1
N027
N235TC2CPNP
COVER ｶﾊﾞｰ
PFP-M
3
N028
N322PFPM
PLATE ﾌﾟﾚｰﾄ
3SUP-HU10-ER-6 S
1
N030
KXFP6G0GA00
NOISE FILTER ﾉｲｽﾞﾌｨﾙﾀ
3SUP-HB20-ER-6 S
1
N032
N2633SUP-130
NOISE FILTER ﾉｲｽﾞﾌｨﾙﾀ
E34
FN610024116AB_05-2
