5 Overview of the Technical Data Maximum Values Placement ra te a IPC value Benchmark value Theoretical value a) See page 10 for a definition of the output values. 102,000 comp./h 120,000 comp./h 135,500 co mp./h Compone…

SIPLACE X-Series

Content

01005 Placement 38

Machine Maintenance 39

SIPLACE Software Suite 40

General 40

Overview 41

SIPLACE Station Software 42

General 43

Software Version 705 With SMART GUI 44

SIPLACE Random Setup 45

Maximum Quality in Production 46

SIPLACE Services 47

Training Courses for the SIPLACE X-Series 48

Technical Data 49

SMEMA Interface 49

Connector Assignment 49

Signal Sequence 50

Siemens Signal Interface 51

Connector Assignment 51

Signal Sequence 52

Electrical Ratings and Compressed Air Supply 53

Electrical Connection, Interfaces and Compressed Air Connection 54

Dimensions and Set-Up Conditions 55

Dimensions of the Placement System 56

Placement System’s Center of Gravity 56

Maneuvering Radii for the

Component Changeover Tables 57

Maneuvering Radii for the MTC 58

Spacing Distances for the Single Conveyor 59

Spacing Distances for the Flexible Dual Conveyor 60

Spacing Distances for the Quad Lane 61

Spacing Distances for the Placement Machine With MTC 62

Transport and Delivery Configuration 63

Standard List 64

List of Options 65

List of Languages 67

SIPLACE X-Series Configuration Help 68

SR.705.xx 68

Compare SIPLACE 71

ESD Certificate for the SIPLACE X-Series 72

DIN EN (IEC) 61340-5-1 72

SIPLACE Awards 73

Overview of the Technical Data

Maximum Values

Placement rate

IPC value

Benchmark value

Theoretical value

a) See page 10 for a definition of the output values.

102,000 comp./h

120,000 comp./h

135,500 comp./h

Component range 01005 - 200 x 125 mm²

Placement accuracy

angular accuracy

b) The accuracy value was measured using the vendor-neutral IPC standard.

± 22 µm, ± 0.05° / (3),

± 30 µm, ± 0.07° / (4)

Gantry axes measuring system

X-axis resolution

Y-axis resolution

1 µm

Feeder module types Tape feeder modules, waffle-pack trays, stick

magazine feeders, dip modules, application-

specific OEM feeder modules

Feeding capacity (component changeover

table)

160 8 mm X feeder modules

PCB format (length x width) max. 450 x 535 mm²

PCB thickness 0.3 - 4.5 mm (others available on request)

PCB weight max. 3 kg

Camera 6 illumination levels

SIPLACE X4I

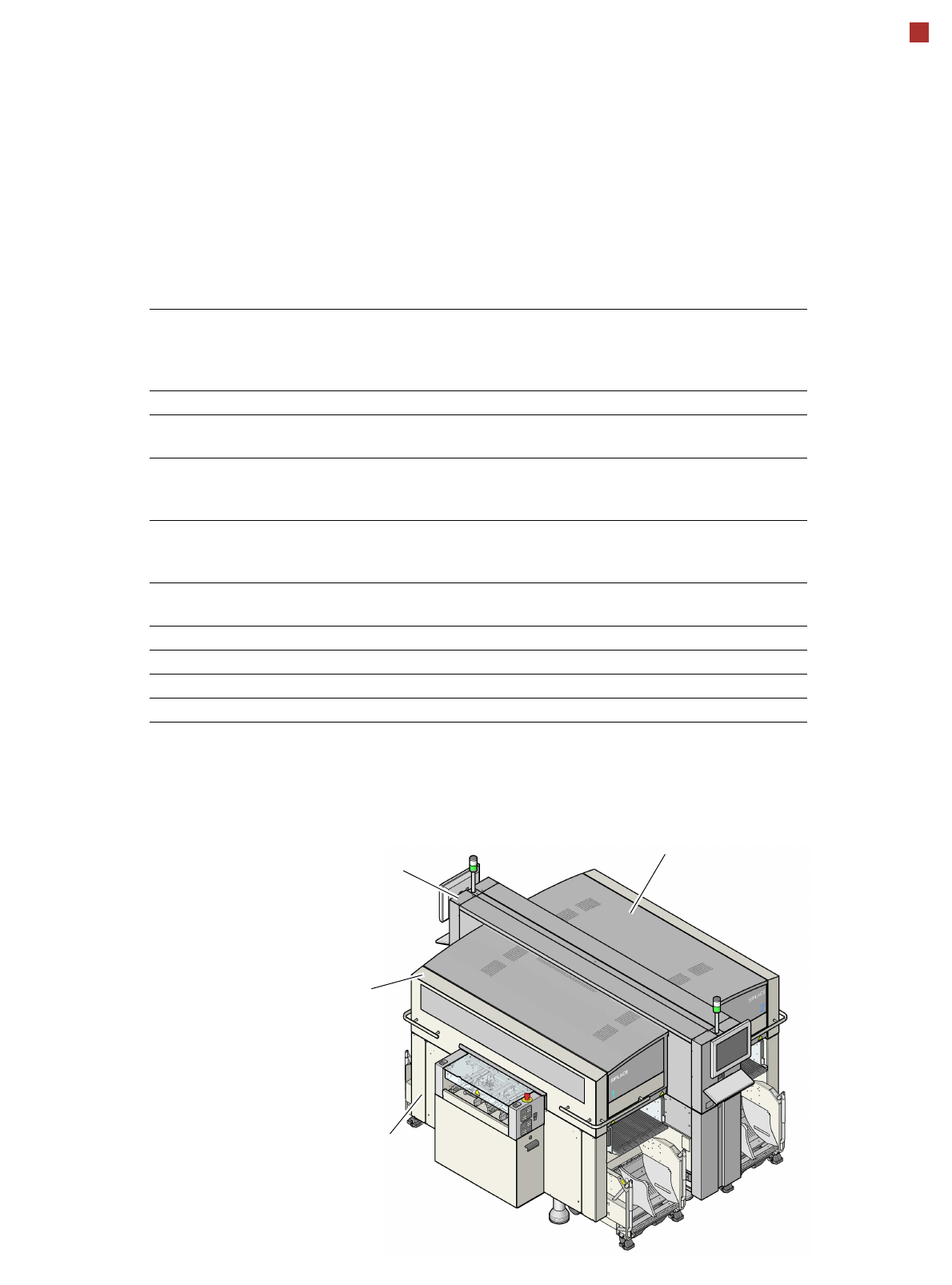

SIPLACE X-Series machine colors

Machine protection: Light Basic Gray

(SIPLACE color code B002)

Pantone solid coated:

Warm Gray 3C

Hoods: Slate Gray, RAL 7015

(SIPLACE color code C002)

Hoods: Light Basic Gray

(SIPLACE color code B002)

Pantone solid coated:

Warm Gray 3C

SIPLACE X4I machine protection:

Slate Gray, RAL 7015,

(SIPLACE color code C002)

Machine Description

Intelligent placement solu-

tions for the most rigorous

demands

If you need maximum flexibil-

ity, output or quality in the

placement process, the

SIPLACE X-series has the

technology you need to meet

any challenge associated

with SMT production.

Maximum modularity for

every need

The platform of the SIPLACE

X-series has a modular

structure, and can be per-

fectly adapted to meet all the

requirements of electronics

production.

Four different variants of the

placement machine are

available:

•SIPLACE X4I

•SIPLACE X4

•SIPLACE X3

•SIPLACE X2

The figures in the type desig-

nations represent the num-

ber of gantries. There is a

placement head on each

gantry. The optimized prop-

erties and broad component

range means that it is no lon-

ger necessary to change the

placement heads. They can

generally be matched to the

customer's requirements. As

well as the flexible SIPLACE

TwinStar for placing com-

plex models, the SIPLACE

X-series is also available

with the high-precision and

extremely fast SIPLACE

SpeedStar - the 20-segment

Collect&Place head. From

software version SR.703

onwards, all SIPLACE X

placement machines can be

equipped with the recently

developed SIPLACE Multi-

Star. The MultiStar - abbrevi-

ated to CPP head - brings

together two opposing prop-

erties: fast processing speed

and flexibility. For size 0201

to 27 x 27 mm² components

it achieves placement rates

of up to 23,500 comp./h. It

also extends the component

range up to a size of 50 x

40 mm². During placement,

the placement heads fetch

the components from the at-

rest component supply, and

set them down on the PCB,

which is also stationary. This

proven SIPLACE principle

guarantees reliable pick-up

of even the smallest compo-

nents, prevents the compo-

nents slipping on the PCB

and minimizes traversing

paths.

The user also has access to

different variants of the PCB

conveyor: the SIPLACE

single conveyor and flexi-

ble SIPLACE dual con-

veyor. The latter offers all

the benefits of the conven-

tional dual conveyor, such as

reducing non-productive

downtimes, combined with

the option of using the single

conveyor.

Quad Lane Conveyor

The quad lane conveyor

allows up to four different

products to be produced on a

line at the same time. It is so

flexible, that it can be config-

ured as a 1-lane, 2-lane or 4-

lane conveyor simply by

changing the software set-

tings. The quad lane con-

veyor can be ordered

together with SIPLACE X4I

and SIPLACE X4 placement

machines. The extremely

fast placement rate of these

machines can be efficiently

utilized, even for PCBs with

few components to be placed

or PCBs with very different

components on the top and

underside.

01005 placement without

compromise

The SIPLACE X-series is

designed to place 01005

components as standard.

There are also specially

developed nozzles for 01005

components that can be

used. With these prepara-

tions, the tiny components

can be processed without

any loss of quality and

speed. The components can

be placed with minimal spac-

ings and independently of

large components that are

beside the 01005 com-

ponent. This equates

to true 01005

capability.

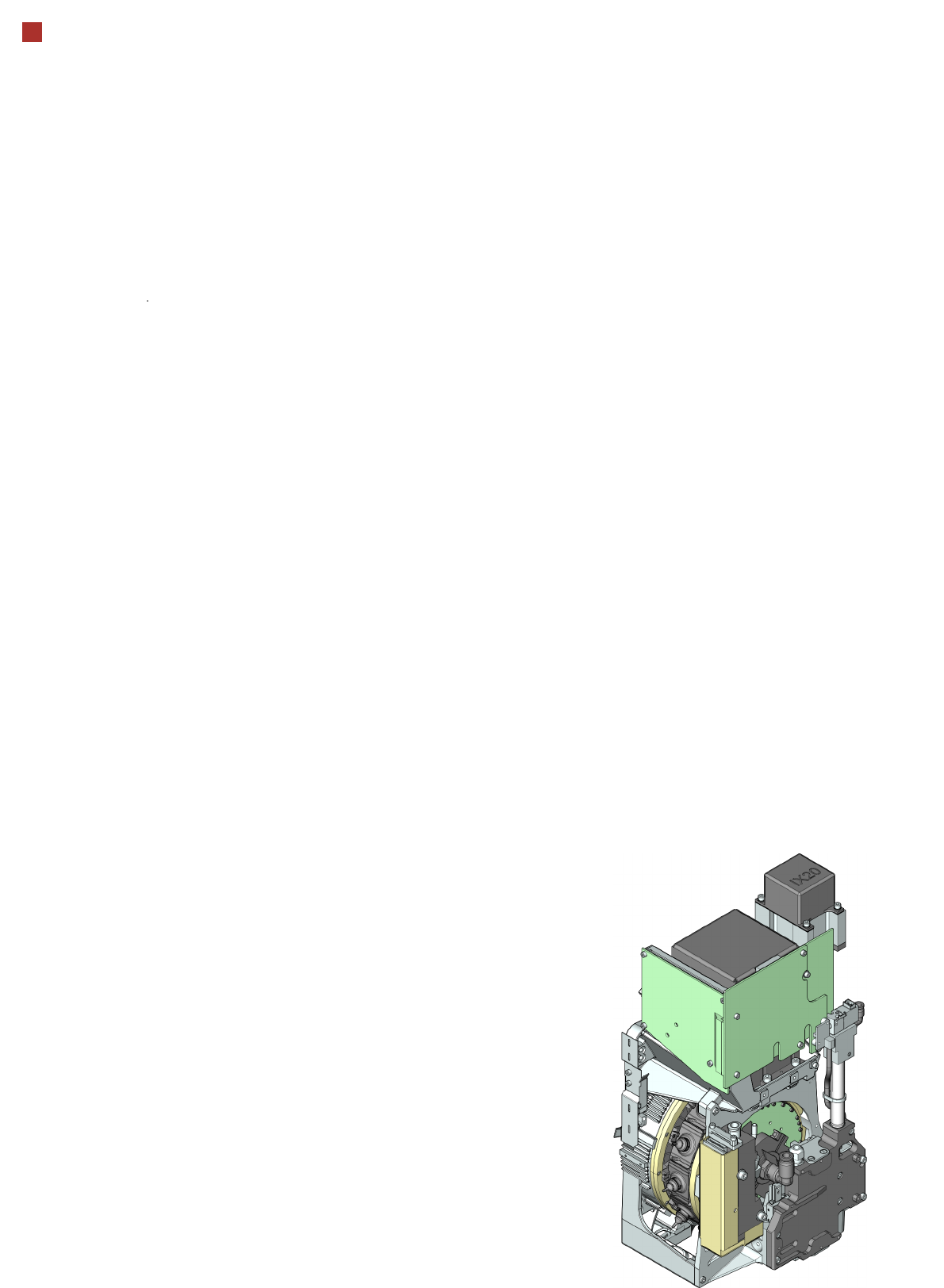

SIPLACE MultiStar
