Ref No. Remark s R 1 Q'ty 1-E 本 体部 Main Body ｲﾗｽﾄ No. Part No. 品 名 品番 数量 R 2 パーツリスト Kit N o . キット品 番 Kit Name キット名称 N610012842AA Part Nam e 備 考 ｾｸｼｮﾝNo. PARTS LIST Section No. R 3 BRACKET 1 24 N210041741AD AIR PARTS…

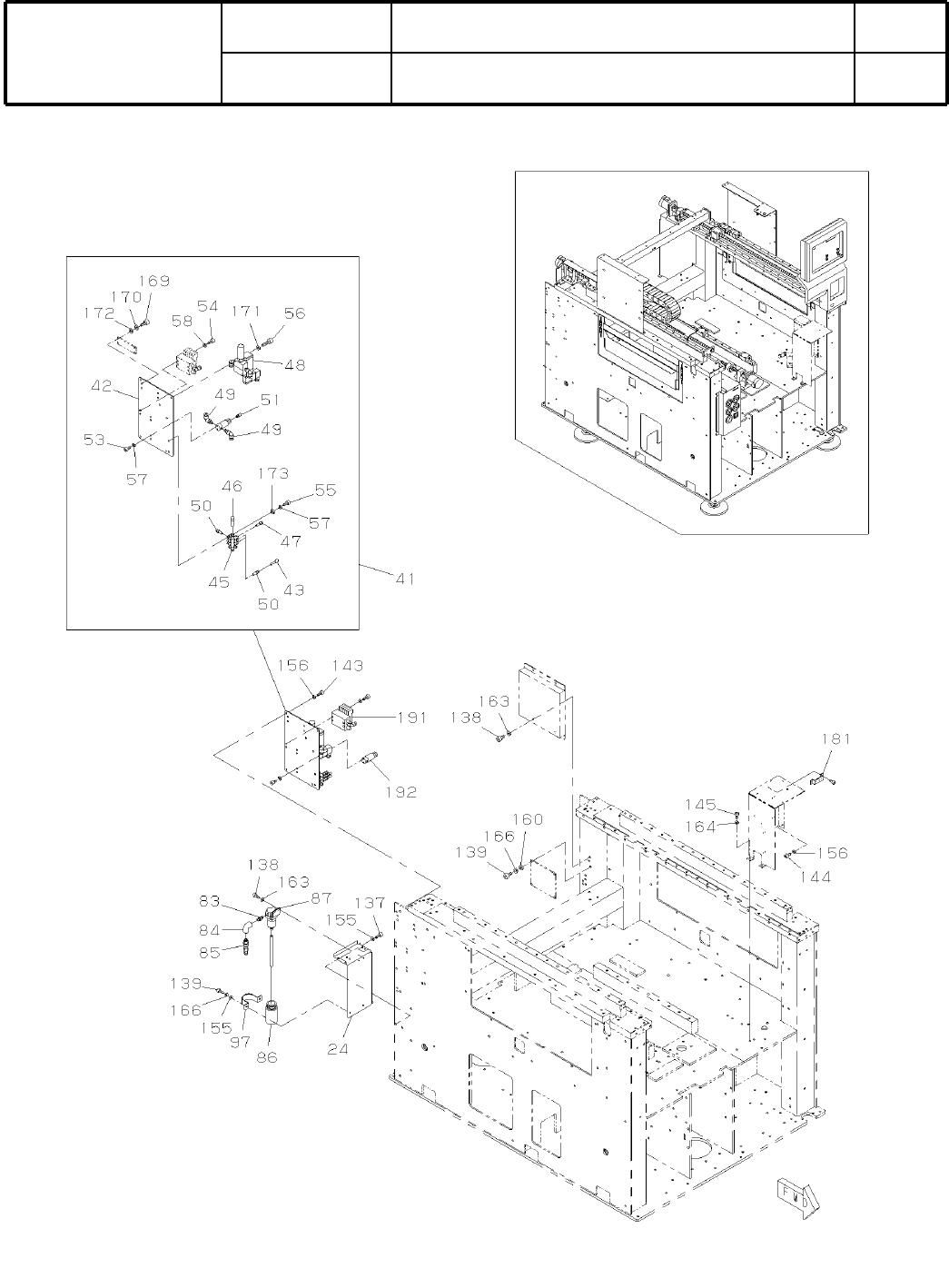

1-E
本
体部
Main Body
パーツレイアウト
Ki
t
N
o
.
キット
品番
Kit Name
キット名称
N610012842AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
M9
( KN610012842AA-35-5 )
Ref
No.
Remarks
R
1
Q'ty
1-E
本
体部
Main Body
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610012842AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
BRACKET
1
24 N210041741AD
AIR PARTS UNIT
1
41 N610027756AA
PLATE
1
42 N210039321AB
JOINT
2
43 KXF09ZBAA00 KQ2P-06
MANIFOLD
1
45 KXF029YAA00 KM11-08-12-6
JOINT
1
46 KXF0E16CA00 KQ2P-12
JOINT
1
47 KXF0E39DA00 KQ2R04-08
VALVE
1
48 N510058052AA VP544-5DZ1-03A-X503
JOINT
2
49 KXF09UYAA00 KQ2L04-01S
JOINT
3
50 KXF0A0EAA00 KQ2R06-08
SILENCER
1
51 N510064382AA AN10-01
BOLT
2
53 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
BOLT
4
54 N510017359AA
Hexagon socket head cap screw M4X25-10.9 A2J (Trivalent)
BOLT
2
55 N510017361AA
Hexagon socket head cap screw M4X30-10.9 A2J (Trivalent)
BOLT
2
56 N510017401AA
Hexagon socket head cap screw M5X30-10.9 A2J (Trivalent)
WASHER
4
57 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
4
58 N510018479AA
Small round-plain washer 4 10H A2J (Trivalent)
NIPPLE
1
83 N510021600AA VRN-0302
JOINT
1
84 N510019579AA (L)3/8
HOSE
1
85 N510002541AA OUA8X12-5M-03B
BOTTLE
1
86 KXF07M8AA00 5-010-03
FILTER
1
87 N510016407AA AFM20-02BC-R-X2106
BAND
1
97 N510011271AA G-12
BOLT
4
137 N510017381AA
Hexagon socket head cap screw M4X8-10.9 A2J (Trivalent)
BOLT
6
138 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
BOLT
6
139 N510017346AA
Hexagon socket head cap screw M4X12-10.9 A2J (Trivalent)
BOLT
4
143 N510017419AA
Hexagon socket head cap screw M5X8-10.9 A2J (Trivalent)
BOLT
3
144 N510017386AA
Hexagon socket head cap screw M5X10-10.9 A2J (Trivalent)
BOLT
2
145 N510017390AA
Hexagon socket head cap screw M5X12-10.9 A2J (Trivalent)
WASHER
6
155 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
7
156 N510018499AA
Round finish plain washer 5 10H A2J (Trivalent)
WASHER
4
160 N510018479AA
Small round-plain washer 4 10H A2J (Trivalent)
WASHER
6
163 N510020099AA Thick washer for M4
WASHER
2
164 N510020100AA Thick washer for M5
WASHER
6
166 N510018330AA Spring lock washer No.2 4 S A2J (Trivalent)
BOLT
4
169 N510017313AA
Hexagon socket head cap screw M3X16-10.9 A2J (Trivalent)
WASHER
4
170 N510018478AA
Small round-plain washer 3 10H A2J (Trivalent)
WASHER
2
171 N510018480AA
Small round-plain washer 5 10H A2J (Trivalent)
WASHER
4
172 N510018327AA Spring lock washer No.2 3 S A2J (Trivalent)
WASHER
2
173 N510018330AA Spring lock washer No.2 4 S A2J (Trivalent)
TERMINAL
1
181 N210001550AA
Manifold
1
191 N610026822AA Manifold:-X11
Valve
1
192 N610026824AA Valve:-F4014
M10
--
( KN610012842AA-35-5 )
1-F
本
体部
Main Body
パーツレイアウト
Ki
t
N
o
.
キット
品番
Kit Name
キット名称
N610012842AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
M11
( KN610012842AA-35-6 )
