ｲﾗｽﾄ No. REF No. PART No. PART NAME REMAR KS Q'TY 7 ﾄﾚｲｼｬﾄﾙ部 (1) TRAY SHUTTL E SECT.(1) 部 品 名 品 番 個数 備 考 1 1045957300 TRAY SHUTTLE UNIT ﾄﾚｲｼｬﾄﾙﾕﾆｯﾄ 304 1 1047052421 SOLENOID VALV E ｿﾚﾉｲﾄﾞﾊﾞﾙ ﾌﾞ 305 1 104595730501 PL…
ﾄﾚｲｼｬﾄﾙ部(1)
TRAY SHUTTLE SECT.(1)
7
F10459-57-300-AH-1
M37
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
7
ﾄﾚｲｼｬﾄﾙ部(1)
TRAY SHUTTLE SECT.(1)
部 品 名 品 番 個数
備 考
1 1045957300
TRAY SHUTTLE UNIT ﾄﾚｲｼｬﾄﾙﾕﾆｯﾄ
304
1
1047052421
SOLENOID VALVE ｿﾚﾉｲﾄﾞﾊﾞﾙﾌﾞ
305
1
104595730501
PLATE ﾌﾟﾚｰﾄ
307 1 1047052613
SHAFT ｼｬﾌﾄ
322 1 104595732201
BRACKET ﾌﾞﾗｹｯﾄ
329
1
1045957329
SHAFT ｼｬﾌﾄ
331
1
1045957331
SHAFT ｼｬﾌﾄ
332 2 1045957332
PULLEY(TIMING) ﾌﾟ
ｰﾘｰ(ﾀｲﾐﾝｸﾞ)
333 1 1045957333
BRACKET ﾌﾞﾗｹｯﾄ
339
1
104595733902
BRACKET ﾌﾞﾗｹｯﾄ
340 1 1045957340
PULLEY(TIMING) ﾌﾟｰﾘｰ(ﾀｲﾐﾝｸﾞ)
341 1 1045957341
DOG FOR SENSOR ｾﾝｻﾄ
ﾞｸﾞ
345
1
1045957345
BRACKET ﾌﾞﾗｹｯﾄ
346
1
1045957346
PLATE ﾌﾟﾚｰﾄ
347 2 1045957347
PLATE ﾌﾟﾚｰﾄ
349 1 104595734901
BRACKET(CONNECTOR) ﾌﾞﾗｹｯﾄ
(ｺﾈｸﾀ)
350
1
1045957350
BRACKET ﾌﾞﾗｹｯﾄ
N 7
3
N310PML24
SENSOR ｾﾝｻ PM-L24
N 8 1 N606PF569HAC
MOTOR ﾓｰﾀ PF569H-AC
N 9 1 N454ZX10-053
EJECTOR FOR VACUUM ｼﾝｸｳｴｼ
ﾞｪｸﾀ
ZX1071-Q35L-DP23C-X327
N10
1
N310P921B
SENSOR ｾﾝｻ P921B
N14
4
XLCNMF148ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ MF148ZZ
N17 3 XUB8FP
RETAINING RING C-TYPE C ｶ
ﾞﾀｼﾞｸﾖｳﾄﾒﾜ
8,STEEL,P.C
N18 4 XPJ5A12FW
PARALLEL PIN ﾍｲｺｳﾋ
ﾟﾝ
5X12,m6A,STEEL
N21
6
XWA2BFY
SPRING WASHER ﾊﾞﾈｻﾞｶﾞﾈ 2,2-TYPE,STEEL,Z.C.T
N22 1 N447DP220MS
SENSOR ｾﾝｻ DP2-20-MS
N23 1 N431KJY0401S
FITTING ﾂｷ
ﾞﾃ
KJY04-01S
N26
1
N310P917
AMPLIFIER ｱﾝﾌﾟ P917
N27
1
XSN3+5FY
PAN HEAD SCREW ﾅﾍﾞｺﾈｼﾞ M3X5,+,STEEL,Z.C.T
N29 2 XLCNF608ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ F608ZZ
N30 4 XPJ6A15FW
PARALLEL PIN ﾍｲｺｳﾋ
ﾟﾝ
6X15,m6A,STEEL
N32
6
XVE2B6FY
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M2X6,STEEL,Z.C.T
M38
F10459-57-300-AH-1

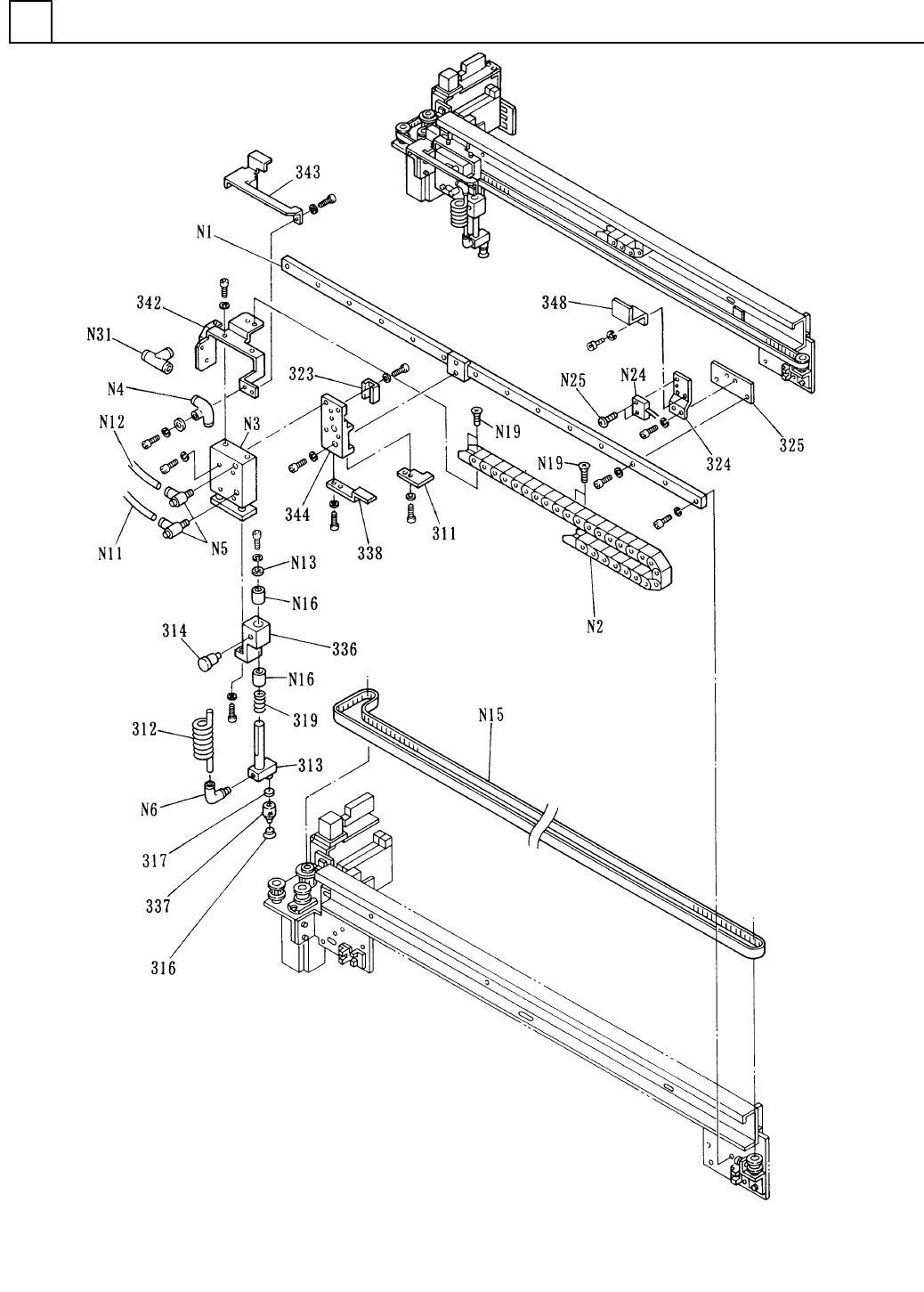

ﾄﾚｲｼｬﾄﾙ部(2)
TRAY SHUTTLE SECT.(2)
7
F10459-57-300-AH-2
M39
