MEMO

MODEL TIM-X100F/R

0112-001

211

Key No. PART No. PART NAME Q’ty REMARKS

NOTE

UB-1

1 630 109 6841 SPACER 1 756UB-210-001

2 630 084 2708 PIN,LOCATE 2 756UB-210-002

7 630 094 3702 COVER 1 756UB-210-007

8 411 051 1708 SCR TRS 4X6 2 756UB-210-008

51 630 095 8133 ASSY,SCOPE UNIT 1 CAM-A1 or B1 756UB-210-051

52 630 110 6946 CORD 1 756UB-210-052

96 630 069 9340 ACCESSORY,P.C.B (BUSH) 4 756UB-210-003

97 630 000 7664 BOLT,HEX-SCT 4 756UB-210-004

98 411 141 2905 WASHER SPR 4 4 756UB-210-005

99 630 001 0213 WASHER 4 756UB-210-006

MEMO

MODEL TIM-X100F/R

0112-001

213

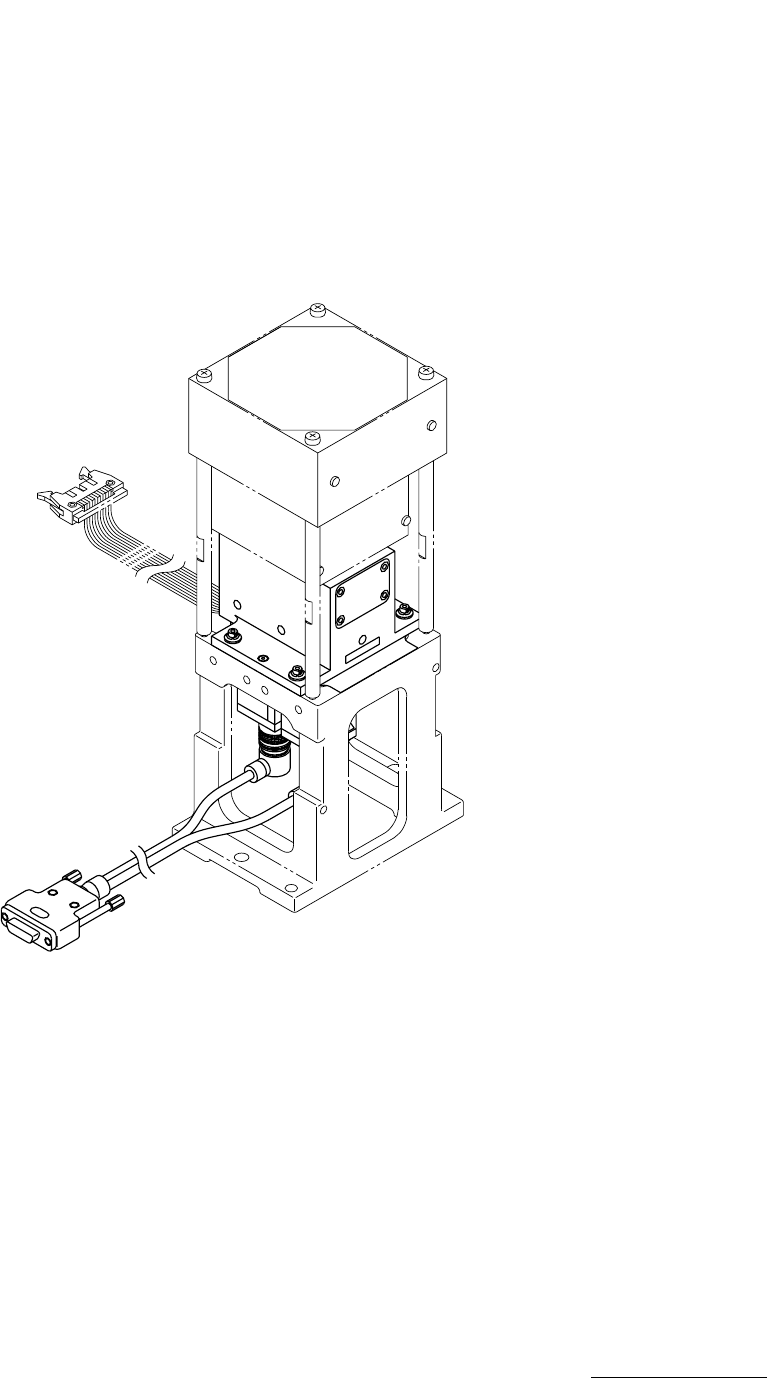

Fig. UC 固定認識カメラ FIXED RECOGNITION CAMERA

極小視野 / 大視野 CM-5011 Min View/Large View CM-5011

Fig.UC

CM-5011
