Unique ultra-low draft construction of inner diameter yields hi gh accuracy and stability. They are comprised of industry compliant silicone and chlo ride -free, low friction polypropylene. Available in three colors: Nat…

100%1 / 4
Unique ultra-low draft construction of inner diameter yields high accuracy and stability.
They are comprised of industry compliant silicone and chloride-free, low friction
polypropylene. Available in three colors: Natural for most generic applications, amber
provides protection of UV/visible light block (up to 520nm, but with the ability to see the
fluid inside the barrel and black for total light block Five sizes are made available –
3cc, 5cc, 10cc 30cc and 55cc. Made from polypropylene. Silicone and chloride-free.
Air powered pistons spread the pressure evenly across the fluid giving consistent
dispensing even with high viscosity fluids. Tighter fitting white wiper pistons provide a
complete seal for low viscosity fluids and are also used with the TS700 manual syringe
barrel gun. Easy flow blue pistons require less pressure to dispense and prevent air
from becoming entrapped during the dispensing process. Loose fitting red straight wall
pistons prevent stringing and bouncing when dispensing high viscosity fluids. Made
from polyethylene. Silicone and chloride-free.
Tip caps are designed to seal the Luer lock of the syringe barrel during storage,
shipment and when not in use. Available in orange and black, and both offering full
UV/light black protection. A blue “stand up” version is made available which is
designed with a larger flat base. the stand-up tip cap enables the syringe barrel to
stand upright. Made from polypropylene. Silicone and chloride-free.
End caps seal the larger end of the syringe barrel to ensure that no contaminants
come into contact with the fluid and piston. The quick and easy clip connection Made
from polypropylene. Silicone and chloride-free.
Delrin® Receiver heads are the connecting link between the syringe barrel and the
dispenser and provide a safe a secure connection. The simple “push/twist” design
improves syringe barrel change over time. Fitted as standard with a Viton® o-ring and
an EPR o-ring is made available for chemical compatibility purposes. All sizes of
receiver head are available with 3 or 6 feet (0.9 – 1.8 meters) of tubing and also with
no tubing attached. Silicone and chloride-free.
Product Data Sheet
700 Series
Dispensing Components
USA & Canada +1 714 230 2398 Europe +44 2380 489 100 Asia +86 21 64952662 www.techconsystems.com

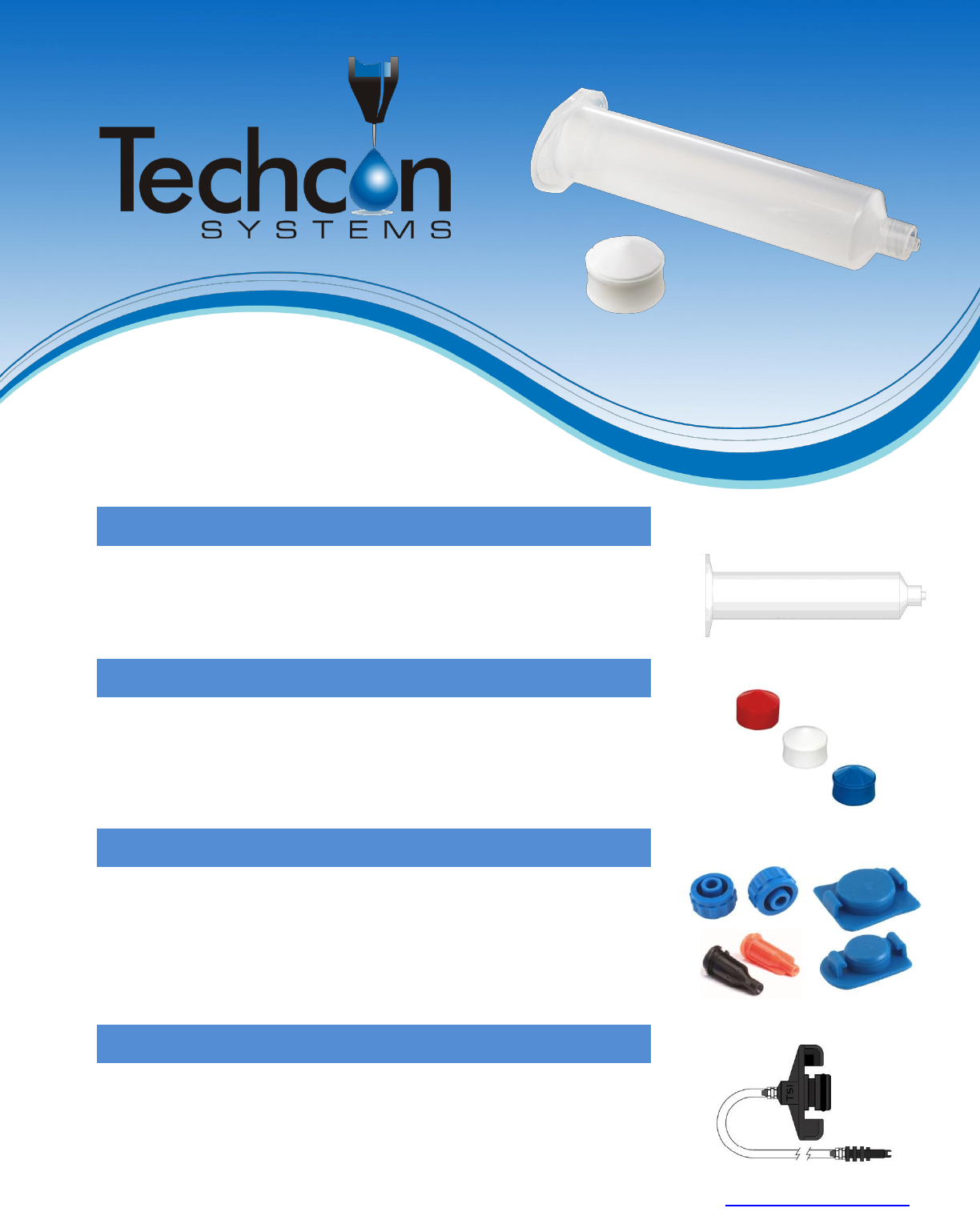

RECEIVER HEAD
AIR POWERED PISTON
TIP AND END CAPS
SYRINGE BARREL
TYPICAL SETUP
WHAT’S IN THE BOX?
Version 2.00
NATURAL AMBER BLACK
3cc 7030LL1NPK 7030LL1DPK 7030LL1BPK
5cc 7050LL1NPK 7050LL1DPK 7050LL1BPK
10cc 7100LL1NPK 7100LL1DPK 7100LL1BPK
30cc 7300LL1NPK 7300LL1DPK 7300LL1BPK
55cc 7550LL1NPK 7550LL1DPK 7550LL1BPK
3cc 7030LL1NWPK 7030LL1DWPK 7030LL1BWPK
5cc 7050LL1NWPK 7050LL1DWPK 7050LL1BWPK
10cc 7100LL1NWPK 7100LL1DWPK 7100LL1BWPK
30cc 7300LL1NWPK 7300LL1DWPK 7300LL1BWPK
55cc 7550LL1NWPK 7550LL1DWPK 7550LL1BWPK
3cc 7030LL1BLPK
5cc 7050LL1BLPK
10cc 7100LL1BLPK
30cc 7300LL1BLPK
55cc 7550LL1BLPK
3cc 7030004PPK
5cc 7050004PPK
10cc 7100004PPK
30cc 7300004PPK
LUBRICATED NON-LUBRICATED
3cc 7030002MPK 7030002MPK-LUB
5cc 7050002MPK 7050002MPK-LUB
10cc 7100002MPK 7100002MPK-LUB
30cc 7300002MPK 7300002MPK-LUB
ORANGE BLACK STAND-UP
All Sizes 7015LLPK TE7015LBPK 7015STCPK
All Sizes 881-000-000 (max pressure 75 psi/5.17bar)
All part numbers with PK are packed in 50 pieces, except
replacement o-rings which are 10 pieces.
END CAP
SYRINGE BARREL
BARREL W/BLUE WIPER PISTON (NOT INSERTED)
RECEIVER HEAD ASSEMBLY
AIR POWERED PISTON
BARREL W/WHITE WIPER PISTON (NOT INSERTED)
IN-LINE FLUID FILTER
MANUAL THUMB PLUNGER (USE W/RUBBER PISTON)
MANUAL RUBBER PISTON
TIP CAP
REPLACEMENT RECEIVER HEAD O-RING

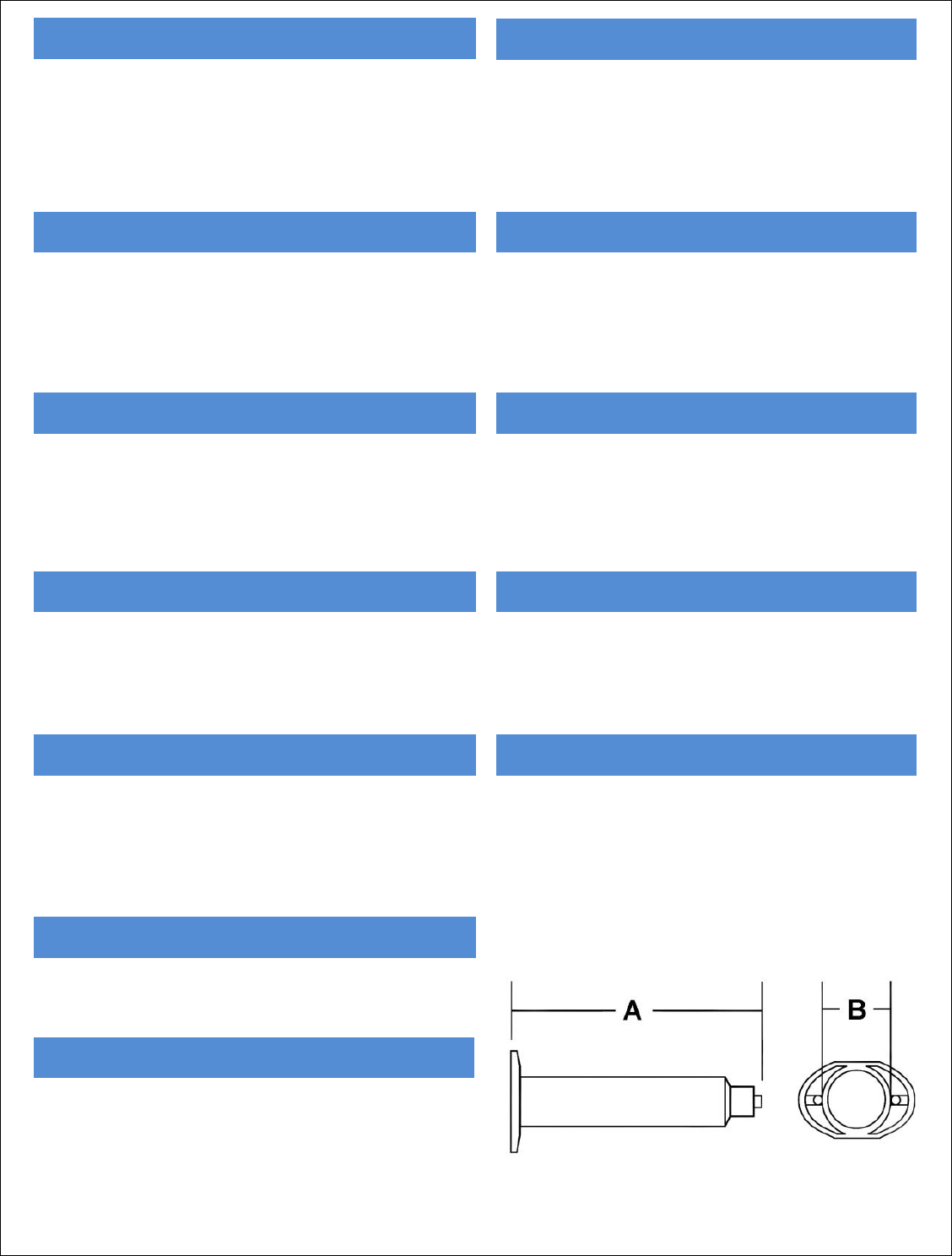

SYRINGE BARREL DIMENSIONS
TE DISPENSING TIPS
Gauge ¼''/6.35mm ½''/12.7mm 1''/25,4mm 1.5''/38.1mm
14 TE714050PK TE714100PK TE714150PK
15 TE715050PK TE715100PK TE715150PK
18 TE718025PK TE718050PK TE718100PK TE718150PK
20 TE720025PK TE720050PK TE720100PK TE720150PK
21 TE721025PK TE721050PK TE721100PK TE721150PK
22 TE722025PK TE722050PK TE722100PK TE722150PK
23 TE723025PK TE723050PK TE723100PK TE723150PK
25 TE725025PK TE725050PK TE725100PK
27 TE727025PK TE727050PK TE727100PK
30 TE730025PK TE730050PK TE730100PK
32 TE732025PK
34 TE734025PK
Gauge 90° 45° 45°
½''/6.35mm ¼''/12.7mm 1.5''/38.1mm
14 TE714050B90PK TE714050B45PK TE714150B45PK
15 TE715050B90PK TE715050B45PK
18 TE718050B90PK TE718050B45PK TE718150B45PK
20 TE720050B90PK TE720050B45PK
21 TE721050B90PK TE721050B45PK TE721150B45PK
22 TE722050B90PK TE722050B45PK
23 TE723050B90PK TE723050B45PK
25 TE725050B90PK TE725050B45PK
27 TE727050B90PK TE727050B45PK
30 TE730050B90PK TE730050B45PK
Gauge Standard Rigid
14 TT14DHUV-PK TT14-RIGID-PK
16 TT16DHUV-PK TT16-RIGID-PK
18 TT18DHUV-PK TT18-RIGID-PK
20 TT20DHUV-PK TT20-RIGID-PK
22 TT22DHUV-PK TT22-RIGID-PK
25 TT25DHUV-PK TT25-RIGID-PK
27 TT27DHUV-PK TT27-RIGID-PK
Gauge ½''/12.7mm 1''/25.4mm
20 TF720050PK TF720100PK
25 TF725050PK TF725100PK
Gauge Soft Bristle Stiff Bristle
16 BT16-SOFTPK BT16-SOFTPK
18 BT18-SOFTPK BT18-SOFTPK
22 BT22-SOFTPK BT22-SOFTPK
Gauge 1.5''/38.1mm
15 TS15P-1-1/2PK
16 TS16P-1-1/2PK
18 TS18P-1-1/2PK
20 TS20P-1-1/2PK
22 TS22P-1-1/2PK
25 TS25P-1-1/2PK

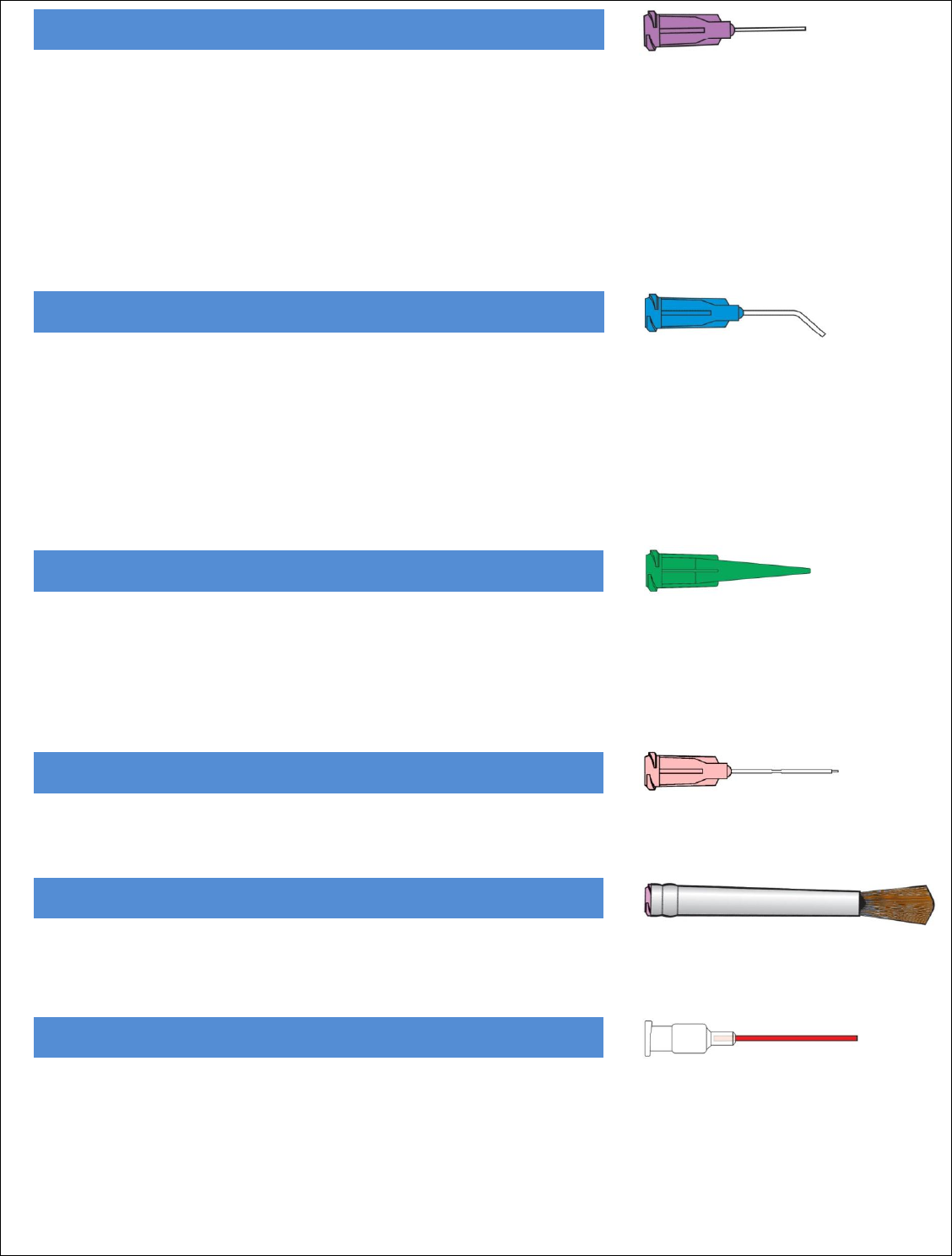

TE BENT DISPENSING TIPS
TT TAPERED DISPENSING TIPS
TEFLON® LINED DISPENSING TIPS
BT BRUSH DISPENSING TIPS
TS-P FLEXIBLE DISPENSING TIPS
Features a stainless steel cannula with
double Helix polypropylene hub. The burr
free electro polished cannula provides
unobstructed flow and consistent fluid flow.
Pack of 50.
Features all the same advantages as the
standard TE tip but with preset bends in the
cannula, for difficult to reach areas. Pack of 50.
Tapered tips prevent blockages and increase
fluid flow rates with high viscosity fluids.
Standard tips made from HD polyethylene with
UV light block additive. Rigid tips made from
polypropylene with opaque color. Pack of 50.
Brush tips spread fluid evenly. Soft bristles
made from Red Sable and stiff bristles made
from Nylon. Pack of 12.
Use with low viscosity fluids and CA’s
(Cyanoacrylates). Resists clogging and prevents
damage to substrate. Lined with Teflon® which
is crimped inside the cannula. Pack of 50.
Flexible tips allow access to hard to reach areas.
The flexible cannula allows the user to
“customise” the length. Made from
polypropylene. Pack of 50.
