TE DISPENSING TIPS Gauge ¼ '' /6.35 mm ½'' /12.7mm 1''/25,4mm 1.5''/38.1mm 14 TE 714050PK TE714100PK TE714150PK 15 TE 715050PK TE715100PK TE715150PK 18 TE 718025PK TE 718050 PK TE7…

100%1 / 4
TYPICAL SETUP
WHAT’S IN THE BOX?
Version 2.00
NATURAL AMBER BLACK
3cc 7030LL1NPK 7030LL1DPK 7030LL1BPK
5cc 7050LL1NPK 7050LL1DPK 7050LL1BPK
10cc 7100LL1NPK 7100LL1DPK 7100LL1BPK
30cc 7300LL1NPK 7300LL1DPK 7300LL1BPK
55cc 7550LL1NPK 7550LL1DPK 7550LL1BPK
3cc 7030LL1NWPK 7030LL1DWPK 7030LL1BWPK
5cc 7050LL1NWPK 7050LL1DWPK 7050LL1BWPK
10cc 7100LL1NWPK 7100LL1DWPK 7100LL1BWPK
30cc 7300LL1NWPK 7300LL1DWPK 7300LL1BWPK
55cc 7550LL1NWPK 7550LL1DWPK 7550LL1BWPK
3cc 7030LL1BLPK
5cc 7050LL1BLPK
10cc 7100LL1BLPK
30cc 7300LL1BLPK
55cc 7550LL1BLPK
3cc 7030004PPK
5cc 7050004PPK
10cc 7100004PPK
30cc 7300004PPK
LUBRICATED NON-LUBRICATED
3cc 7030002MPK 7030002MPK-LUB
5cc 7050002MPK 7050002MPK-LUB
10cc 7100002MPK 7100002MPK-LUB
30cc 7300002MPK 7300002MPK-LUB
ORANGE BLACK STAND-UP
All Sizes 7015LLPK TE7015LBPK 7015STCPK
All Sizes 881-000-000 (max pressure 75 psi/5.17bar)
All part numbers with PK are packed in 50 pieces, except
replacement o-rings which are 10 pieces.
END CAP
SYRINGE BARREL
BARREL W/BLUE WIPER PISTON (NOT INSERTED)
RECEIVER HEAD ASSEMBLY
AIR POWERED PISTON
BARREL W/WHITE WIPER PISTON (NOT INSERTED)
IN-LINE FLUID FILTER
MANUAL THUMB PLUNGER (USE W/RUBBER PISTON)
MANUAL RUBBER PISTON
TIP CAP
REPLACEMENT RECEIVER HEAD O-RING
SYRINGE BARREL DIMENSIONS
TE DISPENSING TIPS
Gauge ¼''/6.35mm ½''/12.7mm 1''/25,4mm 1.5''/38.1mm
14 TE714050PK TE714100PK TE714150PK
15 TE715050PK TE715100PK TE715150PK
18 TE718025PK TE718050PK TE718100PK TE718150PK
20 TE720025PK TE720050PK TE720100PK TE720150PK
21 TE721025PK TE721050PK TE721100PK TE721150PK
22 TE722025PK TE722050PK TE722100PK TE722150PK
23 TE723025PK TE723050PK TE723100PK TE723150PK
25 TE725025PK TE725050PK TE725100PK
27 TE727025PK TE727050PK TE727100PK
30 TE730025PK TE730050PK TE730100PK
32 TE732025PK
34 TE734025PK
Gauge 90° 45° 45°
½''/6.35mm ¼''/12.7mm 1.5''/38.1mm
14 TE714050B90PK TE714050B45PK TE714150B45PK
15 TE715050B90PK TE715050B45PK
18 TE718050B90PK TE718050B45PK TE718150B45PK
20 TE720050B90PK TE720050B45PK
21 TE721050B90PK TE721050B45PK TE721150B45PK
22 TE722050B90PK TE722050B45PK
23 TE723050B90PK TE723050B45PK
25 TE725050B90PK TE725050B45PK
27 TE727050B90PK TE727050B45PK
30 TE730050B90PK TE730050B45PK
Gauge Standard Rigid
14 TT14DHUV-PK TT14-RIGID-PK
16 TT16DHUV-PK TT16-RIGID-PK
18 TT18DHUV-PK TT18-RIGID-PK
20 TT20DHUV-PK TT20-RIGID-PK
22 TT22DHUV-PK TT22-RIGID-PK
25 TT25DHUV-PK TT25-RIGID-PK
27 TT27DHUV-PK TT27-RIGID-PK
Gauge ½''/12.7mm 1''/25.4mm
20 TF720050PK TF720100PK
25 TF725050PK TF725100PK
Gauge Soft Bristle Stiff Bristle
16 BT16-SOFTPK BT16-SOFTPK
18 BT18-SOFTPK BT18-SOFTPK
22 BT22-SOFTPK BT22-SOFTPK
Gauge 1.5''/38.1mm
15 TS15P-1-1/2PK
16 TS16P-1-1/2PK
18 TS18P-1-1/2PK
20 TS20P-1-1/2PK
22 TS22P-1-1/2PK
25 TS25P-1-1/2PK
TE BENT DISPENSING TIPS
TT TAPERED DISPENSING TIPS
TEFLON® LINED DISPENSING TIPS
BT BRUSH DISPENSING TIPS
TS-P FLEXIBLE DISPENSING TIPS
Features a stainless steel cannula with
double Helix polypropylene hub. The burr
free electro polished cannula provides
unobstructed flow and consistent fluid flow.
Pack of 50.
Features all the same advantages as the
standard TE tip but with preset bends in the
cannula, for difficult to reach areas. Pack of 50.
Tapered tips prevent blockages and increase
fluid flow rates with high viscosity fluids.
Standard tips made from HD polyethylene with
UV light block additive. Rigid tips made from
polypropylene with opaque color. Pack of 50.
Brush tips spread fluid evenly. Soft bristles
made from Red Sable and stiff bristles made
from Nylon. Pack of 12.
Use with low viscosity fluids and CA’s
(Cyanoacrylates). Resists clogging and prevents
damage to substrate. Lined with Teflon® which
is crimped inside the cannula. Pack of 50.
Flexible tips allow access to hard to reach areas.
The flexible cannula allows the user to
“customise” the length. Made from
polypropylene. Pack of 50.
LOCAL DISPENSING SOLUTIONS WORLDWIDE
ACCESSORIES

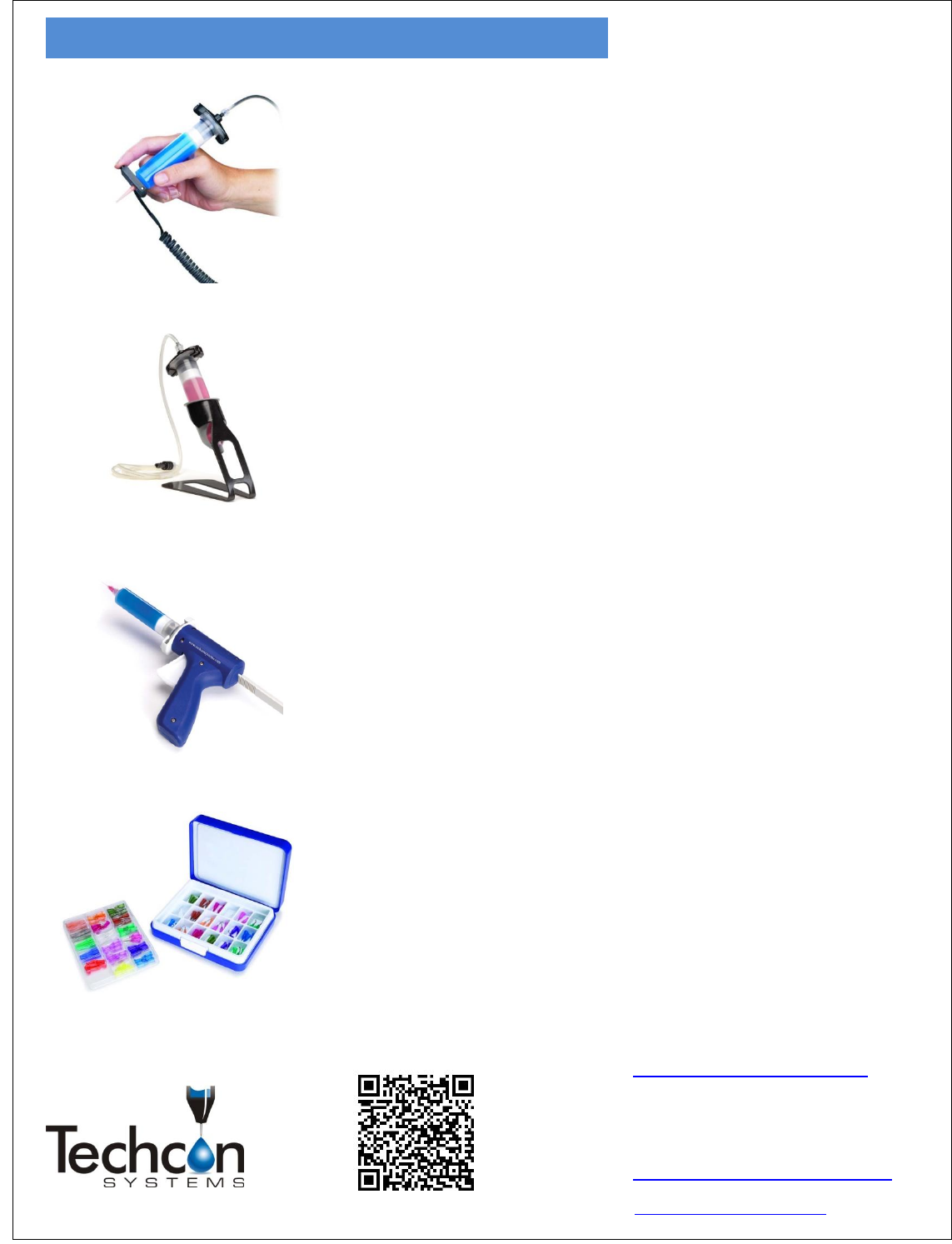

DX9010 Finger Switch
The finger switch can be used with any Techcon Systems dispenser or
controller and is used instead of the under bench foot pedal.
TN00DKIT Dispensing Tip Kit
Contains a variety of the most used TE, TE-BENT and TT-DHUV
dispensing tips. Also contains the orange tip cap.
TS700 Manual Gun
Light weight applicator gun for 10cc and 30cc syringe barrels.
Excellent control for medium to high viscosity fluids. Light weight
design.
10cc TS710SG
30cc TS730SG
SH-300 Syringe barrel Stand
The syringe barrel holds the syringe barrel at convenient angle when
not in use.
