Tape feeder module 4 mm X_20211118_073244.pdf - 第8页
Tape feeder module 4 mm X Page 8 / 11 18.11.2021
Tape feeder module 4 mm X
Page 7 / 11 18.11.2021

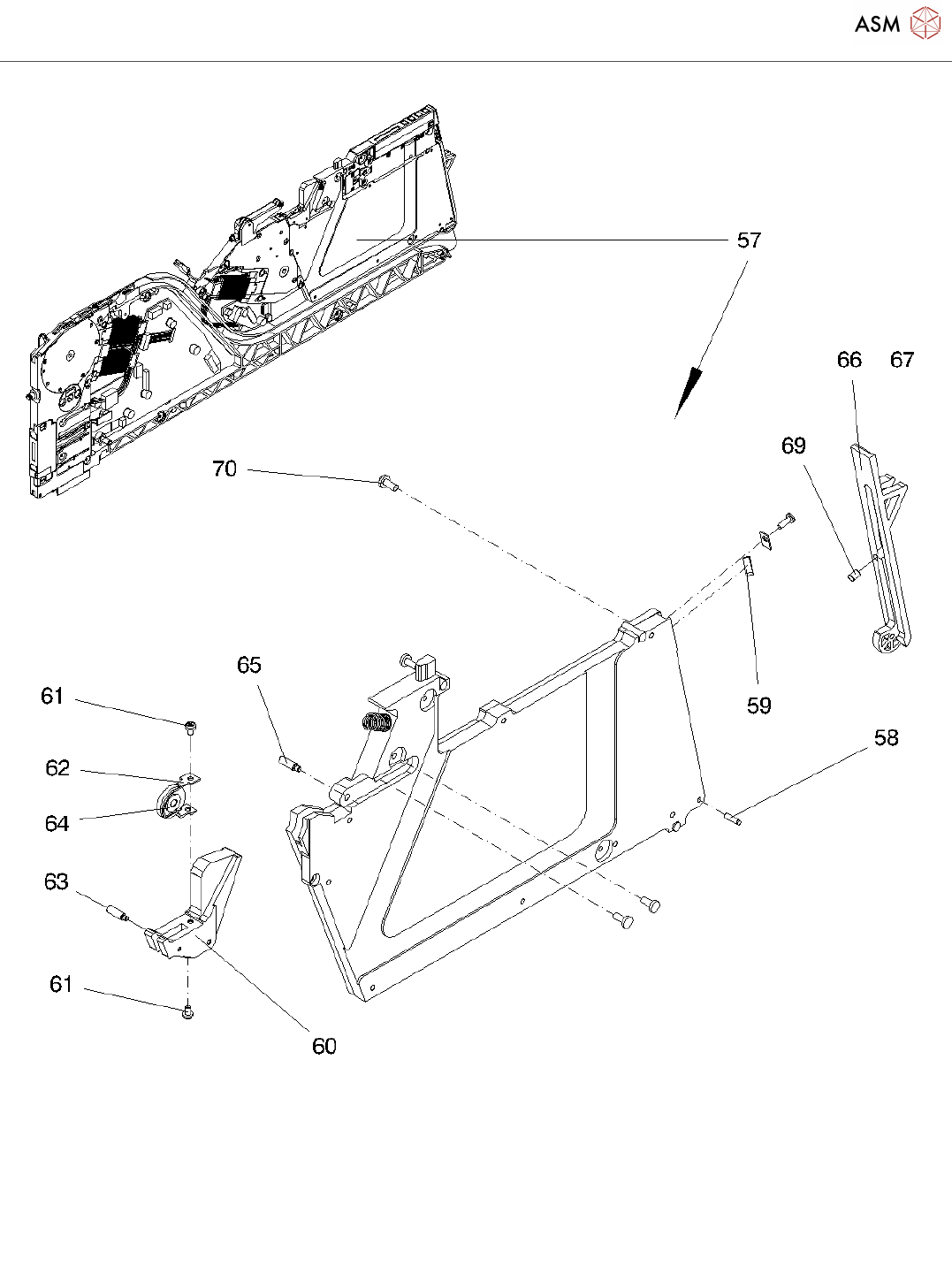

Tape feeder module 4 mm X
Page 8 / 11 18.11.2021
Tape feeder module 4 mm X
Page 9 / 11 18.11.2021
Pos. Item no. Description Part marking
1 03087779-01 TAPE FEEDER MODULE 4MM X
2 00305725-01 DIN 7985-M3 X 5-4.8-H
3 03031194S05 PCB /CONTROL BOARD TAPE-
FEEDER X-SERIES
SPARE PART
4 03052072S01 COVER LEFT SIDE CPL. /FEEDER X8 SPARE PART
5 00315244S01 TRANSPARENT ADHESIVE TAPE,
TYPE 65026
CONSUMABLE
6 03033796-01 REMFORM-SCREW RF-SN75-2,5 X
6-9.8
STANDARD PARTS
7 03033798-01 REMFORM-SCREW RF-SN75-2,5 X
10-9.8
STANDARD PARTS
8 00328542-01 SN 213307-H-M2,5 X 6-A2 STANDARD PARTS
9 03012357S01 LEAF SPRING / TAPE INPUT X 8 SPARE PART
10 03003221S01 AXIS D6, BELLOWS HOLDER X8 SPARE PART
11 03009198S01 HANDLE CPL. / X-SERIES Spare Part
12 03002629-01 CONTROL PANEL COMPLETE /X-
SERIE
13 03002644S01 WINDOW /CONTROL PANEL SPARE PART
14 03021637S01 CONTROL PANEL KEY COVER CPL.
/X-SERIES
SPARE PART
15 03033796-01 REMFORM-SCREW RF-SN75-2,5 X
6-9.8
STANDARD PARTS
16 03008699-02 TAPE CHANNEL X8 SPARE PART
17 03003994S01 SLIDE GUIDE /REAR L200 SPARE PART
18 03003541S02 DISTRIBUTOR BOARD 8/12 X SPARE PART
19 03087786-01 DRIVE WITH MOUNTING PARTS X4
20 03050957-01 SHOULDER BOLT DIA4X3.15 M3 SPARE PART
21 03042524-01 ISO 4762 - M 2 X 5-A2-70 STANDARD PARTS
22 03023217-01 ISO 7046-2-M2 X 5-A2-70-H STANDARD PARTS
23 03022426-01 CABLE FIXING SPARE PART
24 03015691S01 LEVER/ OPENER PICKUP WINDOW
X8-12
SPARE PART
25 03013678S03 PCB/EDIF SECONDARY IRDA BOARD Spare Part
26 03011739S03 ENERGY-DATA INTERFACE CPL. /X-
SERIES
SPARE PART
27 03012683-01 COMPRESSION SPRING D-027 SPARE PART
28 03010185S01 ROTARY SLIDE / COMPONENTS
DISPOSAL X8
SPARE PART
