REFLOW and SOLDERING PARTS cleaning
www.dct.cleaning
TECHNICAL DATA SHEET
AirJet
®
486 CRD
CHAMBER
www.dct.cleaning
CHAMBER
AirJet
®
486 CRD 
TECHNICAL DATA SHEET
2
www.dct.cleaning
GENERAL INFORMATION
The AirJet
®
cleaning systems represent unique
air-bubbling technology developed and manufactured
by DCT.
Air-bubbling technology machines are developed
for gentle yet highly effi cient maintenance cleaning
of refl ow and wave soldering machines such
as soldering frames, fi lters, heat exchangers, etc.
The AirJet
®
“Piano” can also be off ered for the removal
of conformal coatings. AirJet
®
cleaning systems are available
in several sizes and with diff erent levels of automation of the
cleaning process.
AirJet
®
486 CRD including 100% separated processes
of cleaning, rinsing and drying technologies.
All processes are automated and take place in 3 separate
process chambers, which are also storage tanks.
Cleaning takes place in the  rst inlet chamber, where the
operator places the basket with parts. Then the operator
manually moves the basket with the cleaned parts into the
secondary rinse chamber. The operator then moves the
basket to the last drying chamber.
All 3 chambers can be used in parallel, which increases
the machine’s cleaning capacity and reduces cross-
contamination when compared with single-chamber devices.
The AirJet
®
486 CRD is designed for the maintenance
cleaning of re ow ovens and wave soldering machines.
Depending on your cleaning requirements, the DCT project
manager, in collaboration with a local distributor, will advise
you on a suitable water-based cleaning  uid and the correct
setup of the entire process.
Depending on your cleaning requirements,
the DCT project manager, in collaboration
with a local distributor, will advise you
on a suitable water-based cleaning fl uid
and the correct setup of the entire process.
AirJet
®
486 CRD 
TECHNICAL DATA SHEET
3
www.dct.cleaning

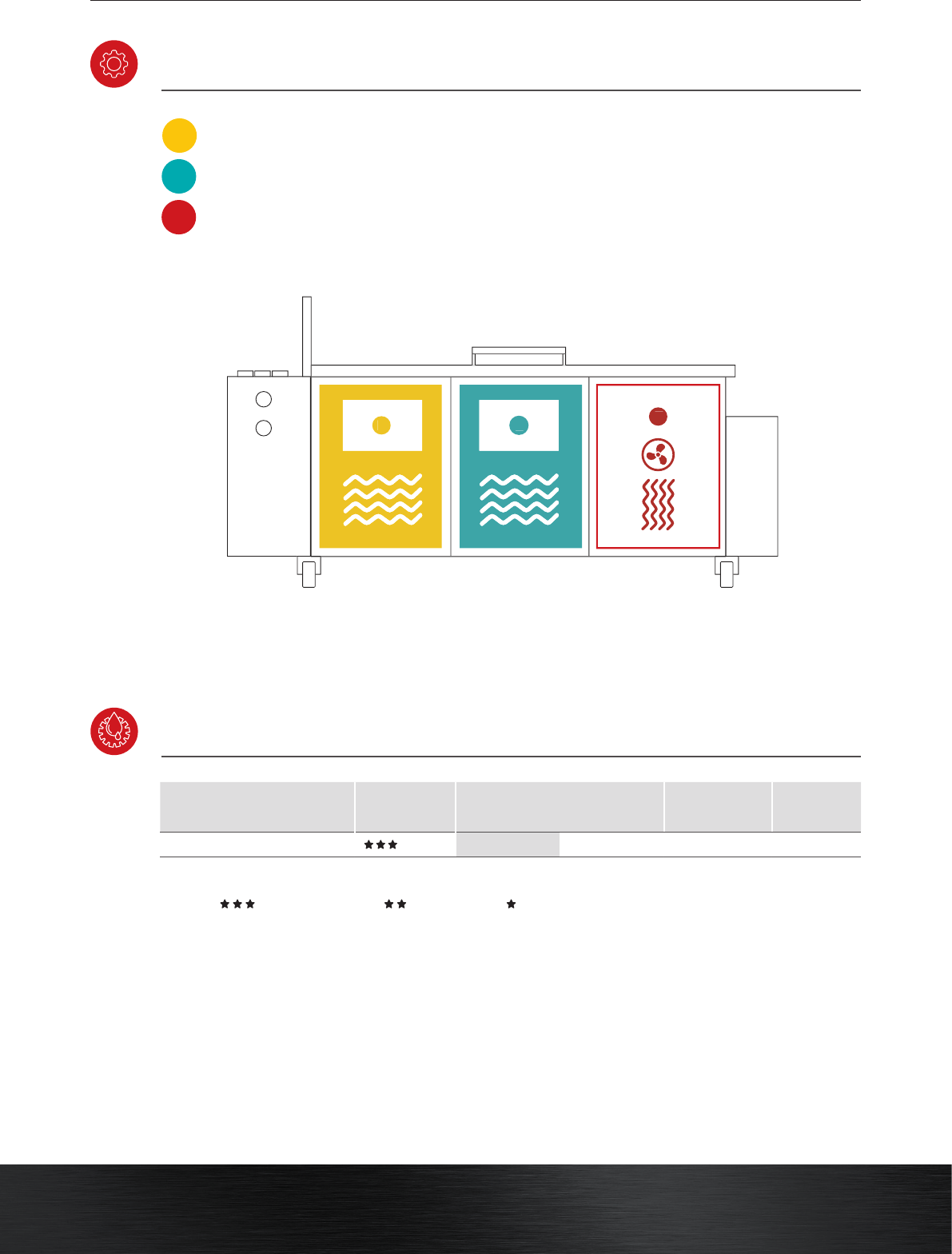

R
C
D
C
CLEANING
RINSING
DRYING
R
D
Application
name
Recommended
application
Recommended
temperature
Total cleaning
process time
Capacity
per 8 hours
Re ow and soldering parts
30 – 50°C 86 – 122 °F 35 min. 192 **
3 INDIVIDUAL PROCESSES
CLEANING PARAMETRES
highly recommended recommended applicable
* PCB eurocards / per 8 hours (calculated for dimension of 100 x 160 mm / 3.94 x 6.3 in)
* * Parts in soldering palette / per 8 hours (320 x 500 x 50 mm / 12,6 x 19,7 x 1,97 in)
* * * Stencils, pumpprints larger than 736 x 736 mm / 29 x 29 in
LEGEND:
