Retrofit instructions SIPLACE S-27 HM Long Board Option
10/2004 Edition
21

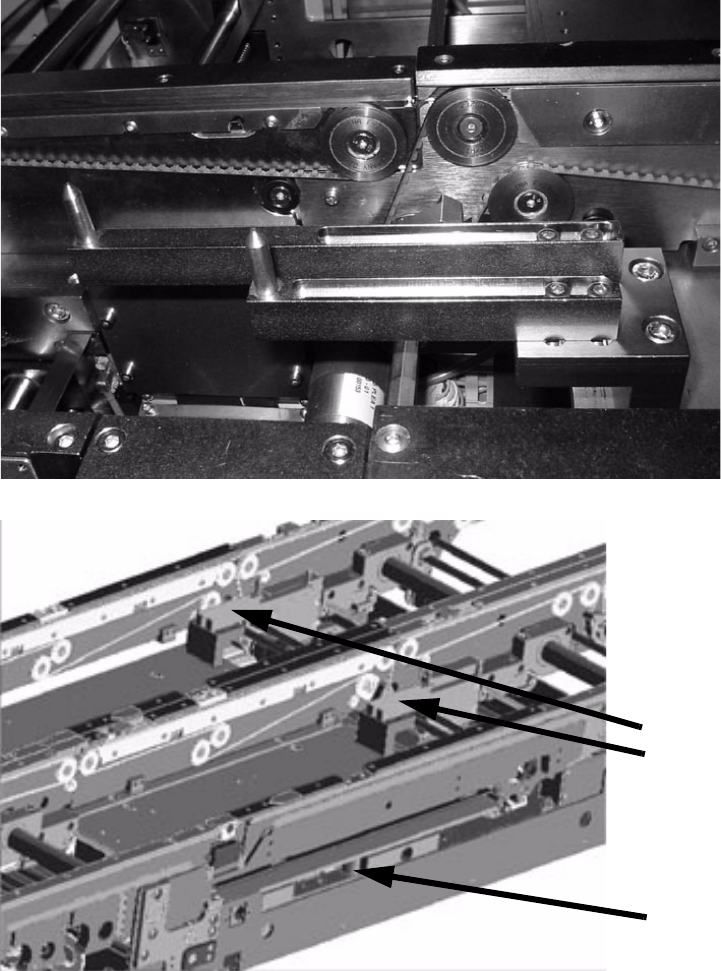

: Install the lifting table bed option.
: Use 2x M5x40 DIN912 to screw the support bracket in the desired position on the lifting table
bed .
: Bring the support rail into the desired position and tighten the screws.
2
2
2
2
2
"Long board"
support
LT path limiter
Retrofit instructions SIPLACE S-27 HM Long Board Option
10/2004 Edition
22
2.5 Installation of software
: Install the software "Long Board Option SIPLACE S-25 HM / S-27 HM
(Item no.: 00118405-xx).
2.6 Settings in SITEST

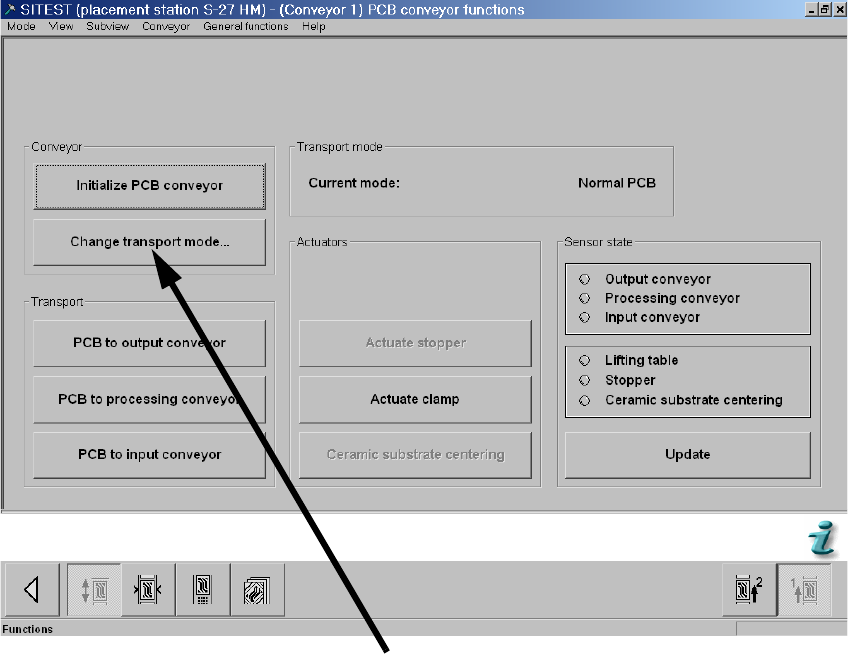

: Start the SITEST Service Menu.
: Choose PCB transport menu.
: Select "Change transport mode".
2
2
2
2
2
Change transport mode
Retrofit instructions SIPLACE S-27 HM Long Board Option
10/2004 Edition
23

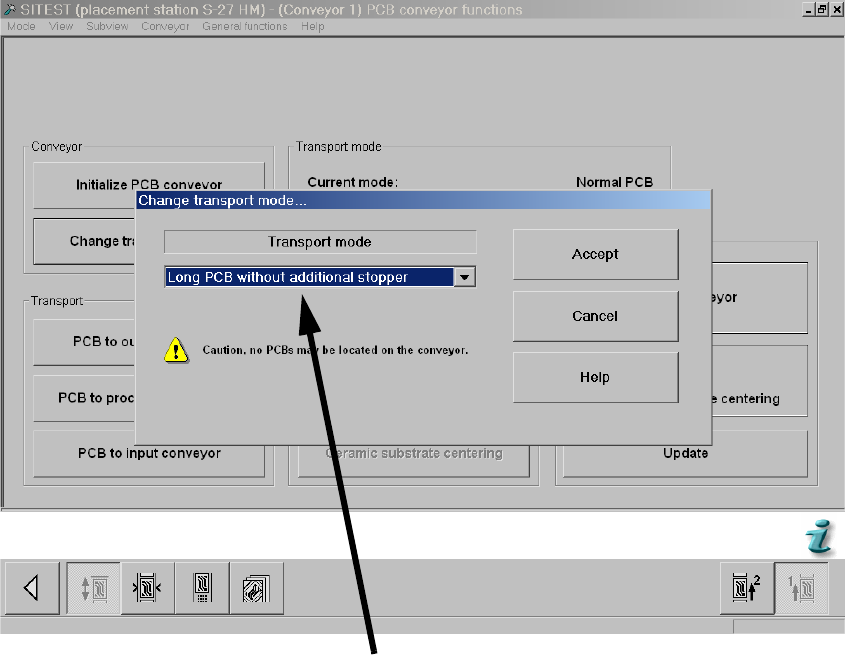

: In the appearing window select the transport mode:
"Long PCB without additional stopper".
2
2
2
Long PCB without additional stopper
