1 Introduction 1.4 Staff Qualifications and Training Assembly Instructions E by SIPLACE Conveyor Conversion Kit 03/2017 12
Assembly Instructions E by SIPLACE
Conveyor Conversion Kit 03/2017
1 Introduction
1.4 Staff Qualifications and Training
11
1.4 Staff Qualifications and Training
Qualified or adequately trained personnel means that these people are familiar with the setting up,
operation and maintenance of the machine and the add-on devices and are suitably qualified, e.g.:
●
Have been trained, instructed or authorized to switch on and off, isolate, earth and identify
electrical circuits and system components in accordance with normal safety standards.
●
Have been trained or instructed in the upkeep and use of appropriate safety equipment in ac-
cordance with normal safety standards.
●
Have received first aid training.
1 Introduction
1.4 Staff Qualifications and Training
Assembly Instructions E by SIPLACE
Conveyor Conversion Kit 03/2017
12
Assembly Instructions E by SIPLACE
Conveyor Conversion Kit 03/2017
2 Conversion
2.1 Tools and parts required
13
2 Conversion
2.1 Tools and parts required
●
Standard tools
●
Allen key 3 mm
●
Allen key 2.5 mm
●
Cable ties
2.2 BOM Identification
E Conveyor Stopper Right Kit [03125846-xx] (for Conversion Left to Right)
●
E-series stopper assembly right [03106875-xx]
●
Cable, conveyor, standard flow cable [03108895-xx]
E Conveyor Stopper Left Kit [03125847-xx] (for Conversion Right to Left)
●
E-series stopper assembly left [03106570-xx]
●
E series conveyor cables std. left fixed [03108896-xx]
2.3 Steps and procedure
Overview

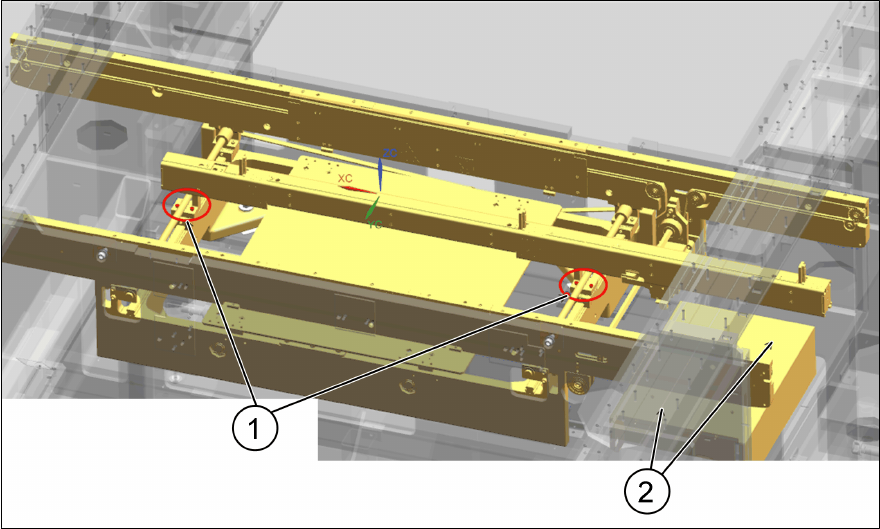

Fig.3: Stopper rail and TSP covers
1 Stopper rail stand screws 2 TSP covers
