3.2 Operation flow
Gauze slack check is performed as the following flow chart.
Gauze Slack Check starts
[Gauze Slack Check
Times
] is “
0
”
.
Gauze Slack Check is
completed.
Gauze is wound.
Gauze is slack?
[Gauze Slack Check Times]
is exceeded?
Process before
gauze slack check is
terminated halfway
.
YES
NO
YES
YES
NO
NO
Wet or dry cleaning is
enabled in board data?
YES
Ea8423: CLEANER
GAUZE SLACK
Ea8422: CLEANER
GAUZE SLACK
Do you want to
continue?
YES
NO
NO
Product Engineering Division
SMT Section
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50564
6/8

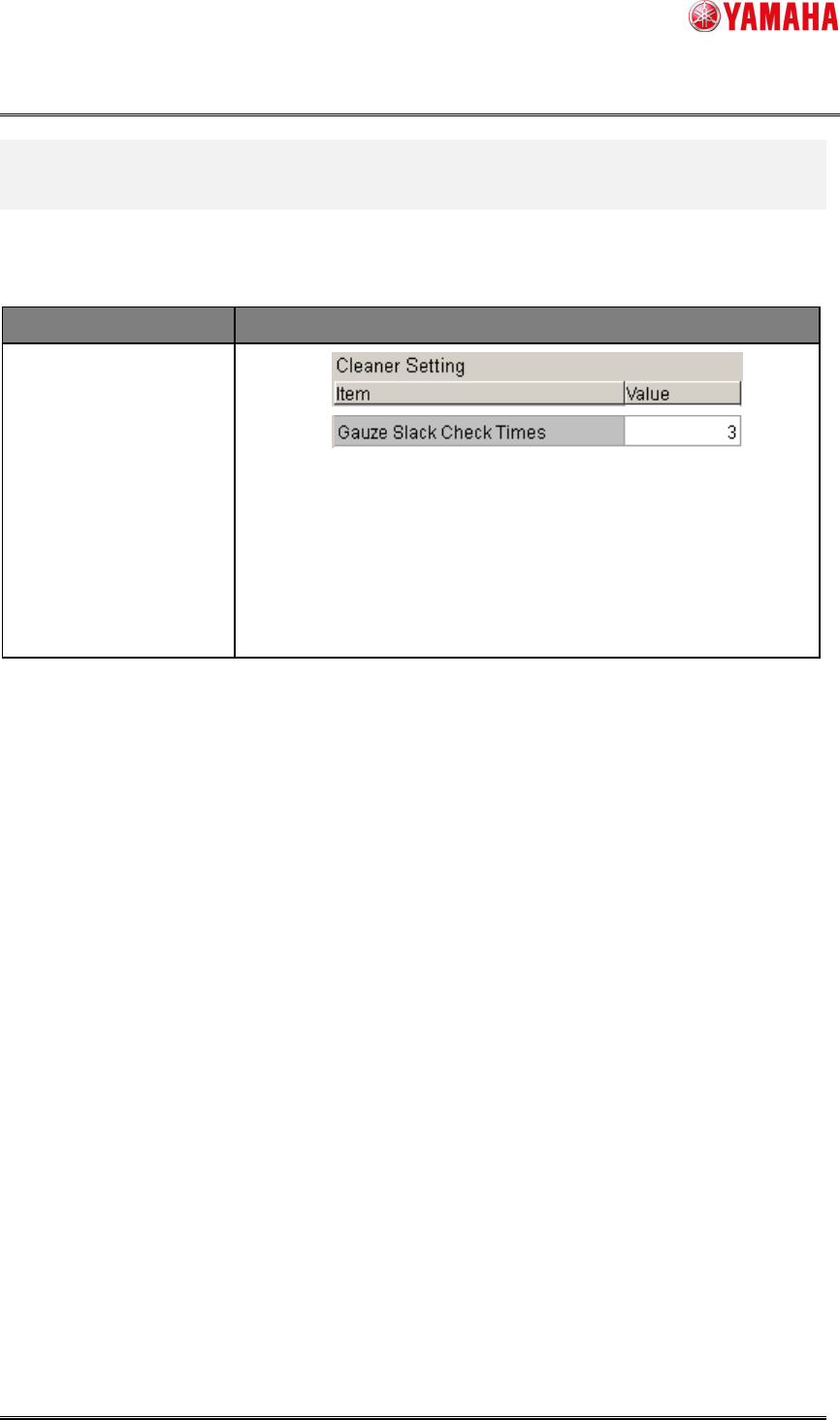

4 Setting
Please set [Machine Information]-[Machine Data]-[Cleaner Setting]-[Basic Setting], to use
this function.
Item Description
Gauze Slack Check
Times
Set the number of times to execute Gauze Slack Check.
・Default is set to 3.
・When “0” is set, it does not check.
･If the software is upgraded from an unsupported version, “0”
is set.
Product Engineering Division
SMT Section
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50564
7/8
5 Error Massage
Show the error massages added for this function below.
No. Title Cause and Solution
8422 CLEANER GAUZE SLACK
ERROR
A gauze is emptied or slacked off.
When operating a machine just as it is, there is a
possibility that a gauze is interfered with a MS axis.
Please exchange a gauze, when it was emptied.
Please roll a gauze by the [Unit] - [Cleaner] - [Paper
Rolling] button, when it was slacked off.
8423 CLEANER GAUZE SLACK
ERROR
A gauze is in the following state.
- A gauze isn't being set.
- A gauze is emptied.
- A gauze is slacked off.
Do you want to continue?
When a gauze isn't being set.
Please push "Yes", and continue process.
When a gauze is being set.
When operating a machine just as it is, there is a
possibility that a gauze is interfered with a MS axis.
Please push "No", and finish process.
- Please exchange a gauze, when it was emptied.
- Please roll a gauze by the [Unit] - [Cleaner] -
[Paper Rolling] button, when it was slacked off.
