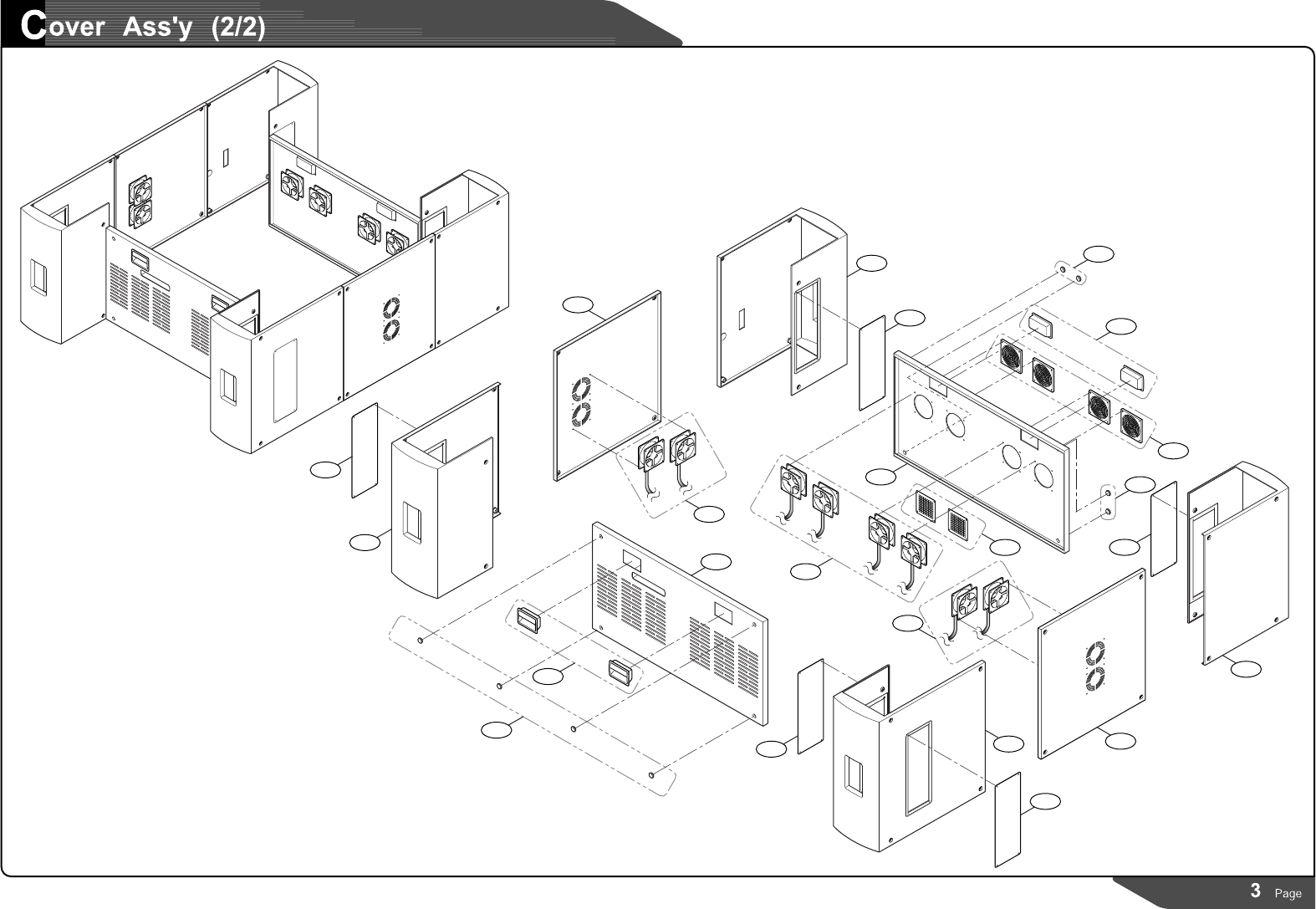

NO. PART󰚟NO. PART󰚟NAME Q'TY TYPE REMARK 1 J7070305C COVER-INNER󰚟L 1 J7070305C 2 J7070306C COVER-INNER󰚟R 1 J7070306C 3 J7070307C COVER-TOP 1 J7070307C 4 J7070275B COVER-UFL 1 J7070275B 5 J7070276B COVER-UFR 1 J70…

100%1 / 111
H
D
-
1
0
8
H
D
-
1
0
8
H
D
-
1
0
8
H
D
-
1
0
8
S AMS UNG TE CHWIN
39
43
44
41
43
40
34
38
33
39
39
44
44
42
35
32
43
40
39
39
31
36
37
NO. PART󰚟NO. PART󰚟NAME Q'TY TYPE REMARK
1 J7070305C COVER-INNER󰚟L 1 J7070305C
2 J7070306C COVER-INNER󰚟R 1 J7070306C
3 J7070307C COVER-TOP 1 J7070307C
4 J7070275B COVER-UFL 1 J7070275B
5 J7070276B COVER-UFR 1 J7070276B
6 J7070277B COVER-URL 1 J7070277B
7 J7070278B COVER-URR 1 J7070278B
8 J7070279A COVER-UML 1 J7070279A
J7070326A COVER-UML󰚟TR 1 J7070326A LTS󰚟Option
9 J7070280A COVER-UMR 1 J7070280A
J7070331A COVER-UMR󰚟TR 1 J7070331A LTS󰚟Option
10 J7070282B COVER-MAINTENANCE󰚟UL 2 J7070282B
11 J7070283B COVER-MAINTENANCE󰚟UR 2 J7070283B
12 J7070330B COVER-CONVEYOR 2 J7070330B
13 J1300497 SHOULDER󰚟BOLT󰚟 4
14 J73520001B DOOR󰚟CUSHION 4 J73520001B
15 J7070297A MONITOR󰚟CABLE󰚟COVER 2 J7070297A
16 J9052281D DOOR󰚟ASSY 2 J9052281D
16-A J72520112C DOOR󰚟WINDOW 1 J72520112C
16-B J70700312E DOOR󰚟FRAME 1 J70700312E
16-C J6108007A HINGE 3
16-D J6119051A HANDLE 1
17 J90800419D FRONT󰚟AREA󰚟SENSOR󰚟CABLE󰚟ASSY 1 CV37 Area󰚟Sensor󰚟Option
18 J90800545C REAR󰚟AREA󰚟SENSOR󰚟CABLE󰚟ASSY 1 CV38 Area󰚟Sensor󰚟Option
19 J7052901B SENSOR󰚟BRACKET 2 J7052901B
31 J7070268C COVER-LFL 1 J7070268C
NO. PART󰚟NO. PART󰚟NAME Q'TY TYPE REMARK
32 J7070269A COVER-LFM 1 J7070269A
33 J7070270C COVER-LFR 1 J7070270C
34 J7070271C COVER-LRL 1 J7070271C
35 J7070272A COVER-LRM 1 J7070272A
36 J7070273D COVER-LRR 1 J7070273D
37 J7070314B COVER-LMB 1 J7070314A
38 J7070315B COVER-LMR 1 J7070315B
39 J7070281A COVER-MAINTENANCE󰚟L 5 J7070281A
40 J1300101 DRAWER󰚟PULL󰚟 4
41 J6309025A FAN󰚟COVER󰚟 4
42 J6309006A FAN󰚟SCREEN󰚟 2
43 J6099002B HOLE󰚟PLUG 8 J6099002B
44 J9061532D REAR󰚟FAN󰚟ASSY 8
44-A J1202399 COOLING󰚟FAN󰚟 1
61 J6719056A GAS󰚟SPRING 4
62 J6099002B FASTENER󰚟CAP 8 J6099002B
63 J7252088A SPACER 8 J7252088A
64 J7070345A GAS󰚟SPRING󰚟BRACKET 4 J7070345A
65 J90830074D DOOR󰚟SW󰚟CABLE󰚟#11 1 SM310-PS-01-11 Front
J90830075D DOOR󰚟SW󰚟CABLE󰚟#21 1 SM310-PS-01-21 Rear
65-A J34091002A SAFETY_DOOR_SWTICH 1
66 J1301641 OPERATION󰚟KEY󰚟 2
67 J7070217C SENSOR󰚟BRACKET󰚟1 2 J7070217C
68 J7070218C SENSOR󰚟BRACKET󰚟2 2 J7070218C
70 J9099194B MONITOR󰚟ARM󰚟ASSY 2 J9099194B
70-A J7070234D MONITOR󰚟CAP󰚟BRACKET 1 J7070234D
