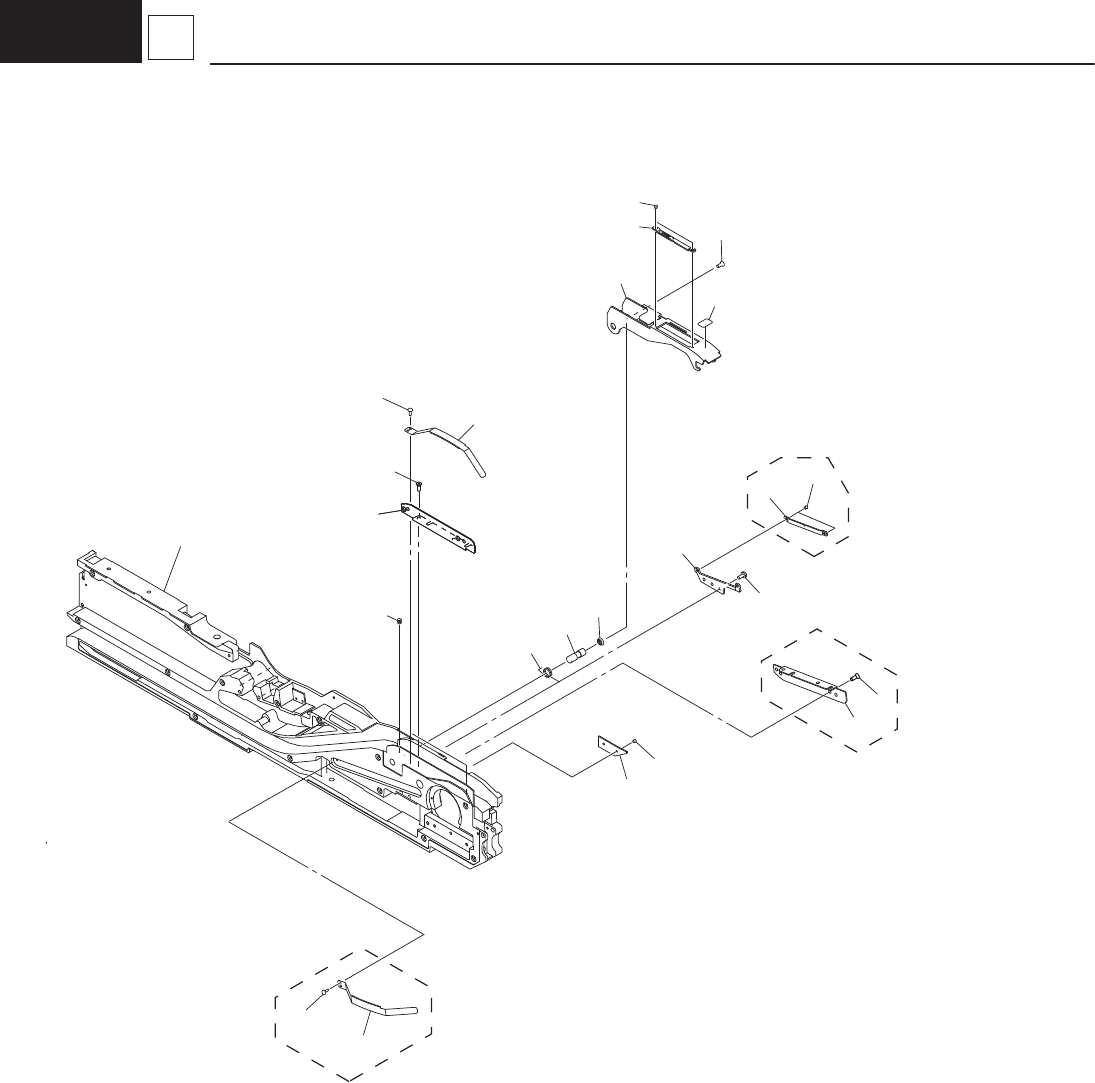

– 78 – 12,16mm G 5 Suppressor Section 1710-006 445 495 494 487 493 4A5 489 498 497 446 488 499 4A0 4A6 495 4A5 494 4A2 493 4A4 4A3 4A4 4A3 For 16mm Not Use For 16mm See Fig.G-1 Key No.B1
– 77 –
Tape Feeder GT-12162
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
331 90166-02J208 221DA003 SCREW,PAN HEAD 2 PAN M2L8
370 KYD-MC21T-00 0926C20P SPRING_COMP 1
372 KYB-MCH0T-00 213C0209 ROLLER(A) 1
373 KYD-MC21V-00 0926C22U PIN_GUIDE 1
374 KYD-MC22J-00 222M1311 SPRING_COMP 1
376 KYD-MCN2G-00 4M130018 MOTOR_DC 1 M91
379 KYD-MC21W-00 0926C22V PIN_LOCATE 1
380 90990-01J135 221AA089 BOLT_HEX-SCT 2 M2.5L6 SW+FWS
381 90990-01J139 221AA092 BOLT,HEX.S/H WW 2 M3L8 SW+FW
3A2 KYD-MC13Y-00 23G10088 SENSOR_PHOTO 1 B03
3C2 KYD-MC20K-00 0926220R ASSY_GEAR 1
3C3 KYD-MC23C-00 GEAR ASSY. 1
3C4 KYD-MC20Y-00 0926C208 COVER 1
3C5 KYD-MC21Y-00 0926C23B PIN_LOCATE 1
3C6 KYD-MC22C-00 216E1761 PIN_LOCATE 1
3C7 90166-12J204 221DA060 MACHINE SCREW 1 PAN M2L6 SW+FWS
3C8 KYD-MC225-00 211AD925 COVER 1
3C9 KYD-MCN3A-00 0926B400 SEAL 1
3D2 90440-01J020 221KA002 ROHS_RING 1 E RING 2
3E1 KYD-MC21B-00 216S2660 LEVER(KAIJYO) 1
3E2 KYD-MC21U-00 0926C22J GEAR 1
3E3 KYD-MC21Y-00 0926C23B PIN_LOCATE 1
3E4 KYD-MC20X-00 0926C207 COVER 1
3E5 90166-12J204 221DA060 MACHINE SCREW 2 PAN M2.5L6 SW+FWS
3F1 KYD-MC212-00 0926C23C ASSY_LEVER 1
3F2 95302-03700 221FA006 NUT_HEX 1 M3
3F3 KYD-MC22D-00 216F0885 PIN_GUIDE(BANE) 1
1710-006
– 79 –
Tape Feeder GT-12162
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
487 KYD-MC20D-00 0926C31G LEVER(SUP) 1
488 KYD-MC22E-00 216F0913 PIN_GUIDE(SUP) 1
489 KYD-MC22K-00 222P0201 SPRING_TORSION 1
493 KYD-MC219-00 212B2299 CHUTE 1
494 KYD-MC21P-00 0926231A ASSY_PLATE(SUP) 1
495 KYD-MC22G-00 221D0196 MACHINE_SCREW 2 PAN M2L1.5
497 90990-02J035 221C0027 SET SCREW 1
498 KYD-MC205-00 0804000L NAME PLATE 1
499 KYD-MC22H-00 221H0230 WASHER 1
4A0 90167-02JA06 221DA103 MACHINE SCREW 1 FLT M2.5L6
4A3 KYD-MC20U-00 09262301 ASSY_SPRING 1
4A4 90990-08J035 221DB001 MACHINE SCREW 1 PAN M2L4
4A5 90167-02JA06 221DA103 MACHINE SCREW 3 FLT M2.5L6
4A6 90166-02JA06 221DA005 MACHINE SCREW 2 PAN M2.5L6
