Thermal T weezers Ref. HT420-A w w w . jbct ools . com INSTRUCTION MANUAL
Thermal Tweezers
Ref. HT420-A
www.jbctools.com
INSTRUCTION MANUAL
Cartridge Electric
Connection Screw
2
WARNING: It is esential to tighten this screw for
the tool to function.
Important: It is esential to insert the cartridge
till the end for a good connection.
Take the mark as reference and check that
both tips of the tweezer coincide.

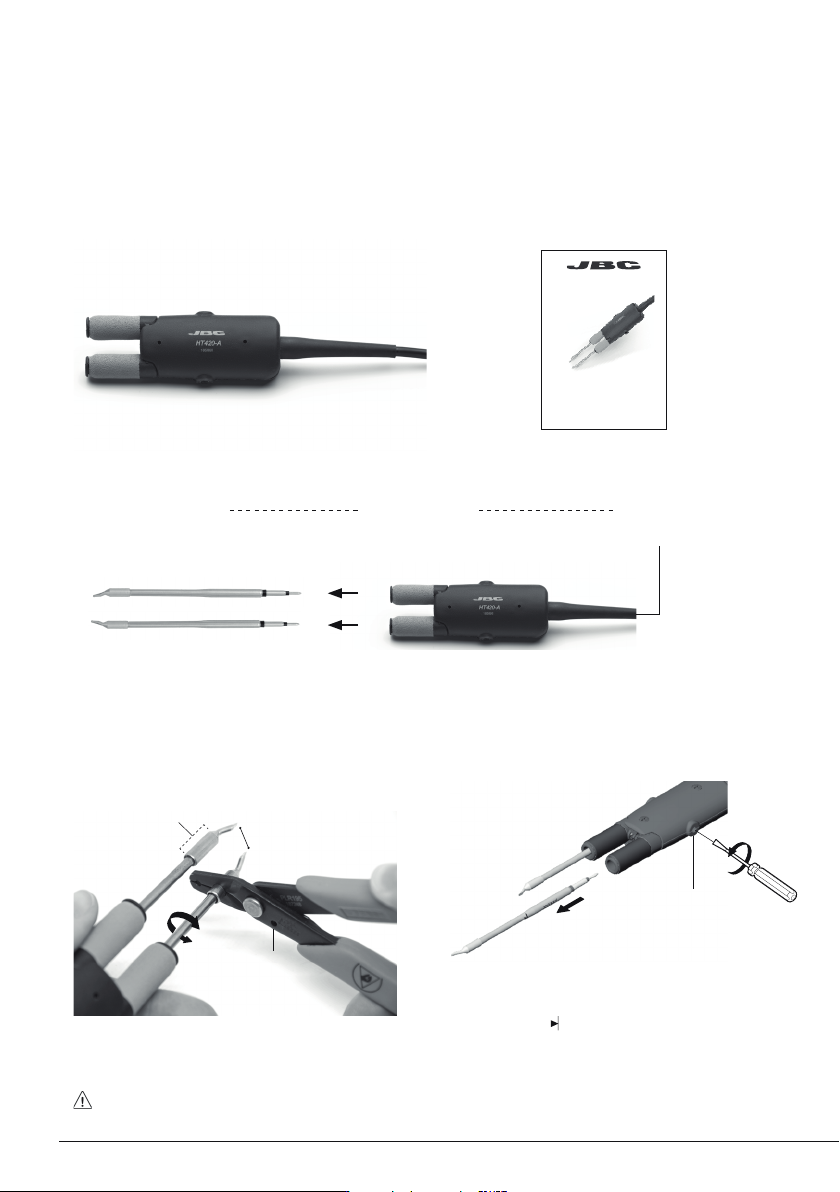

Packing list
Changing Cartridges
Features
Thermal Tweezers ..................................... 1 unit
Ref. HT420-A
Manual ........................................................... 1 unit
Thermal Tweezers
Ref. HT420-A
The following items should be included:
Control Unit
Ref. DI, DDE, DME
Stand
Ref. HT-SE
Thermal Tweezers
Ref. HT420-A
C420 Cartridges
(required but not supplied)
Stand Cable
Ref. 0 011283
Use a flat pliers in the indicated area for a
correct tip alignment.
Do not over-tighten the cartridge.
Alignment
Suitable area
for a correct
flat pliers
contact.
PLR195
Cartridge extractor
www.jbctools.com
INSTRUCTION MANUAL
3

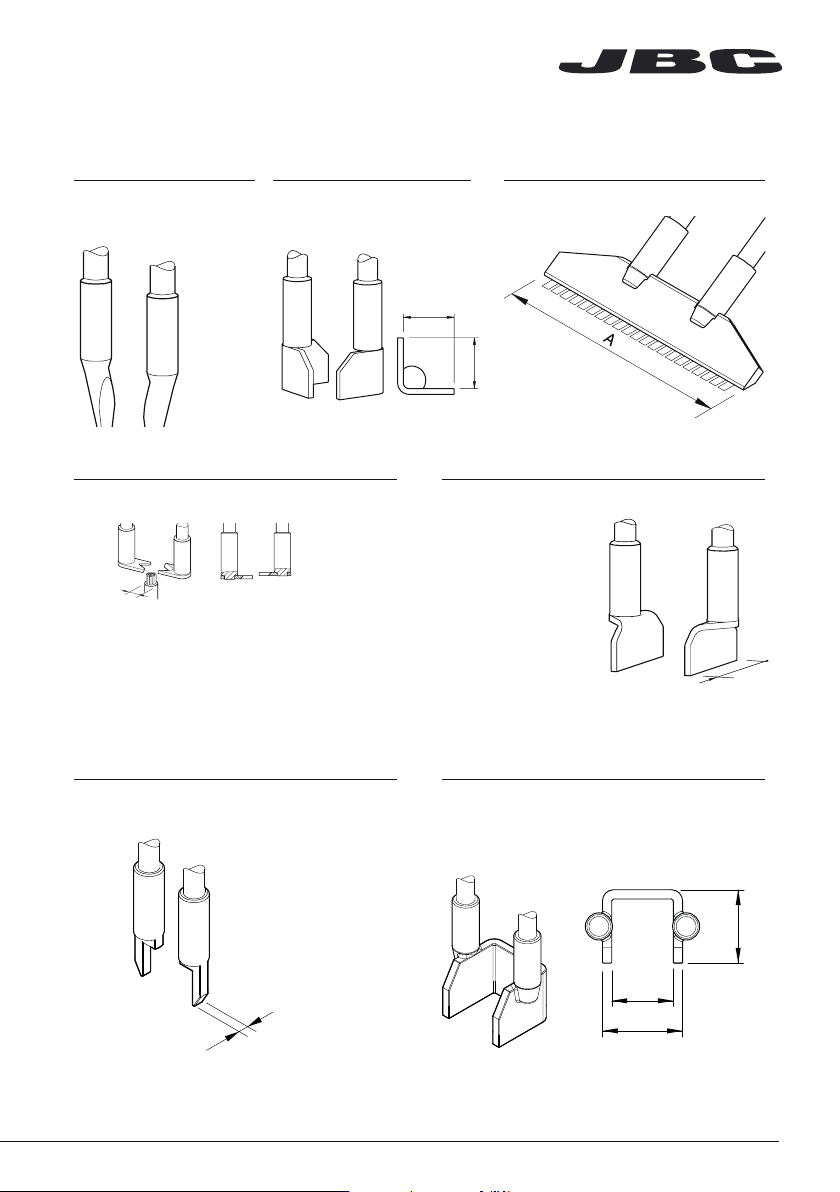

Consult our wide range of cartridges with more than 250 references in www.jbctools.com.
For Special Cartridges contact with our distributor.
C420 Cartridge Range
Chip Components
Dual in line
QFP y PLCC Blade Type
Cable stripper
12
15,6
14,3
2
Special Cartridges Special Cartridges
A
A
A
A
A
C420-282C420-281
C420-271 A = 1,5 mm
C420-272 A = 2,6 mm
C420-273 A = 4 mm
C420-274 A = 6 mm
C420-275 A = 8 mm
C420-276 A = 10 mm
C420-277 A = 15 mm
C420-278 A = 20 mm
C420-285 A = 22 mm
C420-279 A = 8 mm
C420-280 A = 11 mm
C420-283 A = 50 mm
C420-281 C420-282
A = 12 mm
B = 15,6 mm
C = 14,3 mm
2 mm
