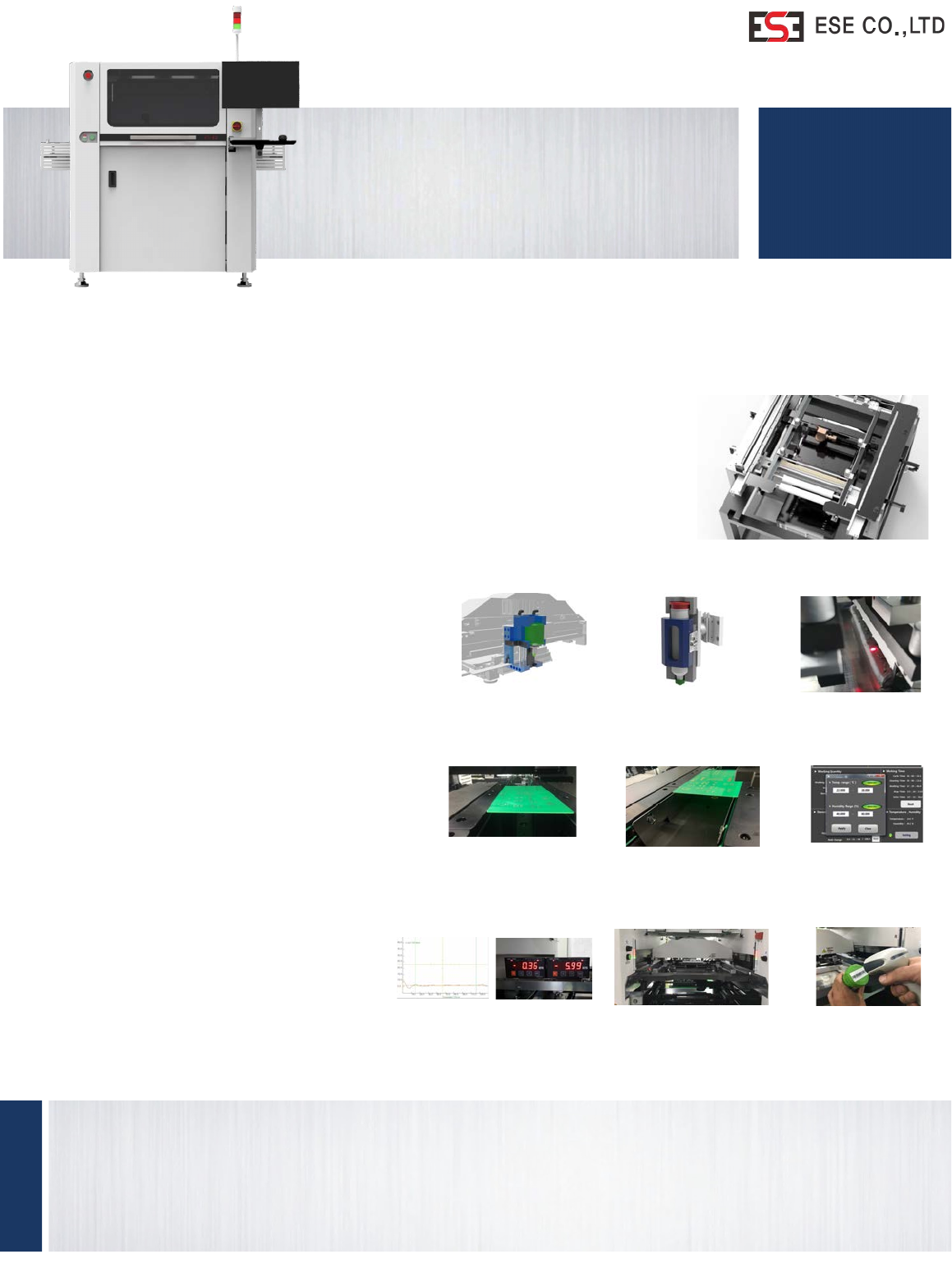

H2
Super cycle time and High productivity
PCB size
50mm x 50mm
- 550mm x 510mm
PCB Thickness
0.3mm to 6mm
Stencil size
550mm, 584mm (23”), 650mm, 736mm(29”)
Core Cycle time
6sec /
under optimized condition
Alignment accuracy
±
12.5 um @ 6 sigma
Printing repeatability
±
25 um @ 6 sigma , Cpk ≥2.0
H2 realizes super cycle time based on ESE own technology
[ core cycle time – 5.5~6 sec and including cleaning – 10sec under ESE optimized condition ]
The most stable mechanical structure and printing performance with machine alignment 10microns
and repeatability 20microncs will make you cut down sharply your production time and much
higher productivity
Technological Cleaning system – Dual vacuum and Cost-saving (40-50%) paper cleaning system
Improved Easy & Fast paper change mode
Convertible cleaning system for Paper and Paperless
Linear motor applied for stable & fast camera and 3 stages conveyor system as standard
Back-to-Back configurable modification available for medium size PCB production
Auto solder paste dispenser (JAR, Syringe)
Solder roll height check
Barcode management
(RFID management workable)
Inside temperature
& humidity display
Programmable Y (side) clamp
pressure
*Real squeegee pressure closed loop
*Real time squeegee pressure closed loop
Side lifter for PCB edge
support
Area sensor for safe
[Door both side ]
Retrofit Options
To improve productivity, Below retrofit options are
recommended
Touch screen monitor (22”)
Inside Temperature & Humidity display
Auto solder paste dispenser[ JAR or
Tube type]
Solder paste roll height check system
Programmable Y (Side) Clamp pressure
with Y clamp
Easy clip Squeegee system (one
-touch)
Barcode Management (*RFID management available)
Side lifter for PCB edge support
Real Squeegee pressure closed loop
Real time squeegee pressure closed loop
Ionizer(Anti
-Static) PCB cleaning
Air conditioner
Temperature controller
Center Table vacuum pressure sensor
Area sensor for sate [Door both side ]
Additional optional item request, please contact ESE

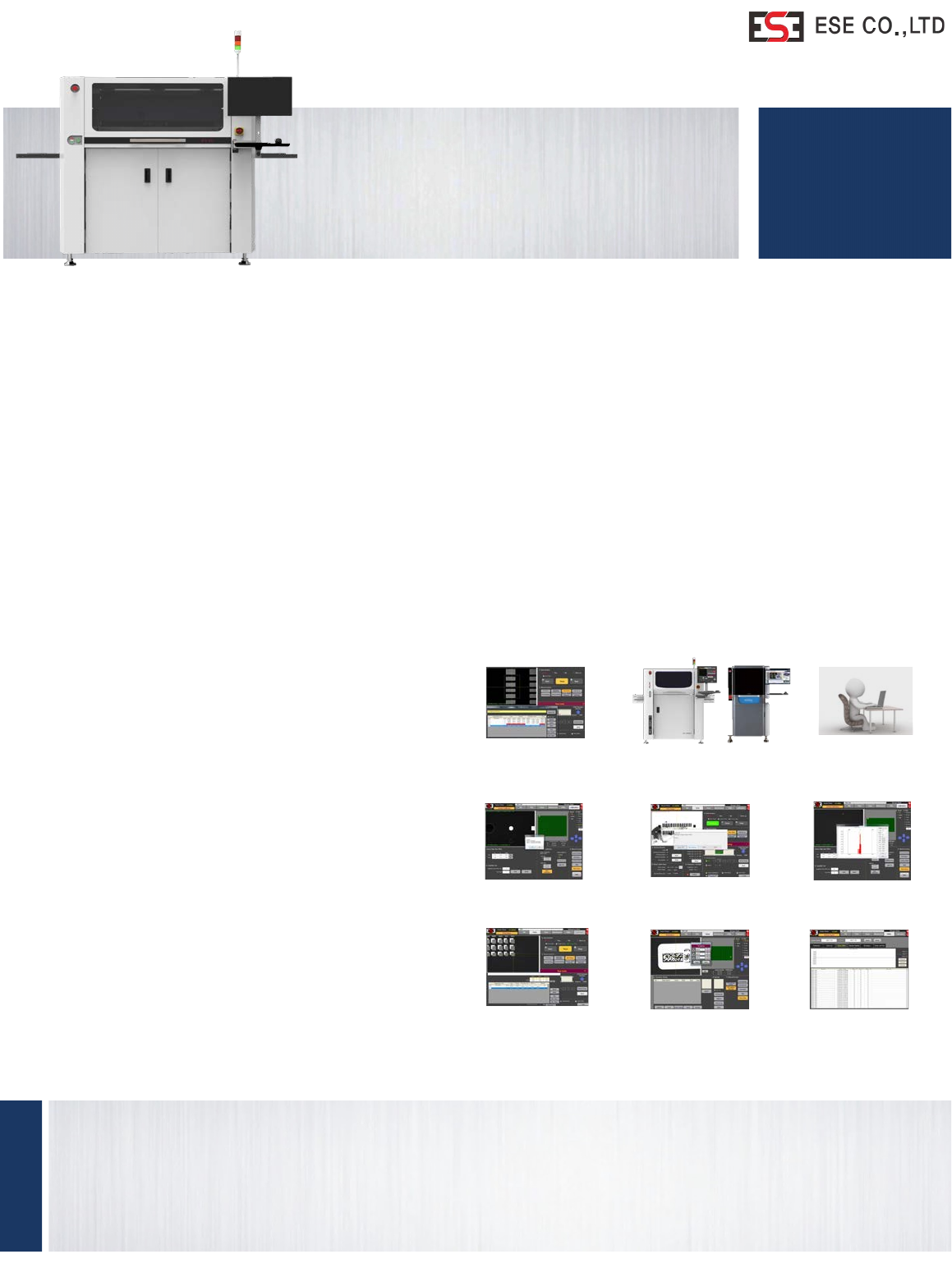

E8
Qualitied professional large Printer
PCB up to 850mm
PCB size
70mm x 70mm
- 850mm x 610mm
PCB Thickness
0.3mm to 6mm
Stencil size
736mm(29”), 800mm, 850mm, 980mm, 1050mm x 850mm
Cycle time
17sec
Alignment accuracy
±
12.5 um @ 3 sigma
Printing repeatability
±
25 um @ 3 sigma , Cpk ≥1.33
The automatic stencil printing system E8 based on Standard E2 & E7 platform was developed to cover LED, LCD
and much larger substrate up to 850mm.
As a qualified professional large printer by a leading LED, LCD customers, E8 includes all standard E2 & E7 printer
features & function and most flexible system in this industry field.
Up to 10kgs* substrate weight on E8 can be handled and flexible design allows customer mask stencil size loading
including ESE standard configuration (Optional)
Including Standard clamping system, special designed side vacuum clamp tool kit supports much perfect board
clamping and printing result from a warpage
Enhanced standard Features
2D inspection
Less, Excess, Bridge, Position
SPI close loop
Auto Camera calibration
Auto Stencil Inspection
Auto Alignment
Accuracy measuring
Auto Alignment
PCB barcode traceability
ESE standard MES data
Program by network
* 2D inspection for solder excess, less, short and position error
* SPI closed loop with Kohyong, Parmi, TRI, Pemtron, Cyberoptics
* Production programming by network
* Auto stencil loading & positioning
* Auto camera calibration
* Auto Alignment before production
* Auto stencil inspection & cleaning for a containment area
* Auto Squeegee center position calibration
* Auto Alignment accuracy measuring for table & camera
* ESE standard MES data
* Program for Auto PCB support tooling for Gridlock, Quik
-Tool
* PCB barcode traceability by vision camera

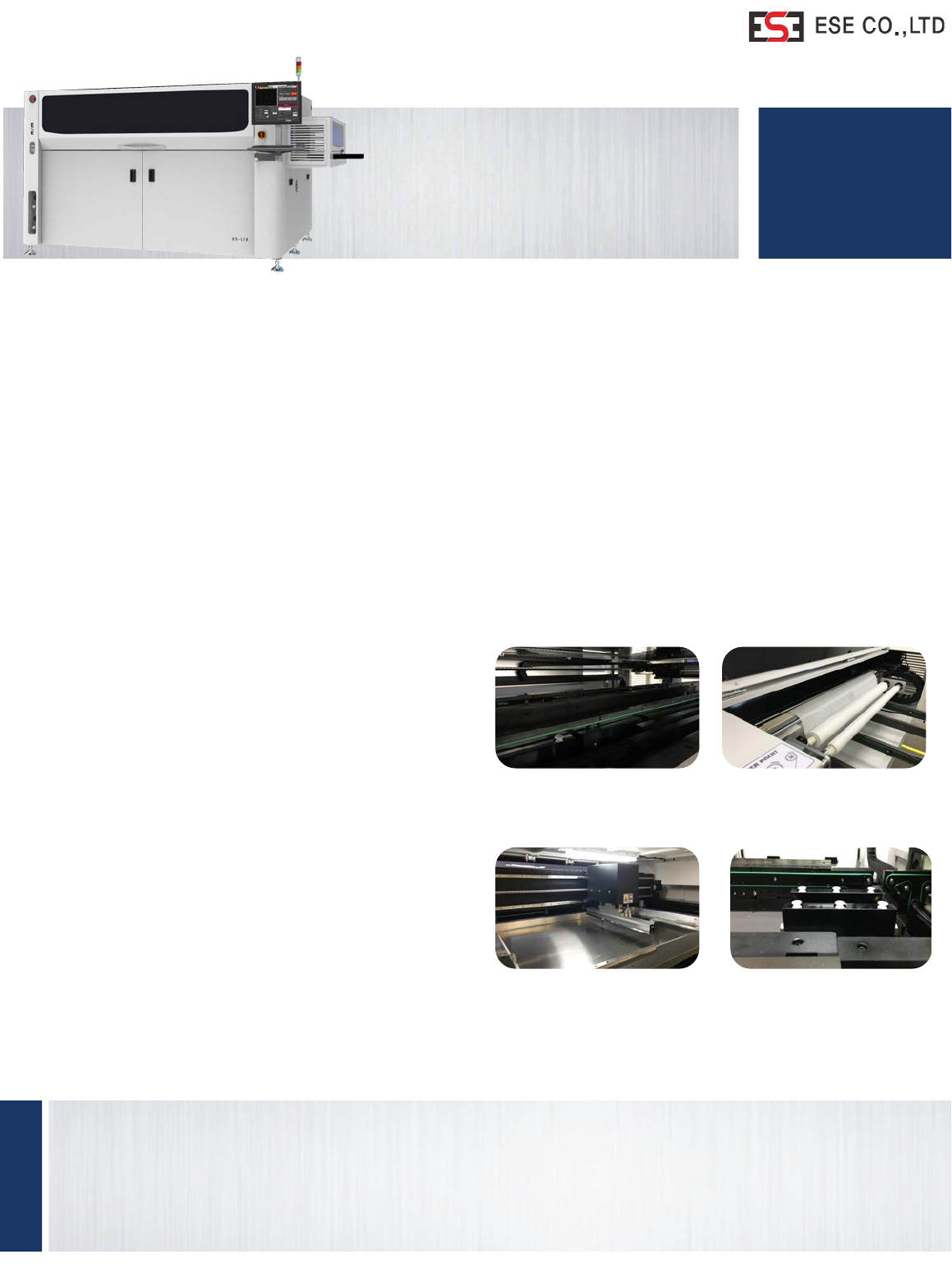

LX1
Qualitied professional large Printer
PCB up to 1000mm
X direction Printing & Cleaning
The automatic stencil printing system L1 based on Standard E8 platform was developed to cover LED, LCD and
much larger substrate up to 1000mm.
As a qualified professional large printer by a leading LED, LCD customers, L1 includes all standard E8 printer
features & function and most flexible system in this industry field.
Up to 10kgs* substrate weight on E8 can be handled and flexible design allows customer mask stencil size loading
including ESE standard configuration (Optional)
Including Standard clamping system, special designed side vacuum clamp tool kit supports much perfect board
clamping and printing result from a warpage
Effective X direction printing & cleaning direction applied
PCB size
100mm x 80mm
- 1000mm x 650mm
PCB Thickness
0.3mm to 6mm
Stencil size
736mm(29”), 980mm, 1300mm x 800mm
Cycle time
35sec /
1000mm PCB
Alignment accuracy
±
12.5 um @ 3 sigma
Printing repeatability
±
25 um @ 3 sigma , Cpk ≥1.33
Standard 3 stages conveyor system
Standard X direction cleaning system
Standard X direction printing system
Standard side vacuum clamp
* 2D inspection for solder excess, less, short and position error
* SPI closed loop with
Kohyong, Parmi, TRI, Pemtron, Cyberoptics
* Production programming by network
* Auto camera calibration
* Auto Alignment before production to reduce
human error and production time
* Auto stencil inspection & cleaning for a containment area
* Auto Squeegee calibration for new squeegee, blade change
and squeegee center position before production
* Auto Alignment accuracy measuring for printer table &
camera accuracy
* ESE standard MES data
* Program for Auto PCB support tooling for Gridlock,
Quik-Tool,
GemiXlock
* Production data collect
* PCB barcode traceability by vision camera
* Side vacuum clamp kit
Enhanced standard Features
