54 6301563954 BRACKET 2 845DX-100-054 21 1FC323 56 6301532059 BRACKET 1 845DX-100-056 21 1FB800 57 6301532424 BRACKET 1 845DX-100-057 21 1FB804 61 6301376103 P .C.B,MOUNT 6 U08,U09, UB32 845DX-100-061 4B1 1 1516 66 63001…
MODEL GXH-3PH
0712-002
61
56
61
54
57
54
61
61
71
.
72
.
73
76
.
77
.
78
71
.
72
.
73
76
.
77
.
78
71
.
72
.
73
71
.
72
.
73
76
.
77
.
78
66
.
67
66
.
67
66
.
67
66
.
67
71
.
72
.
73
71
.
72
.
73
66
.
67
66
.
67
76
.
77
.
78
架台上全体部準備
OVERALL UPPERFRAME
PREPARATION SECTION

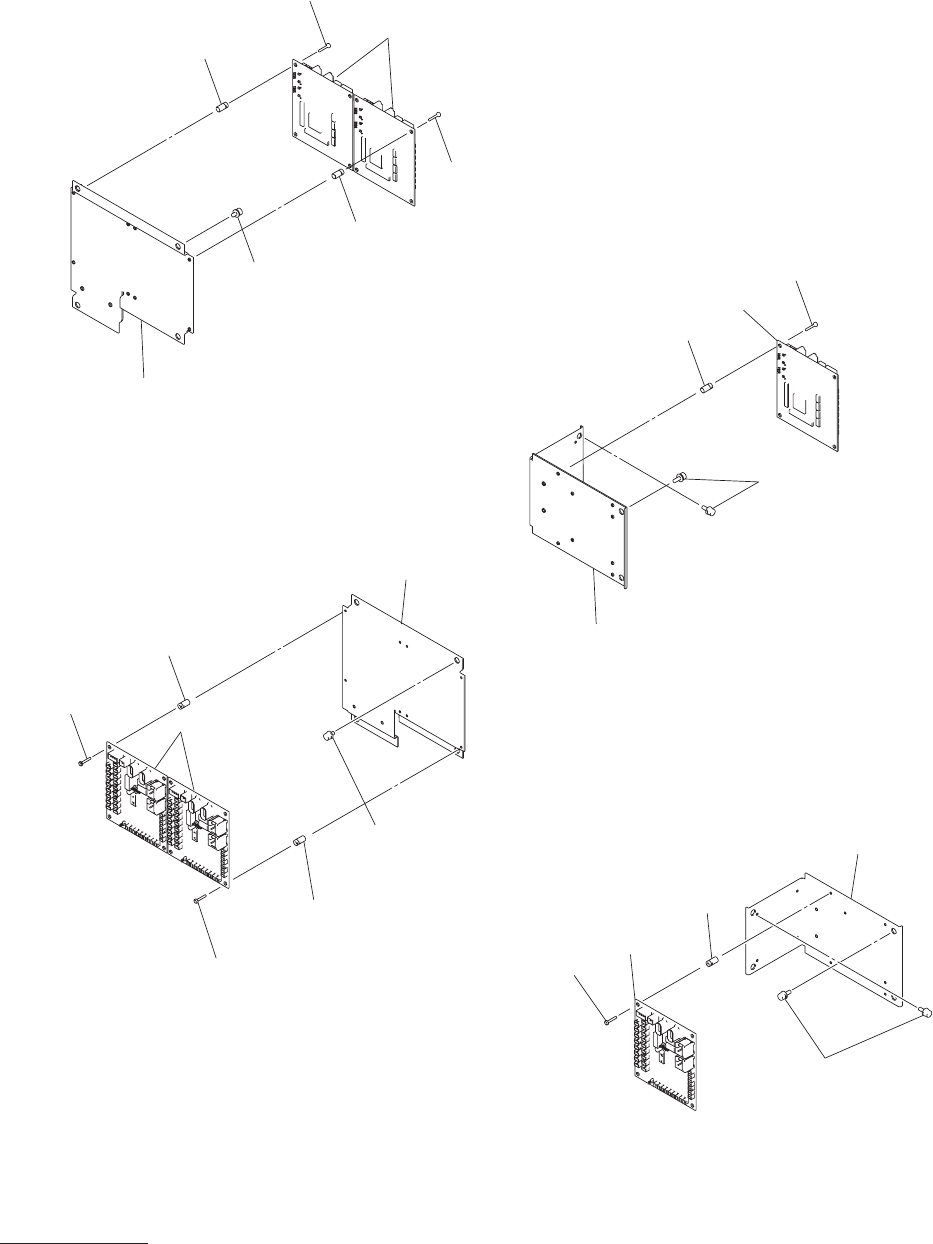

Fig. DX-1 I/O
ボード
L/R I/O Board L/R
DX-1 illust-1
54 6301563954 BRACKET 2 845DX-100-054 211FC323
56 6301532059 BRACKET 1 845DX-100-056 211FB800
57 6301532424 BRACKET 1 845DX-100-057 211FB804
61 6301376103 P.C.B,MOUNT 6 U08,U09, UB32
845DX-100-061 4B111516
66 6300137606 ACCESSORY,P.C.B 24 845DX-100-451 23L10024
67 6300137637 ACCESSORY,P.C.B 24 845DX-100-452 23L10025
71 4111130700 SCR PAN 3X16 24 845DX-100-851 221E0491
72 4111191909 WASHER V 3X7X0.5 24 845DX-100-852 221H0311
73 4110864408 WASHER SPR 3 24 845DX-100-853 221H0280
76 4111406409 SCR PAN 5X16 16 845DX-100-866 221E0512
77 4110881702 WASHER V 5X10X1 16 845DX-100-867 221H0317
78 4110082109 WASHER SPR 5 16 845DX-100-868 221H0286
MODEL GXH-3PH
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
DX-1
DX-1 list-1
MODEL GXH-3PH
0712-002
153
151
152
154
156
155
M4×70 PAN
.
169
.
170
165
.
166
.
167
168
.
169
.
170
173
.
174
.
175
架台上全体部準備
OVERALL UPPERFRAME
PREPARATION SECTION
Fig. DX-2
一次電源
Main Power Supply
DX-2 illust-1
