New Benchmark
Achieve best accuracy at highest speed over largest area
±10µm accuracy, < 3µm placement repeatability
High-stiness frame, within 1µm from corner to corner
Proprietary VRM linear motor: thermally stable, dual-drive, 1µm resolution
Optimized motion control for sub-micron repeatability
Environmental thermal management
High-resolution optics, mapping and calibration routines
Two-step precise global ducial nd
Look before pick
Top Alignment Process (TAP)
Accuracy Management System (AMS) validates accuracy while in production
AOI feedback and placement adjustment
High throughput up to 10K cph APAS, 30K cph standard applications
Dual-drive VRM linear motor with fast motion response and settling times
Available dual-beam congurations with multiple heads
Multiple heads/spindles reduces number of cycles from pick to place
Gang pick and gang dip maximizes cycle time eciency
On-the-y vision with large eld of view
Populate the largest panels to process higher die counts
Traditional platforms follows wafer form factor, limiting assembly size
Populate panels without sacricing speed or accuracy
Achieve a 7X processing increase!
300mm
~71K mm
2
625mm x 813mm
~508K mm
2
All-in-one platform for any assembly challenge
Place broad range of die and components on one platform
High-accuracy ip chip, bare die, surface mount, and odd-form
Full range of die: 0.5–40mm, 0.05–4mm thick
Advanced vision algorithms, programmable lighting, bump recognition down to 20µm
SMT: 01005–55mm square and up to 25mm tall
Supports solder/ux dipping and pin transfer
150–5000g placement force (lower-force options available), dynamic force control
Placement capability from ANY feeding option
Wafer, tray, tape, tube, and bulk
Supports wafers up to 300mm and multiple die part numbers
Tape: 4 x 1mm (01005) up to 56mm
Matrix tray: supports stationary and automated stackable feeders (2x2, 4x4, JEDEC)
All-Around Performer
Place on ANY substrate
Thin, thick, narrow, and large assembly area
Substrates, wafers, lead frames, ceramics, glass, ex, and laminates
Reel-to-reel systems
Bare Die
Flip Chip
Chip
LED
Tant Cap
SOIC
TSOP
DPAK
QFP
BGA
PLCC
CSP
Electrolytic Cap
Connectors
CCGA
BNGA
Odd-Form
Pin-in-Paste
Differentiation Through Knowledge
All Markets
Leverage process expertise and years of experience
Advanced Process Lab focused on realizing rapid product introduction, maximizing yield and
optimizing reliability
Leading-edge, fully equipped laboratory
Optimized assembly solutions (design, materials, process, pioneering equipment technology)
for new and existing products
Prototyping and development, rst article build, NPI, volume production
Design for Manufacture (DfM), Design for Reliability (DfR)
Research partnerships: industry-leading Consortium, multiple University collaborations
APAS applications since 1990; thousands of platforms, all markets
Flip Chip in Package
System-in-Package
Wafer-Level Packaging
Embedded
High-Accuracy Place
High-Speed Passive
One solution for all advanced packaging application challenges
The precision performance and versatile capabilities of the FuzionSC deliver maximum throughput per oor space for virtually any application. With
an unbeatable combination of speed, accuracy and exibility, FuzionSC will have you well-positioned for your next product.
Substrate and carrier handling with
precision lifter and vacuum tooling
Flux dip capability with Linear Thin
Film Applicator (LTFA)
Supports up to 4 Innova direct die
feeders for multi-die applications
High-speed passive/SMT device
placement
Vision algorithms/lighting support
all substrate materials & packages
Look-before-pick ensures highest
pick accuracy
Flip Chip in Package
Best accuracy (±10µm) at highest
speed over largest area
Supports panels up to 610mm x
813mm
AOI accuracy feedback for
post-process compensation
Software supports high die count
assemblies
Precision material handling and
thermal stage options
Die-level traceability SECS–GEM
Wafer-Level Packaging
Thin and narrow substrate handling
Bad circuit detection, electronic
pass-down
Gang ux dip for maximum cph
Supports up to 4 Innova direct die
feeders for multi-die applications
High-density passive placement,
01005 and smaller, 4x1 feeding
Small ducial & ducial teach-by-
show pattern nd
Highest speed ip chip placement
System-in-Package
Best accuracy (±10µm) at highest
speed over largest area
Panels up to 610mm x 813mm
Supports high device count, both
passives and actives
AOI accuracy feedback for
post-process compensation
Precision material handling and
thermal stage options
Die-level traceability SECS–GEM
Top-side alignment (TAP) process
Embedded
Available dual-beam congurations
with multiple heads
Up to 14 spindles with gang pick
Up to 30,750 cph
4 x 1mm tape feeders
High-speed & high-accuracy modes
Bad circuit detection, electronic
pass-down
Custom applications tooling:
nozzles, substrate support
Motion proles for sensitive
device handling
High-Speed Passive
High speed, high accuracy
01005–55mm sq & up to 25mm tall
Top-side alignment (TAP) process
for LED headlamps, CPV
Advanced vision algorithms,
programmable 3-axis lighting
Wafer, tray, tape, tube, and bulk
feeding formats
Custom applications tooling:
nozzles, grippers, substrate support
Up to 5000g force, 30 seconds
dwell
High-Accuracy Place

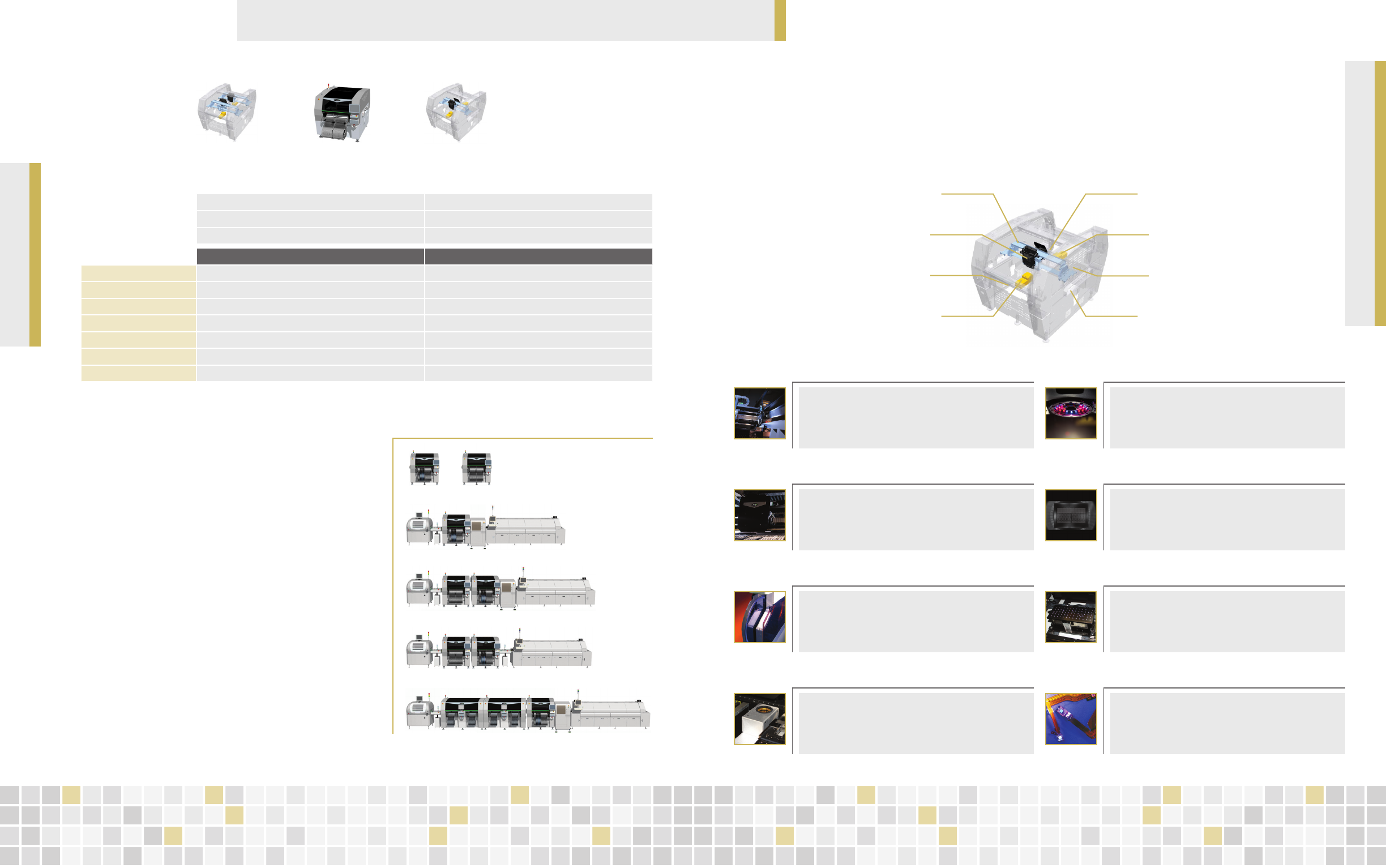

FuzionSC Portfolio & Solutions
Capability Designed In
FuzionSC2-14
For higher throughput requirements
FuzionSC1-11
Lower cost with additional exibility
Dual-beam, dual-drive overhead gantry system Single-beam, dual-drive overhead gantry system
2 FZ7 (7-spindle) placement heads 1 FZ7 (7-spindle) + 1 optional FZ4 (4-spindle) placement head
450ms tact time (w/ ux dipping), 360ms (w/out) 750ms tact time (w/ ux dipping), 600ms (w/out)
FuzionSC2-14 Specications FuzionSC1-11 Specications
Throughput (cph) 30,750 (Max) / 14,200 (4-Bd IPC Chips) 16,500 (Max) / 8,400 (4-Bd IPC Chips)
Accuracy (µm@>1.00 Cpk) ±10 (Array Devices/Flip Chip) / ±38 (Passives/Chips) ±10 (Array Devices/Flip Chip) / ±38 (Passives/Chips)
Max Board Size 508 x 813mm (20 x 32”), larger board specials available 508 x 813mm (20 x 32”), larger board specials available
Max Feeder Inputs (8mm) 120 (2 ULC) 120 (2 ULC)
Feeder Inputs Types Wafer (up to 300mm), tray, tape, tube, and bulk Wafer (up to 300mm), tray, tape, tube, and bulk
Component Range (mm) (0201) .25 x .5 x .15 (Min) to 150 square (MFoV), up to 25 tall (0201) .25 x .5 x .15 (Min) to 150 square (MFoV), up to 25 tall
Min Bump Size & Pitch (µm) Bump Size: 20, Bump Pitch: 40 Bump Size: 20, Bump Pitch: 40
Advanced technologies for advanced applications
FuzionSC features specialized technologies to address leading-edge component packaging challenges.
Fast, precise PEC Camera
Advanced vision algorithms
& lighting
Precision lifter & tooling
Versatile substrate handling
VRM Linear Motor
Positioning System
Accurate, exible
FZ™ placement heads
Multiple feeding options for
ip chip, bare die, SM
High-resolution Magellan™
digital cameras
High-accuracy (1µm resolution), closed-loop positioning
control supports converging & emerging technologies
High acceleration (up to 2.5G), thermally stable
Self-correcting, dual-drive control reduces settle times
VRM Linear Motor Positioning System
High-resolution (.27MPP)
Programmable lighting, wavelength illumination, cross
polarization
Standard/taught ducial and pad site recognition
Fast, precise PEC Camera
Precision accuracy (27µm @ Cpk>1)
0201 – 150mm square (MFoV), up to 25mm tall
High-speed IC and chip, gang pick up to 7 components
Standard Package-on-Package (PoP) functionality
Accurate, exible FZ™ placement heads
Front, side, and on-axis combination lighting
Lighting calibration performed on the machine,
eliminating machine-to-machine intensity variation
Lighting intensity is consistent across viewable area
Advanced vision algorithms & lighting
Wafer, tray, tape, tube, and bulk
Up to 4 direct die feeders, wafers up to 300mm
Stationary and stackable matrix trays
Standard and dual-lane tape for small passives
Multiple feeding options for ip chip, bare die, SM
Handles strips/lead frame, auer boats, carriers/pallets,
boards/panels from 0.10mm – 12.0mm thick
Integral vacuum generator
Precise registration of the substrate in x, y and z axis
Precision lifter & tooling
Supports all ip chip and SM devices
High resolution of 1024 x 1024 enables small part
feature recognition
2.3, 0.94, 0.5, 0.2MPP (supports 20µm bumps/pillars)
High-resolution Magellan digital cameras
Thin, thick, narrow, and large assembly area
Substrates, wafers, lead frames, ceramics, glass, ex,
and laminates
Large substrates up to 625mm x 813mm
Versatile substrate handling
Scalable solutions for cost-ecient productivity
Stand-alone machine solution – All-in-one eciency
Single-beam for high exibility, dual-beam for higher throughput; Wafer, tray, tape, tube,
bulk feeding – Fan-Out WLP, Die Attach, Lid Attach, High-Accuracy Place, Embedded
Mass reow – Full-process, high-mix/NPI
Complete process solution supporting multiple feeding formats and ux or solder paste
dipping – Package-on-Package, System-in-Package, 2.5D, Flip Chip, SMT, Odd-Form
Mass Reow – Scaled assembly, Medium-mix, medium-volume
Complete process solution with dedicated chip placer and exible high-accuracy placer
supporting HVHM tray packaging – High-Speed Passive, High-Accuracy Flip Chip
Mass Reow – Medium to high-volume
Complete process solution with chip placer and high-accuracy placer; higher volume,
same footprint – System-in-Package, High-Speed Passive, High-Accuracy Flip Chip
Mass Reow – Versatile high-volume
High-throughput full process solution with large feeder capacity for streamlined change-
overs – System-in-Package, High-Speed Passive, High-Accuracy Flip Chips, WLP
FuzionSC1-11 FuzionSC2-14
FuzionSC1-11 PTF
FuzionSC1-11 PTFFuzion1-30
FuzionSC2-14Fuzion2-60
FuzionSC2-14 PTFFuzion4-120Fuzion4-120
