E-by SIPLACE CP14 Removing the DP Drive Hose Part Exchange 1/1 CAUTION! Refer to safety inst ructions in user manual before working on the machine. ESD guidelines are to be followed Tool: Wear Part: Consum ables: 1. The …
E-by SIPLACE CP14 Removing the DP Drive Hose
Part Exchange
1/1
CAUTION! Refer to safety instructions in user manual before working on the machine.
ESD guidelines are to be followed
Tool: Wear Part: Consumables:

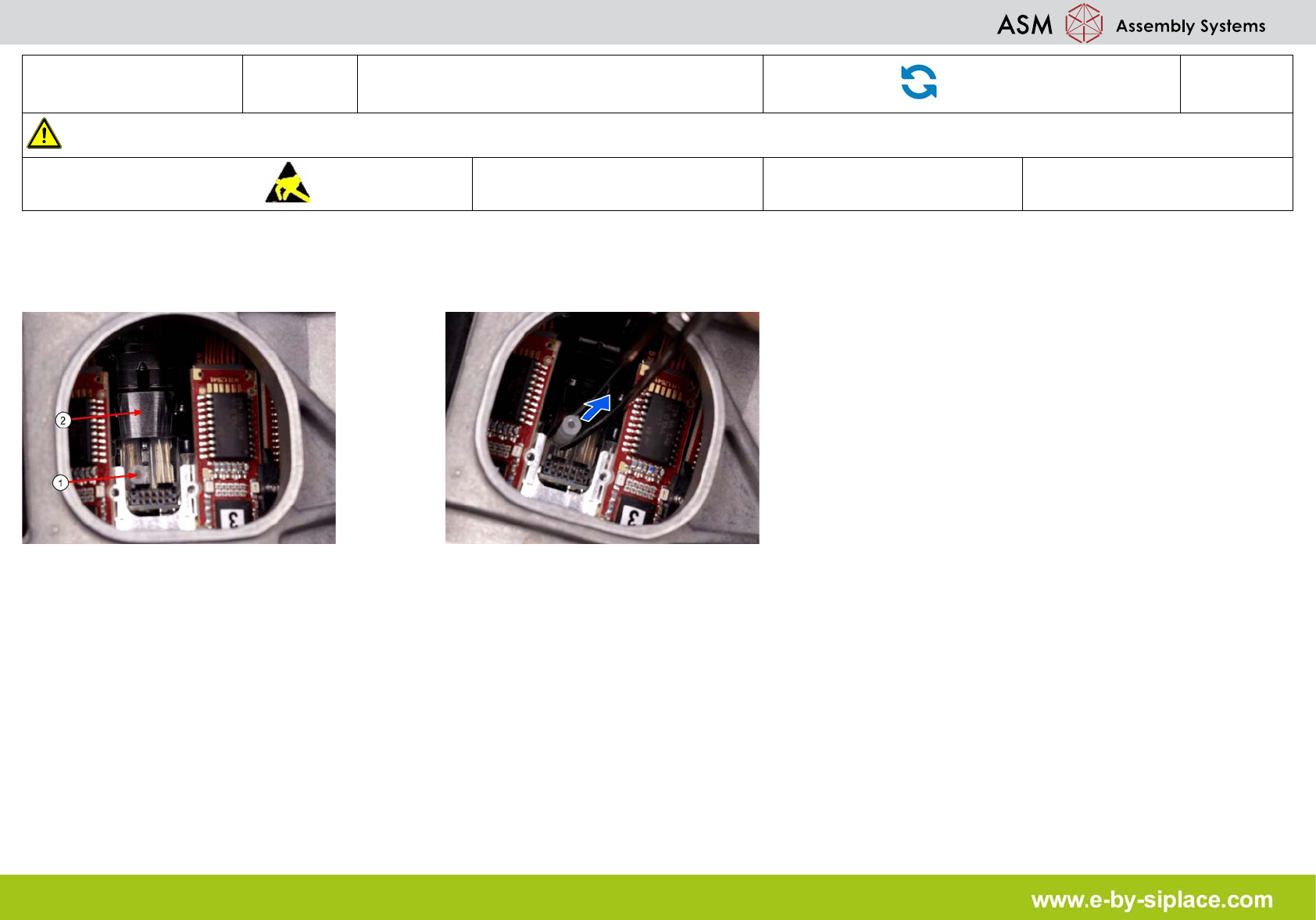

1. The connection for the back end of the hose
(1) is located on star carrier, behind spring unit
(2).
2. Pull the back end of the hose off.
