E-by SIPLACE CP14 Removing the DP Drive Hose

Part Exchange

1/1

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool: Wear Part: Consumables:

1. The connection for the back end of the hose

(1) is located on star carrier, behind spring unit

(2).

2. Pull the back end of the hose off.

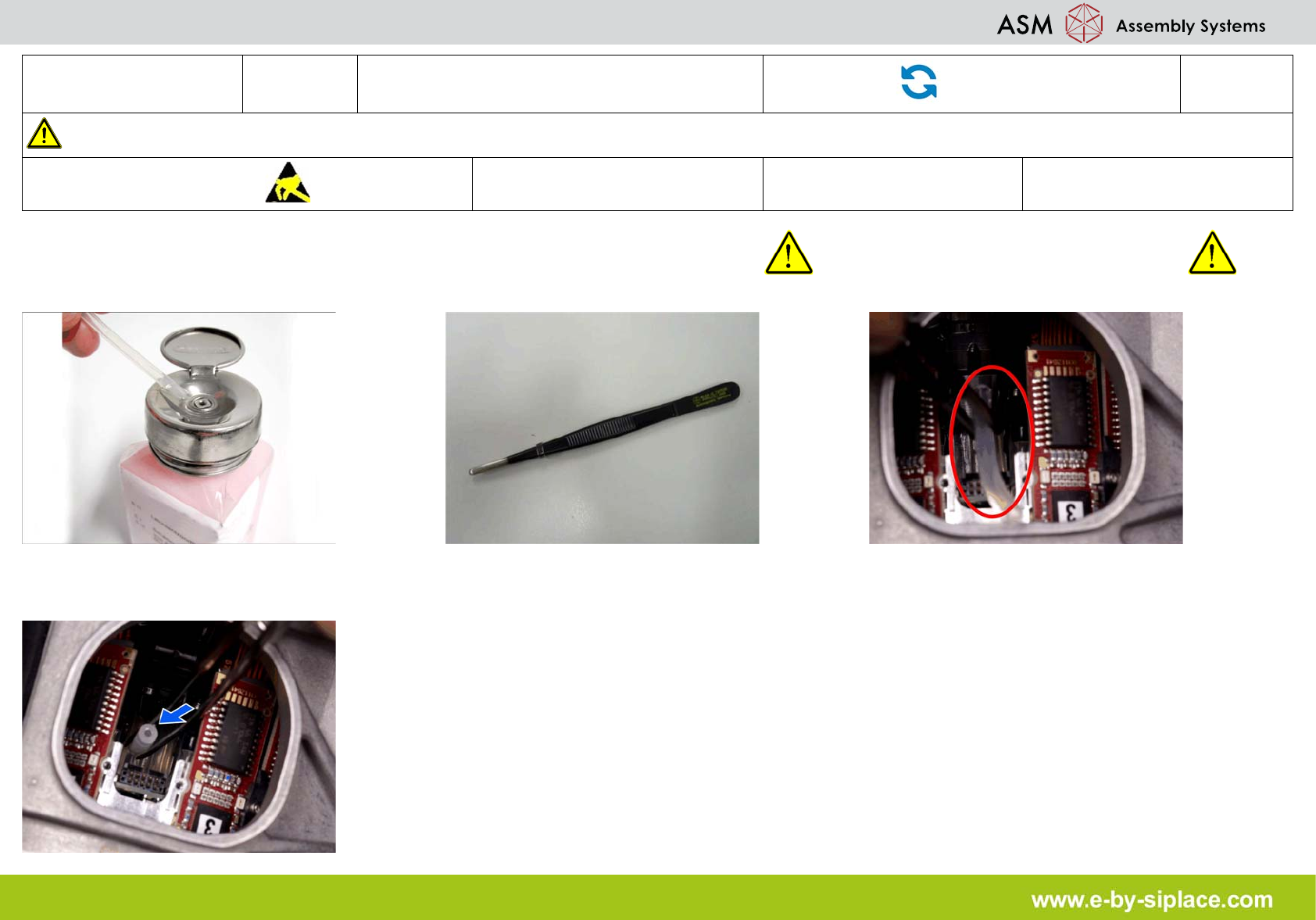

E-by SIPLACE CP14 Returning the DP Drive Hose

Part Exchange

1/1

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool: Wear Part: Consumables:

1. Coat the new hose at one end with ethanol. 2. CAUTION! Do not use pointed tweezers for

the hoses. If you do, the hoses could be dam-

aged.

3. CAUTION! Observe the natural bending ra-

dius of the hose.

4. Use the tweezers to push the coated end

onto connection the behind spring unit.
