LG9-0301 Conveyor-2 1 2 Conveyor Part No. Part Name Q'ty Remarks N o . Part No. Part Name Q'ty Remarks 1 LG9-M9201-00X RAIL,SILDE L 1 39 2 LG9-M9206-20X COVER,TUBE 1 4 0 3 LG9-M900W-00X BRACKET,CYL.(1) 1 4 1 4 …
LG9-0301
Conveyor-2
1
2

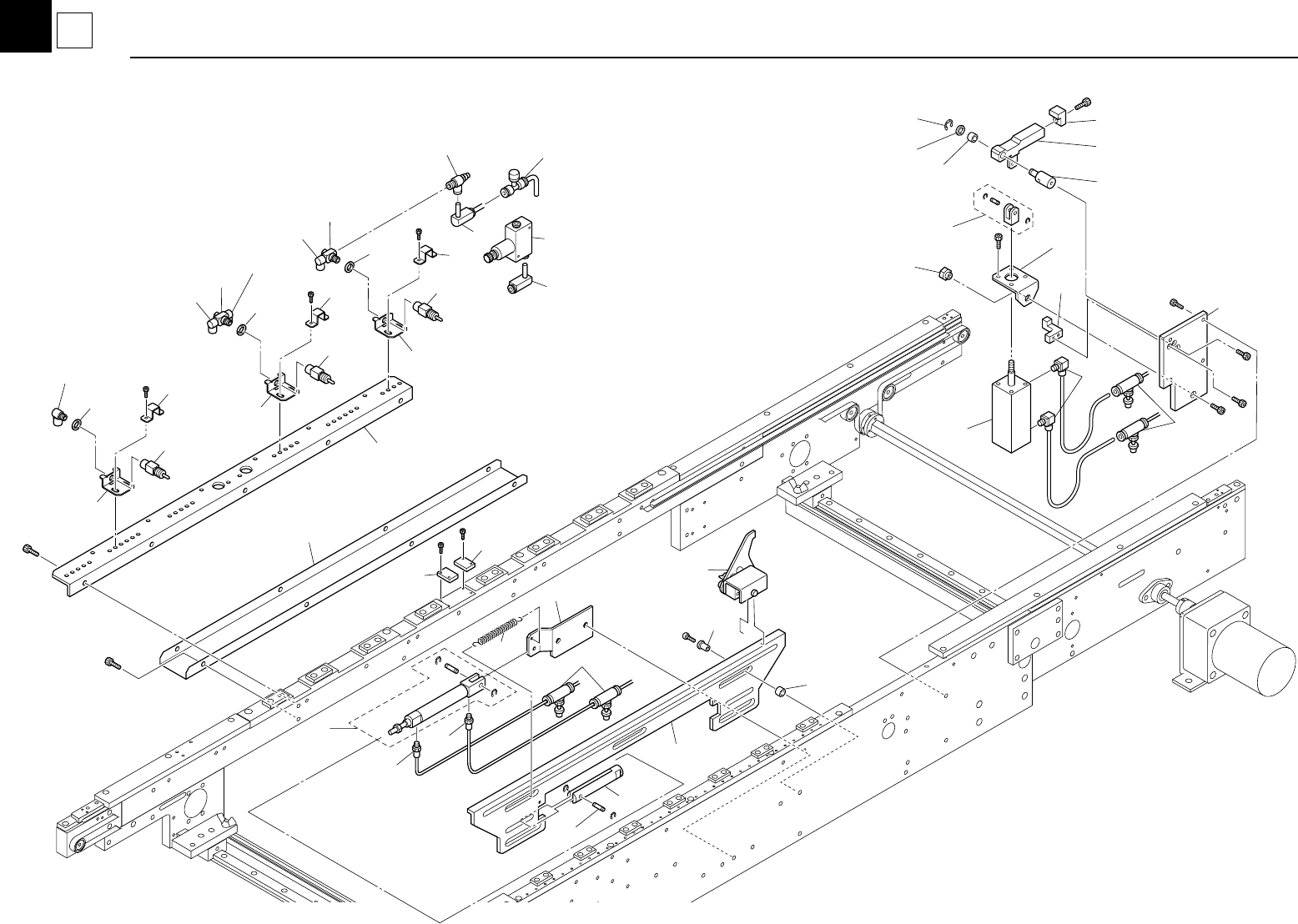

Conveyor
Part No. Part Name Q'ty Remarks No. Part No. Part Name Q'ty Remarks
1 LG9-M9201-00X RAIL,SILDE L 1 39
2 LG9-M9206-20X COVER,TUBE 1 40
3 LG9-M900W-00X BRACKET,CYL.(1) 1 41
4 LG9-M92A0-00X AIR CYLINDER 1 42
5 LG0-M71AG-00X JOINT 2 43
6 LG0-M901R-00X ROD 1 44
7 LG0-M90B0-00X PIN 1 45
8 LG0-M901S-00X SPRING 1 46
9 LG0-M901E-00X SHAFT,RAIL 4 47
10 LG0-M901F-00X WASHER,RAIL 4 48
11 LG0-M910L-00X REAR CLAMP ASSY.(A) 1 49
12 LG7-M9203-00X BRKT.SIDE CLAMP 1 50
13 LG9-M9205-02X BRKT.CYL.(2) 6 51
14 LG9-M9208-00X BRKT.CYL.(3) 7 52
15 LG7-M92A1-00X AIR CYLINDER 7 53
16 LG7-M92A2-00X JOINT,TEE 6 54
17 LG9-M92A2-00X SPACER 7 55
18 LG0-M71AH-00X JOINT 12 56
19 SC4-M5A SPEED CONTROLLER 1 57
20 LG0-M90AR-00X SPCON. 4 58
21 SL26MA168-00X REGULATOR 1 59
22 LG9-M90H0-00X PHOTO SENSOR 1 60
23 SL26MA169-00X PRES.GAUGE 1 61
24 SL26MA170-00X ELBOW 2 62
25 SL39M9205-00X BRKT.CYL.(2) 1 63
26 LG0-M910G-00X PLATE,BASE(A) 1 64
27 LG0-M910F-00X BLOCK,STOPPER (A) 1 65
28 LG0-M901X-00X STOPPER 1 66
29 LG0-M901Y-00X ARM 1 67
30 LG0-M9020-00X SHAFT,PIVOT 1 68
31 LG0-M9021-00X BUSH 1 69
32 LG0-M9022-00X BRACKET,CYL.(B) 1 70
33 LG9-M91A0-00X AIR CYLINDER 1 71
34 LG0-M90AV-00X JOINT 1 72
35 LG0-M71AH-00X JOINT 2 73
36 LG0-M90AW-00X BUSH 1 74
37 LG0-M90AX-00X SPACER 1 75
38 99080-06600 CIRCLIP 1 76
