InJet
®
388 CRD
TECHNICAL DATA SHEET
2
www.dct.cleaning
GENERAL INFORMATION
The InJet 388 series cleaning systems represent
unique vertical Spray-In-Air technology developed
and manufactured by DCT.
The vertically installed Spray-In-Air device minimizes the
shadowing eff ect commonly seen in horizontal cleaners,
and maximizes the effi ciency of the cleaning process as
the cleaning  uid is sprayed directly onto the cleaned
component.
The InJet
®
388 CRD, including a 100% closed loop,
with cleaning, rinsing and drying technology processes.
All of the processes are fully automated, and take place
in one process chamber.
The InJet
®
388 CRD is developed primarily for the removal
of solder pastes and SMT adhesives from stencils,
PumPrints, squeegees and misprints.
The cleaning system can also be used for PCB cleaning,
or for a combination of PCB cleaning
and the afore-mentioned cleaning processes.
The machine can also be used for the removal
of cured conformal coating.
Depending on your cleaning requirements,
the DCT project manager, in collaboration
with a local distributor, will advise you
on a suitable water-based cleaning fl uid
and the correct setup of the entire process.
InJet
®
388 CRD
TECHNICAL DATA SHEET
3
www.dct.cleaning
C
R
D
C
CLEANING
RINSING
DRYING
R
D
Application
name
Recommended
application
Recommended
temperature
Total cleaning
process time
Capacity
per 8 hours
Stencil, misprint, squeegee
20 – 40°C 68 – 104 °F 18 min. 27
PumPrint
40 – 55°C 104 – 131 °F 18 min. 27
Conformal coating
40 – 55°C 104 – 131 °F 60 min. 192 * / 16 **
PCB
35 – 55°C 95 – 131 °F 30 min. 384 *
3 INDIVIDUAL PROCESSES
CLEANING PARAMETRES
highly recommended recommended applicable
* PCB eurocards / per 8 hours (calculated for dimension of 100 x 160 mm / 3.94 x 6.3 in)
* * Parts in soldering palette / per 8 hours (320 x 500 x 50 mm / 12,6 x 19,7 x 1,97 in)
* * * Stencils, pumpprints larger than 736 x 736 mm / 29 x 29 in
LEGEND:
InJet
®
388 CRD
TECHNICAL DATA SHEET
4
www.dct.cleaning
Dimensions (w x l x h) 1200 x 1390 x 2400 mm 47,2 x 54,7 x 94,5 in
Weight 450 kg 992 lbs
Ø energy consumption per cycle 2,5 kWh 2.5 kWh
Cleaning and rinsing  uid consumption
per cycle
0,05 – 0,3 l 0.01 – 0.08 gal
Compressed air consumption per cycle 900 l / cycle 237.75 gal / cycle
Max. dimensions of the cleaned parts 190 x 800 x 760 mm 7.48 x 31,5 x 29,92 in
Max. dimensions of the cleaned parts
with used air knife
100 x 800 x 760 mm* 3,94 x 31,5 x 29,92 in
Exchangeable mechanical  lter of cleaning
and rinsing  uid
5 – 200 μm 5 – 200 μm
Operating pressures
cleaning: 1,5 – 2,8 Bar,
rinsing: 0,3 – 1,5 Bar
cleaning: 21.75 – 40.6 PSI
rinsing: 4.35 – 21.5 PSI
Cleaning  uid  ow rate 200 l / min 52.8 gal / min
Temperature range setting of the cleaning
and rinsing  uid
From ambient temperature to 60°C From ambient temperature to 140°F
Conductivity range settings of the rinsing
uid in the tanks.
0–2000 μS/cm * optional 0 – 2000 μS/cm * optional
Temperature range setting of the drying From ambient temperature to 80°C From ambient temperature to 176°F
Noise level < 70 dB < 70 dB
Cleaning system control PLC + 8,4“ touchscreen PLC + 8.4“ touchscreen
Volume of the storage tanks 60 l 15,8 gal
* Air knife is optional accessory

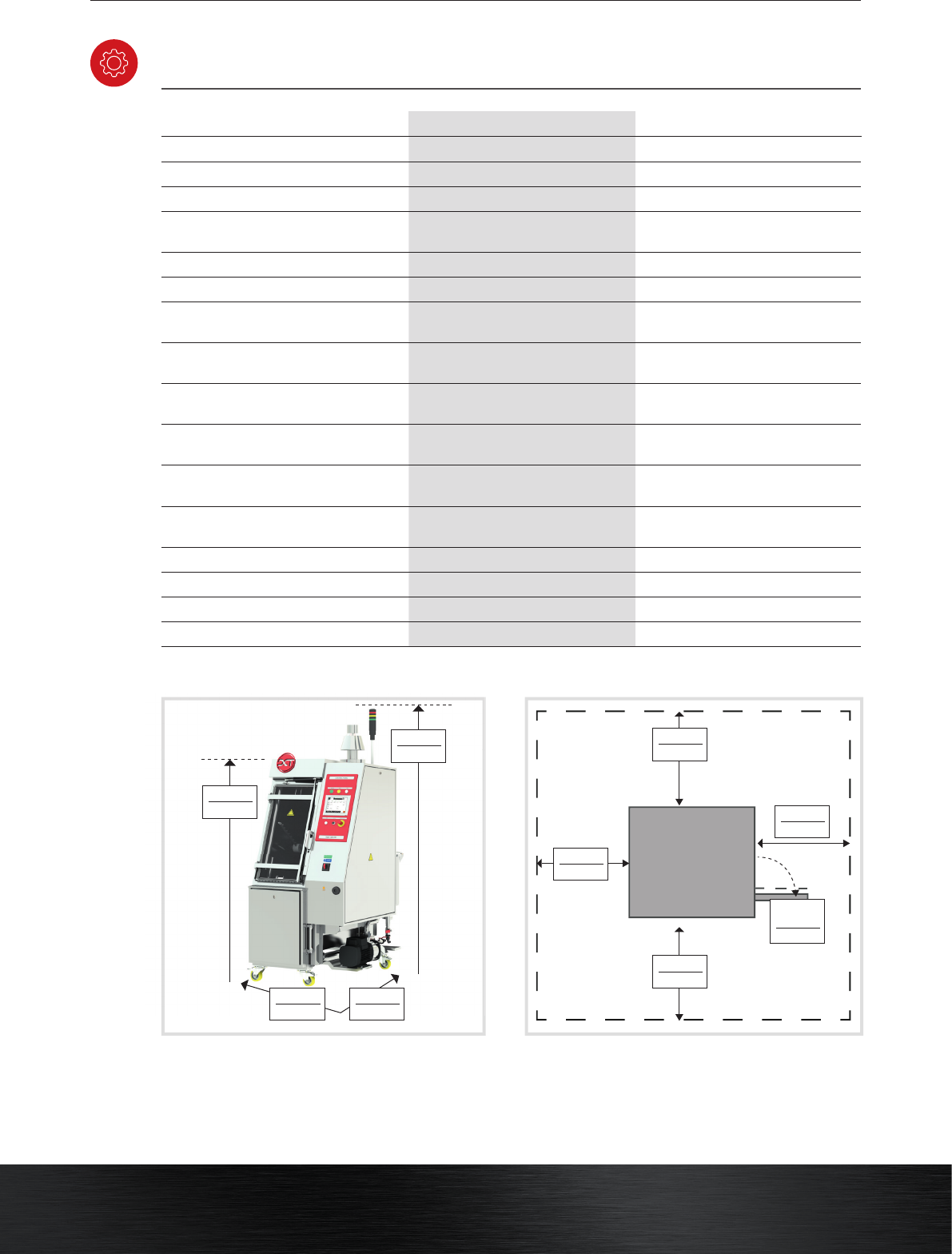

TECHNICAL PARAMETERS
DIMENSIONS MINIMUM SERVICE SPACE
AROUND THE MACHINE
1390 mm
54.7 in
1850 mm
72.9 in
2400 mm
94.5 in
1200 mm
47.2 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
open door
450 mm
17.7 in
metric units imperial units
