InJet
®
388 CRD
TECHNICAL DATA SHEET
4
www.dct.cleaning
Dimensions (w x l x h) 1200 x 1390 x 2400 mm 47,2 x 54,7 x 94,5 in
Weight 450 kg 992 lbs
Ø energy consumption per cycle 2,5 kWh 2.5 kWh
Cleaning and rinsing  uid consumption
per cycle
0,05 – 0,3 l 0.01 – 0.08 gal
Compressed air consumption per cycle 900 l / cycle 237.75 gal / cycle
Max. dimensions of the cleaned parts 190 x 800 x 760 mm 7.48 x 31,5 x 29,92 in
Max. dimensions of the cleaned parts
with used air knife
100 x 800 x 760 mm* 3,94 x 31,5 x 29,92 in
Exchangeable mechanical  lter of cleaning
and rinsing  uid
5 – 200 μm 5 – 200 μm
Operating pressures
cleaning: 1,5 – 2,8 Bar,
rinsing: 0,3 – 1,5 Bar
cleaning: 21.75 – 40.6 PSI
rinsing: 4.35 – 21.5 PSI
Cleaning  uid  ow rate 200 l / min 52.8 gal / min
Temperature range setting of the cleaning
and rinsing  uid
From ambient temperature to 60°C From ambient temperature to 140°F
Conductivity range settings of the rinsing
uid in the tanks.
0–2000 μS/cm * optional 0 – 2000 μS/cm * optional
Temperature range setting of the drying From ambient temperature to 80°C From ambient temperature to 176°F
Noise level < 70 dB < 70 dB
Cleaning system control PLC + 8,4“ touchscreen PLC + 8.4“ touchscreen
Volume of the storage tanks 60 l 15,8 gal
* Air knife is optional accessory
TECHNICAL PARAMETERS
DIMENSIONS MINIMUM SERVICE SPACE
AROUND THE MACHINE
1390 mm
54.7 in
1850 mm
72.9 in
2400 mm
94.5 in
1200 mm
47.2 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
open door
450 mm
17.7 in
metric units imperial units
InJet
®
388 CRD
TECHNICAL DATA SHEET
5
www.dct.cleaning
Power supply 400V, 32A, 50Hz (3+N+PE) UL 400V, 32A, 60Hz* (3+N+PE)
Pmax 12 kW 12 kW
Compressed air connection Pipe Ø 6 mm Pipe ID 0.24 in
Recommended working pressure 4,5 – 6 Bar 65.5 – 87 PSI
Compressed air quality 3. Class ** 3. Class **
Exhaust pipe diameter Ø 100 mm ID 3.94 in
Exhaust pipe capacity 380 m
3
/h 13400 ft
3
/h
Minimum liquid for  rst run 2 x 50 l 2 x 13.2 gal
Service space required around the device 600 mm 23.6 in
* When using frequency convertor
** According to the norm ISO 8573-1

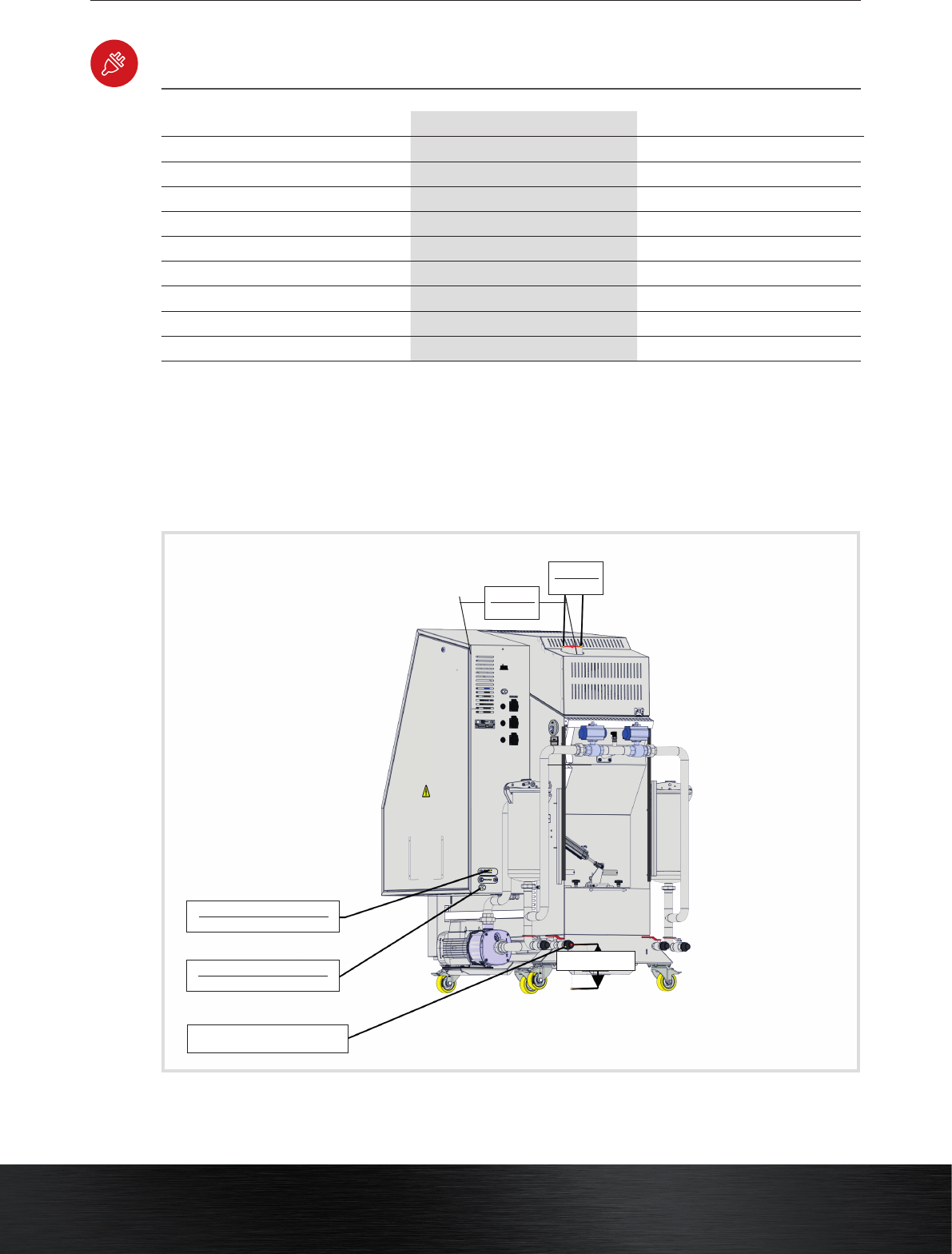

INSTALLATION REQUIREMENTS
BACK
VIEW
discharge of fl uids G1“
225 mm / 8.86 in
Ø 100 mm
ID 3.94 in
input air pressure 1x Ø6 mm
input air pressure 1 x ID 0.24 in
400 V, 32A, 50Hz (3+N+PE)
UL 400 V, 32A, 60Hz (3+N+PE)
490 mm
19.3 in
metric units imperial units
InJet
®
388 CRD
TECHNICAL DATA SHEET
6
www.dct.cleaning
1 process chamber – fully automatted solution
100% closed loop uid system
2 arm rotation – uid powered – cleaning
2 arm rotation – uid powered – rinsing
Cleaning and rinsing uid heating
Mechanical ltration
2 hot air blowers – drying
Chimney ap – electronically controlled
Pneumatic door lock
Emergency stop button
Manipulation wheels – lockable
Spare parts (base kit)
PLC controller + 8,4“ touchscreen display
STANDARD HARDWARE EQUIPMENT
Electronic monitoring of uid level
Electronic monitoring of uid pressure
Electronic process cycle counter
3 levels of logging – operator, maintenance, engineer
Spraying uid pressure – continuous measurement
Standard software language mutation – CZ, ENG
Liquid and lter replacement notication – cycle counting
Possibility of 5 programs – setting option
Smart warning – low or high pressure level
Smart warning – low uid level
STANDARD SOFTWARE EQUIPMENT
