MODEL TCM-X300 0306-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 139 JE-1 1 630 109 0696 BR AC KE T 1 812JE-010-001 2 630 1 19 7494 BRA CK ET 1 812JE-010-002 5 630 109 2737 C O V E R 1 812JE-010-005 6 630 093 26…

100%1 / 306
MODEL TCM-X300
0306-001
138
XY ࠹࡯ࡉ࡞㈩▤ޔ㈩✢ XY TABLE PIPING, WIRING

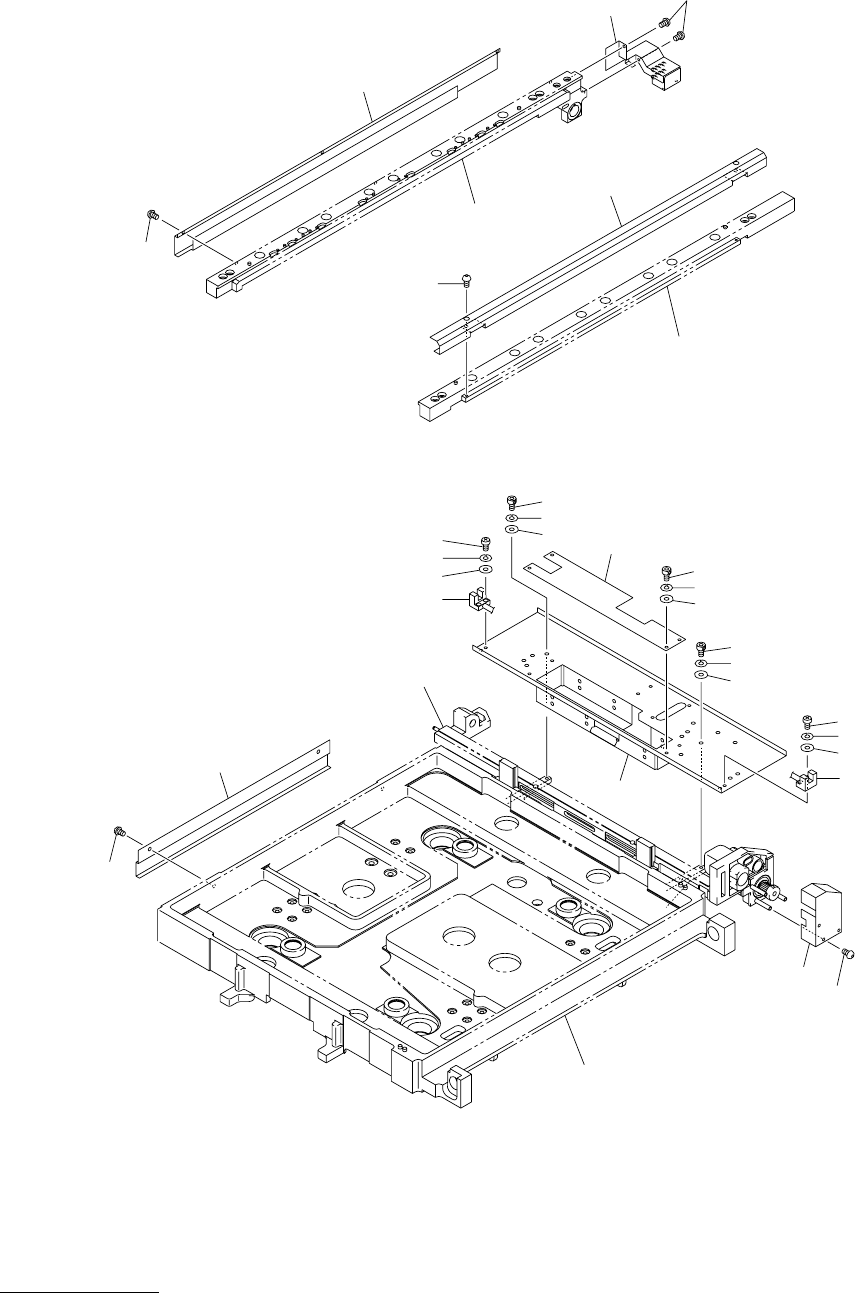

Fig. JE-1 XY ࠪࡘ࡯࠻᏷࠮ࡦࠨ XY Chute Width Limit Sensors
See Fig.JD-1
Key No.33
See Fig.JD-1
Key No.1
See Fig.JD-4
Key No.306
See Fig.JC-1
Key No.4
27
1
27
7
27
5
16
11
19
18
14
21
17
12
26
20
18
14
21
16
11
19
10
2
6
27
10
29
23
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
139
JE-1
1 630 109 0696 BRACKET 1 812JE-010-001
2 630 119 7494 BRACKET 1 812JE-010-002
5 630 109 2737 COVER 1 812JE-010-005
6 630 093 2621 COVER 1 812JE-010-006
7 630 109 2744 COVER 1 812JE-010-007
10 630 093 0016 ASSY,SENSOR,PHOTO 2 BPH73,BPH74 812JE-010-010
11 411 140 6300 SCR PAN 2X8 4 812JE-010-011
12 630 000 7503 BOLT,HEX-SCT 4 812JE-010-012
14 630 000 7619 BOLT,HEX-SCT 4 812JE-010-014
16 411 141 2509 WASHER SPR 2 4 812JE-010-016
17 411 141 2806 WASHER SPR 3 4 812JE-010-017
18 411 141 2905 WASHER SPR 4 4 812JE-010-018
19 411 141 3605 WASHER V 2X5X0.3 4 812JE-010-019
20 411 141 3902 WASHER V 3X7X0.5 4 812JE-010-020
21 411 141 4008 WASHER V 4X9X0.8 4 812JE-010-021
23 630 087 7182 COVER 1 812JE-010-023
26 630 095 6290 PLATE 1 812JE-010-026
27 630 047 4596 BOLT,HEX-SCT(BUTTON HEAD) 10 812JE-010-027
29 630 076 8824 BOLT,HEX-SCT(BUTTON HEAD) 2 812JE-010-029
MODEL TCM-X300
0306-001
140
XY ࠹࡯ࡉ࡞㈩▤ޔ㈩✢ XY TABLE PIPING, WIRING
Fig. JE-2 Z ࠢ࡜ࡦࡊ㈩▤ - 㧝 Z Clamp Piping-1
See Fig.JE-1
Key No.1
See Fig.JE-1
Key No.2
125
124
123
123
124
125
103
117
104
115
104
116
117
119
120
118
117
