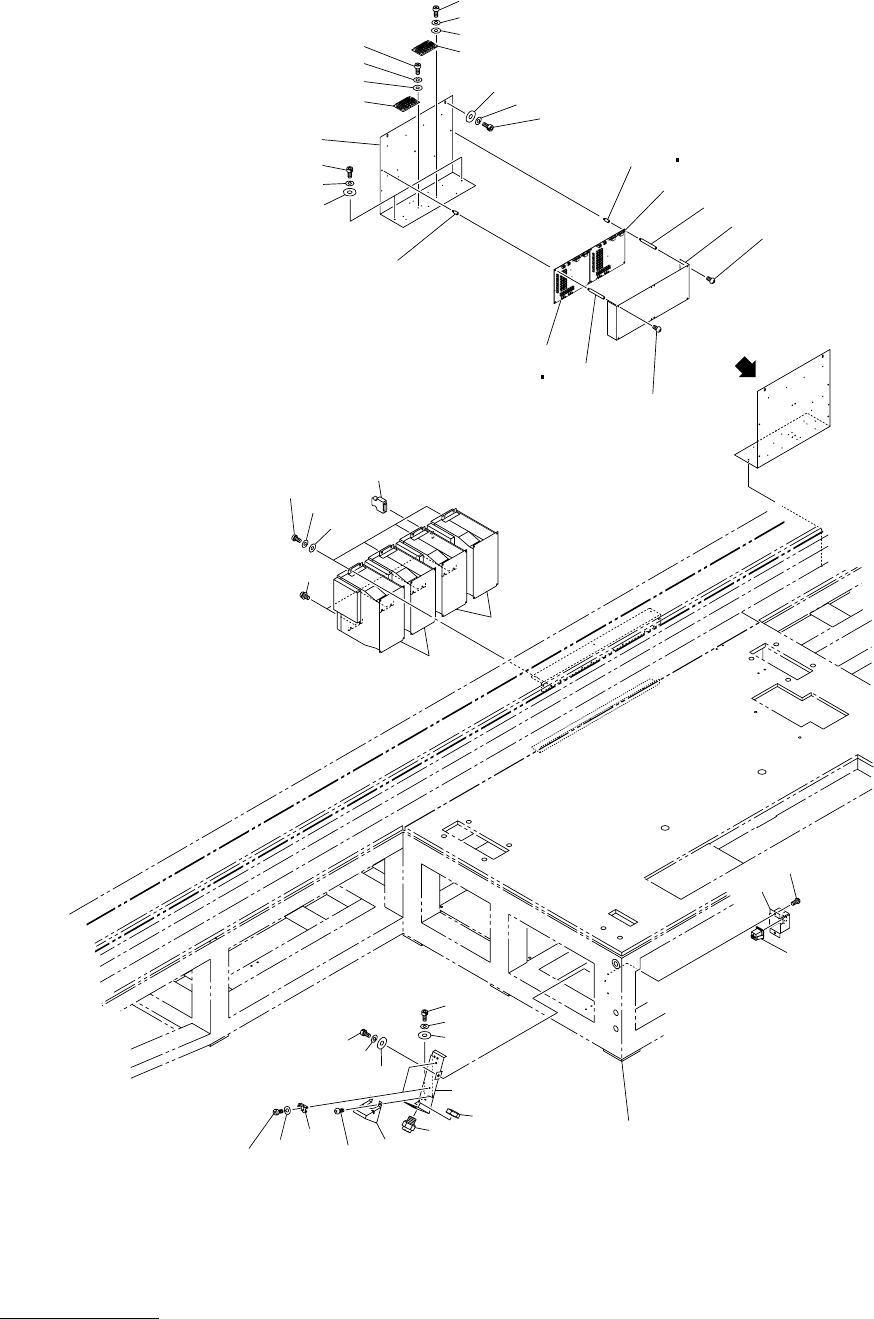

ᯏ᪾ᑫࠅ㧝 MISCELLANEOUS PARTS-1
Fig. RL-4
೨ᓟᎿ⒟ࠗࡦ࠲ࡈࠚࠬ
Input/Output Machine Interface
393
386
397
398
394
395
367
398
397
353
354
399
387
387
388
388
389
389
See Fig.L-1
Key No.9
390
391
392
365
370
366
352
369
368
384
362
358
361
360
362
356
351
385
363
363
359
357
353
354
355
MODEL TCM-X300
0306-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
275
RL-4
351 630 116 8784 UNIT,POWER 1 G11,RKW24-1R3C 812RL-010-351
352 630 098 8833 P.C.B,MOUNT 1 UA53*001*0002 812RL-010-352
353 630 068 6951 CONTACT PARTS,CONN 28 812RL-010-353
354 630 068 6968 CASE,CONN 2 X111,X113 812RL-010-354
355 407 005 1306 DIODE DS135C 1 812RL-010-355
356 423 022 8005 FUSE 250V 1A 3 F001,F016,F0171 812RL-010-356
357 630 083 5458 TERMINAL 2 812RL-010-357
358 630 083 5502 ACCESSORY,WIRING 1 812RL-010-358
359 630 083 5540 ACCESSORY,WIRING 1 812RL-010-359
360 630 083 5496 FUSE HOLDER 3 812RL-010-360
361 630 051 1512 ACCESSORY,WIRING 1 812RL-010-361
362 630 091 1749 BRACKET,WIRING 2 812RL-010-362
363 630 113 2594 NAME PLATE,PARTS 1 812RL-010-363
365 630 089 6473 RAIL,WIRING 1 812RL-010-365
366 630 115 3421 PANEL 1 812RL-010-366
367 630 119 9214 BOX 1 812RL-010-367
368 630 121 9646 COVER 1 812RL-010-368
369 630 100 6055 ACCESSORY,P.C.B 4 812RL-010-369
370 630 102 7487 SPACER 4 812RL-010-370
384 411 050 5004 SCR TRS 3X6 4 812RL-010-384
385 411 114 7807 SCR PAN+SW+W 4X10 1 812RL-010-385
386 411 042 0703 SCR PAN 3X8 2 812RL-010-386
387 630 000 7756 BOLT,HEX-SCT 4 812RL-010-387
388 411 141 6705 WASHER SPR 5 4 812RL-010-388
389 630 001 0220 WASHER 4 812RL-010-389
390 411 043 5004 SCR PAN 4X8 2 812RL-010-390
391 411 008 1706 WASHER SPR 4 2 812RL-010-391
392 411 119 2104 WASHER V 4X9X0.8 2 812RL-010-392
393 630 000 7633 BOLT,HEX-SCT 2 812RL-010-393
394 411 141 2905 WASHER SPR 4 2 812RL-010-394
395 411 141 4008 WASHER V 4X9X0.8 2 812RL-010-395
397 411 119 1909 WASHER V 3X7X0.5 10 812RL-010-397
398 411 086 4408 WASHER SPR 3 10 812RL-010-398
399 411 040 6202 SCR PAN 3X10 8 812RL-010-399
