Change Explanation of “Board Log” and
“Program Log”
Contents
Change Explanation of “Board Log” and “Program Log” ..................................1
1. Introduction ......................................................................2
2. Summary ........................................................................2
3. Limitations ....................................................................... 2
4. The Change of Board Log.......................................................... 3
4.1. Additional Items and contents ................................................... 3
4.2. Version Change of Board log file ................................................4
4.3. About “Board ID” .............................................................. 5
5. The Change of Program Log .......................................................6
5.1. Additional Items and contents ................................................... 6
5.2. Version Change of Board log file ................................................6
5.3. About “Program Name” and “Program Comment” ................................. 7
6. Notice ........................................................................... 7
6.1. About the “Remember the Lot log” function ....................................... 7
Revision No.
Upgrade Changes
000 2010/05/20
Create
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50072
2/7
1. Introduction
The target model and version are as follows.
Table1.1 Target model and version
Item Object Remarks
Target Model YS Series Mounter
YG12 Series Mounter, YG300
Target version V3.21STD R1.000 and later
2. Summary
From this version, Dual Lane Machine is supported. With the conventional mode, board log and
program log were displayed by the mount stage unit. But from this version, it is displayed by the
mount stage and the conveyor lane unit.
In addition, the items such as “Lane number” are newly added.
This specification explains the above-mentioned changes.

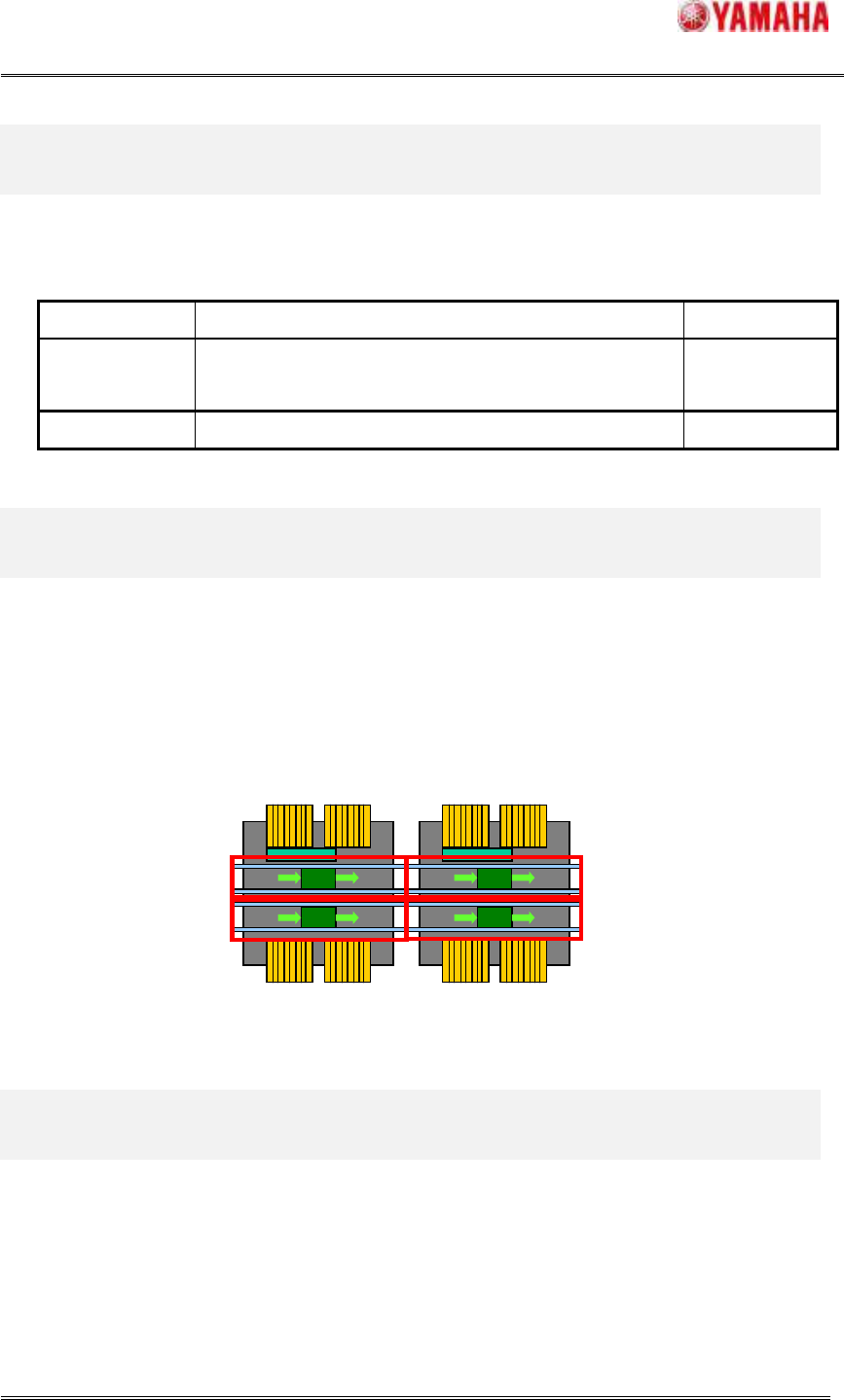

Fig2.1 Dual Lane Machines
3. Limitations
There are no limitations.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50072
3/7
4. The Change of Board Log
4.1. Additional Items and contents
The following four items are added to Board Log.
1. Lane
The number of the conveyor lane where the board is produced is displayed.
This item is not displayed in single lane machine.
2. Other Lane Wait Time (msec)
The following time is displayed.
A) In the auto-running with an “Each Lanes” mode, it is the time from the end of fixing the
board until the beginning of mounting while the mounting is executed in the other lane.
B) In the auto-running with a “Synchronous Transfer” mode, it is the time from the end of
fixing the board in one conveyor until the end of fixing the one in the other lane.
This item is not displayed in single lane machine.
3. Operation Stop Time (msec)
The time from pressing the [STOP] button until restarting the auto-running is displayed
4. Board ID
When Op003 is enabled, the serial number of each board is displayed. When Op003 is
disabled, this item is not displayed.

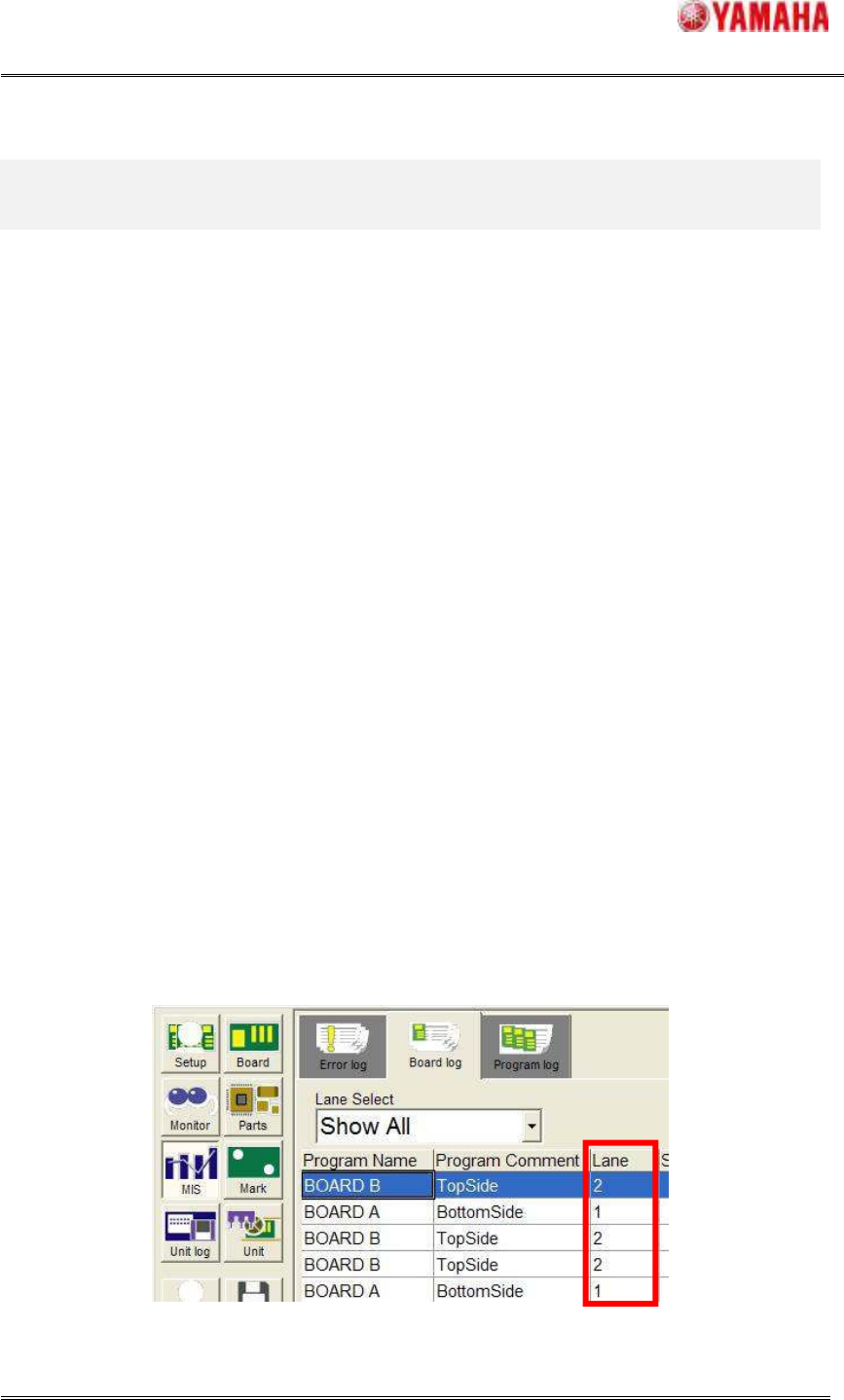

Fig4.1 “Lane”
