Multifunction Reconfigurable I/O Specifications 8 ni.com

Storage Environment

PCI/PXI-781x/783x .........................–20 °C to 70 °C,

tested in accordance with

IEC-60068-2-1 and

IEC-60068-2-2.

PCIe-784x/785x ...............................–20 °C to 70 °C,

tested in accordance with

IEC-60068-2-1 and

IEC-60068-2-2.

PXI-784x/785x.................................–40 °C to 70 °C,

tested in accordance with

IEC-60068-2-1 and

IEC-60068-2-2.

Ambient temperature range.............–20 °C to 70 °C,

tested in accordance with

IEC-60068-2-1 and

IEC-60068-2-2.

Relative humidity range ..................5% to 95%,

noncondensing,

tested in accordance with

IEC-60068-2-56.

Note Clean the device with a soft, non-metallic

brush. Make sure that the device is completely dry

and free from contaminants before returning it to

service.

Shock and Vibration (for PXI-78xx Only)

Operational shock............................30 g peak, half-sine,

11 ms pulse;

tested in accordance with

IEC-60068-2-27. Test

profile developed in

accordance with

MIL-PRF-28800F.

Random vibration

Operating ....................................5 Hz to 500 Hz, 0.3 g

rms

Nonoperating ..............................5 Hz to 500 Hz, 2.4 g

rms

tested in accordance with

IEC-60068-2-64.

Nonoperating test profile

exceeds the requirements

of MIL-PRF-28800F,

Class 3.

Safety

The NI 78xx is designed to meet the requirements of the

following standards of safety for electrical equipment for

measurement, control, and laboratory use:

• IEC 61010-1, EN 61010-1

• UL 61010-1, CSA 61010-1

Note For UL and other safety certifications,

refer to the product label or the Online Product

Certification section.

Electromagnetic Compatibility

The NI 78xx is designed to meet the requirements of the

following standards of EMC for electrical equipment for

measurement, control, and laboratory use:

• EN 61326 (IEC 61326): Class A emissions;

Basic immunity

• EN 55011 (CISPR 11): Group 1, Class A emissions

• AS/NZS CISPR 11: Group 1, Class A emissions

• FCC 47 CFR Part 15B: Class A emissions

• ICES-001: Class A emissions

Note For the standards applied to assess the EMC

of this product, refer to the Online Product

Certification section.

Note For EMC compliance, operate this device

with shielded cabling.

CE Compliance

This product meets the essential requirements of applicable

European Directives as follows:

• 2006/95/EC; Low-Voltage Directive (safety)

• 2004/108/EC; Electromagnetic Compatibility Directive

(EMC)

Online Product Certification

Refer to the product Declaration of Conformity (DoC) for

additional regulatory compliance information. To obtain

product certifications and the DoC for this product, visit

ni.com/certification, search by model number or

product line, and click the appropriate link in the Certification

column.

Environmental Management

NI is committed to designing and manufacturing products in

an environmentally responsible manner. NI recognizes that

eliminating certain hazardous substances from our products is

beneficial to the environment and to NI customers.

For additional environmental information, refer to the NI and

the Environment Web page at

ni.com/environment. This

page contains the environmental regulations and directives

with which NI complies, as well as other environmental

information not included in this document.

Waste Electrical and Electronic Equipment (WEEE)

EU Customers At the end of their life cycle, all

products must be sent to a WEEE recycling center.

For more information about WEEE recycling

centers and National Instruments WEEE initiatives,

visit

ni.com/environment/weee.htm.

⬉ᄤֵᙃѻક∵ᶧ᥻ࠊㅵ⧚ࡲ⊩ ˄Ё೑

RoHS

Ё೑ᅶ᠋

National Instruments

ヺড়Ё೑⬉ᄤֵ

ᙃѻકЁ䰤ࠊՓ⫼ᶤѯ᳝ᆇ⠽䋼ᣛҸ

(RoHS)

Ǆ݇Ѣ

National Instruments

Ё೑

RoHS

ড়㾘ᗻֵᙃˈ

䇋ⱏᔩ

ni.com/environment/rohs_china

(For information about China RoHS compliance,

go to

ni.com/environment/rohs_china

Multifunction Reconfigurable I/O Specifications 10 ni.com

Device Pinouts

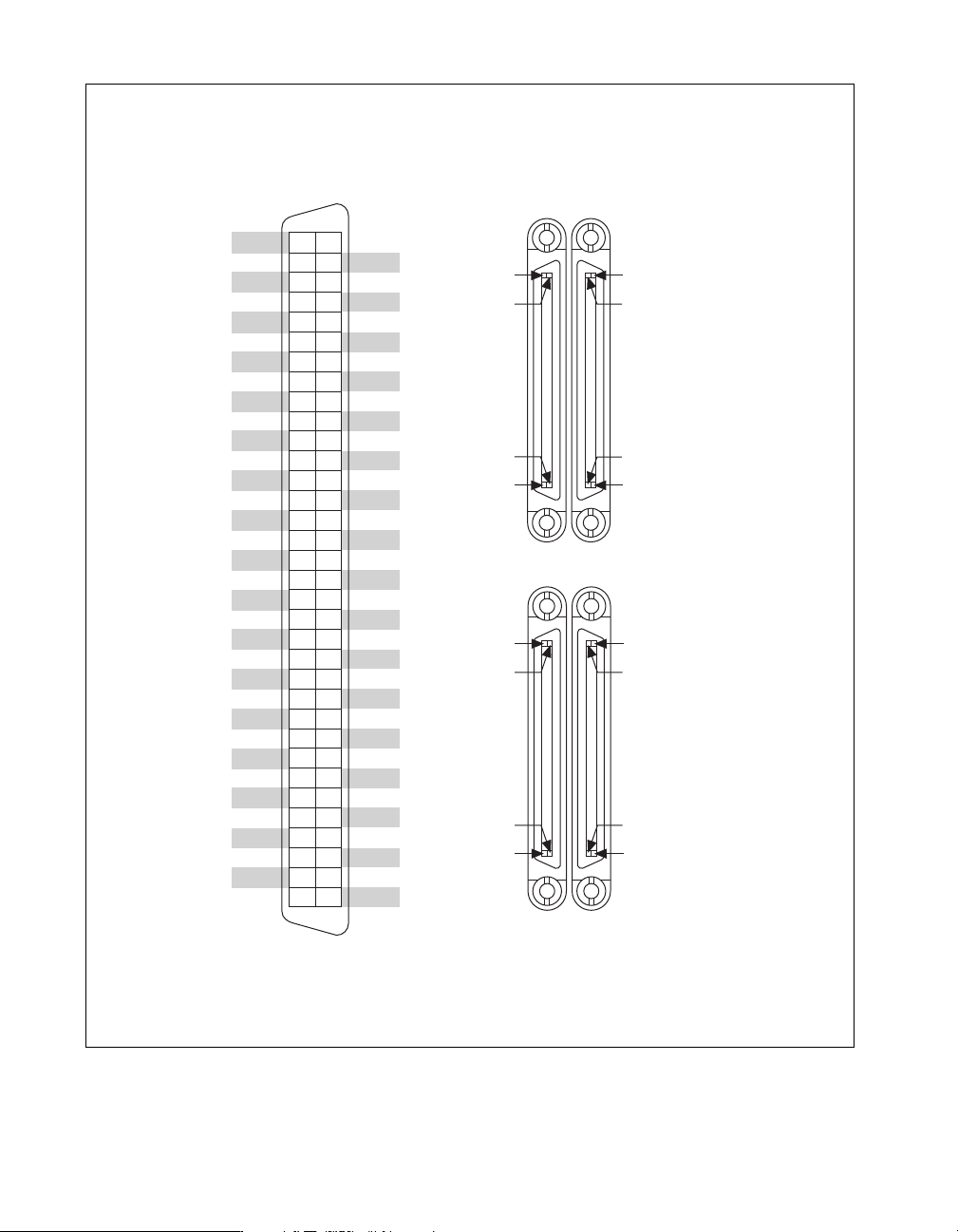

Figure 1. NI 781x Connector Pin Assignments and Locations

DGND

+5V

DIO28

DIO31

DIO33

DIO35

DIO37

DIO39

DIO0

DIO2

DIO3

DIO5

DIO6

DIO7

DIO8

DIO1

DIO4

DIO9

DIO10

DIO11

DIO12

DIO13

DIO14

DIO15

DIO16

DIO17

DIO18

DIO19

DIO20

DIO21

DIO22

DIO23

DIO24

DIO25

DIO26

DIO27

DIO29

DIO30

DIO32

DIO34

DIO36

DIO38

35 1

36 2

37 3

38 4

39 5

40 6

41 7

42 8

43 9

44 10

45 11

46 12

47 13

48 14

49 15

50 16

51 17

52 18

53 19

54 20

55 21

56 22

57 23

58 24

59 25

60 26

61 27

62 28

63 29

64 30

65 31

66 32

67 33

68 34

CONNECTOR 1

(RDIO)

TERMINAL 34

TERMINAL 68

TERMINAL 35

TERMINAL 1

TERMINAL 35

TERMINAL 1

TERMINAL 34

TERMINAL 68

TERMINAL 34

TERMINAL 68

TERMINAL 35

TERMINAL 1

CONNECTOR 0

(RDIO)

CONNECTOR 2

(RDIO)

TERMINAL 35

TERMINAL 1

TERMINAL 34

TERMINAL 68

CONNECTOR 3

(RDIO)
