1. Introduction
The target model and version are as follows.
Table1 Target model and version
Target models Target version Remarks
YS24X, YS24, YS12P, YS12F, YS100, YS88, YS12,
YG12F, YG12,
YG300
YSH20
V3.27STD R1.000
or later
2. Outline
It has become possible to output "Parts Mount Log" for every block when [OP005:
Product Traceability] was used. (It used to be for every board.)
Youcansearch"PartsMountLog"foreveryblockwithT-Tool:IMTool.
Tosearchalogeveryblock,pleaseinputeachblockIDintothesearchcondition,"QRCode".
TheblockIDshouldbe“boardIDoflabelontheboard+blockNo.”
(Foreveryboard,only“boardIDoflabelontheboard”usedtobeinput)
Search Window: Search Parts / Pcb
ID is generated from ID of labels on boards and block numbers.
And it is set to every block.
"Parts Mount Log Output Unit" is set from Machine configuration settings.
(Please refer to [3.Settings] for details)
Either of "Every Mount Block" and "Every Transfer Board" is selectable.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50137
3/6
3. Settings
It is a necessary to set these item.
Menu Set Value
Set the following items to "use"
・Setup Verification
・Auto Pgm Change Over
・Product Traceability
Set “Parts Mount Log” of “Product Traceability”
to
"use"
Set “Parts Mount Log Output Unit” of
“Product Traceability”
to "Every Mount Block"
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50137
4/6
4. How To Use
When a mounter produces boards, "Parts Mount Log" is output.
Refer to T-Tool : IMTools to see output logs.
Logs are searched with block ID set as a searching condition on [Search Parts / Pcb].

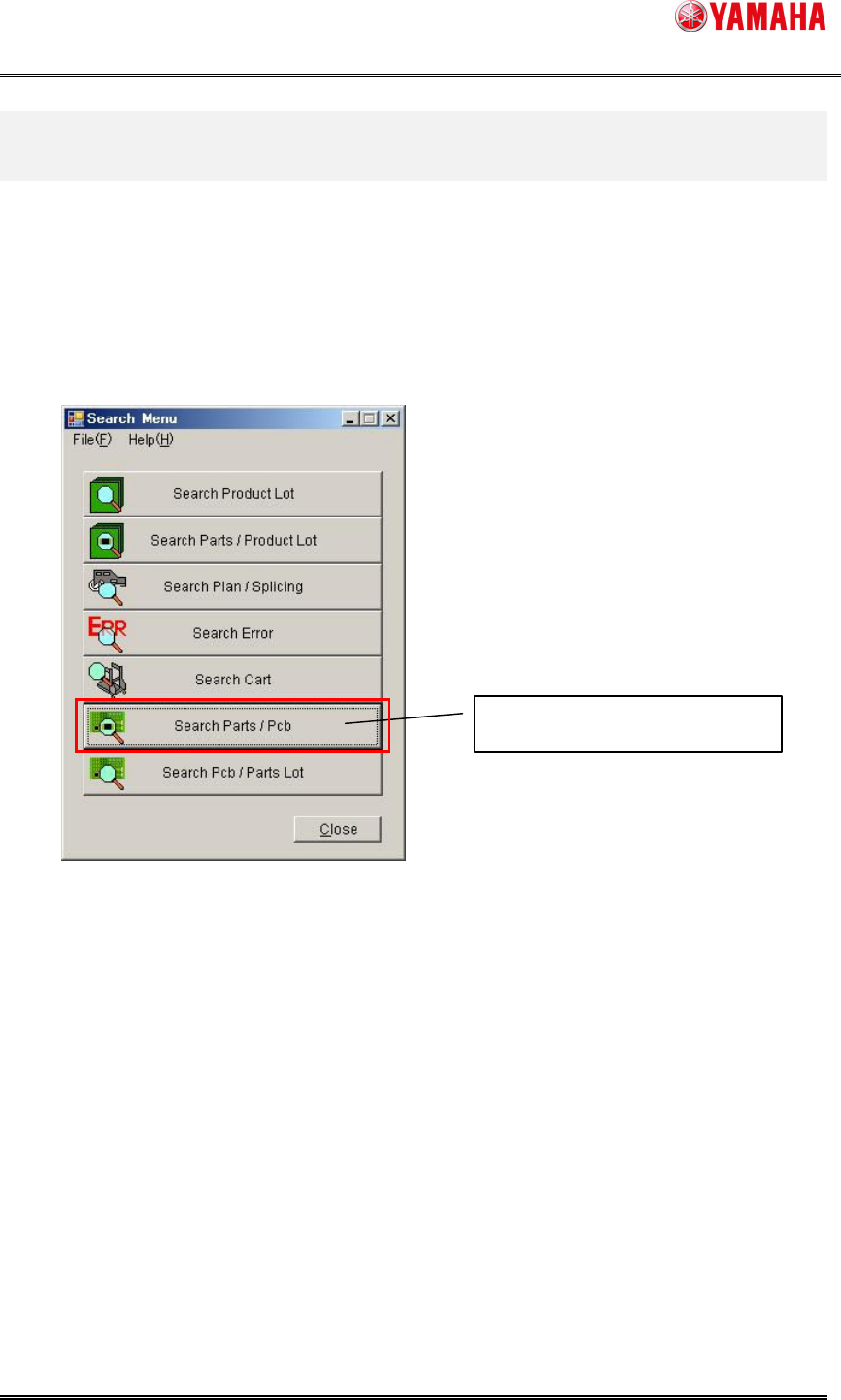

1, Please click the [Search Parts / Pcb] button from menu window of T-Tool：IMTools.
Search Parts / Pcb
