39.ｴｱｰ機器 1(QPZ) 39.Air device 1(QPZ) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 No. Drg.No. & Code No. QTY Description Rating Remarks 1 PPZ0290 1 TERMINAL ﾀｰﾐﾅﾙ 2 A4053A 1 ELBOW ｴﾙﾎﾞ 1/4. 3 H1214A 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 1…
IP-
III
E PARTS LIST ver11

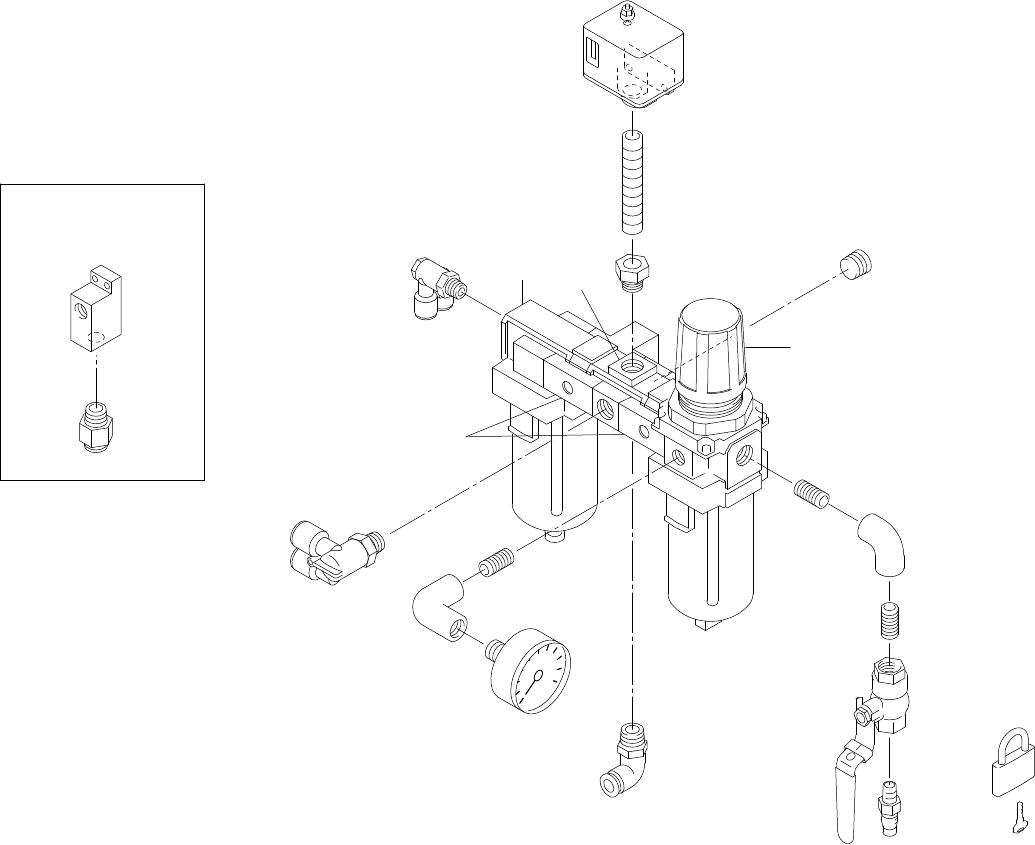

39.エアー機器 1(QPZ)
39.Air device 1(QPZ)
39 - 1
39.エアー機器 1(QPZ)
39.Air device 1(QPZ)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
x4
10
20
5
15
13
8
6
4
6
16
12
19
2
3
14
17
18
7
1
11
9
21
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
39.ｴｱｰ機器 1(QPZ)
39.Air device 1(QPZ)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 PPZ0290 1 TERMINAL ﾀｰﾐﾅﾙ
2 A4053A 1 ELBOW ｴﾙﾎﾞ 1/4.
3 H1214A 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 1/4X25L
4 A4060A 1 ELBOW ｴﾙﾎﾞ 3/8.
5 H3075Z 1 BUSHING ﾌﾞｯｼｭ 3/8X1/4
6 H1282A 2 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 3/8X25L
7 S4016T 1 SEPARATOR, MIST ｾﾊﾟﾚｰﾀ ﾐｽﾄ AFM4000-03R
8 H30302 1 FILTER REGULATOR ﾌｨﾙﾀﾚｷﾞｭﾚｰﾀ AW4000-C3CGR
9 K2027R 1 KEY ｷｰ C1000-50
10 S3157Z 1 SW, PRESSURE SW ﾌﾟﾚｯｼｬ IS3010-02L5
11 Y3085A 1 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2H10-02S
12 Y3086A 1 UNION, HALF ﾕﾆｵﾝ ﾊｰﾌ KQ2H10-03S
13 Y3021E 1 UNION ﾕﾆｵﾝ PA10-03
14 Y3021Z 1 UNION ﾕﾆｵﾝ PAX12-03
15 A3036A 1 PLUG 埋栓 3/8.
16 H1059T 1 VALVE, STOP ﾊﾞﾙﾌﾞ ｽﾄｯﾌﾟ RP-LL-3/8
17 H3201A 2 BKT BKT Y40L
18 S3060H 1 SPACER ｽﾍﾟｰｻ Y44-03
19 A10303 1 PRESSURE GAUGE 圧力計 G46-7-02
20 H1222A 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ両口 1/4X80
21 HP43251 1 NIPPLE ﾆｯﾌﾟﾙ ･
