COMPONENTS PRODUCT INFORMATIO N CONNECTOR NEW 1/22 MB-0054-8 October 2009 JAE PMK Div. Proprietary. Cop yright © 2009, Japan Aviation Electronic s Industry, Ltd. JN1/JN2 Series Small Circular Connector Receptacle Angle P…
COMPONENTS PRODUCT INFORMATION
CONNECTOR
NEW
1/22
MB-0054-8
October 2009
JAE PMK Div. Proprietary. Copyright © 2009, Japan Aviation Electronics Industry, Ltd.

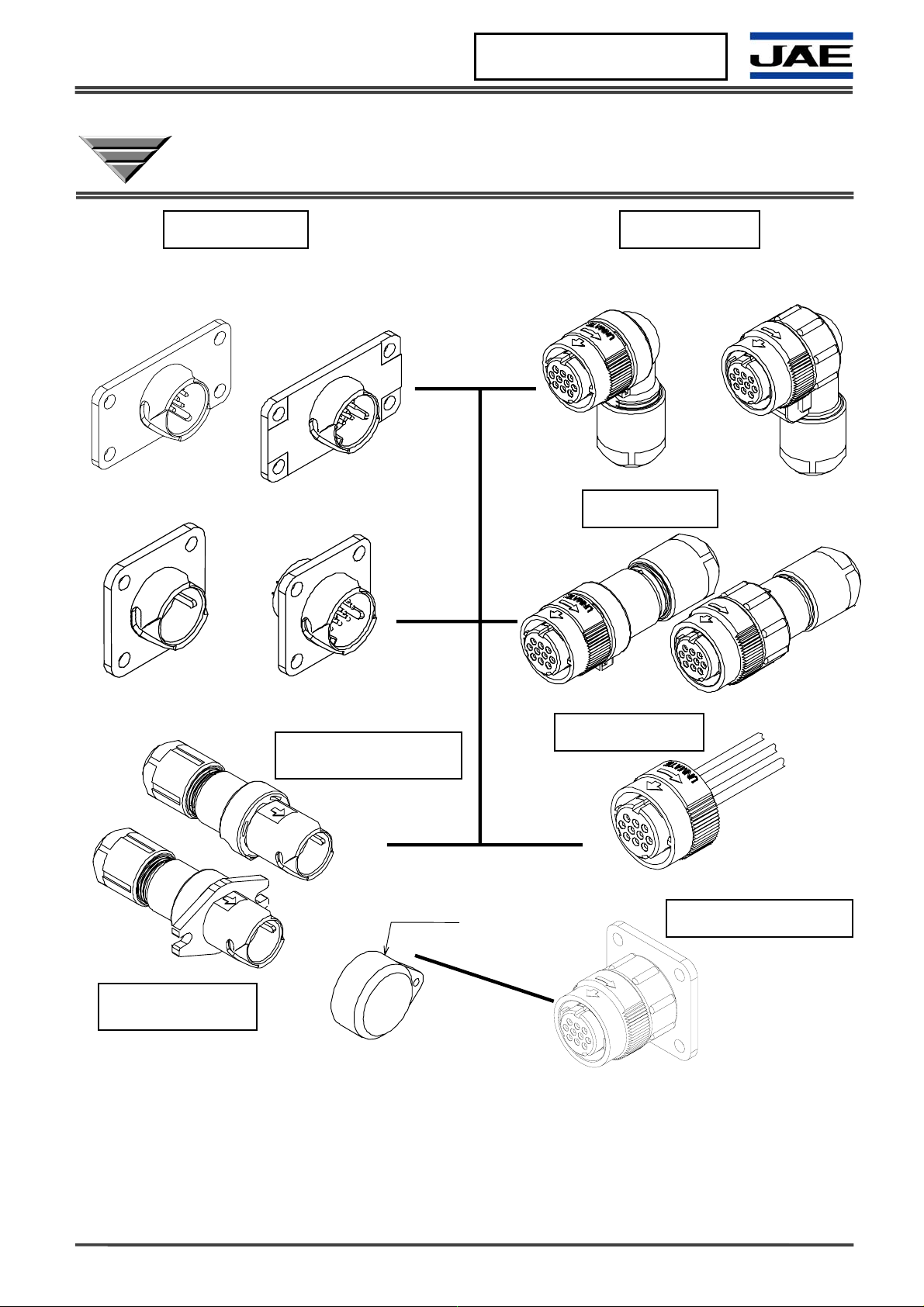

JN1/JN2 Series
Small Circular Connector
Receptacle Angle Plug
Straight Plug
Individual Plug
This product is a waterproof circular connector with one-touch lock mechanism developed
as an interface for industrial devices. It is available in the all-plastic type JN1, and the
partially metal-reinforced robust type JN2. Both are compact designs and suitable for a
variety of electronic devices. JN1 and JN2 are UL certified. The 4-contact JN2 is TUV
certified. (Patent and design registration applications have been filed.)
[JN1] [JN2]
[JN1]
[JN2]
Wall Mount
Receptacle
Cable Connecting
Receptacle
RoHS Compliant
Dust Cap
Panel Mount Plug
MB-0054-8
2/22
JAE PMK Div. Proprietary. Copyright © 2009, Japan Aviation Electronics Industry, Ltd.
General Specifications
JAHL-5111JAHL-5111Instruction Manual
500 mating cycles500 mating cyclesDurability
Specification and PerformanceItem
JACS-5111-2JACS-5111Product Specification
Receptacle: Solder connection
18 AWG (0.75mm
2
)max.
Cable connecting receptacle and plug:
Solder connection
16 AWG (1.25mm
2
) max.
Receptacle: Through-hole, solder
connection 22AWG (0.3mm
2
) max.
Cable connecting receptacle:
Crimp connection 20 to 28AWG
Plug: Crimp connection 20 to 28AWG
Solder connection 20AWG max.
Specification of Wire
Connection
-20 Deg. C to +125 Deg.C-20 Deg. C to +125 Deg.COperatin g Temperature
2.9×10
4
PA (per minute )
without leakage
2.9×10
4
PA (per minute)
without leakage
Airtightness
(Individually Waterproofed)
IP67IP67Waterproof
1000M ohm min.(DC500V energized )1000M ohm min.(DC500V energized )Insulation Resistance
2000VAC (per minute)900VAC (per minute)Withstanding Voltage
200VAC200VACRated V olt a g e
5A/pin (#20 size contact)3A/pin (#22 size contact)Rated Current
4 pins10 pinsNo. of Contacts
Features
•All plastic lightweight connector.
•Easy and sure mating with push-and-twist type one-touch lock mechanism.
•Terminal specification for receptacle and plug differs by series and number of contacts, please
refer to general specification for each product. Socket contact for 10 pos. plug is available in crimp
and solder types.
•The 4-contact receptacle is not body grounded. Connection of ground contact and chassis is
needed for grounding.
•Crimp connection relay receptacle is available in cable-connecting and wall-mounting receptacle
types. (4 pos. and 10 pos.)
•Plug is available in straight, angle and individual types (10 pos. only). The cable direction of the
angle plug can be set in four directions by rotating the plug in 90 degree increments.
•Mating height of angle plug is 30.8mm from panel surface (4 pos. and 10 pos.). Individual plug is
low profile 16.9mm (10 pos.).
•Waterproof and dustproof confo r ming to IP67.
•Superb environment-proof performance such as vibration and oil resistance.
•Suitable for conduit mounting (cannot be attached to individual plug).
•Compatible with JN1, considerably reinforced with metal material in part of the outer shell (strength
increased three fold over JN1).
•Uses same crimp contact as the JN1.
•Terminal specification for receptacle and plug differs by series and number of contacts, please
refer to general specification for each product. 4-contact receptacle body is grounded.
•4-contact type is TUV qualified.
•Plug is available in straight and angle types. The cable direction of the angle plug can be set in
four directions by rotating the plug in 90 degree increments.
•Contact variations: 4, 10 pos.
•Angle plug mating height is 31.3mm from cabinet surface (4, 10 pos.).
•Waterproof and dustproof confo r ming to IP67.
•Superb environment-proof performance such as vibration and oil resistance.
•Suitable for conduit mounting.
[JN2]
[JN1]
[JN1]
MB-0054-8
3/22
JAE PMK Div. Proprietary. Copyright © 2009, Japan Aviation Electronics Industry, Ltd.
JAHL-5119JAHL-5119
Instruction
Manual
500 mating cycles500 mating cycles
Durability
Specification and PerformanceItem
JACS-5119-2JACS-5119
Product
Specification
Receptacle: Solder connection 18AWG
(Max.0.75mm
2
)
Plug: Solder connection (Max.1.25mm
2
)
Receptacle: Through-hole, solder
connection 22 AWG (0.3mm2) max.
Plug: Crimp connection 20 to 28 AWG
Solder connection 20AWG max.
Specification of
Wire Connection
-20 Deg. C to +100 Deg.C-20 Deg. C to +100 Deg.C
Operating
Temperature
2.9 X 10
4
PA (per minute)
without leakage
2.9 X 10
4
PA (per minute)
without leakage
Airtightness
(Individually
Waterproofed)
IP67IP67Waterproof
1000M ohm min.
(DC500V energized)
1000M ohm min.
(DC500V energized)
Insulation
Resistance
2000VAC (per minute)900VAC (per minute)
Withstanding
Voltage
200VAC (degree of pollution 3,
excess voltage category 3)
200VACRated Voltage
5A/pin (#20 size contact)3A/pin (#22 size contact)Rated Current
4 pins10 pinsNo. of Contacts
Please refer to the drawings for each product for further information.
