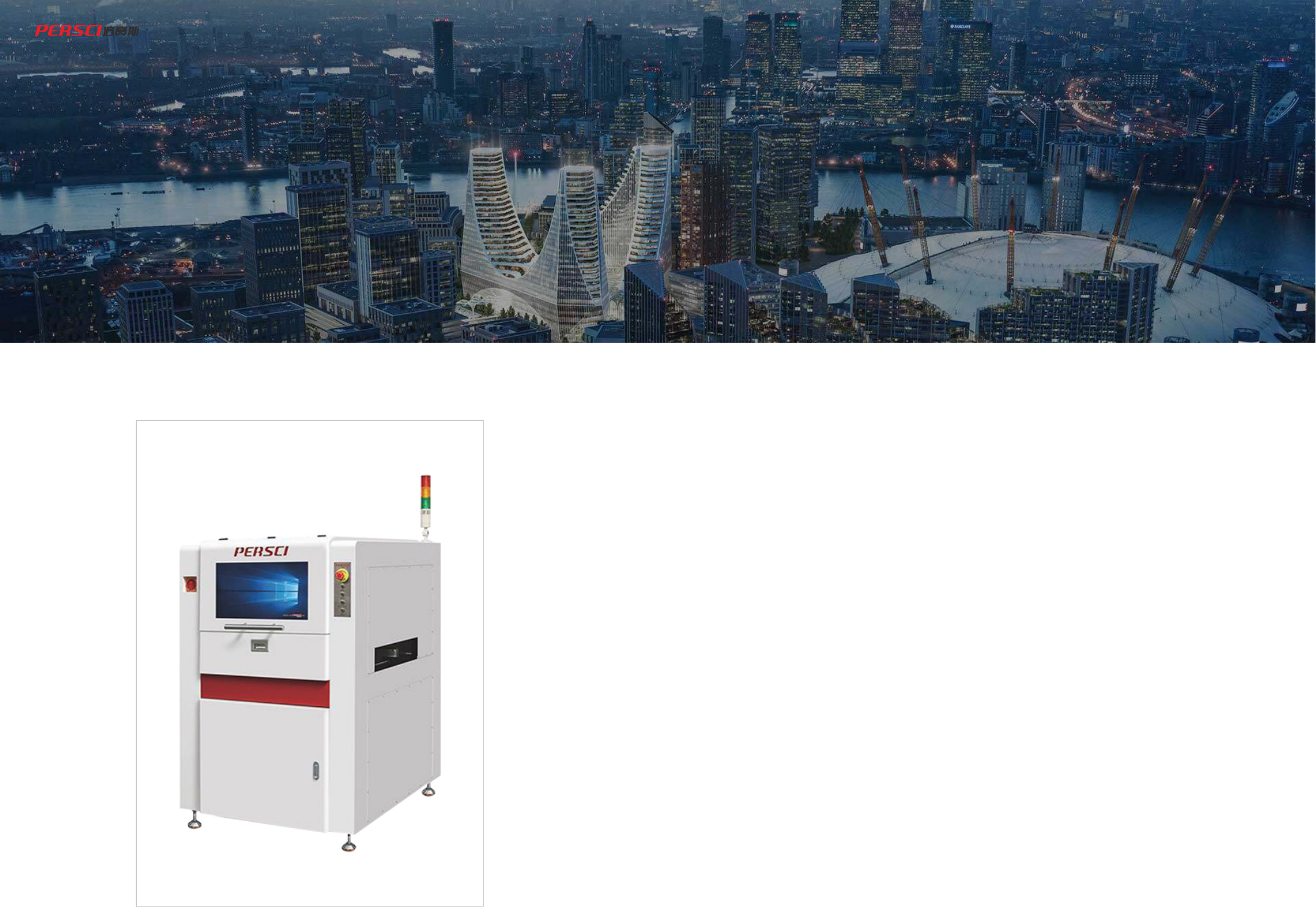

A3-B downlight monorail in-line AOI
Classification:SMT Inspection Solutions
Application scope: for wave soldering after the next photo online inspection
Detection content: component detection: lack of parts, reverse, offset, component
foot bending, wrong parts, tin, overflow Liao, loss of pieces of tin less, welding
detection: tin more, side standing, standing monument, tin bridges, false soldering,
tin beads, warping, wave soldering after welding (including plug-ins)
B3 down-illuminated monorail online AOI: B is the abbreviation of Bottom, which means
bottom, refers to the bottom down-illuminated AOI, 3 refers to the third generation software, also refers to the third generation AOI
Parameter PRODUCT PARAMETERS
model A3-B
Application scope Suitable for under-illumination online inspection after wave soldering
Software part
operating system Windows7, Windows10
Software version V3.0
software algorithm
OCV algorithm, OCR algorithm, TOC algorithm, Histogram algorithm, Match algorithm, Short algorithm, Other
algorithm, PIN algorithm, Length algorithm, Hole algorithm, CREST algorithm, Pole algorithm, Offset algorithm,
Compare algorithm, Padplace algorithm and other algorithms, system Automatically set parameters according to
different detection points
programming mode
Manual writing, automatic frame, CAD data import, component library import; (chargeable options: offline
programming, remote programming)
Hardware parts Machine size 935*1310*1450mm (L*W*H) does not include the height of the signal light
Machine weight About 850KG
camera pixels 500 million pixels 12 million pixels
Resolution
Visual Range
Speed
Standard configuration:
15μm/Pixel FOV: 36mmx30mm Detection speed <
200ms/FOV
option:
20μm/Pixel FOV: 48mmx40mm Detection speed <
200ms/FOV
option:
25μm/Pixel FOV: 60mmx50mm Detection speed <
200ms/FOV
option:
10μm/ Pixel FOV: 24mmx20mm detection speed <
200ms/FOV
Standard configuration:
15μm/Pixel FOV: 60mmx45mm Detection speed <200ms/F
OV
option:
10μm/Pixel FOV: 40mmx30mm Detection speed <200ms/F
OV
option:
7μm/Pixel FOV: 28mmx21mm Detection speed <200ms/F
OV
option:
3.45μm /Pixel FOV: 13.80mmx10.35mm detection speed <
200ms/FOV
light source High-brightness RRGB coaxial ring-shaped tower LED light source (color light)
Conveyor system
Bottom-up fixing, automatic compensation for PCB/FPC bending deformation, automatic in and out of boards,
automatic width adjustment of flat belts
Conveyor height
above ground
890 to 980 mm
Conveyor flow
direction
Can be set left to right or right to left
platform marble platform
X/Y platform driver Screw and AC servo motor drive, PCB/FPC fixed, Camera moves in XY direction
power supply AC220V 50/60Hz less than 1.5KVA
air pressure 0.4-0.8Mpa
