PILOT V 4 N EXT > m Maximum measurement precision m Maximum positioning precision m Test of 01005 and 03015 metric components m Suitable for testing all types of boards m Extremely fast test times m Parallel test: two…
MANUFACTURING: the evolution
of the test algorithms and strategies
present in the VIVA NEXT> software
mean that the PILOT NEXT> testers
provide fast, high performance
production testing.
The diverse, integrated test technologies
allow the user to streamline the various
production phases, optimizing process
time.
REVERSE ENGINEERING (RE): the necessity of managing field returns is
a constant in today’s industy, the repair returns are often older boards which do not
have complete documentation, schematics or construction data.
The double-side solutions offered in the PILOT NEXT> LINE are ideally suited
to carry out reverse-engineering operations, and include all of the necessary
software tools to enable the reconstruction of the electrical schematics and the CAD
data of the board under repair. This helps to facilitate fault detection and repair, and
to produce the documentation necessary for legacy support of the product.
PROTOTYPING AND NPI:
by exploiting the versatility of the
PILOT NEXT> hardware and
software, it is possible to obtain
immediate data from the testing of
prototypes, avoiding costs and
time for building preliminary
fixtures or test benches, ensuring
maximum fault coverage in the
minimum time.
REPAIR: there are different types of
requirements for diagnosing faulty
boards, depending on the characteristics
of the boards themselves.
The PILOT NEXT> LINE has an
extensive tool set developed to address
all of the repair scenarios, and the
intrinsic flexibility of the flying probe test
approach allows the user to implement
from one to all of the test techniques
available.
PILOT NEXT>: TEST ENVIRONMENTS
MANUFACTURING, REPAIR, REVERSE ENGINEERING, PROTOTYPING, NEW PRODUCT INTRODUCTION (NPI),
and EV BATTIERIES TEST are the environments where the PILOT NEXT> solutions are implemented.
The Seica VIP platform software, VIVA NEXT>, common to all of the PILOT
NEXT> systems, allows a completely versatile test approach, from simple ICT to
functional tests, from automatic, net-oriented tests to the reconstruction of the data and
electrical schematics of boards coming from the field.
VIVA NEXT> is available in a 32 and 64 bit version with a new graphical interface
and a guided environment for an easy and quick test program creation. It is fully
integrated
with NI-VISA drivers and with third-party test management software.
EV Batteries test: flying probe
test is the first standard automated
solution adopted by battery
manufacturers, and these systems are
being widely used to measure the
bonding resistances of the packs cells.
Seica has chosen, with PILOT BT, the
more innovative approach of
developing a new solution, which
addresses current and future battery
test requirements in terms of speed,
configurability and reliability.
PILOT V
4
NEXT>
m Maximum measurement precision
m Maximum positioning precision
m Test of 01005 and 03015 metric components
m Suitable for testing all types of boards
m Extremely fast test times
m Parallel test: two systems in one
m High level of traceability (integrated barcode reading)
m Industry 4.0 ready: easy remote monitoring
and connection to information systems
m Automatic loading/unloading
m Single Rack / MultiRack handling
m Automatic selection of test program
m Manual/Automatic solution
PERFORMANCE:
m ICT, m FlyScan, m OBP, m Thermal Scan, m LED test,
m AOI functions, m Reverse engineering
m High flexibility
m Suitable for double- side board testing
m Suitable for prototype testing
m Suitable for reverse engineering
All of the solutions in the PILOT NEXT> LINE are equipped with excellent new performances for faster
testing and higher fault coverage on even the most technologically advanced and complex boards of the latest
generation electronic products and devices.

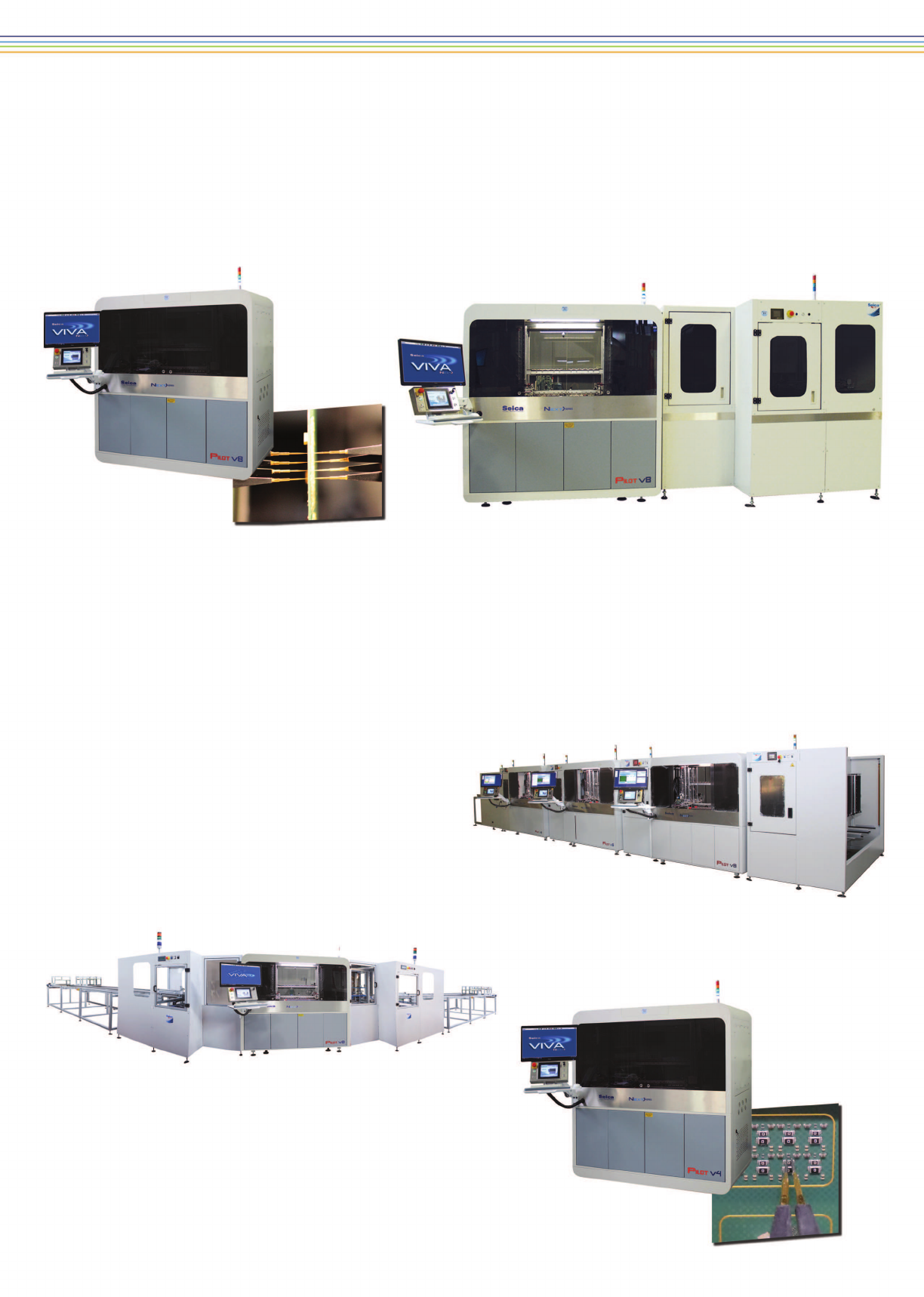

THE AUTOMATED SOLUTION
In the vision of the
Industry 4.0
factory of the future, the
implementation of a highly automated, technologically
advanced and reliable production line is essential.
The
PILOT
V8
N
EXT
>
is part of the vision: in the
PILOT NEXT>: THE NEW GENERATION
PILOT V8 NEXT> THE COMPLETE SOLUTIONS
pass-through
version, with dedicated loaders and
unloaders, it is the operator-free test solution for the
manufacturing environment.

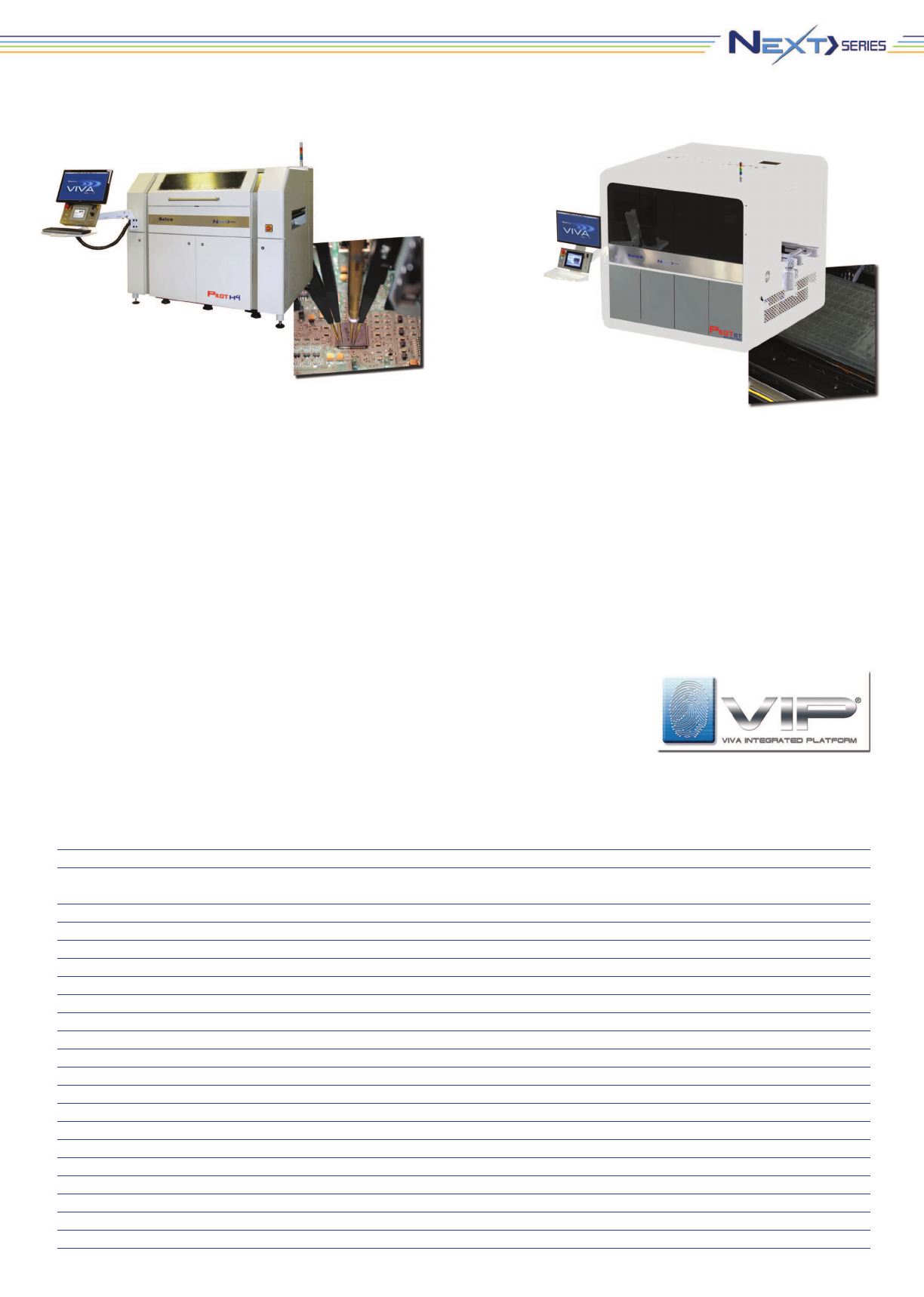

PILOT H
4
NEXT>
m Maximum testing area: 1050 x 865 mm
(41.33 ’’ x 34.05’’)
m Automatic DUT loading/unloading with a
Seica’s conveyor system or a custom system
designed or chosen by the customer.
m High resolution 4-wire Kelvin test
m Maximum number of measurable
cells: 2400 cells/min
PILOT B T NEXT>
EV BATTERY TEST
Automatic solution
m Easy connection to loader/unloader modules
m Allows the integration of dedicated frames
and/or dedicated jigs
m Best for boards with single-side test access
Manual solution
m Allows the integration of dedicated frames
and/or dedicated jigs
m Best for boards with single-side test access
Different architectures for diverse solutions
PILOT NEXT> V8 / V8 A / V8 XL V
4
H
4
/ H
4
A BT
Architecture Vertical Vertical Horizontal Horizontal
PCB Load/unload Automatic/Manual Manual Automatic/Manual Automatic, fixed rail
Max mobile resources 17 11 7 4 on each head
8 on each head (optional)
Electrical probes 8 (4+4) 4 (2+2) 4 16 on each head
Power probes 2 m m m
Openfix probes 2 2 1 m
Thermal scan sensor 2 2 m m
Led sensor 2 2 1 m
Laser sensor 2 1 1 m
HD color camera 2 2 1 l
Lighting unit (RGB) 2 2 2 l
Marker Tool 1 (Top or Bottom) 1 (Top or Bottom) m l
Barcode reading l l l Optional
ICT Test l l l Optional
Functional Test l l l l (4-wire Kelvin Test)
OBP l l l m
Parallel Test l m m m
FNode l l l m
Autic l l l m
PwMon l l l m
Flyscan l l l m
Quick test l l l m
l= available m= not possible
