4
DEK Horizon 8EE
Machine Standard Configuration
Specification
10° to 35° C (50° to 95° F)
30% to 70% relative humidity (non-condensing)
Specification
100 Volts to 240 Volts +/- 10%. Single phase 50/60Hz
20 Amps with vacuum pump
6 Amps without vacuum pump
10 Amps with vacuum pump
3 Amps without vacuum pump
An external circuit breaker ≤ 25 Amps is required to be fitted in line with the
machine supply
To ISO 8573.1 Standard Quality Class 2.3.3
Pressure 5 bar to 8 bar
General usage 5 litres/minute at 5 bar to 8 bar
Maximum usage 226 litres/minute at 6 bar
Specification
790kg boxed (dependent upon configured options selected with machine)
630kg unboxed (dependent upon configured options selected with machine)
2060mm x 1500mm x 1570mm (81.1” x 59” x 61.8”)
Specification
98/37/EC
89/336/EEC
73/23/EEC
Subsequent amendments
Less than 70dB 2003/1/EC
5
DEK Horizon 8EE
Machine Productivity Options
Specification
Paste roll height monitor
VectorGuard®
Semi automatic loading incorporating squeegee drip tray*
Venturi vacuum unit
* Need to remove drip tray when using ProActiv
Specification
Vacuum tooling capability
Vacuum tooling sensor
Vacuum cups
Grid-Lok® Tooling
Foil-less clamps
250mm over the top clamps
Snuggers (edge clamping)
10 seconds to 8 seconds
Specification
Enabled
Specification
On board, reported via operator interface (QC-CALC)
Specification
Blue large board cleaner (600mm)
620mm (X) x 508.5mm (Y) – Long Board Option
Specification
ProDEK closed loop
Specification
Left hand side
6
DEK Horizon 8EE

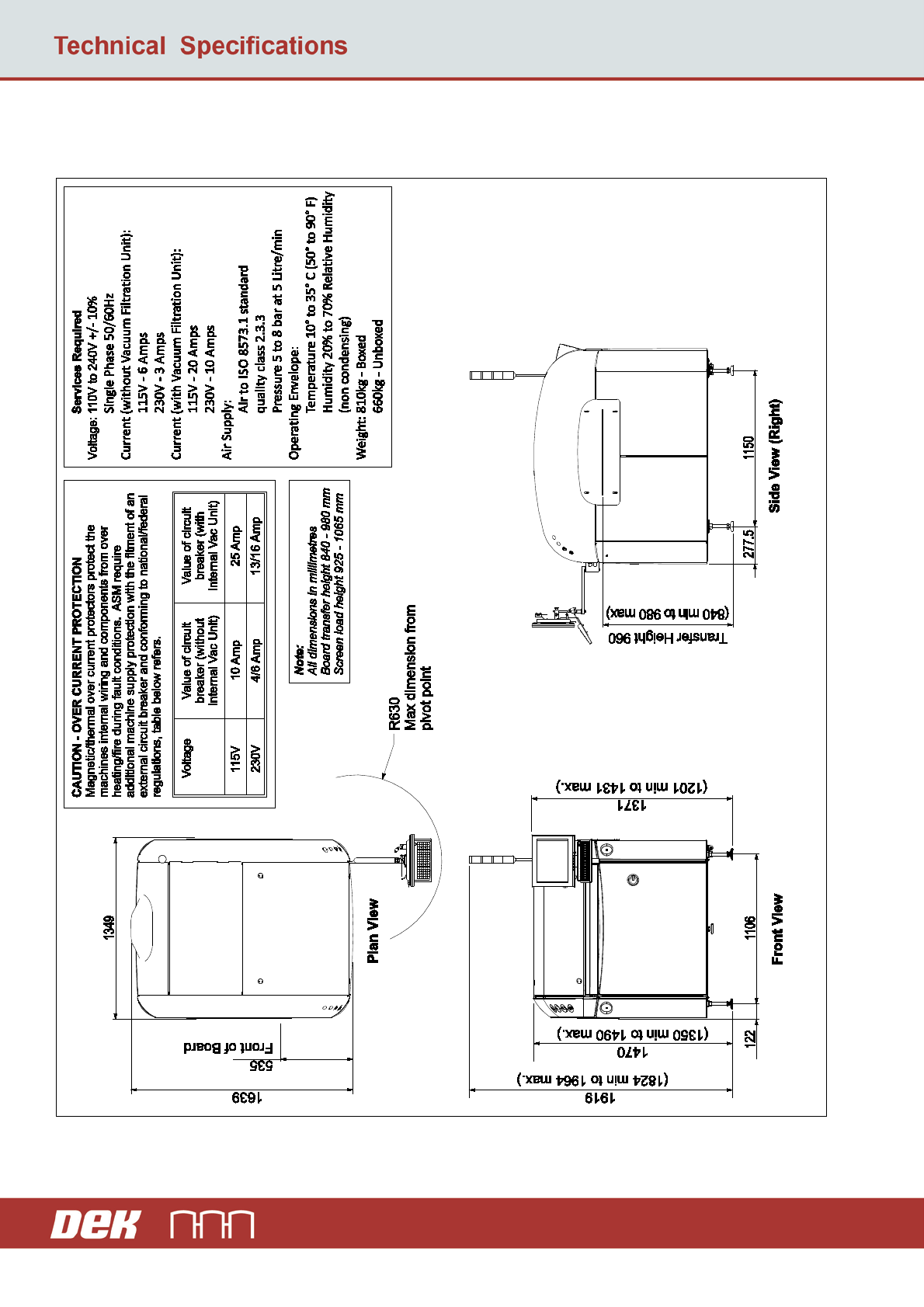

Machine Footprint
