D A T A SHEET XL LINE
DATASHEET
XL LINE

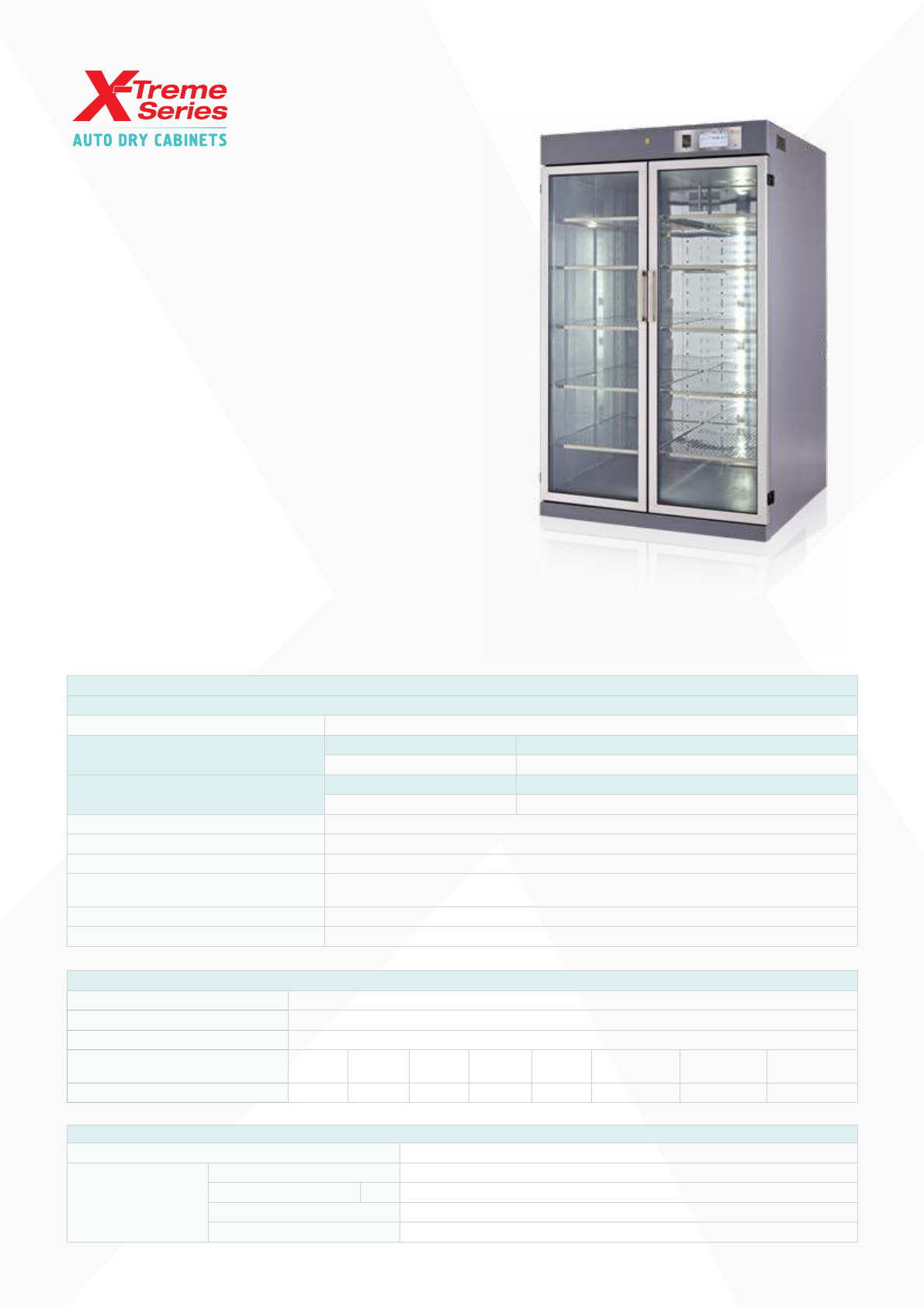

XL Line
(1840 lt)
www.x-tremeseries.com
Physical
External Dimensions (WxHxD)
XL Line Cabinets 1200 x 1990 x 1050 mm
Internal Dimensions (WxHxD)
Non-Insulated Insulated
1197 x 1654 x 930 mm 1178 x 1634 x 930 mm
Net Volume
Non-Insulated Insulated
1840 lt 1790 lt
Weight (Depends on Conguration) 280 kg
Max. Load Capacity of a Shelf 50 kg
Height from Ground 30 mm
Body Material
Electrostatic Painted Steel,
Stainless Steel Interior Panel
Door Glass 24 mm Insulating Thermal Glass
Standard Doors 2 Doors
Electrical
Voltage 220 - 240 V AC 50 Hz - 110 V AC 60 Hz (±10%)
Current / Max Power 10 A - 16 A (Maximum) / 2200 W Max.
Average Power Consumption w 50 W / Hour (Depends on Conguration)
Max Power Consumption / Hour
(Depends on Conguration)
Base Light N2 1
st
Dryer 2
nd
Dryer 45 °C Heater 60 °C Heater 100 °C Heater
XL Line Cabinets 10 W 58 W 5 W 750 W 750 W 1500 W 1500 W 2250
Shelves
Standard Shelves -
Shelf Capacity
Material Stainless Steel
Maximum / Cabinet XL 32 pieces (2 in a row) (Adjustable)
Minimum Shelf Height 60 mm
Mounting / Demounting With Shelf Holder Parts, No Tools Required
Operational
Humidity Set Range
0.5% - 95% RH (Ambient to Set Value)
Temperature Set Range (Optional)
15 °C - 45 °C - 60 °C - 100 °C (Ambient to Set Value)
Time to Reach to Set Humidity Level
<15 min. with one Dryer <7 min with double Dryer (values for 1% RH)
Specications
www.x-tremeseries.com
Measurements
Relative Humidity Measurement
Location Cabinet inside (Standard), Cabinet outside (Optional)
Range 0 - 99% RH
Accuracy
± 0.3% RH (0…20% RH) ± 1.5% RH (20…99% RH) (After Calibration)
(Indoor Sensor)
Resolution 0.01% RH < 10% RH - 0.1% RH > 10% RH (Indoor Sensor)
Temperature Measurement
Location Cabinet inside (Standard), Cabinet outside (Optional)
Range -20 - +110 °C
Temperature Measurement
Accuracy ± 0,5 °C (at 25 °C)
Resolution 0.1 °C
Date & Time Date (dd.mm.yy) and Time (hh:mm:ss) display with Real Time Clock (RTC)
Alarm Functions
Alarm Type Standard Internal Buzzer, Optional Alarm Light Bar
Alarm Duration Adjustable, Internal Buzzer: 5 - 255 sec. Alarm L. Bar: 1 - 60 min.
Humidity Level Alarm Adjustable Oset: 0% RH - 40% RH
Temperature Level Alarm Adjustable Time Aer Door Close: 1 - 60 minutes
Door Le Open Alarm Adjustable Time to Alarm: 10 - 240 seconds
Optional Features
Secondary Dehumidier Unit
Advantage 60% decrease in time to reach to set humidity level
Usage As Standby, Sharing Drying Task with Intervals
Heater
Capacity 2 x 750 W
Heating Type Electrical, Heating Elements and Fans
Insulation Material Elastomeric Rubber Foam, Thermal Conductivity < 0,036 W/mK
Control Automatic
Lighting
Location Interior
Capacity & Type LED Lamp for XS Line-Fluorescent daylight for XT and XL Line
Control Automated: Display Touch, Motion Sensor or Door Open Triggered
Light ON Time Aer Last Trigger, Adjustable: 0 - 240 minutes
Automatic Door Lock
Number of Locks 1 Lock per Door
Lock Type Automatic Door Locks by Password, Open / Locked Status Monitoring
Control Access Code Used as Password
Outdoor Sensor
Location Integrated to Body on Top of Right Side of Cabinet
Measurement Relative Humidity, Temperature
Specications Same as Cabinet Inside Sensor, Except Accuracy of ± 1.5% Rh
Alarm Light Bar
Type Buzzer and Two-Colored Lights, Magnetic Base
Buzzer Noise Level 70 dB (A)
Light Type and Colors Yellow and red, 12 V, 5 W lamps
Shape and Visibility Cylindrical, 360° View
Mounting Easy Attachable with Magnetic Base Plate, Built-In Screw Holes
Connection 4-Pin XLR Connector Behind Cabinet
Version 3.0 Soware - Industry 4.0
Display - Control Panel
Type Touch Screen Display
Active Area 7"- (155 x 86mm)
Resolution 800*480 Pixel
Datalogger
Capacity 2 GB
Connection Type Wi-Fi (Wireless), Ethernet Cable (Network), USB Flash Disk
USB (AF Type) Connector Right and Le Side of the Cabinet
RMS (Remote Monitoring)
Monitoring via PC, Phone, Tablet
Connection Type Wi-Fi (Wireless), Ethernet Cable (Network)
