0$&+,1 (3(5)250$1 &( 0$&+,1 (&$3$%,/,7< Chapter Issue 2 May 03 Instal lation M anual 8.3 6. Highlight sqy1.qcf file and se lect Ope n . 7. In the Record Filter s Box, select sqy1 file and select O.K …
0$&+,1(3(5)250$1&(
0$&+,1(&$3$%,/,7<
8.2 Installation Manual Chapter Issue 2 May 03
of paste or suitable lubricant (enough to lubricate squeegees). Record >100 full
machine cycles and setup QC-Cal program as follows:
1. If squeegees are fitted ensure the filter files sqy1.qcf and sqy2.qcf are
present in the directory structure C:\Prolink\QcCalc\Filters.
2. Start the QC-Cal program.
3. Select Edit, Data.
4. Select Filters.
5. Select Select Filter Group.
0$&+,1(3(5)250$1&(
0$&+,1(&$3$%,/,7<
Chapter Issue 2 May 03 Installation Manual 8.3
6. Highlight sqy1.qcf file and select Open.
7. In the Record Filters Box, select sqy1 file and select O.K.
0$&+,1(3(5)250$1&(
0$&+,1(&$3$%,/,7<
8.4 Installation Manual Chapter Issue 2 May 03

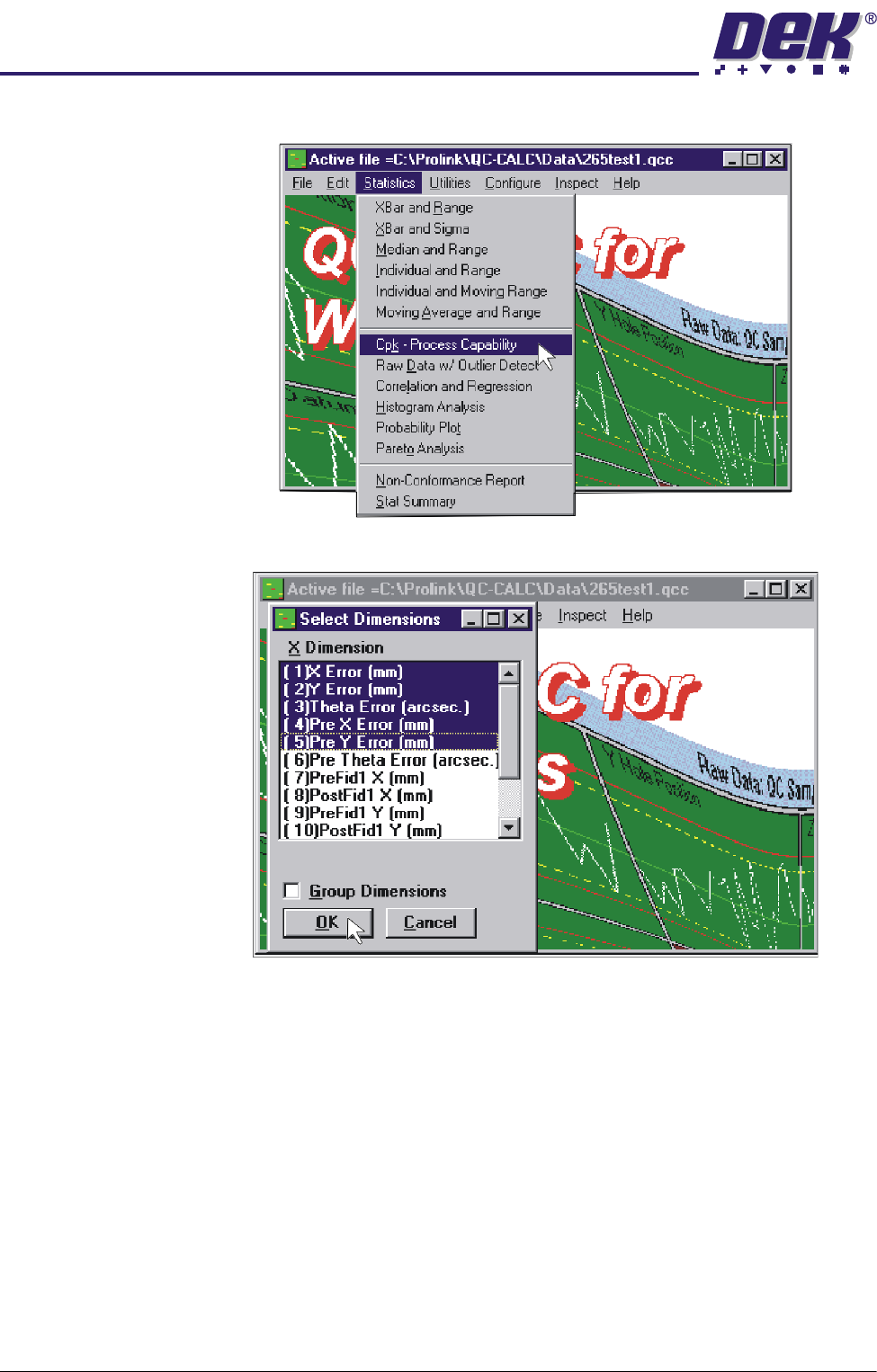

8. Select Statistics, Cpk - Process Capability.
9. Highlight the required dimensions to output and select O.K.
