Main standard features □ PowerSpray ® technology bundle: magnetically coupled X-Power (tank A) and S-Power (tank B) pump units, twofold ASYNCHRO ® volume-spray rotorsystem with PUSHFORCE ® nozzles, "Option100" …

Most suitableOptional suitable Optional suitable Not suitable Not suitable

Cleaning (key process 1): From the cleaning tank (A) the cleaner liquid is sucked by a magnetically coupled pump unit and

routed with a controllable volume flow through a separate circuit into the ASYNCHRO

spray rotor nozzles. Their geometry

ensures a comprehensive and thorough cleaning, even in inaccessible and critical aereas. After the washing procedure, the

valve switchover of the process chamber undocks the cleaning circuit until the next process run.

MediumWipe

(intermediate process 2): The remaining cleaner is blown off from the clean products and blown out of the

cleaner circuit and recirculated into the cleaning tank before the valve switchover closes.

Rinsing with tap water (key process 3): From the rinsing tank (tank B) the water is pumped through the separate second cir-

cuit into the spray rotors. Tap water has (compared to DI / DM water) the advantage of lower surface tension and thus flushes

also critical points as low standoffs and appertures more efficient.

MediumWipe

(intermediate process 2): The remaining water is blown off from the products and blown out of the cleaner cir-

cuit and recirculated into the rinsing tank.

Final rinsing with DI / DM water (optional process): The DI / DM water is produced from tap water in an integrated

MB-cartridge and flushes conducting ions of the previous processes. This process is repeated automatically until the remai-

ning amount of ions falls below the programmed value.

MediumWipe

(optional intermediate process): Blowing off and recirculating the remaining DI / DM water into the rinsing tank.

Drying (key process 4): The purified products are dried with the patented CWA

(Compressed Warm Air) technology. The

built-in special compressor compresses the ambient air. At the same time it collects the kinetic energy (frictional heat) of the

paddle wheel in the unit, then presses the heated and compressed air into the rotor nozzles which were already used for

cleaning and rinsing. There it blows off (pressure) and evaporates (heat) the residual moisture. This method is energetically

and constructively highly efficient, as it uses the "waste heat" of the compressor rotation and the compressed air as driving

power for the rotors. In addition, a system equipped with CWA

technology requires no additional hardware and no external

compressed air connection for the MediumWipe

process.

Maintenance: The system has two large maintenance doors on the right and on the left hand side. In the maintenance area

among others are the pump-out set, the optional re-dosage unit with space for a 25 liter detergent and a 5 l additive container

as well as the MB cartridge for DI / DM water processing. Tank levels as well as pressure values and maintenance cycles are

monitored by the PLC and displayed on the touch screen.

Page 2 of 5

Part number: 0905PSE31VL2, 0905PSE32VL2 (HT version)

Fully automatic twotank economy system with two separate

circuits and ASYNCHRO

twofold rotor system

11/21

PSE 300 2VL

Made in Germany

CLEANING TECHNOLOGY

Application overview

Assembled PCBs

Hybrids

Misprints

Stencils

Screens, PumpPrints

Misprints

Solder frames

Solder carriers

Solder masks

ESD Boxes

Containers

Magazines

Condensation traps

Filters

Steel sheets

Optional suitable applications can also be optimally realized with the appropriate options.

kolb Cleaning Technology GmbH ▪ Karl-Arnold-Str.12 ▪ D - 47877 Willich ▪ Phone: +49 (0) 2154 9479 - 38 ▪ Fax: +49 (0) 2154 9479 - 47 ▪ e-mail: info@kolb-ct.com ▪ www.kolb-ct.com

All rights for changes reserved that lead to technical improvement. © kolb GmbH 2021

Main standard features

□ PowerSpray

technology bundle: magnetically coupled X-Power (tank A) and S-Power (tank B) pump units, twofold

ASYNCHRO

volume-spray rotorsystem with PUSHFORCE

nozzles, "Option100" softwareprogram (100 freely

selectable programs)

□ EATON Programmable Logic Controller (PLC)

□ High resolution 7" (1,024 x 600 mm) display with capacitative multi-touch

□ Full flow coarse filter (process chamber)

□ Sediment filter for cleaning tank (A)

□ MediumWipe

unit for further optimization of detergent and rinsing fluid use

□ CWA

supercharger compression drying

□ ClosedLoop reprocessing of cleaning and rinsing fluids

□ Spare space for DI / DM water processing cartridge

□ Safety features: safety interlock on the process chamber door, overflow alarm for all tank sections, overheating protection for

all heating and drying elements, end switches for all motor-driven valves and drives, personnel protection insulation

□ Front cover made of stainless steel, side and rear covers in painted steel

□ Process sections made of electrolysis resistant elements

Main options

□ Adjustable DI / DM water mixing and blending unit

□ Automatic detergent concentration measurement / control

□ Automatic re-dosage unit for 25 l detergent and 5 l additive container

□ Descaling unit to reduce the lime content in the rinsing water

□ Drip & storage reservoir

□ Exchange for rinse water and pump out unit

□ Exhaust control

□ Heater for tank A (cleaning)

□ HMA filter (Heavy Metal Adsober) unit for the cleaning cicuit

□ HT Version for high temperature cleaning up to 80 °C (176 °F)

□ PolyPower XL configuration with XL-PolyPower pump unit

□ Noise insulation

□ MB / DI cartridge for deionized (DI) and demineralized (DM) water

□ Remote Control (remote monitoring, mailing, etc.)

□ Status light fivefold to display the current process state

□ Traceability "Basic" (SPC data scanner, data backup in CSV file, backup via WiFi SD card via slot in the PLC)

□ XL-Power pump unit for Tank A

□ X-Power pump unit for Tank B

Page 3 of 5

Part number: 0905PSE31VL2, 0905PSE32VL2 (HT version)

Fully automatic twotank economy system with two separate

circuits and ASYNCHRO

twofold rotor system

11/21

PSE 300 2VL

Made in Germany

CLEANING TECHNOLOGY

kolb Cleaning Technology GmbH ▪ Karl-Arnold-Str.12 ▪ D - 47877 Willich ▪ Phone: +49 (0) 2154 9479 - 38 ▪ Fax: +49 (0) 2154 9479 - 47 ▪ e-mail: info@kolb-ct.com ▪ www.kolb-ct.com

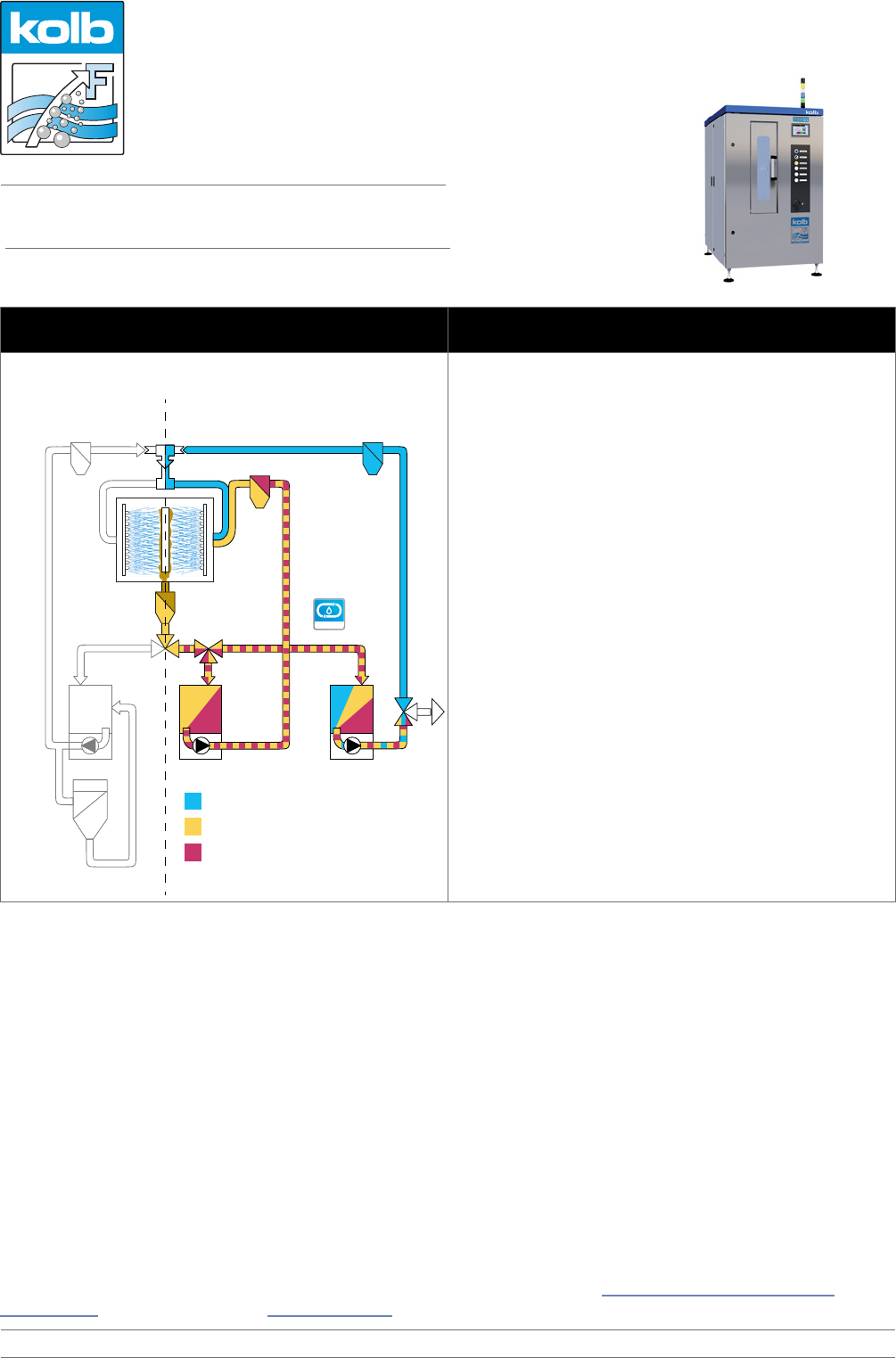

HMA-Filter

Filter

(Option)

Tank A

Cleaning

Tank B

Pre-Rinsing

Rinsing cycleCleaning cycle

Cleaning System

Tank C

DI / DM

Rinsing

Fresh / recycled rinse water

Usable rinse water

Contaminated rinse water

ClosedLoop

Filter

Page 4 of 5

* Operating companies of industrial cleaning systems are responsible for proper disposal of wastewater / rinse water

and (wasted) cleaning detergent. Further information on wastewater management at www.kolb-ct.com/systems/water-

management/, consulting requests to info@kolb-ct.com

11/21

Internal rinse water processing (standard) Options* for water management

AOSelection

unit

separates mandatory disposable sewage water from rinse

water which can be discharged into a plublic sewage network.
