Main options ■ Automatic detergent concentration measurement / control □ Automatic XL-re-dosage unit for 25 l detergent and 5 l additive container □ Automatic water change for cleaning circuit (only HT version) □ C WA ® …
Main standard features
□ PowerSpray
®
technology bundle: magnetically coupled XXL-Power (tank A) and S-Power (tank B, tank C) pump units, twofold
ASYNCHRO
®
volume-spray rotorsystem with low maintenance PTFE mounted stainless steel rotors with PUSHFORCE
®
nozzles, "Option100" software program (100 freely selectable programs)
■ PolyPower
®
XL configuration with XL-Power pump unit
■ EATON Programmable Logic Controller (PLC) with module extension for special programming and technology extensions
■ Smart Factory ready: DNAccess
®
(standard) for remote control (see options) and traceability with retractable touch monitor
and integrated industrial PC (see options)
□ High resolution 10" (1,024 x 600 px) display with capacitive multi-touch and intuitive process view
□ Electrically driven large double-wall airlock door: transparent or process-related with internal pane made of stainless steel
■ Fourfold alternating LED status light bar integrated in the system frame
□ Lower VA drawer basket, ESD-safe with grounding connection for the operator
□ Cartridge fine filter for cleaning and both rinsing circuits
□ Full flow coarse filter (process chamber)
□ Heater for tank A (cleaning)
□ Automatic monitoring of ionic residues contamination and gauging of rinse water quality
□ Adjustable DI / DM water mixing and blending unit
■ VMH
®
TurboDigital hot air evaporative drying (control range approx. 45 - 120 °C / 113 - 248 °F)
□ ClosedLoop reprocessing of cleaning and rinsing fluids
■ HMA software and pre-equipping for HMA hardware (Heavy Metal Adsorber) for the cleaning circuit (see options)
□ Spare space for MB- / DI-cartridge for deionized (DI) and demineralized (DM) water
□ Exchange for rinse water and pump out unit
□ Safety features: safety interlock on the process chamber door, overflow alarm for all tank sections, overheating protection for
all heating and drying elements, end switches for all motor-driven valves and drives, personnel protection insulation
■ VARIccess
®
service access with right and left-hinged side doors as well as unhinging possibility for side doors, front panel,
and rear supply rail
■ EDGELESS housing design. Doors, cover panels and hinges without edges, depot for traceability scanner and monitor in the
right side panel
□ Process sections made of electrolysis resistant elements
Page 3 of 7
Part number: 0905AQ9XH31 / 0905AQ9XH41 (HT version)

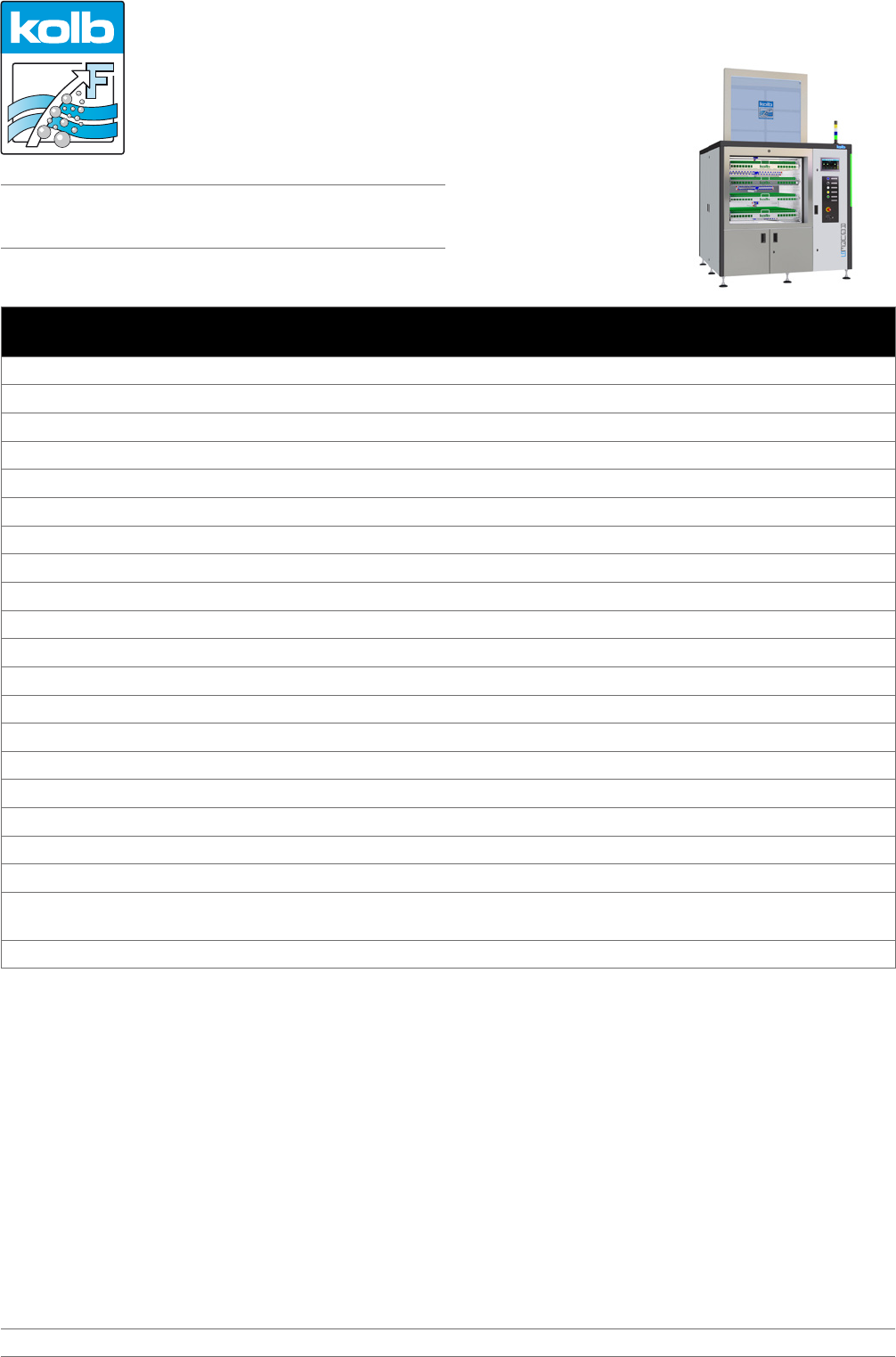

Fully automatic high end 3-tank, 3-circuit PowerSpray
®
XXL
ultra-fine cleaning system for cleaning of assembled PCBs
11/2020
AQUBE
®
XH9
■ = AQUBE
®
-exclusive components (vs. kolb PSE Economy series)
Made in Germany
CLEANING TECHNOLOGY
kolb Cleaning Technology GmbH ▪ Karl-Arnold-Str.12 ▪ D - 47877 Willich ▪ Phone: +49 (0) 2154 9479 - 38 ▪ Fax: +49 (0) 2154 9479 - 47 ▪ e-mail: info@kolb-ct.com ▪ www.kolb-ct.com
All rights for changes reserved that lead to technical improvement. © kolb GmbH 2020
Main options
■ Automatic detergent concentration measurement / control
□ Automatic XL-re-dosage unit for 25 l detergent and 5 l additive container
□ Automatic water change for cleaning circuit (only HT version)
□ CWA
®
-supercharger compression drying (i.a. for DCB cleaning)
□ Descaling unit to reduce the lime content in the rinsing water
□ Drip & storage reservoir
□ Exhaust unit
■ HMA filter (Heavy Metal Adsober) unit for the cleaning cicuit
□ HT Version for high temperature cleaning up to 80 °C (176 °F)
□ MB / DI cartridge for deionized (DI) and demineralized (DM) water
□ MediumWipe
®
unit for further optimization of detergent and rinsing fluid use
■ Paint of choice (frame rack and coverings)
□ Permanent automatic rotor run control
■ Remote Control (remote monitoring, mailing, etc.)
■ RMA Remote Maintenance Assistance (factory controlled maintenance support)
□ Speed load cart (reduces downtime for loading by more than 75%)
□ Status light fivefold to display the current process state
□ Traceability "Basic" with SPC data scanner, data backup in CSV file, backup via SD card (via slot in the PLC)
■ Traceability "Comfort" with PLC data scanner and retractable touch monitor and industrial PC with Intel processor
□ Upper VA drawer baskets with ASYNCHRO
®
PTFE mounted stainless steel TopDown-double rotors with
PUSHFORCE
®
special nozzles
□ XL-Power pump units for tank B and tank C
Page 4 of 7
Part number: 0905AQ9XH31 / 0905AQ9XH41 (HT version)
Fully automatic high end 3-tank, 3-circuit PowerSpray
®
XXL
ultra-fine cleaning system for cleaning of assembled PCBs
11/20
AQUBE
®
XH9
■ = AQUBE
®
-exclusive components (vs. kolb PSE Economy series)
Made in Germany
CLEANING TECHNOLOGY
kolb Cleaning Technology GmbH ▪ Karl-Arnold-Str.12 ▪ D - 47877 Willich ▪ Phone: +49 (0) 2154 9479 - 38 ▪ Fax: +49 (0) 2154 9479 - 47 ▪ e-mail: info@kolb-ct.com ▪ www.kolb-ct.com
All rights for changes reserved that lead to technical improvement. © kolb GmbH 2020
TA
HMA-Filter
Filter
Filter
(Option)
Tank A
Cleaning
Tank B
Pre-Rinsing
Rinsing cycleCleaning cycle
Cleaning System
Tank C
DI / DM
Rinsing
Fresh / recycled rinse water
Usable rinse water
Contaminated rinse water
ClosedLoop
ClosedLoop
TB
TC
Filter
Filter
Filter
Page 5 of 7
11/2020
Part number: 0905AQ9XH31 / 0905AQ9XH41 (HT version)
Fully automatic high end 3-tank, 3-circuit PowerSpray
®
XXL
ultra-fine cleaning system for cleaning of assembled PCBs
AQUBE
®
XH9
Internal rinse water processing (standard) Options* for water management
WPSD IU SYMBIO-module
Processes mandatory disposable sewage water to be
discharged into a public sewage network.
WPCL IUT3 SYMBIO-module
Recycles DI / DM water for recirculation and multiple reuse in
the cleaning systems clear rinsing cycle.
■ = AQUBE
®
-exclusive components (vs. kolb PSE Economy series)
* Operating companies of industrial cleaning systems are responsible for proper disposal of wastewater / rinse water
and (wasted) cleaning detergent. Further information on wastewater management at www.kolb-ct.com/systems/water-
management/, consulting requests to info@kolb-ct.com
