T echnical data T echnology base kolb PowerSpray ® Capacity 830 (19 m 2 / (204.5 ft 2 ) eurocards Process chamber dimensions W 970 ▪ D 955 ▪ H 900 mm (W 38.18" ▪ D 37.59" ▪ H 35.43") Usable space lower bas…

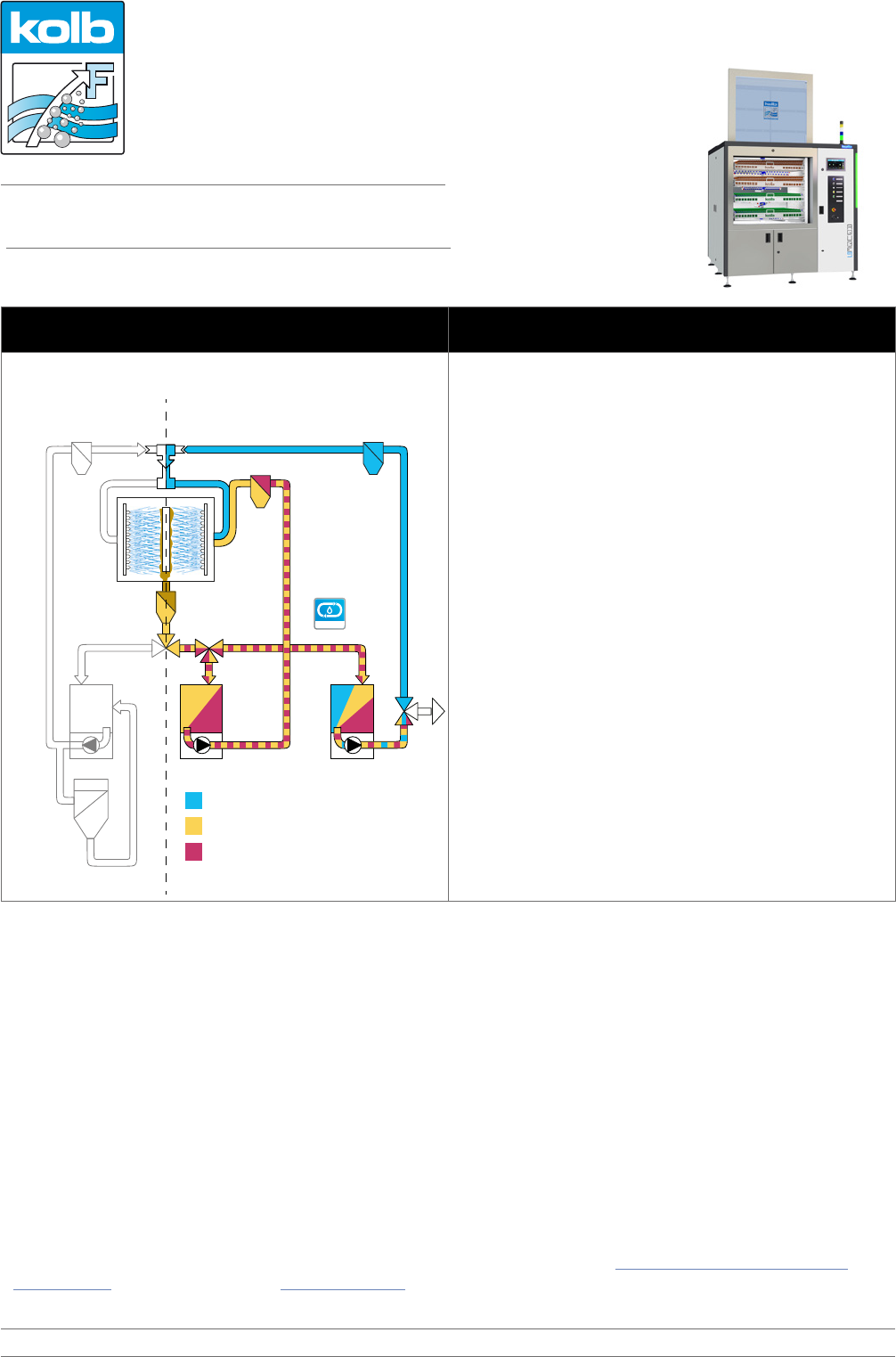

TA
HMA-Filter
Filter
Filter
(Option)
Tank A
Cleaning
Tank B
Pre-Rinsing
Rinsing cycleCleaning cycle
Cleaning System
Tank C
DI / DM
Rinsing
Fresh / recycled rinse water
Usable rinse water
Contaminated rinse water
ClosedLoop
ClosedLoop
TB
TC
Filter
Filter
Filter
Page 5 of 7
11/2020
Part number: 0905AQ9XH31 / 0905AQ9XH41 (HT version)
Fully automatic high end 3-tank, 3-circuit PowerSpray
®
XXL
ultra-fine cleaning system for cleaning of assembled PCBs
AQUBE
®
XH9
Internal rinse water processing (standard) Options* for water management
WPSD IU SYMBIO-module
Processes mandatory disposable sewage water to be
discharged into a public sewage network.
WPCL IUT3 SYMBIO-module
Recycles DI / DM water for recirculation and multiple reuse in
the cleaning systems clear rinsing cycle.
■ = AQUBE
®
-exclusive components (vs. kolb PSE Economy series)
* Operating companies of industrial cleaning systems are responsible for proper disposal of wastewater / rinse water
and (wasted) cleaning detergent. Further information on wastewater management at www.kolb-ct.com/systems/water-
management/, consulting requests to info@kolb-ct.com
kolb Cleaning Technology GmbH ▪ Karl-Arnold-Str.12 ▪ D - 47877 Willich ▪ Phone: +49 (0) 2154 9479 - 38 ▪ Fax: +49 (0) 2154 9479 - 47 ▪ e-mail: info@kolb-ct.com ▪ www.kolb-ct.com
Made in Germany
CLEANING TECHNOLOGY
All rights for changes reserved that lead to technical improvement. © kolb GmbH 2020

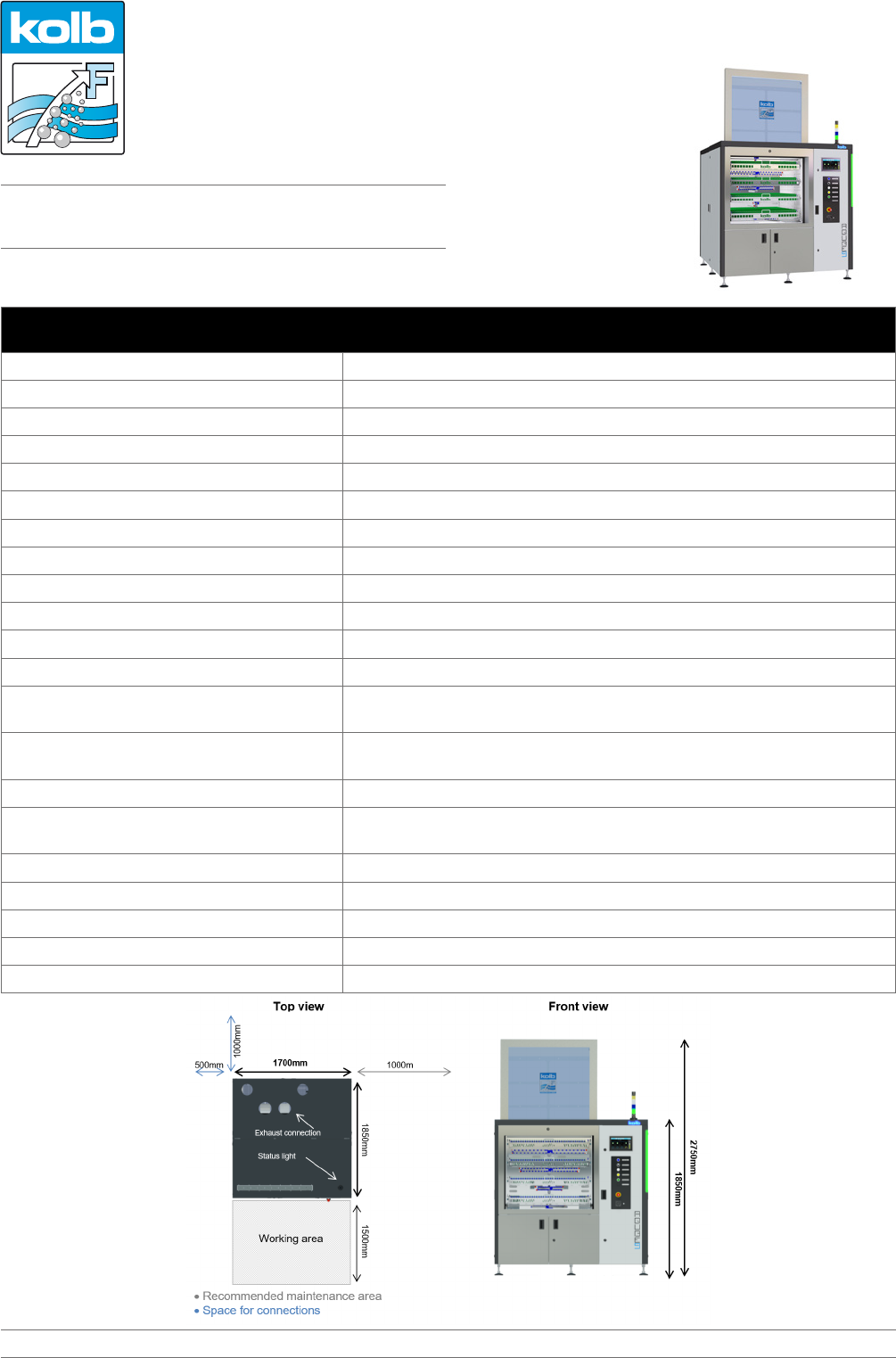

Technical data
Technology base kolb PowerSpray
®
Capacity 830 (19 m
2
/ (204.5 ft
2
) eurocards
Process chamber dimensions W 970 ▪ D 955 ▪ H 900 mm (W 38.18" ▪ D 37.59" ▪ H 35.43")
Usable space lower basket only W 880 ▪ D 890 ▪ H 760 mm (W 34.65" ▪ D 35.04" ▪ H 29.92")
Usable space utilizing four baskets W 880 ▪ D 890 ▪ H 150 mm (W 34.65" ▪ D 35.04" ▪ H 5.9") four times
Volume tank A (cleaning), tank C (DI-rinsing) 125 l each
Volume tank B (rinsing) 100 l
Power supply 400 V AC, 32 A, CEE-plug / 3 Ph / 50 or 60 Hz
Power consumption 18 kW
Control system PLC (EATON)
Temperature load up to 55 °C (131 °F) standard system, up to 80 °C (176 °F) HT-version
Control range drying approx. 45 - 120 °C (113 - 248 °F)
Filter system
up to four stages - 1. Full flow coarse filter < 2mm (0.08"), 2. Sediment filter
inside the tank, 3. 20“ fine filter (1 - 100 µm - process dependent), 4. HMA filter
Supply connection 1 (tap water)
connection for 1" hose, with 30µm water filter (prov. by customer: inlet water
quality < 350 μS conductance value (< 10° dH) or option descaling unit)
Supply connection 2 (DI / DM water) connection for 1" hose, (DI-net prov. by customer or bridging to tap water)
Supply connection 3 (compressed air)
6 - 8 bar (87 - 116 psi) - 100 l / min for options HT-version or MediumWipe
®
,
connection for 8 mm (0.31") compressed air hose
Rinse water drain connection (with integrated pump out system ) connection for 1" hose
Exhaust connection Ø 160 mm (6.3"), exhaust capacity > 1,100 m
3
/ h (38,847 ft
3
/ h)
Operating condition room temperature 20 - 35 °C (68 - 95 °F)
Operating noise 63 dB (A)
Footprint / Empty weight 1,700 x 1,850 mm (66.9" x 72.8") / 920 kg (2,028 lbs)
Page 6 of 7
Part number: 0905AQ9XH31 / 0905AQ9XH41 (HT version)
Fully automatic high end 3-tank, 3-circuit PowerSpray
®
XXL
ultra-fine cleaning system for cleaning of assembled PCBs
11/2020
AQUBE
®
XH9
Made in Germany
CLEANING TECHNOLOGY
kolb Cleaning Technology GmbH ▪ Karl-Arnold-Str.12 ▪ D - 47877 Willich ▪ Phone: +49 (0) 2154 9479 - 38 ▪ Fax: +49 (0) 2154 9479 - 47 ▪ e-mail: info@kolb-ct.com ▪ www.kolb-ct.com
All rights for changes reserved that lead to technical improvement. © kolb GmbH 2020
A
B
B
A
A
B
C

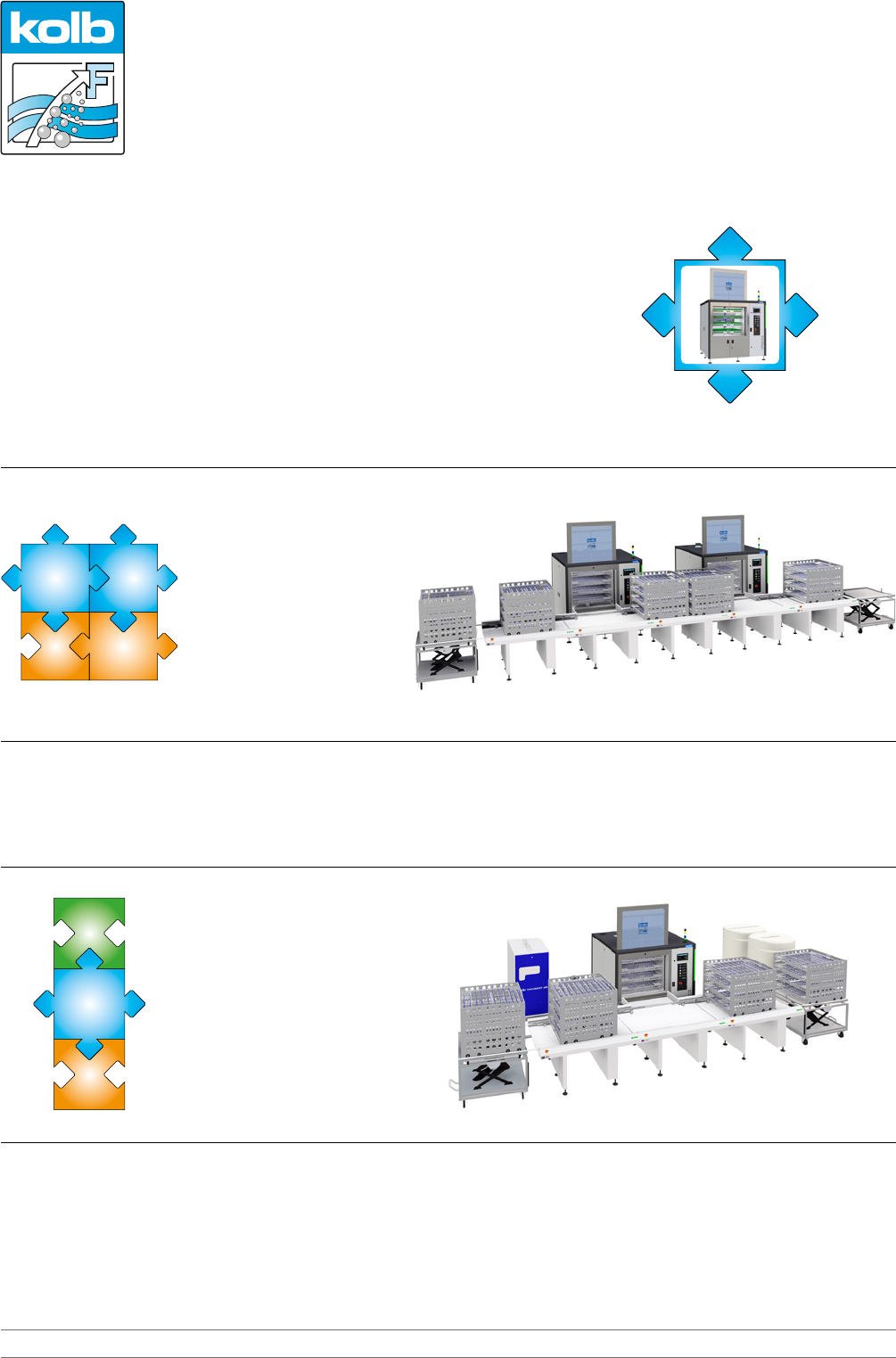

Example configuration:
AQUBE
®
XH9 system with
loading and unloading unit and
kolb vacuumdistiller for 100%
recycling of rinse water.
Capacity:
830 eurocards per cycle (appr.
6,5 sec. per board)
Example configuration:
Two AQUBE
®
XH9 systems,
two loading and unloading
units.
Capacity:
Appr. 8300 eurocards
(per 8 hour shift)
Appr. 25.000 eurocards
(per 24 hour operation)
kolb CleaninGrid
®
Technology
Large installations and comprehensive washing plants
From just connecting two systems together to fulfill moderately growing volume requirements to building a complete washing
center for quantities of multi-thousands of boards per day und evaporator water processing, the mutable kolb CleaninGrid
®
technology leaves all options.
Machine to
machine (A)
Machine to
machine (A)
Machine to water
processing (C)
Machine to loading and
unloading automat (B)
The main advantages of the kolb CleaninGrid
®
technology:
Much higher throughput than any conventional inline installation (a single AQUBE
®
XH9 batch system already exeeds the
capacity of one average inline system).
Shorter cycle times per board than any PCB cleaning system on the market.
Extremely lower power consumption compared to any system or installation on the market with a comparable capacity.
Significantly lower operating costs compared to any conventional inline system with a comparable capacity.
The complete installation out of one hand.
AQUBE
®
XH9 systems are suitable for use in a kolb
CleaninGrid
®
plant. The kolb CleaninGrid
®
technology is an
intelligent combination and integration of cleaning, loading,
water treatment and control systems to large-scale facilities
for the efficient mass cleaning of assemblies, tools and
machine parts. The CleaninGrid
®
technology is completely
flexible, constructively easy to execute and based on three
connection availabilities:
• Machine (A) to machine (A)
• Machine to loading / unloading automat (B)
• Machine to water processing system (C)
