8 Maintenance Parts DEC./2003 ANC Station (Option) 1 2 N o . Part No. Part Name Q'ty Remarks Rank 1 LC2-M653N-00X SENSOR 10 ASSY 2 B 2 LC2-M9603-00X CYLINDER 1 BDAS10x5 B Conv ey or Extention Con ve yor (Option) 1 2…
7
Maintenance Parts
DEC./2003
Conveyor
Main Stopper
4
3
2
1
No. Part No. Part Name Q'ty Remarks Rank
1 LC2-M9162-01X CYLINDER 1 B
2 LC2-M9161-00X STOPPER 1 B
3 LC2-M653F-00X SENSOR, 3 ASSY 1 B
4 LC2-M653K-00X SENSOR, SET POSITION 1 B
Push Up
A
A
B
B
1
2
No. Part No. Part Name Q'ty Remarks Rank
1 LC2-M653G-00X SENSOR ASSY 1 B
2 LC2-M9209-00X CYLINDER 1 B
8
Maintenance Parts
DEC./2003
ANC Station (Option)
1
2
No. Part No. Part Name Q'ty Remarks Rank
1 LC2-M653N-00X SENSOR 10 ASSY 2 B
2 LC2-M9603-00X CYLINDER 1 BDAS10x5 B
Conveyor
Extention Conveyor (Option)
1
2,3
2,3
No. Part No. Part Name Q'ty Remarks Rank
1 LC2-M9130-00X DC MOTOR COMB. 1 B
2 LC2-M9545-00X BELT 2 L=200MM A
3 LC2-M9555-00X BELT 2 L=400MM A
9
Maintenance Parts
DEC./2003

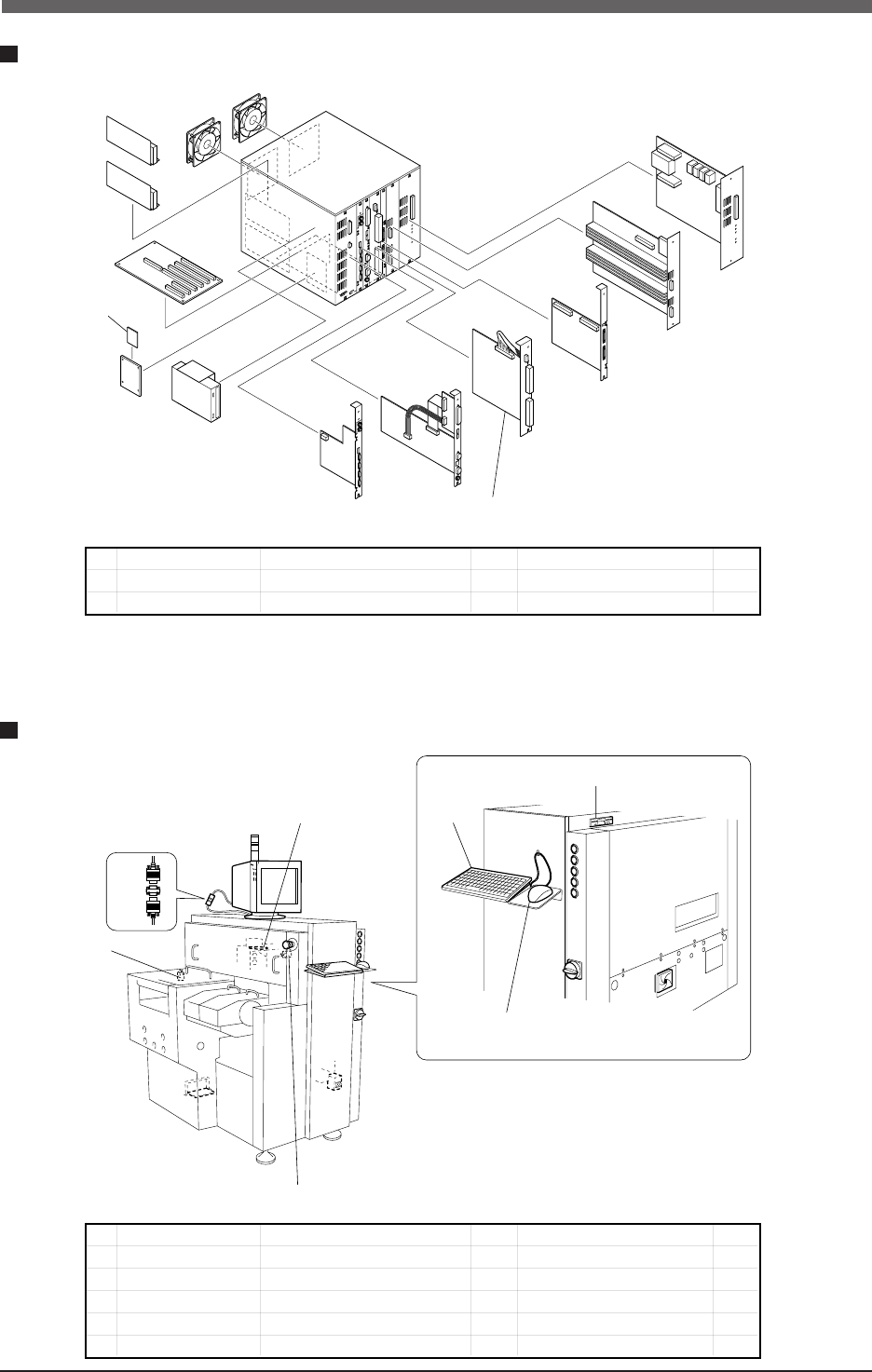

Exterior, etc
5
5
1
3
2
4
No. Part No. Part Name Q'ty Remarks Rank
1 KGN-M4570-00X I/O BOARD HEAD ASSY 1 P21 B
2 KG7-M530H-01X FLOPPY DISK DRIVE 1 A14 B
3 KW3-M5150-01(11)X KEY BOARD J (E) 1 A10 (J/E) C
4 KW3-M5169-01X MOUSE 1 A12 C
5 KH4-M668R-00X HARNESS, 8-11 (SW COVER) 2 J198, J199 C
Control Box
2
1
No. Part No. Part Name Q'ty Remarks Rank
1 KGA-M6522-20X SPARE RELAY 1 IF Board A
2 KGN-M4255-20X FLASH DISK 1 B
