7 Maintenance Parts DEC./2003 Conv ey or Main Stopper 4 3 2 1 N o . Part No. Part Name Q'ty Remarks Ran k 1 LC2-M9162-01X CYLINDER 1 B 2 LC2-M9161-00X ST OP P E R 1 B 3 LC2-M653F-00X SENSOR, 3 ASSY 1 B 4 LC2-M653K-0…
6
Maintenance Parts
DEC./2003
Conveyor

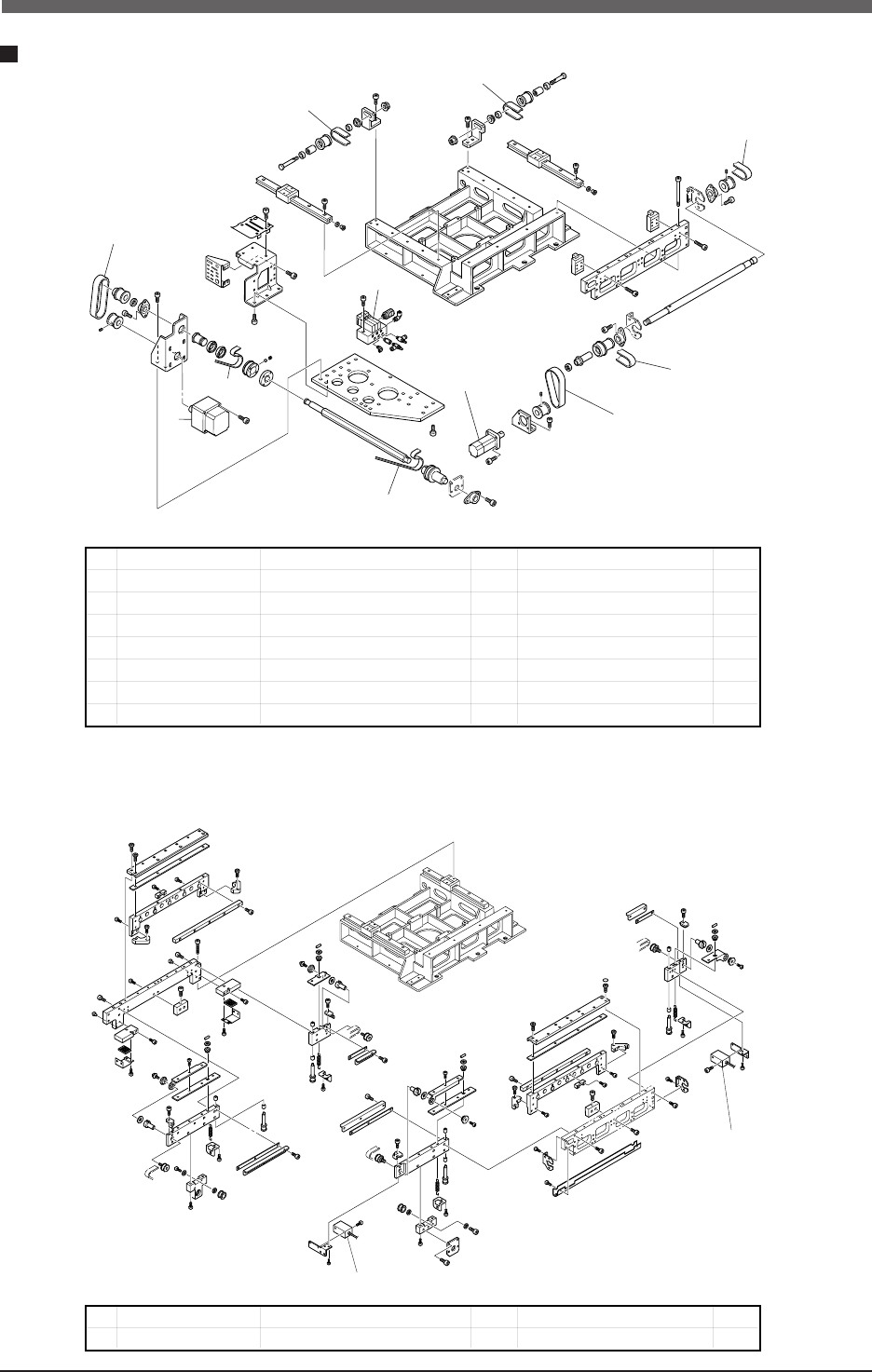

Main Conveyor-1
4
3
5
1
1
2
7
4
4
4
6
No. Part No. Part Name Q'ty Remarks Rank
1 LC2-M911M-00X BELT 2 Conveyor Belt A
2 LC2-M911N-00X BELT (255-3GT-9) 1 A
3 LC2-M911P-00X BELT (B150S3M219) 1 A
4 LC2-M911R-00X BELT (B150S3M789) 2 Conv. Width Belt A
5 90K61-001501 AC SERVO MOTOR 1 W1 B
6 LC2-M9121-40X VALVE 1 Spare B
7 LC2-M9130-00X DC MOTOR COMB. 1 Conv. Motor B
Main Conveyor-2
1
1
No. Part No. Part Name Q'ty Remarks Rank
1 LC2-M653H-00X SENSOR, ENT. 2 Ent. & Exit Spare B
7
Maintenance Parts
DEC./2003
Conveyor

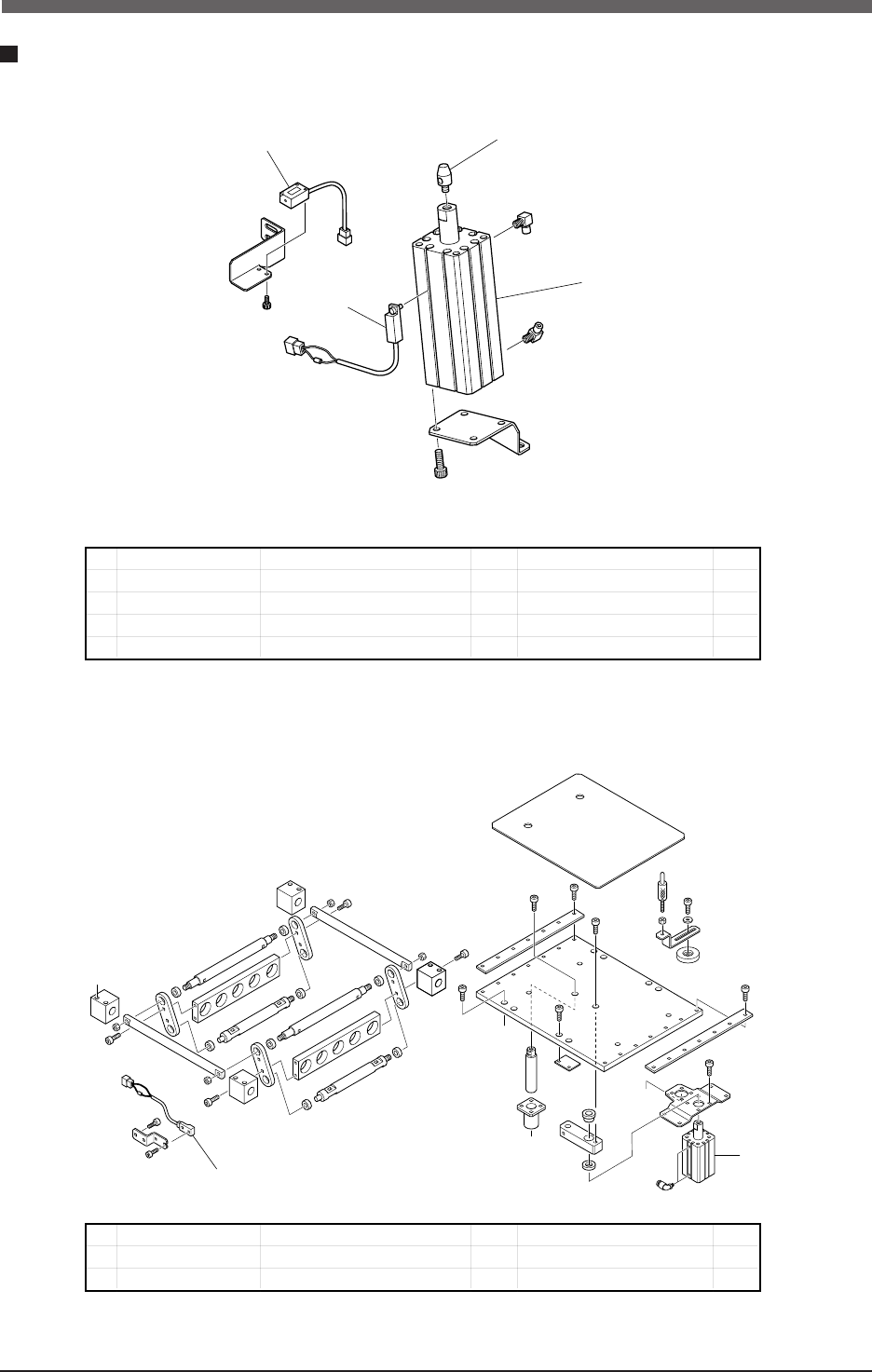

Main Stopper
4
3
2
1
No. Part No. Part Name Q'ty Remarks Rank
1 LC2-M9162-01X CYLINDER 1 B
2 LC2-M9161-00X STOPPER 1 B
3 LC2-M653F-00X SENSOR, 3 ASSY 1 B
4 LC2-M653K-00X SENSOR, SET POSITION 1 B
Push Up
A
A
B
B
1
2
No. Part No. Part Name Q'ty Remarks Rank
1 LC2-M653G-00X SENSOR ASSY 1 B
2 LC2-M9209-00X CYLINDER 1 B
8
Maintenance Parts
DEC./2003

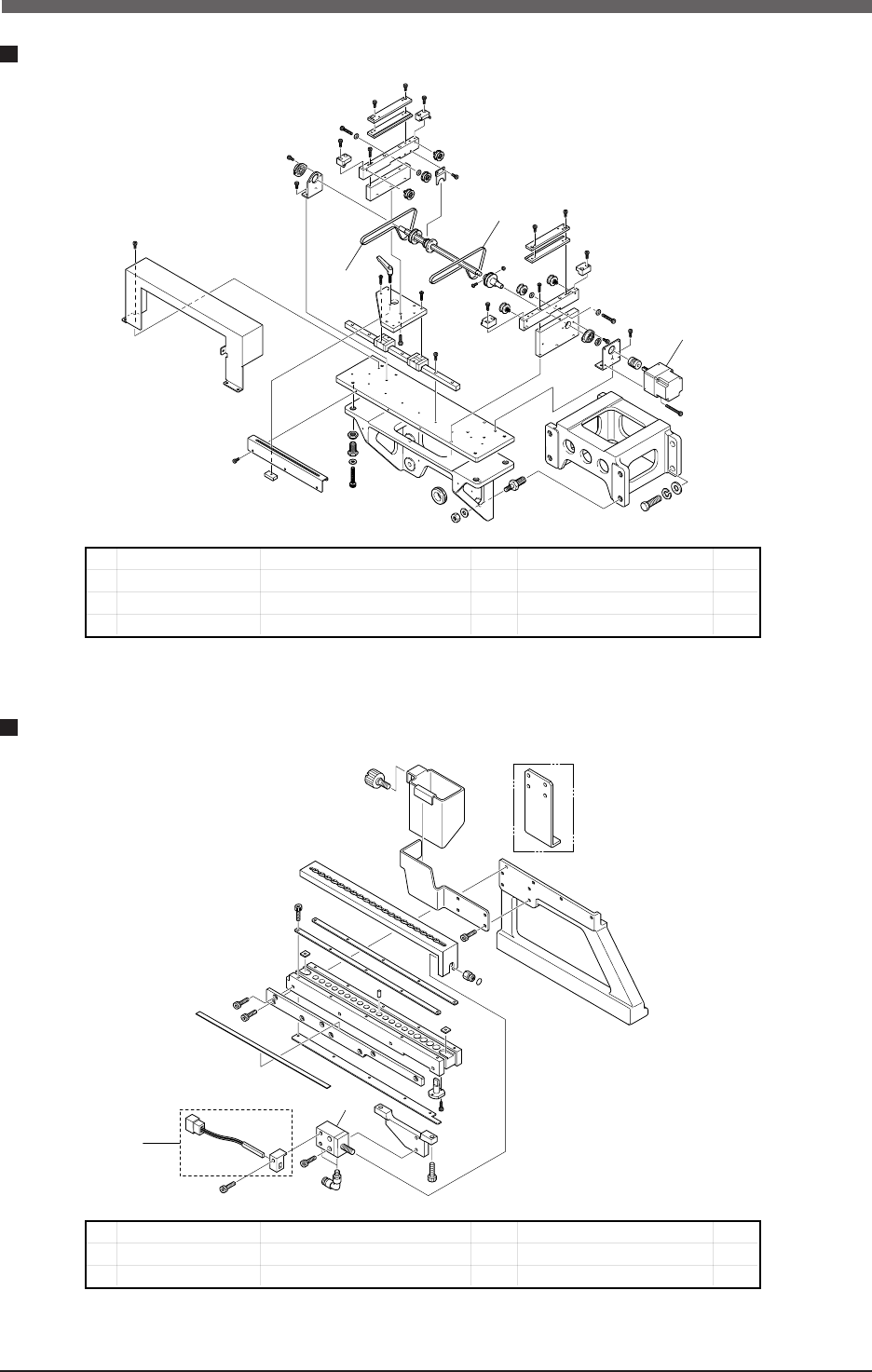

ANC Station (Option)
1
2
No. Part No. Part Name Q'ty Remarks Rank
1 LC2-M653N-00X SENSOR 10 ASSY 2 B
2 LC2-M9603-00X CYLINDER 1 BDAS10x5 B
Conveyor
Extention Conveyor (Option)
1
2,3
2,3
No. Part No. Part Name Q'ty Remarks Rank
1 LC2-M9130-00X DC MOTOR COMB. 1 B
2 LC2-M9545-00X BELT 2 L=200MM A
3 LC2-M9555-00X BELT 2 L=400MM A
