InJet ® 888 CRD – 2F TECHNICAL DATA SHEET 5 www.dct.cleaning INSTALLATION REQUIREMENTS FRONT VIEW TOP VIEW RIGHT VIEW 1620 mm 63.8 in 1340 mm 52.8 in 1960 mm 77.7 in 170 mm 6.69 in discharge of the fluids G 1“ input el. …
InJet
®
888 CRD – 2F
TECHNICAL DATA SHEET
4
www.dct.cleaning

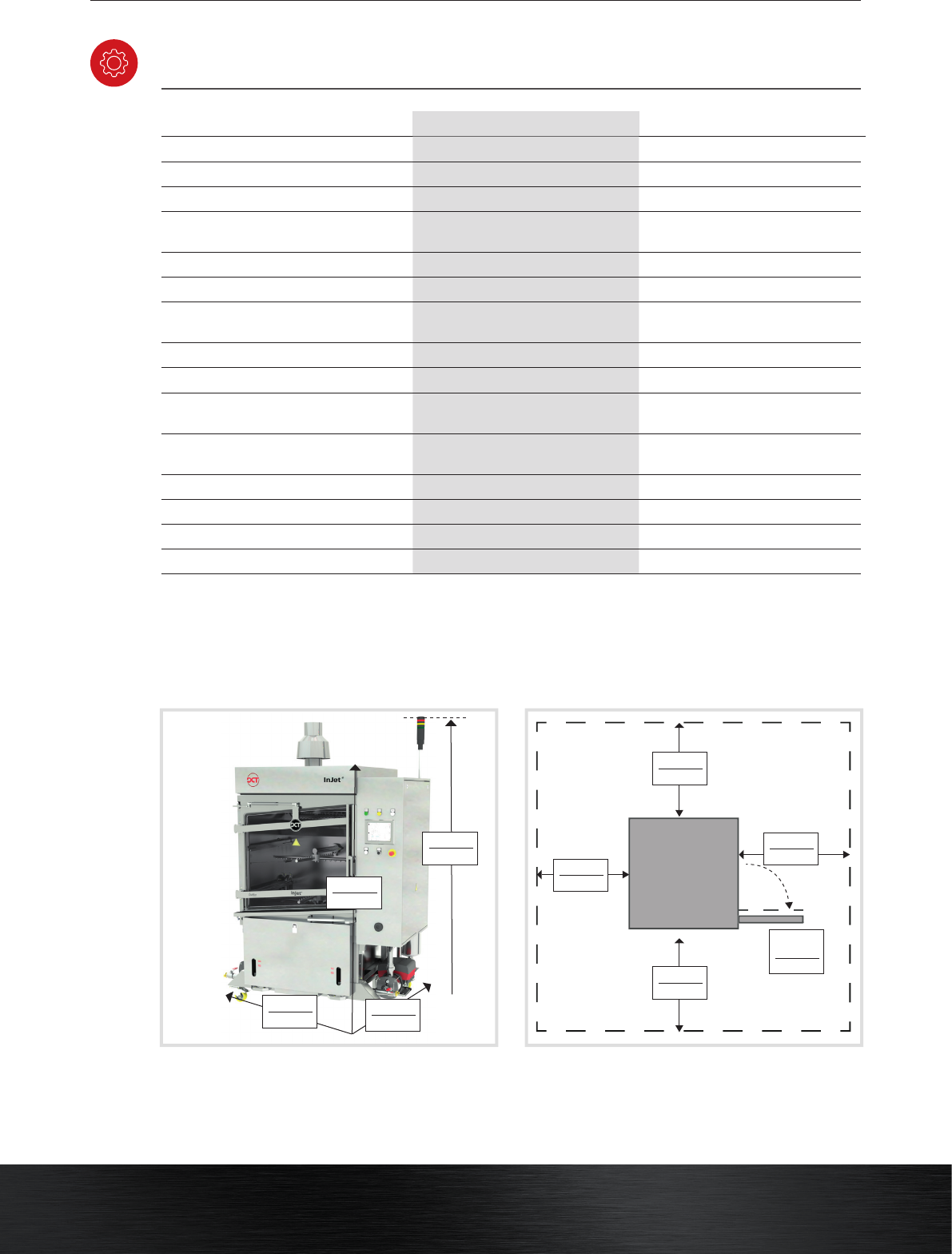

TECHNICAL PARAMETERS
DIMENSIONS
MINIMUM SERVICE SPACE
AROUND THE MACHINE
1960 mm
77.7 in
1350 mm
53.1 in
1620 mm
63.8 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
1200 mm
47.2 in
open door
1000 mm
39.4 in
metric units imperial units
Dimensions (w x l x h) 1620 X 1350 X 2350* mm 63.8 x 53.1 x 92,5* in
Weight 680 kg 1500 lbs
Ø energy consumption per cycle 3,3 kWh 3.3 kWh
Cleaning and rinsing uid consumption
per cycle
0,2 – 0,5 l 0.05 – 0.13 gal
Compressed air consumption per cycle 1200 l / cycle / 4,5 bar 317 gal / cycle / 4,5 bar
Max. dimensions of the cleaned parts ** 850 x 800 x 600 mm 33.46 x 31 x 22.7 in
Exchangeable mechanical lter of cleaning
and rinsing uid
5 – 200 μm 5 – 200 μm
Operating pressures frequency converter 1,8 Bar 26.1 PSI
Cleaning uid ow rate 210 l / min 55.5 gal / min
Temperature range setting of the cleaning
and rinsing uid
From ambient temperature to 60°C From ambient temperature to 140°F
Conductivity range settings of the rinsing
uid in the tanks.
0 – 2000 μS/cm * optional 0 – 2000 μS/cm * optional
Temperature range setting of the drying From ambient temperature to 80°C From ambient temperature to 176°F
Noise level < 70 dB < 70 dB
Device control PLC + 8,4“ touchscreen PLC + 8.4“ touchscreen
Volume of the storage tanks 85 l 22,4 gal
* Maximum dimension in operation condition
** The maximum height of the board, if the basket has 2 oors, is 210 mm at a loading angle of 10°.
2350 mm
92.5 in
InJet
®
888 CRD – 2F
TECHNICAL DATA SHEET
5
www.dct.cleaning

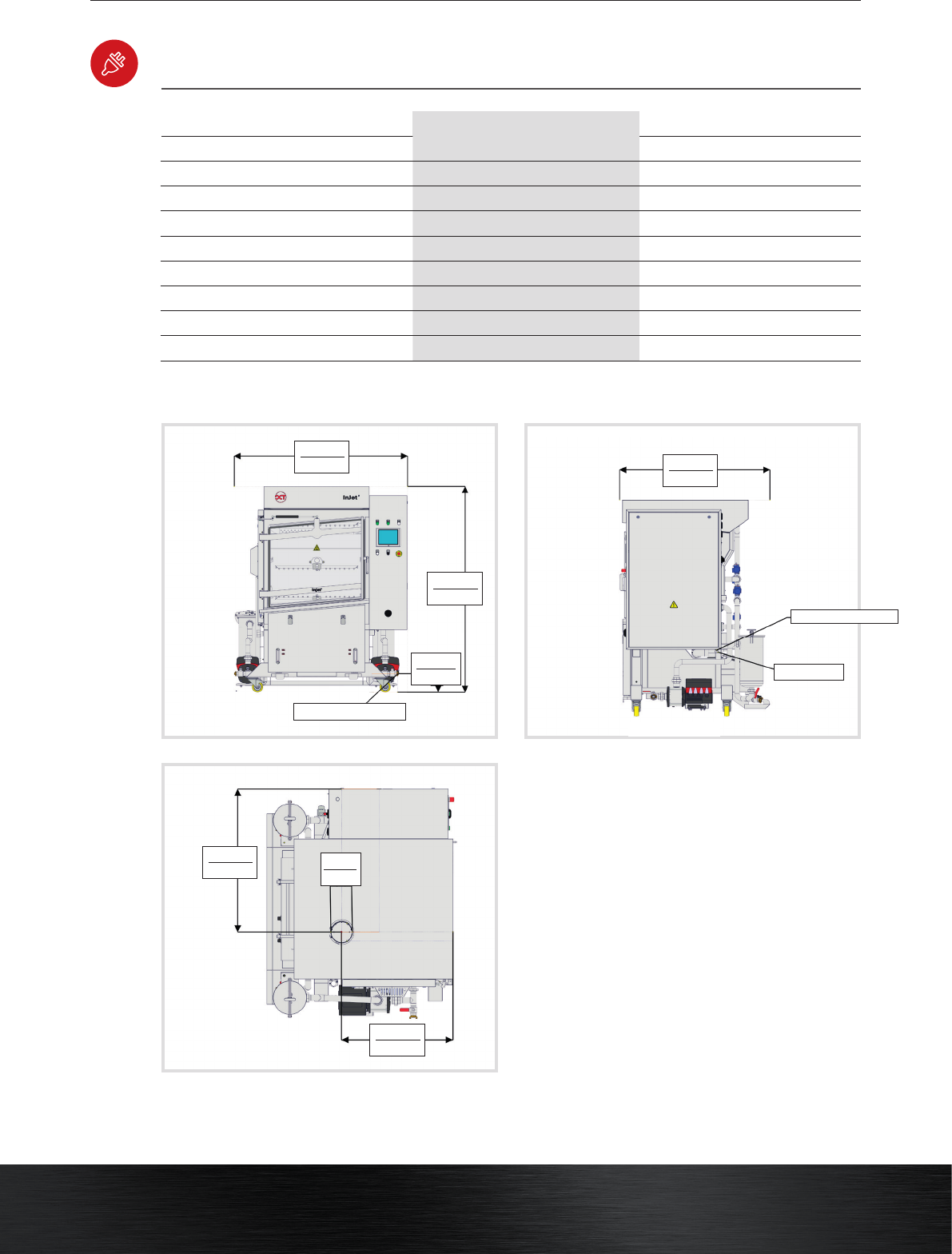

INSTALLATION REQUIREMENTS
FRONT
VIEW
TOP
VIEW
RIGHT
VIEW
1620 mm
63.8 in
1340 mm
52.8 in
1960 mm
77.7 in
170 mm
6.69 in
discharge of the fluids G 1“
input el. power
input compressed air G 1“
1005 mm
39.6 in
780 mm
30.7 in
Ø 150 mm
ID 5.91 in
metric units imperial units
Power supply 400V, 32A, 50Hz (3+N+PE) UL 400V, 32A, 60Hz* (3+N+PE)
Pmax 12 kW 12 kW
Compressed air connection Pipe Ø 6 mm, Ø 10 mm Pipe ID 0.24 and ID 0.39 in
Recommended working pressure 4,5 – 6 Bar 65.25 – 87 PSI
Compressed air quality 3. Class ** 3. Class **
Exhaust pipe diameter Ø 150 mm ID 5.91 in
Exhaust pipe capacity 380 m
3
/h 13400 ft
3
/h
Minimum liquid for rst run 2 x 75 l 2 x 19.8 gal
Service space required around the device 600 mm 23.6 in
* When using frequency convertor
** According to the norm ISO 8573-1
InJet
®
888 CRD – 2F
TECHNICAL DATA SHEET
6
www.dct.cleaning
STANDARD HARDWARE EQUIPMENT
STANDARD SOFTWARE EQUIPMENT
1 process chamber – fully automatted solution
100% closed loop uid system
4 arm rotation – electric powered
cleaning and rinsing uid heating
High-capacity mechanical ltration on all cycles
2 hot air blowers – drying
Chimney ap – electronically controlled
Pneumatic door lock
Emergency stop button
Manipulation wheels – lockable
Conection ready for external sandwich ltration
PLC controller + 8,4" touchscreen display
Spare parts (base kit)
Electronic process cycle counter
Electronic monitoring of uid pressure
Adjustable pump pressure cleaning/rinse process
3 levels of logging – operator, maintenance, engineer
Spraying uid pressure - continuous measurement
Standard software language mutation – CZ, ENG
Liquid and lter replacement notication – cycle counting
Possibility of 5 programs – setting option
Smart warning – low or high pressure level
Smart warning – low uid level
