42 MODEL FP-G300 R 0702-002 P ＆ P L 軸 P ＆ P L AXIS Fig. FF-1 L 軸駆動部 L Axis Driver Section 6 4 1 1 3 18 19 9 10 10 32 1 2 8 20 5 7 12 15 17 16 14 57 . 69 . 74 61 63 58 . 69 . 74 54 . 68 . 73 51 . 66 . 71 52 . 66 . 71 63 5…
41
MODEL FP-G300R
0702-002

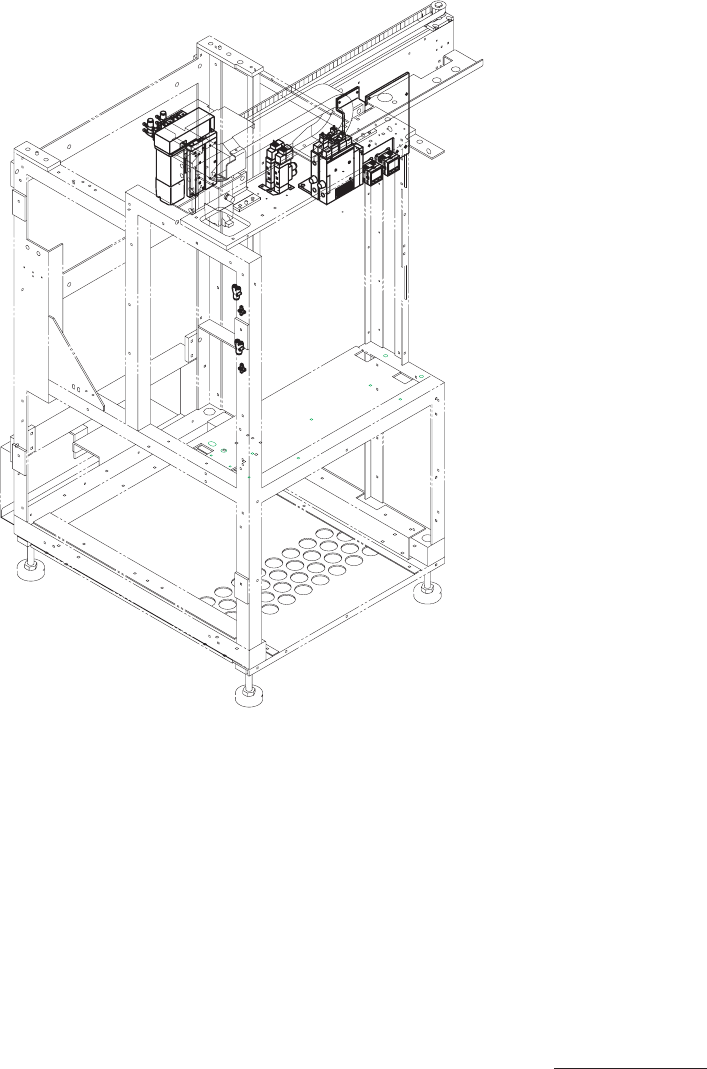

Fig. FF P
＆
P
L
軸
P
＆
P L AXIS
42
MODEL FP-G300R
0702-002
P
＆
P
L
軸
P
＆
P L AXIS
Fig. FF-1 L
軸駆動部
L Axis Driver Section
6
4
11
3
18
19
9
10
10
32
1
2
8
20
5
7
12
15
17
16
14
57
.
69
.
74
61
63
58
.
69
.
74
54
.
68
.
73
51
.
66
.
71
52
.
66
.
71
63
59
.
70
.
75
60
.
67
.
72
61
55
.
68
.
73
53
56
62
61
8
60
.
67
.
72
61
43
MODEL FP-G300R
1012-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
1 6301394732 BASE 1 806FF-110-101 210A2429
2 6301469324 BASE(TOP) 1 806FF-110-102 210A2584
3 6301388250 GUIDE,LINEAR 1 806FF-110-103 222L0751
4 6301386652 BALL SCREW 1 806FF-110-104 223B0371
5 6301388267 BEARING,UNIT 1 806FF-110-105 222F0097
6 6301388243 HOLDER(BS NUT) 1 806FF-110-106 216B1534
7 6301387710 PULLEY,TIMING 1 806FF-110-107 223Q0610
8 6301194554 BOLT 2 806FF-110-108 221E0274
9 6301391076 BRACKET 1 806FF-110-109 21
1F9978
10 6300941654 SENSOR,PHOTO 2 B0501,B0502
806FF-110-110
23G10068
11 6301404684 PLATE(DOG) 1 806FF-110-11
1 211DB045
12 6301393063 MOTOR,AC-SERVO 1 M5 806FF-110-1
12 4M150225
14 6301387727 PULLEY,TIMING 1 806FF-110-114
223Q0611
15 6301391052 BRACKET(MOTOR) 1 806FF-110-115
211F9977
16 6301388274 BELT,TIMING 1 806FF-110-116
223L0295
17 6301469331 COVER 1 806FF-110-117
211AA876
18 6301391380 SPACER 1 806FF-110-118
211E0933
19 6301391397 PLATE 1 806FF-110-119
211DA814
20 6301388694 BRACKET 1 806FF-110-120 21
1F9947
32 6301391236 PLATE 1 806FF-110-132 21
1DA813
51 6300123791 BOLT,HEX-SCT 2 M2.5X5 221A0150
52
6300007473 BOLT,HEX-SCT 4 M2.5X8 221A0002
53
6300007510 BOLT,HEX-SCT 3 M3X8 221A0006
54
6300007534 BOLT,HEX-SCT 4 M3X12 221A0008
55
6300007558 BOLT,HEX-SCT 4 M3X16 221A0010
56
6300007589 BOLT,HEX-SCT 2 M3X30 221A0013
57
6300007626 BOLT,HEX-SCT 2 M4X10 221A0017
58
6300007633 BOLT,HEX-SCT 4 M4X12 221A0018
59
6300007756 BOLT,HEX-SCT 2 M5X12 221A0030
60
4110406202 SCR PAN 3X10 4 M3X10 PAN 221E0488
61 4110505004 SCR TRS 3X6 8 M3X6 TRS 221E0529
62 4110022600 SCR FLT 3X6 2 M3X6 FLT
221D0224
63 6300008883 SET SCREW 6 M3X4 SET 221C0001
66 4111416606 WASHER SPR 2.5 6 SW2.5 221H0279
67
4110864408 WASHER SPR 3 4 SW3 F 221H0280
68
4111412806 WASHER SPR 3 8 SW3 221H0281
69
4111412905 WASHER SPR 4 6 SW4 221H0284
70
4111416705 WASHER SPR 5 2 SW5 221H0287
71
4111413803 WASHER V 2.5X6.5X0.5 6 FW2.5 221H0310
72
4111191909 WASHER V 3X7X0.5 4 FW3 F 221H0311
73 4111413902 WASHER V 3X7X0.5 8 FW3 221H0312
74
4111414008 WASHER V 4X9X0.8 6 FW4 221H0315
75
4111414107 WASHER V 5X10X1 2 FW5 221H0318
FF-1
