Standard Nozzle Part # PEEK Nozzle Part # Description Orifice Geometry Ball Size Standard fluid body assembly 7361725 n/a Fluid body assembly 50 µm E 3.0S 7362574 7363321 Fluid body assembly 50 µm E 3.0S 7362575 7363322 Fl…
Step 4. Select your extension cables for
connection to the PICO
®
Toµch
™
Controller
Choose either 0.6 m, 2 m, 6 m, or 9 m extension cable sets that
include both power and communication cables.
Do not exceed the maximum extension cable length of 9 m (30 ft).
Doing so will adversely affect communication between the valve
and the controller.
Step 1. Select your piezo actuator
Heavy duty actuator for high-duty use in noncontact dispensing
applications.
Step 2. Select your fluid body assembly
A wide range of uid body assemblies are available with
at or extended nozzles in seat orice sizes ranging
from 50–600microns with a choice of Type D and Type
E geometries to meet the exacting requirements of your
applications. Fluid body assemblies with PEEK* wetted
parts are available for reactive adhesives, such as
anaerobics.
Serial numbers make it easy to identify matched sets of
cartridges and uid bodies. Etched lines make it easy to
align the cartridge and uid body quickly and accurately
for optimal performance.
*Polyetheretherketone
Step 3. Select your fluid inlet fitting
Choose from a variety of uid inlet ttings including luer lock,
barb, and compression tting types to match the uid reservoir
type selected. Nordson EFD offers a complete selection of
reservoirs from 3cc to 70cc Optimum
®
syringe barrels and
cartridges to tank reservoir systems.
3
PICO
Pµlse
Jet Valve Technology
Congure your modular, exchangeable PICO
Pµlse
jet dispensing valve in four easy steps.
Standard
Nozzle Part #
PEEK
Nozzle Part #
Description Orifice Geometry Ball Size
Standard fluid body assembly
7361725 n/a Fluid body assembly 50 µm E 3.0S
7362574 7363321 Fluid body assembly 50 µm E 3.0S
7362575 7363322 Fluid body assembly 100 µm D 3.0S
7362576 n/a Fluid body assembly 200 µm D 3.0S
7362577 7363324 Fluid body assembly 50 µm E 5.0S
7362578 7363325 Fluid body assembly 100 µm E 5.0S
7362579 7363326 Fluid body assembly 150 µm E 5.0S
PEEK fluid body assembly
7362580 7363327 Fluid body assembly 300 µm E 5.0S
7362581 7363328 Fluid body assembly 100 µm D 5.0S
7362582 7363329 Fluid body assembly 150 µm D 5.0S
7362583 n/a Fluid body assembly 200 µm D 5.0S
7362584 7363331 Fluid body assembly 300 µm D 5.0S
7362585 7363332 Fluid body assembly 400 µm D 5.0S
7362586 7363333 Fluid body assembly 600 µm D 5.0S
4
PICO
Pµlse

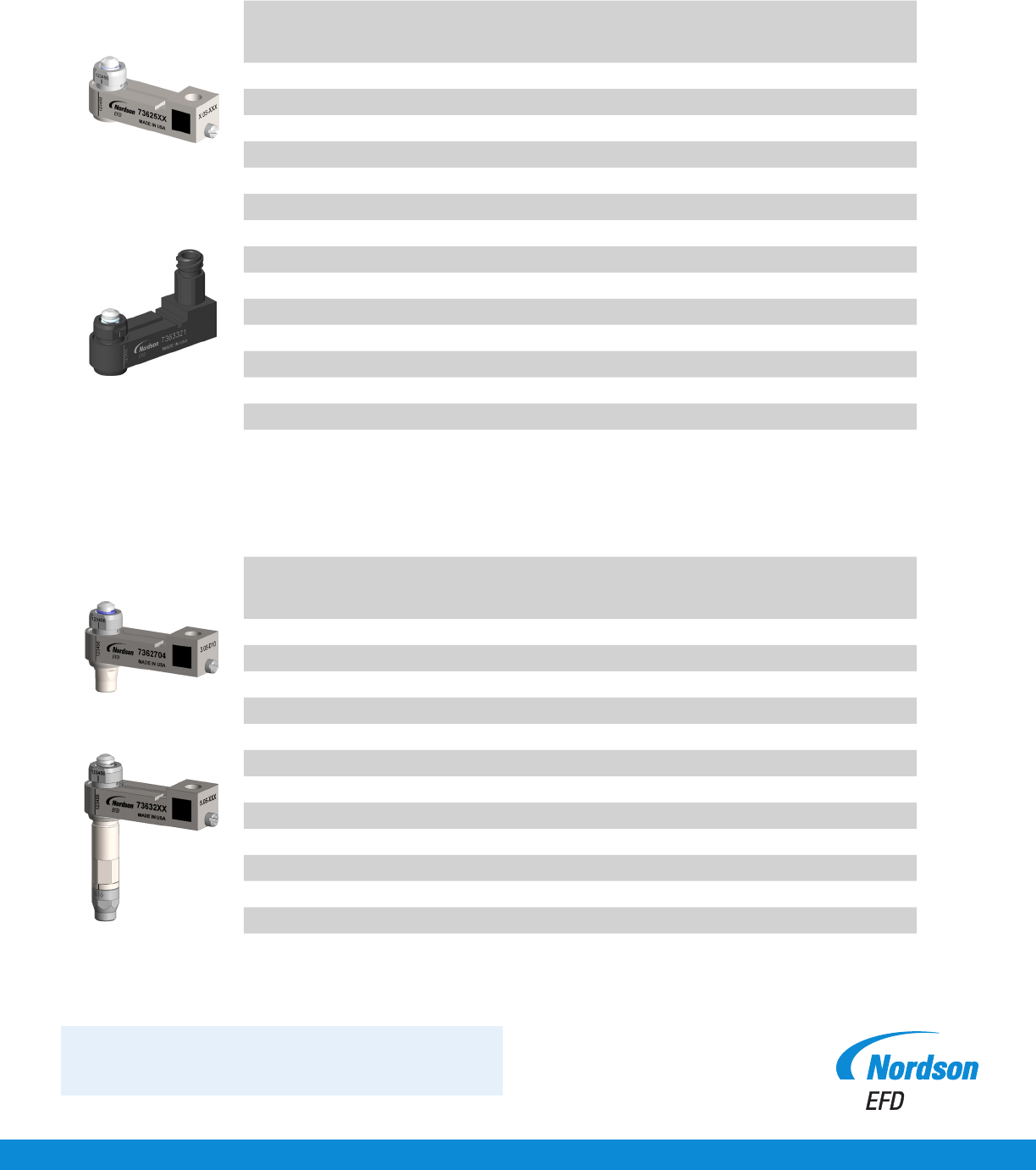

Modular, Exchangeable System Parts
Partial listing of exchangeable components only. Consult EFD for full listing of available parts.
Flat Nozzle Fluid Body Assemblies
Extended Nozzle Fluid Body Assemblies
P7 fluid body assembly
P7*
Nozzle Part #
P30**
Nozzle Part #
Description Orifice Geometry Ball Size
7362703 n/a Fluid body assembly 50 µm E 3.0S
7362704 n/a Fluid body assembly 100 µm D 3.0S
7362705 n/a Fluid body assembly 200 µm D 3.0S
7362706 7363238 Fluid body assembly 50 µm E 5.0S
7362707 7363239 Fluid body assembly 100 µm E 5.0S
P30 fluid body assembly
7362708 7363240 Fluid body assembly 150 µm E 5.0S
7362709 7363241 Fluid body assembly 300 µm E 5.0S
7362710 7363242 Fluid body assembly 100 µm D 5.0S
7362711 7363243 Fluid body assembly 150 µm D 5.0S
7362712 7363244 Fluid body assembly 200 µm D 5.0S
7362713 7363245 Fluid body assembly 300 µm D 5.0S
7362714 7363246 Fluid body assembly 400 µm D 5.0S
7362715 7363247 Fluid body assembly 600 µm D 5.0S
*P7 nozzles extend 7 mm from the standard at nozzle length.
**P30 nozzles extend 30 mm from the standard at nozzle length.
A Nordson EFD application specialist will help select the best
uid body assembly for optimal dispensing performance.
5

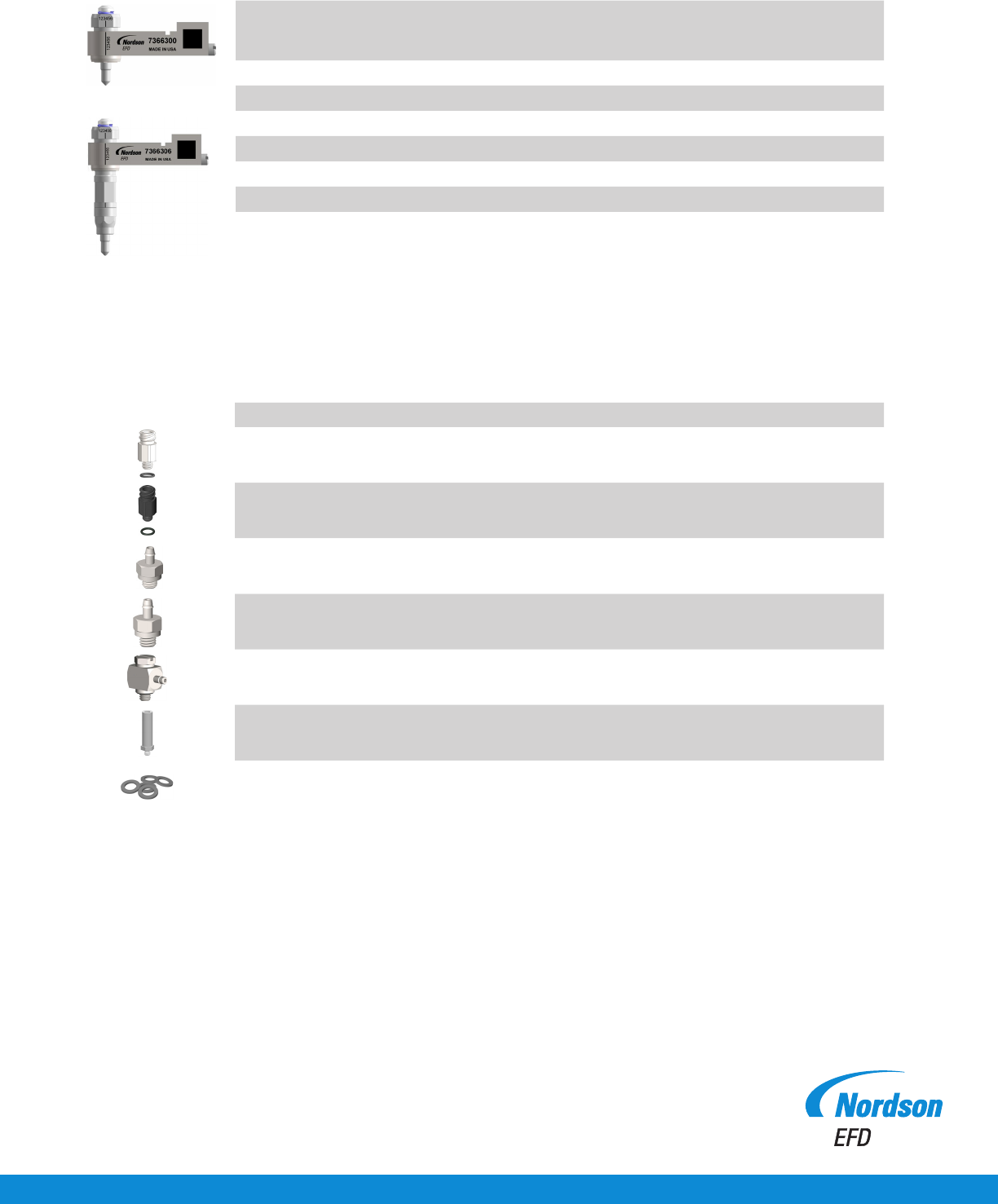

Fluid Inlet Fittings
Part # Description
7362606
Fitting: M5 x female Luer lock, straight, stainless steel (includes Viton
®
O-ring)
7361303: O-rings: 5 x 1 mm, Viton, 10 pc
7361681: O-rings: 5 x 1 mm, FFKM, 3 pc
7363340
Fitting: M5 x female luer lock, straight, PEEK (includes FFKM O-ring)
7361303: O-rings: 5 x 1 mm, Viton, brown, 10 pc
7361681: O-rings: 5 x 1 mm, peruoroelastomer (FFKM), black, 3 pc
7020669 Fitting: M5 x 3/32" ID barb, stainless steel
7020671 Fitting: M5 x 1/8" ID barb, stainless steel
7020673 Fitting: M5 x 1/8" ID barb, stainless steel, elbow
7361498 Fitting: M5 x 35 mm male-female extension, stainless steel
7361645 Flat washers, M5 tting, EPDM, 10 pc (for legacy M5 ttings)
Extended Cone Nozzle Fluid Body Assemblies
P7*
Nozzle Part #
P30**
Nozzle Part #
Description Orifice Geometry Ball Size
7366300 n/a Fluid body assembly 50 µm E 3.0S
7366301 n/a Fluid body assembly 70 µm E 3.0S
7366302 n/a Fluid body assembly 50 µm E 5.0S
7366303 7366306 Fluid body assembly 70 µm E 5.0S
7366304 7366307 Fluid body assembly 100 µm E 5.0S
7366305 7366308 Fluid body assembly 150 µm E 5.0S
*P7 nozzles extend 7 mm from the standard at nozzle length.
**P30 nozzles extend 30 mm from the standard at nozzle length.
P7 cone nozzle fluid body assembly
P30 nozzle cone fluid body assembly
